Summary of Contents for Crosswater Heir US-HEI9005CW-SF

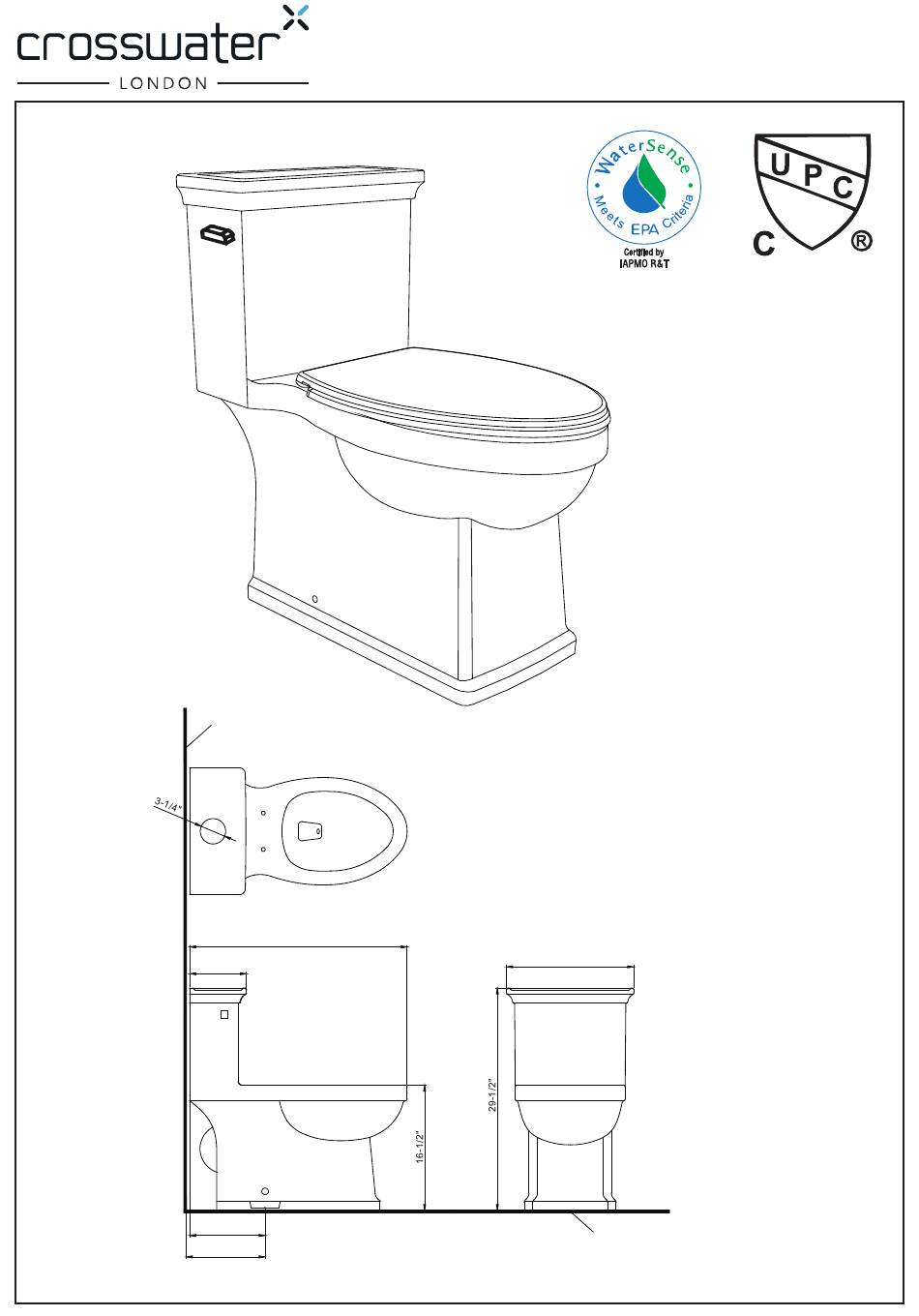

- Page 1 Heir One-piece Single-flush Toilet US-HEI9005CW-SF Finished Wall 28-1/2" 16-1/4" 7-1/4" 11" Finished Floor 12"~11" US-HEI9005CW-SF 1 - 6...
-
Page 2: Installation Instructions
Installation Instructions PARTS SUPPLIED: Check to make sure that all these parts are included in the package: Nut - qty. 2 Clip - qty. 2 Bolt - qty. 2 Protector sleeve Screw - qty. 2 Washer - qty. 2 Cap - qty. 2 qty. - Page 3 Figure 1 1) Clean any debris out of the closet flange (not supplied), then install the mounting bolts into the slot of the flange head down with the threaded shank of the bolt pointed upward as shown (See figure 1). Slide each bolt until the end of slot.
- Page 4 After Installation/Adjustment Figure 5 Flush the toilet two to three times to confirm there is no water leakage and that the lever mechanism is working properly. 6) Connect the opposite end of the water supply hose to the angle stop (see Figure 5). A flexible supply hose is recommended.
-
Page 5: Troubleshooting Guide
Refill Clip Install The refill tube must be attached to the top of the overflow pipe. Push refill tube onto the nipple at the top of overflow pipe. Then attach the other end refill tube to the nipple of the fill valve. he rubber hose Connect the flapper chain to the tank lever. - Page 6 Do not use in-tank cleaners as they can seriously damage the fittings in the tank. This damage could cause leakage and result in property damage. Crosswater London shall not be responsible or liable for any damage that occurs as a result of the use of in-tank cleaners.
-
Page 7: Installation Notes
Soft Close, Quick Release Solid Molded Seat US -SEATU2 Installation Instructions Introduction Installation notes IMPORTANT: Please read these instructions carefully before you Before installation, please check that all parts have been supplied begin and retain for future reference. These instructions have and are undamaged. -
Page 8: Installation
Installation DO NOT over tighten. Before attaching the seat, move the mounting base so that the posts align with holes in the back of the seat. Once aligned, carefully lower the seat (holes) onto the mounting post. - Page 9 Installation Once satisfied with the position, fully tighten the screws. When mounting the seat make sure the posts align with holes To remove the seat, press the quick release button (you should in the back of seat. And carefully lower seat back into place hear a “click”) (“click”...
-
Page 10: Cleaning Instructions
Warranty - Crosswater London toilet seats are covered by a one-year warranty. For full details, terms and conditions please visit our website. For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757 www.crosswaterlondon.com...
