Ressa

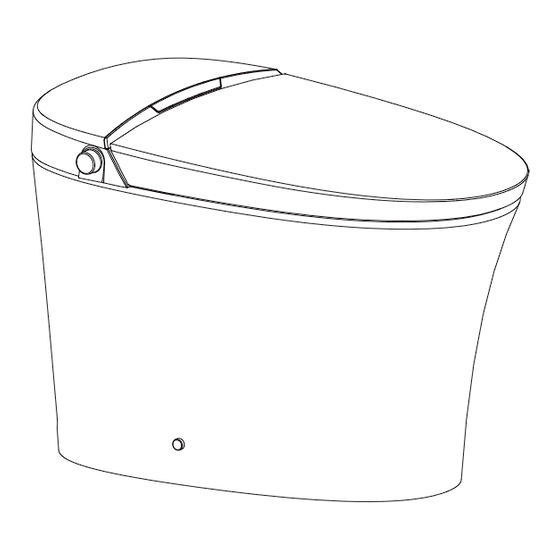

Spa Toilet
US-RS100W
INSTALLATION MANUAL
Thank you for your purchase of the Ressa Spa Toilet. We are committed to providing
exceptional service. Please contact us at any time should you have questions about your
products.
Please read the instructions carefully before installation and keep available for future
maintenance or reference.
Advertisement
Table of Contents
Related Manuals for Crosswater Ressa X1
Summary of Contents for Crosswater Ressa X1
- Page 1 Ressa Spa Toilet US-RS100W INSTALLATION MANUAL Thank you for your purchase of the Ressa Spa Toilet. We are committed to providing exceptional service. Please contact us at any time should you have questions about your products. Please read the instructions carefully before installation and keep available for future maintenance or reference.
-
Page 2: Table Of Contents
Content Safety instructions Technical specification List of materials Technical drawing Parts identification Installation of ceramic toilet Preparation aintenance Main unit care and maintena ce Spray nozzle maintenance aintenance 5. Battery replacement 6. Replacing the deodorant box Description of the knob function Remote control illustration Troubleshooting uide... - Page 3 IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- Page 4 Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the product to a service center for examination and repair. Keep the cord away from heated surfaces.
-
Page 5: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Indicates that failure to follow the instruction may cause bodily injury or CAUTION – property damage. Do not install or use the product in wet places as steam room etc. It is recommended to use a waterproof electrical outlet which should be nstalled in a place where is not wet. - Page 6 11. L'exposition directe au soleil est interdite. 12. Utilisez uniquement de l'eau du robinet ou de l'eau potable, sinon vous risquez de causer des éraflures. 13. Ne raccordez pas l'alimentation en eau à la sortie de l'appareil de chauffage. S'assurer que la température de l'eau d'entrée est comprise entre 3~35℃/37.4~95℉.
-
Page 8: Technical Specification
Technical Specifications Model US-RS100W Rated voltage 110V-120V, 60Hz Rated power 865W Main Unit Overall unit Waterproof IPX4 Electrical wire Flush volume 1.28G 4.8L Flushing mode Siphonic jet Toilet Rough-in distance 12" Water pressure range 0.18MPA - 0.8MPA (static pressure) Heating mode Instant Heating power 1400W... -
Page 9: List Of Materials
393 Fortune Blvd, Milford, MA, 01757 USA 1.844.992.8371 Exclusive North American distributor for Crosswater London fortebrands.com Thank you for your purchase of the Ressa Spa Toilet. We are committed to providing exceptional service. Please contact us at any time should you have questions about your products. -
Page 10: Technical Drawing
Technical drawings 1. Recommended power outlet location 12"(305mm) "(425mm) recommended power "(410mm) outlet location 12"(305mm) 2. Recommended water supply location " Water supply "-14 NPT (250±10mm) For water supply from the wall 6-7/8" (175±10mm) " 2-3/8" (60±10mm) (250±10mm) Rough in 12"... -
Page 11: Parts Identification
Parts identification Left side Bumper Seat Knob Ceramic toilet Right side Drying shield Rear cleaning Sensor Front cleaning Spray nozzle... -
Page 12: Installation Of Ceramic Toilet
Installation of ceramic toilet Precaution before installing 2. Installation of battery box Minimum static working water pressure: Before activating the power-off flushing 0.18MPa (5.81Gal(22.0L)/min), failure to function, install a 9V alkaline battery (not meet this pressure will not achieve the best supplied) into the battery box in advance. - Page 13 3. Hose 5. Ceramic toilet installtion Connect the water inlet and angle valve of the toilet with the matching hose and tighten it Angle valve connector Inlet connector Toilet drain outlet Sealing flange Important: Two people are required to carry the toilet. 6.
- Page 14 7. Remote control installation Step 1: Fix the holder onto the wall by using screws or tape as shown in below diagrams. Step 2: AAA batteries Step 3: Put remote control into the holder. into the remote control. Don't install and use the product in damp places such as shower room. Don't install and use the product in damp places such as shower room.
-
Page 15: Preparation
Preparation 1. Turn on the angle valve Angle valve Tips: Indicator light REMETTRE Press electric leakage test button prior to Reset switch usage, the reset switch pops up indicating RESET Electric leakage that the leakage protection function is normal. test button TEST WARNING: Press the TEST button (then RESET button) -
Page 16: Aintenance
aintenance Spray nozzle Main unit care and maintenace 1. Shut off power supply before 1. Nozzle self-cleaning doing maintenance. To start the manual cleaning function, when not seated, rotate the knob clockwise. The nozzle will automatically extend out. 2. Wipe with a soft damp cloth. Use warm water only. - Page 17 Filter Cleaning When the product is left unused for a long time Turn off power and the angle valve 2. Unscrew angle valve nut 3. Disconnect the hose from angle valve, drain the water and reconnect. 4. If needed, seek assistance from a professional plumber for anti-freezing process.
-
Page 18: Aintenance
Battery replacement Replac deodorant box 1. Unplug DC connector and remove the the seat from the toilet. eodorant battery box. box is at the bottom of seat base. Follow below steps to replace a new deodorant 2. Install a new 9V alkaline battery. box. -
Page 19: Description Of The Knob Function
Description of the knob function Knob operation instructions When seated, the knob rotates clockwise to start rear cleaning function, and rotates counterclockwise to start front cleaning function ear and front cleaning function will automatically enter into the drying function after completion. ( Note: default water pressure, water temperature, air temperature, seat temperature, rod position are intermediate) After starting the drying function, clockwise rotation increase... -
Page 20: Remote Control Illustration
Remote control illustration Rear cleaning / Oscillating Water increasing Nozzle moving forward Front cleaning / Oscillating Water reducing Nozzle moving backward Drying Auto mode 1 Auto mode 2 Indicator light Stop/Energy saver (only visible when the light is on) Dryer temperature Water temperature Seat temperature Night light... - Page 21 Auto mode The system can store two kinds of User settings: Auto mode 1 and Auto mode 2 Once the desired configuration is set, for instance, water volume and nozzle position, then press and hold the Auto mode 1 or mode 2 button to store the settings. 5 indicators on the remote control will flash 3 times, then the settings stored.
-
Page 22: Troubleshooting Uide
Troubleshooting Guide Problem Cause Solution Straighten the hose to remove Water supply hose is kinked. the kink. Angle valve is not fully turned Poor flushing Turn on the angle valve fully. Filter is dirty. Clean the filter efer to page 15. Angle valve is shut off. - Page 23 Problem Cause Solution Switch to function mode to use No air out In standby mode dry function efer to page 17. Power off Turn on the power. Sit back on the toilet seat. Stuck due to impurities Remove impurities. Spray rod does not or water Press "STOP"...
- Page 24 Problem Cause Solution Night light does not Night light function is "OFF". Set to "ON". work The positive and negative direction of batteries Re-load batteries. Remote control does is incorrect. not work atteries Load new batteries. The drying feature stops automatically after about 5 minutes of continuous use.
- Page 28 Picture of product may not be entirely consistent with actual appearance and color. ASVFAF0145002A-1.0 Issued: May 2023...
