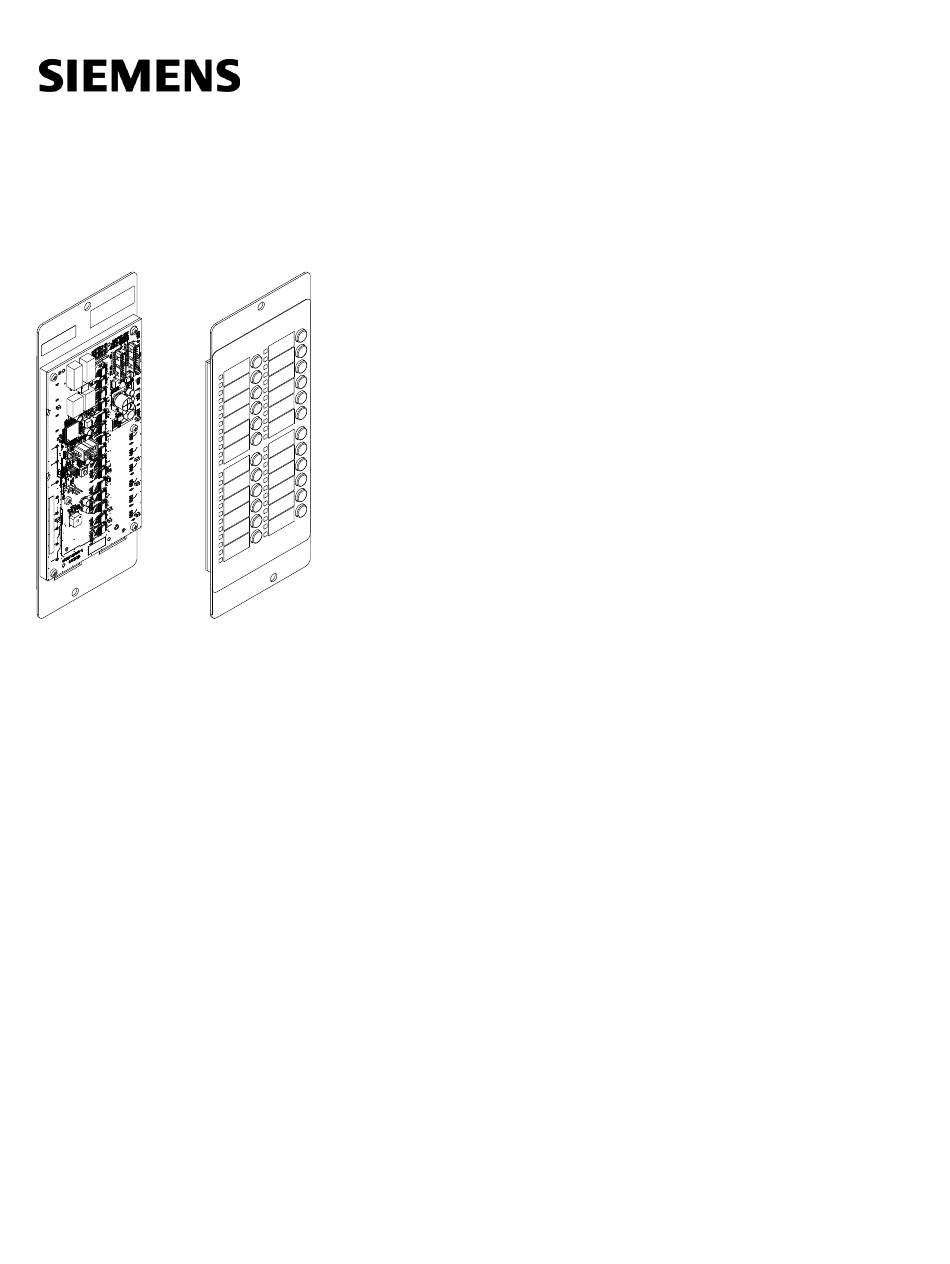

  • Page 1 FTO2023-U2, FTO2023-U3 Switch Module- Fire/Voice Installation Mounting Smart Infrastructure A6V12637772_en--_a 2024-02-14...
  • Page 2: Legal Notice

    Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. Issued by: Siemens Industry, Inc. Smart Infrastructure 2 Gatehall Drive Parsippany, NJ 07054 Tel.
  • Page 3: Table Of Contents

    Table of contents Switch module Fire/Voice FTO2023............Description ..................... Mounting of the 'Switch module – Fire/Voice' FTO2023 ......Wiring ......................CAN bus wiring in the VR2005 remote microphone........CAN bus wiring in the fire voice control panel..........Operating unit with FTO2023 and option module FTO2023 on CAN bus ..Wiring of peripheral data bus in the fire control panel ........
  • Page 4 4 | 28 2024-02-14 A6V12637772_en--_a...
  • Page 5: Switch Module Fire/Voice Fto2023

    Switch module Fire/Voice FTO2023 Description 1 Switch module Fire/Voice FTO2023 1.1 Description The 'Switch Module- Fire/Voice' FTO2023 is a programmable control module with 24 'Zones' and can be installed in a fire control panel, Fire voice control panel or in 'Remote microphone' VR2005 'Panels'. An FTO2023 can be used to indicate events, provide status information, and activate fire/voice functions.
  • Page 6 Switch module Fire/Voice FTO2023 Description ● Each LED may be configured as OFF, flashing, or constantly ON ● Audible confirmation when a button is pressed ● Can be controlled via CAN bus for Fire voice control panels or via peripheral data bus for fire control panels ●...
  • Page 7: Mounting Of The 'Switch Module - Fire/Voice' Fto2023

    Mounting of the 'Switch module – Fire/Voice' FTO2023 2 Mounting of the 'Switch module – Fire/Voice' FTO2023 The mounting procedure for 'Switch Module- Fire/Voice' FTO2023 is the same for all 'Panels'. Fig. 1: Example of the mounting of a 'Switch Module- Fire/Voice' FTO2023 and an FCM2022 option module (empty) in the inner door (shown in rear view) FHD2004 Inner door with window 'Switch Module- Fire/Voice' FTO2023...
  • Page 8: Wiring

    Wiring CAN bus wiring in the VR2005 remote microphone 3 Wiring 3.1 CAN bus wiring in the VR2005 remote microphone The 'Switch Module- Fire/Voice' FTO2023 is wired in the remote microphone VR2005 via the CAN bus. TOP VIEW VTO2004 Fig. 2: Example of the wiring of the 'Switch Module- Fire/Voice' in the housing (1HU) with an option module (Microphone) VTA2001 voice terminal board VTA2001 connector X9, CAN bus...
  • Page 9: Can Bus Wiring In The Fire Voice Control Panel

    Wiring CAN bus wiring in the fire voice control panel Terminating resistor A5Q00055918D on the X205 CAN bus ribbon cable jumper FTO2023 connector X205, CAN bus input from VTA2001 Make all connections with 16-core CAN bus ribbon cables. Mounting references to 'left' and 'right' orientation are as viewed from the rear with the inner door open.
  • Page 10 Wiring CAN bus wiring in the fire voice control panel Fire voice control panel with rear view of the open inner door Fig. 3: Example of the wiring of 6x 'Switch Module- Fire/Voice' FTO2023 and 2x FCM2022 on the FV2050/ FV924 VCA2002 Card Cage Card Cage connector X102 Right-most option module 5 in lower window CAN ribbon cable jumper connecting adjacent 'Switch Module- Fire/Voice'...
  • Page 11 Wiring CAN bus wiring in the fire voice control panel The option module 6 in the lower window (last 'Switch Module- Fire/Voice' FTO2023) Lower inner door 2 x FCM2022 option module (empty) CAN ribbon cable interconnecting the 'Switch Module- Fire/Voice' FTO2023 mounted in the bottom and middle windows Middle inner door Leftmost option module 4 in the middle window Can either be a 'Switch Module- Fire/Voice' FTO2023 as shown, or an 'Option...
  • Page 12: Operating Unit With Fto2023 And Option Module Fto2023 On Can Bus

    Wiring Operating unit with FTO2023 and option module FTO2023 on CAN bus 3.3 Operating unit with FTO2023 and option module FTO2023 on CAN bus The following wiring example shows the peripheral data bus wiring of the 'Switch Module- Fire/Voice' FTO2023 in the operating unit FCM2043 and option modules with FTO2023 on the CAN bus.
  • Page 13 Wiring Operating unit with FTO2023 and option module FTO2023 on CAN bus Fig. 4: Example wiring of the FCM2043 operating unit with additional FTO2023 on the CAN bus VCA2002 Card Cage Card Cage connector X102 Lower inner door Middle inner door A6V12637772_en--_a 2024-02-14 13 | 28...
  • Page 14: Wiring Of Peripheral Data Bus In The Fire Control Panel

    Wiring Wiring of peripheral data bus in the fire control panel Leftmost option module 4 in the middle window Can either be a 'Switch Module- Fire/Voice' FTO2023 as shown, or an 'Option module (Microphone)' VTO2004 (not shown in picture). X204, CAN bus connection A of the first FTO2023 option module X204, open CAN bus connection B of the FTO2023 in the FCM2043 operating unit, A5Q00055918D terminating resistor Peripheral data bus connection on PMI &...
  • Page 15 Wiring Wiring of peripheral data bus in the fire control panel Fig. 5: Example wiring of 4x 'Switch Module- Fire/Voice' FTO2023 in fire control panel FC2050/FC924 Inner door FHD2004 Left option module 'Switch Module- Fire/Voice' FTO2023 Plug connection X203 for last cable jumper Cable jumper from X202 to X203 between the option modules FTO2023 Right option module 4 'Switch Module- Fire/Voice' FTO2023 Plug connection X203 on the right option module for the peripheral data bus...
  • Page 16 Wiring Wiring of peripheral data bus in the fire control panel Periphery board Wiring 1. If only 'Switch Module- Fire/Voice' FTO2023 are mounted in the top window of the inner door (1), connect the peripheral data bus ribbon cable from connector X202 (7) on the periphery board (8) and connector X203 (6) on the right 'Switch Module- Fire/Voice' FTO2023 (5).
  • Page 17 Wiring Wiring of peripheral data bus in the fire control panel Fig. 6: Example view of wiring 6x 'Switch Module- Fire/Voice' FTO2023 in fire control panel FC2050/FC924 Peripheral data bus connection cable from the bottom right option module (X203) to the top left option module (X202) Bottom right option module 'Switch Module- Fire/Voice' FTO2023 Cable jumper from X203 to X202 between the option modules FTO2023 Bottom left option module 'Switch Module- Fire/Voice' FTO2023...
  • Page 18: Operating Unit With Fto2023 On Peripheral Data Bus

    Wiring Operating unit with FTO2023 on peripheral data bus Middle inner door Left option module 'Switch Module- Fire/Voice' FTO2023 in the middle inner door Plug connection X202 for connection cable from the bottom door Right option module 'Switch Module- Fire/Voice' FTO2023 in the middle door Plug connection X203 for the peripheral data bus input Plug connection X202 on the periphery board for the peripheral data bus output to the right option module (X203) in the top door...
  • Page 19 Wiring Operating unit with FTO2023 on peripheral data bus Fig. 7: Example wiring of the FCM2043 operating unit with additional FTO2023 on the peripheral data bus 1 Inner door with max. 4 option 2 Peripheral data bus connection on modules FTO2023 PMI &...
  • Page 20 Wiring Operating unit with FTO2023 on peripheral data bus 7 Peripheral data bus connection (X202) on periphery board to the additional option modules (if present) Wiring of peripheral data bus on the FTO2023 1. Use the 34-pin ribbon cable (5) to connect the PMI & mainboard of operating unit FCM2043 from connector X3 (2) to connector X201 (6) on the periphery board.
  • Page 21: Views

    Views 4 Views Printed circuit board view 'Switch Module- Fire/Voice' X204 X205 X203 X202 S327 S326 H625 H301 X303 X301 S328 Fig. 8: Printed circuit board view of the 'Switch Module- Fire/Voice' FTO2023 Element Des. Function Indicators H301 Status LED for CAN bus H625 Status LED for microprocessor Switches and...
  • Page 22 Views Element Des. Function Connector plug X202 Peripheral data bus connector B and jumper X203 Peripheral data bus connector A X204 CAN bus connector B X205 CAN bus connector A X303 Not used X301 Jumper 'watchdog'; default: position 'ON' The plugs for the CAN bus and the peripheral data bus are looped through and interchangeable according to the wiring diagrams.
  • Page 23: Indication Elements

    Indication elements 5 Indication elements Status indications Color Condition Meaning H301 Yellow CAN bus status: Normal operation. Note: The LED only indicates the status of CAN bus communication. The LED is always off if CAN bus communication is not in use. Constantly on CAN bus status: Error.
  • Page 24: Adjustment Elements

    Adjustment elements 6 Adjustment elements The addresses for the CAN bus and peripheral data bus are set using the two DIP rotary switches S326 and S327. ● S326: For ONES digits, right switch ● S327: For TENS digits, left switch Use a small flat-tip screwdriver to set the address.
  • Page 25: Technical Data

    Technical data 7 Technical data Supply input Voltage DC 24 V Curent Standby: 17 mA (no LED activated) Active: 17 mA + 2.6 mA per LED Max. 143 mA Supply output Voltage DC 24 V Curent Looped, max. 1 A LEDs Quantity 24 zones, each with: ● 1 x multi-color ● 1 x yellow ● 1 x yellow in button Buttons Quantity...
  • Page 26: Fcc Statement

    FCC Statement 8 FCC Statement WARNING Installation and usage of equipment is not in accordance with instructions manual Radiation of radio frequency energy Interference to radio communications ● Install and use equipment in accordance with instructions manual. ● Read the following information. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, may cause interference to radio communications.
  • Page 27 A6V12637772_en--_a 27 | 28...
  • Page 28 Issued by Siemens Industry, Inc. Smart Infrastructure 2 Gatehall Drive Parsippany, NJ 07054 +1 973-593-2600 www.usa.siemens.com/fire © Siemens, 2024 Technical specifications and availability subject to change without notice. A6V12637772_en--_a...
