Xiaomi Mini ASM01G Manual

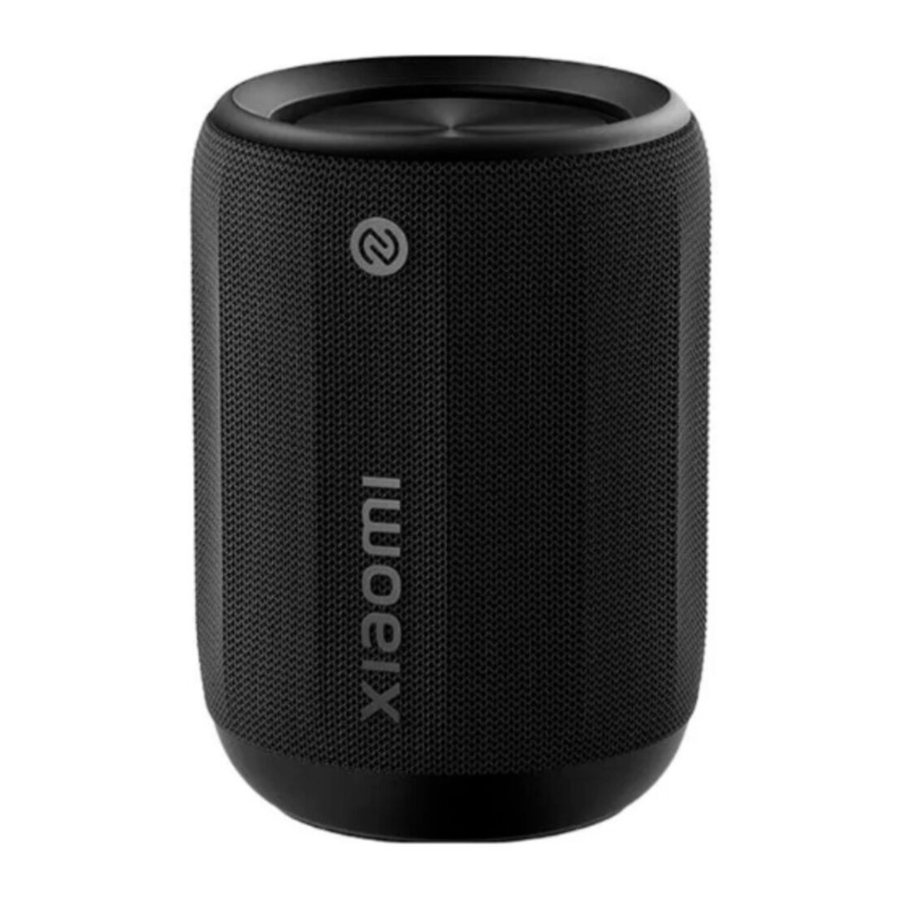

Product Overview

Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

Package Contents

How to Use

Multi-function button

• Press to play or pause music.
• Double press to play the next track.
• Press three times to play the previous track.

Volume -

• Press to decrease the volume.
• Press and hold to keep decreasing the volume.

Bluetooth button

• Press to enable or disable the Bluetooth pairing status.
• Double press:
• Before combination: Enable or disable the combination pairing status
• After combination: Exit the combination mode
• Press and hold for 2 seconds to disable the Bluetooth connection.

Note: "Combination" refers to stereo play or group play.

Ambient light strip description

• White: Turning on or off/voice notification/stereo play or group play/charging at a normal battery level
• Blue: Bluetooth pairing/restoring factory settings/system updating
• Orange: Low battery level/charging at a low battery level

Charging

• It is recommended to fully charge the speaker with the charging cable before initial use.

Bluetooth connection

• Press to enable the Bluetooth pairing status, and select the speaker on the audio source device to complete Bluetooth pairing. Then, the speaker can be used to play the audio content on the audio source device.
• When the Bluetooth is connected, press and hold for 2 seconds to disable the Bluetooth connection.

NFC function

• Enable the Bluetooth and NFC functions on the phone, and touch the icon on the speaker with the NFC sensor area of the phone to automatically complete the Bluetooth connection between the phone and the speaker.
• When the phone and the speaker are connected, touch the icon on the speaker with the NFC sensor area of the phone to relay the audio from the phone to the speaker for playing.

Notes:

• The NFC function mentioned above is only available for Xiaomi or Redmi phones with the NFC function. For more information about the models supporting the NFC function, visit the official website.
  This function is subject to actual use.
• Functions may vary among phones of different models and are subject to actual use.

Stereo/group play

• Double press to enable the combination pairing status of each speaker.
• Two speakers of the same model can be automatically paired for a stereo play. They play music in the left and right channels separately for a more stereoscopic sound effect.
• Three to eight speakers of the same model can be automatically paired for group play. All the speakers play music synchronously to bring a richer music experience.

Notes:

• Two speakers of the same model can be paired for stereo play, and three or more speakers (up to eight speakers) of the same model can be automatically paired for group play.
• When multiple speakers are used in combination, it is recommended to keep the speakers within 1 meter of each other.
• The combination feature is mainly used for playing music. When playing videos, it will be affected by the device and network conditions, resulting in the audio and video being out of sync at varying degrees.

Turning off automatically

• If no operation is performed or no audio is played on the speaker for 15 minutes, it will be turned off automatically.

Note: This function can be disabled or customized in the app.

Restarting/restoring factory settings

• In case of errors or other special circumstances, press and hold for 10 seconds to restart the speaker. Or press and hold the button "+" and the button "-" at the same time for 10 seconds to restore factory settings.

Notes:

• After the speaker is restored to factory settings, all connection and combination records and settings will be cleared.
• If the speaker has been connected to the app before, it has to be manually deleted from the app after being restored to factory settings to reconnect to the app. Besides, the speaker deleted from the app can be reconnected to the app only after the speaker is restored to factory settings.

Updating the system

• Update the system in time as prompted in the app. During the update, make sure that the speaker remains on and connected to the app.
• The speaker cannot be used during the update. Once updated, the speaker will restart automatically.

Connecting with the Mi Home/Xiaomi Home App

This product works with the Mi Home/Xiaomi Home app*. Control your device with Mi Home/ Xiaomi Home app. Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search for "Mi Home/Xiaomi Home" in the app store to download and install it. Open the Mi Home/Xiaomi Home app, tap "+" on the upper right, and then follow the instructions to add your device.
* The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.

Install the Mi Home/ Xiaomi Home app to access smart features

Note:
The version of the app might have been updated, please follow the instructions based on the current app version.
Power Consumption Off mode: ≤ 0.3 W
Power Consumption Standby mode: ≤ 0.3 W
Time to Enter the Condition Standby mode: ≤ 3 min Notes: The standby power consumption is 0.5W if all wireless network ports are activated.
Please use a compatible and qualified adapter (with an output of DC 5 V 2 A or DC 5 V 3 A) to power the product.

Specifications

Name: Portable Bluetooth Speaker
Bluetooth: 5.3
Battery Nominal Energy: 7.03 Wh
Model: ASM01G
Input: (Type-C)5 V 2 A
Operating Frequency and Radio Frequency Power
BT 2402 MHz–2480 MHz (≤20 dBm)
BLE 2402 MHz–2480 MHz (≤20 dBm)
The serial number of the speaker can be checked on the packaging box or by scanning the QR code on the Type-C port protective cover of the speaker.

Important Safety Information

Read all safety information below before using your device:

• Use of unauthorized cables, power adapters, or batteries can cause fire, explosion, or pose other risks.
• Use only authorized accessories which are compatible with your device.
• This device's operating temperature range is 0°C to 40°C.
• If your device is provided with a built-in battery, to avoid damaging the battery or the device, do not attempt to replace the battery yourself.
• Charge this device only with the included or authorized cable and power adapter. Using other adapters may cause fire, electric shock, and damage the device and the adapter.
• After charging is complete, disconnect the adapter from both the device and the power outlet.
• The battery must be recycled or disposed of separately from household waste. Mishandling the battery may cause fire or explosion. Dispose of or recycle the device, its battery, and accessories according to your local regulations.
• Do not disassemble, hit, crush, or burn the battery. If the battery appears deformed or damaged, stop using it immediately.
  • Do not short circuit the battery, as this may cause overheating, burns, or other injury.
  • Do not place the battery in a high-temperature environment.
  • Overheating may cause explosion.
  • Do not disassemble, hit, or crush the battery, as this may cause the battery to leak, overheat, or explode.
  • Do not burn the battery, as this may cause fire or explosion.
  • Do not place the battery to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• User shall not remove or alter the battery. Removal or repair of the battery shall only be done by an authorized repair center of the manufacturer.
• Keep your device dry.
• Do not try to repair the device yourself. If any part of the device does not work properly, contact the after-sales service team.
• Connect other devices according to their instruction manuals. Do not connect incompatible devices to this device.
• For AC/DC adapters, the socket-outlet shall be installed near the equipment and shall be easily accessible.
• Refer to the detailed product specifications on the label at the bottom of the device.
