SLG46537M GreenPAK DIP Adapter
Quick Start Guide
1. Description
The GreenPAK DIP Adapter is a small PCB that lets you adapt
STQFN packages into a DIP footprint. This board can speed
up your design prototyping and testing. This small board
0.43x1.03 inch uses 20 pins DIP footprint with 0.3 inch width.
You can also use this adapter for prototyping by making
MSTQFN package compatible with solder free breadboards.

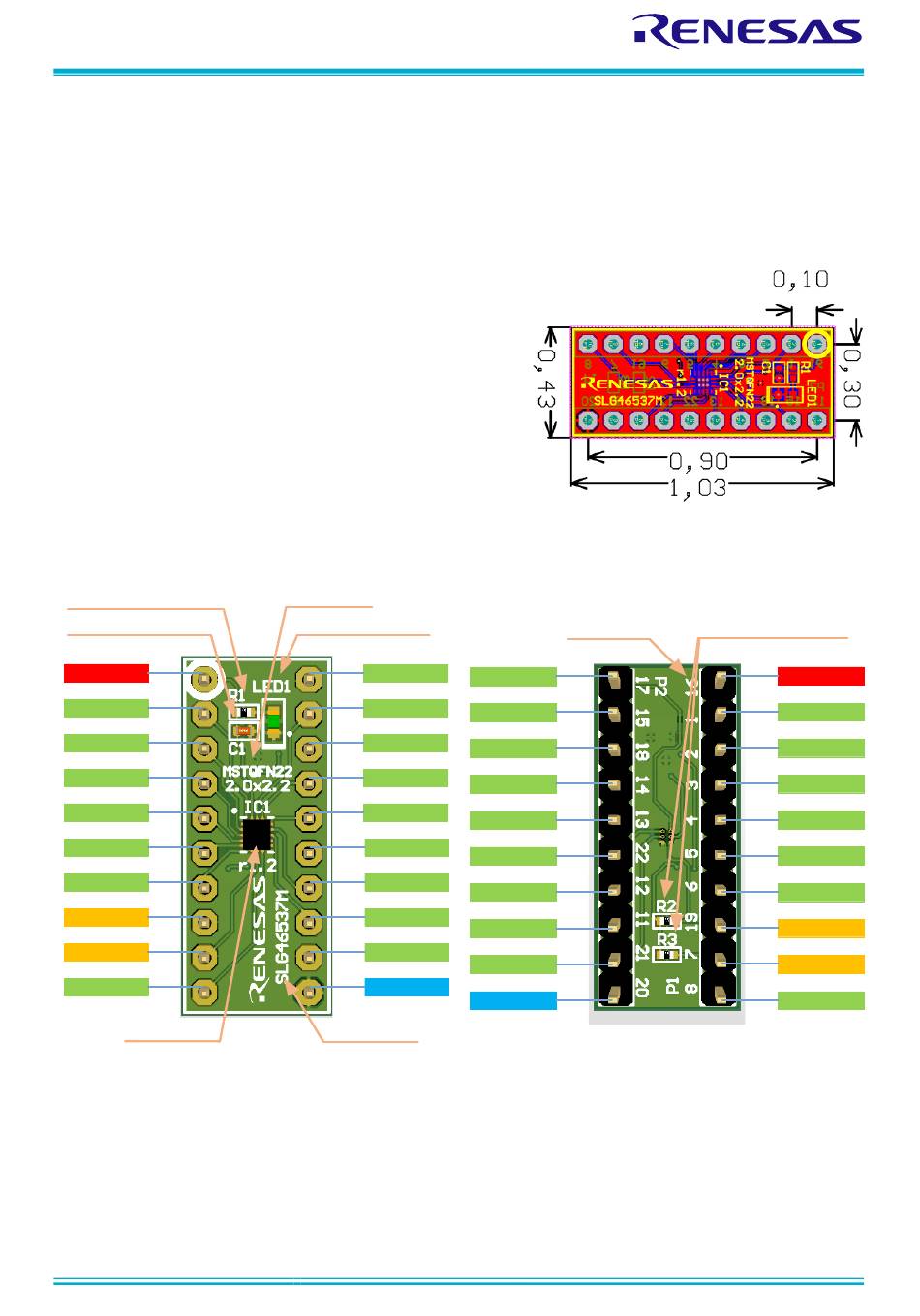

3. Top View
LED current limit resistor (optional)
VDD Chip decoupling capacitor
Pins
PIN16 (VDD)
PIN1 (GPI)
PIN2 (GPIO)
PIN3 (GPIO)
PIN4 (GPIO)
PIN5 (GPIO)
PIN6 (GPIO)
PIN19
(SCL/GPIO)
PIN7
(SDA/GPIO)
PIN8 (GPIO)
GreenPAK chip
Chip package type
VDD LED indicator (optional)
Pins
PIN17 (GPIO)
PIN15 (GPIO)
PIN18 (GPIO)
PIN14 (GPIO)
PIN13 (GPIO)
PIN22 (GPIO)
PIN12 (GPIO)
PIN11 (GPIO)
PIN21 (GPIO)
PIN20 (GND)
Chip part number
Revision 1.1
1 of 2
2. Features
•
Low cost
•
Simplifies prototyping of SMT IC's
•
Optional V LED indicator
DD
•
Decoupling capacitor included
•
2
Optional I C pull-up resistor
Note 1 All sizes in inches.
4. Bottom View
Chip pin number
Pins
PIN17 (GPIO)
PIN15 (GPIO)
PIN18 (GPIO)
PIN14 (GPIO)
PIN13 (GPIO)
PIN22 (GPIO)
PIN12 (GPIO)
PIN11 (GPIO)
PIN21 (GPIO)
PIN20 (GND)
I2C pull up resistors (optional)
Pins
PIN16 (VDD)
PIN1 (GPI)
PIN2 (GPIO)
PIN3 (GPIO)
PIN4 (GPIO)
PIN5 (GPIO)
PIN6 (GPIO)
PIN19 (SCL/GPIO)
PIN7 (SDA/GPIO)
PIN8 (GPIO)
