Renesas SLG46537V Quick Start Manual

SLG46537V GreenPAK DIP Adapter
Quick Start Guide

1. Description

The GreenPAK DIP Adapter is a small PCB that lets you adapt
STQFN packages into a DIP footprint. This board can speed
up your design prototyping and testing. This small board
0.43x1.03 inch uses 20 pins DIP footprint with 0.3 inch width.
You can also use this adapter for prototyping by making
STQFN package compatible with solder free breadboards.

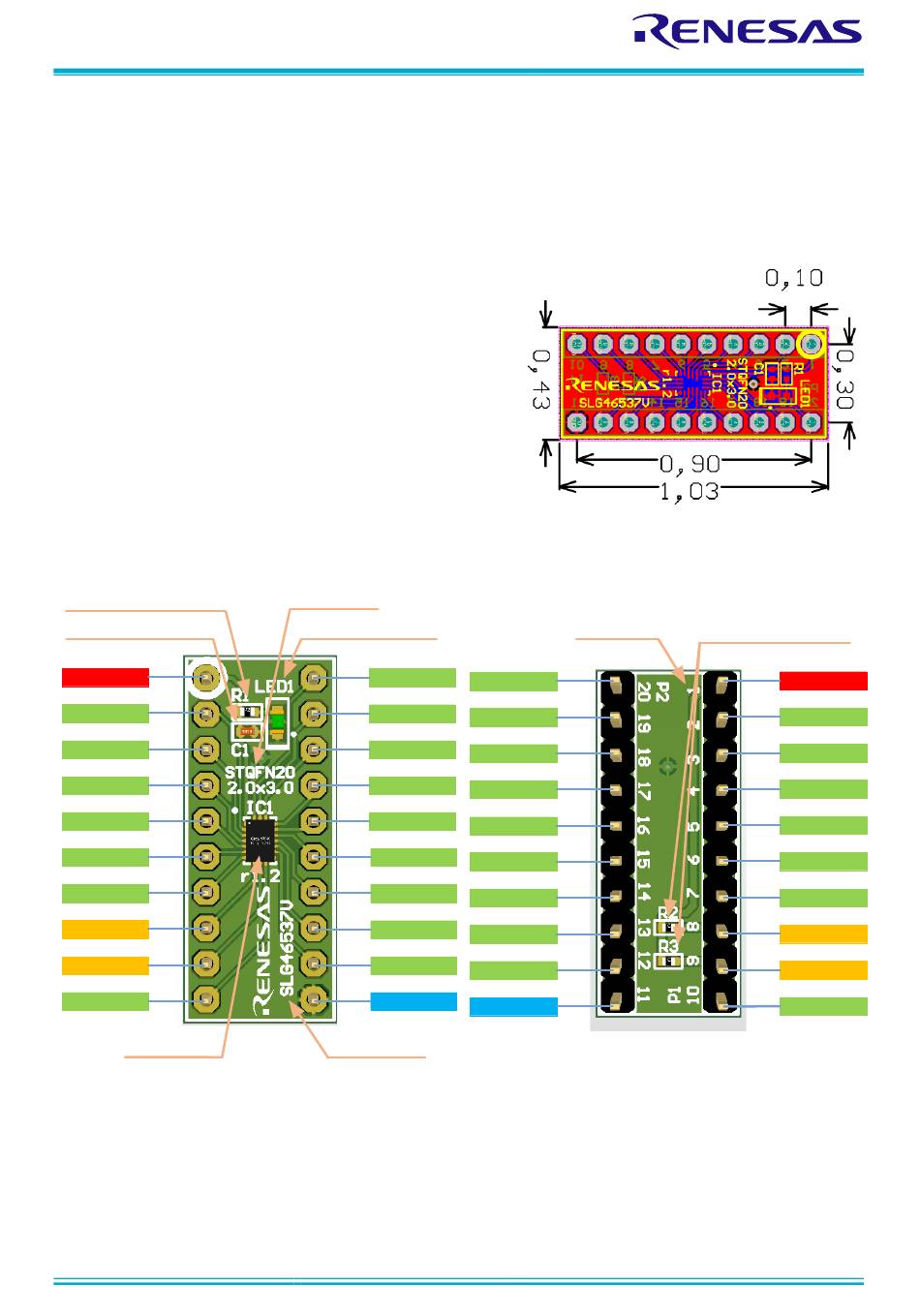

3. Top View

LED current limit resistor (optional)
VDD Chip decoupling capacitor
Pins
PIN1 (VDD)
PIN2 (GPI)
PIN3 (GPIO)
PIN4 (GPIO)
PIN5 (GPIO)
PIN6 (GPIO)
PIN7 (GPIO)
PIN8
(SCL/GPIO)
PIN9
(SDA/GPIO)
PIN10 (GPIO)
GreenPAK chip
Chip package type
VDD LED indicator (optional)
Pins
PIN20 (GPIO)
PIN19 (GPIO)
PIN18 (GPIO)
PIN17 (GPIO)
PIN16 (GPIO)
PIN15 (GPIO)
PIN14 (GPIO)
PIN13 (GPIO)
PIN12 (GPIO)
PIN11 (GND)
Chip part number
Revision 1.1
1 of 2

2. Features

•
Low cost
•
Simplifies prototyping of SMT IC's
•
Optional V LED indicator
DD
•
Decoupling capacitor included
•
2
Optional I C pull-up resistor
Note 1 All sizes in inches.

4. Bottom View

Chip pin number
Pins
PIN20 (GPIO)
PIN19 (GPIO)
PIN18 (GPIO)
PIN17 (GPIO)
PIN16 (GPIO)
PIN15 (GPIO)
PIN14 (GPIO)
PIN13 (GPIO)
PIN12 (GPIO)
PIN11 (GND)
I2C pull up resistors (optional)
Pins
PIN1 (VDD)
PIN2 (GPI)
PIN3 (GPIO)
PIN4 (GPIO)
PIN5 (GPIO)
PIN6 (GPIO)
PIN7 (GPIO)
PIN8 (SCL/GPIO)
PIN9 (SDA/GPIO)
PIN10 (GPIO)
17-Mar-2022
