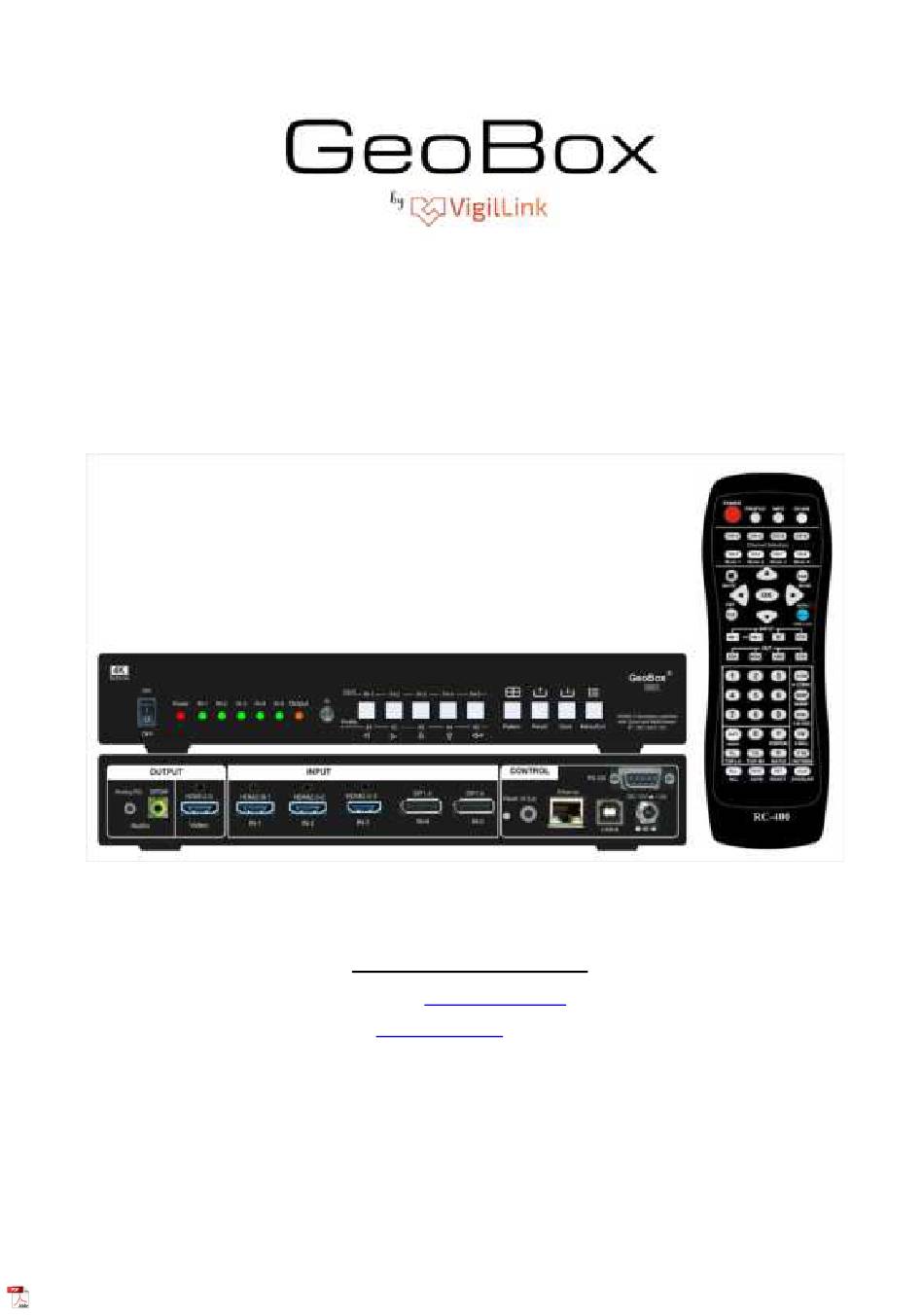

- Page 1 S914 Document: S914-1 S901 Quick User Guide 5x1 Seamless UHD switcher with Quad Split Views Sales & Technical support Web site: www.geoboxav.com E-mail: info@vigillink.com Version: V1.01 Tel: +949-502-4484...
-
Page 2: System Connection
S901 Quick User Guide Document: S901-3 System Connection The user will not see the image if the monitor does not support the output resolution. Please select the output resolution in the remote controller to 1080P to see the image. Main window Sub-window1 Sub-window2 Sub-window3... - Page 3 S901 Quick User Guide Document: S901-3 Seamless switching for primary input The seamless switching function is only functional for the primary input with a single image display. Select from the green LED port and click the input selection button to switch the input port. The LED will turn orange when the input port has been selected.
-
Page 4: Front Panel
S901 Quick User Guide Document: S901-3 Front panel Three functions Seamless input selection OSD function key after Custom setting Custom setting activate OSD Profile RECALL Profile SAVE Index for Profile Save and Load Output Quad split view Activate OSD Input LED IR Receiver ON/OFF hotkey MENU... -
Page 5: Back Panel
S901 Quick User Guide Document: S901-3 Back panel Users can connect the signal source to any input ports for prominent display and PIP/POP operation. System control Analog RL/LH Input Ports, HDMI 2.0 & DP 1.4 Audio Output RS232, USB, Ethernet IR Extender DC 12V/2A SPDIF Audio... - Page 6 S901 Quick User Guide Document: S901-3 5.1.2. Save system settings through IR remote controller Click the [Save] hotkey on the remote controller, then select the # key to save custom settings. 10 profile Indexes can be saved from the remote controller. “0” represents Index #10. Click [Save] key, then select number key 5.2.
- Page 7 S901 Quick User Guide Document: S901-3 More display patterns selected from OSD 6.1. Step 1 Click MENU key to open OSD [Image Properties] [PIP setting] [Display] 6.2. Step 2 Select required display pattern Select input source Save to Profile Index #.
- Page 8 S901 Quick User Guide Document: S901-3 Main and Sub-window input source selection One of the display windows is Main-window, and the rest are sub-windows. The main-window input source can be selected directly from front panel keypads. The remote controller or front panel keypads can only select the sub-window input signal from OSD. ...
- Page 9 S901 Quick User Guide Document: S901-3 [Ratio]—Display full range image or keep the original aspect ratio Main Image: can be selected through [Scaling] OSD menu under [Image Properties]. Sub-window: can be selected through [Ratio] OSD menu under [PIP Settings]. ...
- Page 10 S901 Quick User Guide Document: S901-3 When the Overlap value is decreased, the image cropping area will be reduced and cause the image Zoom-In effect (enlarged). If the Overlap value is increased, the image cropping area will increase and cause the image Zoom-out effect (shrunk). ...
