Xiaomi S10+, B105 Manual

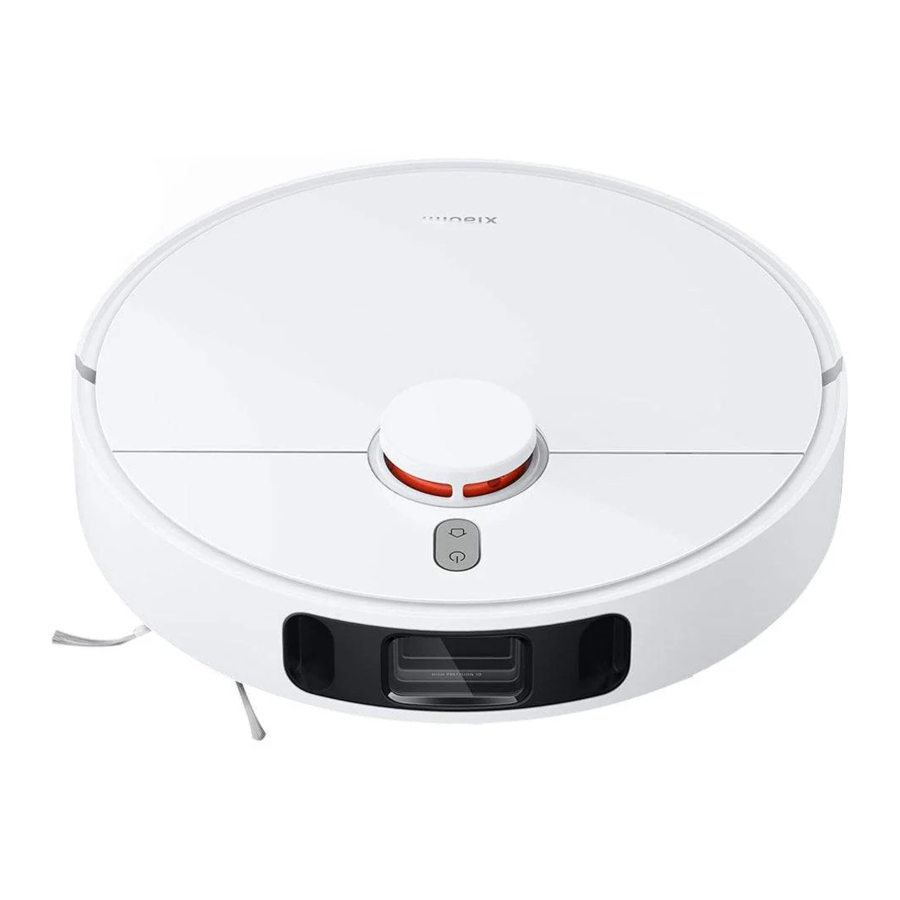

Product Overview


Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

Accessories
Pre-installed Accessories

Other Accessories

Robot Vacuum and Sensors

Robot Vacuum and Sensors

Indicator

White: Cleaning/Cleanup completed/Fully charged Breathing white: Charging
Blinking white: Returning to the station to charge/Repositioning/ Updating firmware/Awaiting connection/Connecting to Wi-Fi Blinking orange: Orange: Error Wi-Fi disconnected

How to Install

Remove Protective Coverings
Before using the robot vacuum, remove the protective strips from both sides.

Install the Side Brush
Install the side brush onto the clip on the bottom of the robot vacuum.

Connect to An Electrical Outlet
Place the charging dock near an electrical outlet in an area with a good Wi-Fi signal. Then connect the charging dock to power.

Note: Do not place any items within the range of 0.5 m at either side or within 1.5 m in front of the charging dock.

Place the Robot Vacuum
Place the robot vacuum onto the charging dock, and the robot vacuum will automatically turn on and start charging. After 10 minutes of being fully charged, the indicator will go out. Fully charge the robot vacuum when using it for the first time.

Note: Make sure the charging contacts on the robot vacuum and the dock are fully aligned.

How to Use

Connect with the Mi Home/Xiaomi Home App

This product works with the Mi Home/Xiaomi Home app*. Use the Mi Home/ Xiaomi Home app to control your device, and to interact with other smart home devices.


Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search for "Mi Home/Xiaomi Home" in the app store to download and install it. Open the Mi Home/Xiaomi Home app, tap on the upper right, and then follow the instructions to add your device.
* The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.

Notes:

  • This robot vacuum works with the Mi Home/Xiaomi Home app, and it supports Android 4.4 & iOS 10.0 or above.
  • Only 2.4 GHz Wi-Fi networks are supported.
  • The version of the app might have been updated, please follow the instructions based on the current app version.

Reset Wi-Fi

When there is a connection loss between your phone and the robot vacuum due to the router reconfiguration, wrong password or so, please follow the steps below:

  1. Open the cover of the robot vacuum so that you can see the Wi-Fi indicator.
  2. Simultaneously press and hold the buttons and until you hear a voice to indicate that the robot vacuum is waiting for the network configuration.
  3. When the Wi-Fi indicator blinks, the Wi-Fi connection has been reset successfully.

Start Cleaning

Press the button on the robot vacuum or tap the button in the app, and the robot vacuum will clean all areas by first cleaning along edges and walls and then in an S-shape pattern. Once the cleaning is complete, the robot vacuum will automatically return to the charging dock to charge.
Method 1: Press the button on the robot vacuum to start cleaning.

Method 2: Tap the button in the app to start cleaning.

Notes:

  • Before a cleaning task, make sure the robot vacuum is on the charging dock and fully charged. Do not move the robot vacuum during cleaning.
  • When using the robot vacuum for the first time, it is recommended to follow the robot vacuum and remove any obstacles on the ground. If the robot vacuum may get stuck or scratch the surface of the furniture in some areas, you can set restricted areas in the app to prevent the robot vacuum from entering those areas.

Use the Vacuuming & Mopping Function

  1. First dampen the mop pad and wring out excess water.
    Next, install and attach the mop pad onto the mop pad holder in place. Lastly, install the mop assembly onto the bottom of the robot vacuum.
  2. Open the cover of the robot vacuum and take the water tank out. Fill the water tank with tap water and then reinstall the tank.

  • Do not add hot water to the water tank, as this may cause the tank to become deformed.
  • To avoid clogging, do not add any cleaning agents or disinfectants to the water tank.
  1. Press the button on the robot vacuum or use the app to make the robot vacuum perform the vacuuming and mopping task.
  2. When the robot vacuum finishes a task and returns to the charging dock, remove the mop assembly and wash the mop pads in time.

Notes:

  • If the robot vacuum will not be used for an extended period, remove the water tank and empty it to prevent odor and mildew.
  • The robot vacuum can recognize carpets thicker than 5 mm. If there are carpets with a thickness of less than 5 mm in the area to be cleaned, it is recommended to remove the mop pads or set restricted areas before cleaning.
  • If the floor of the cleaning area is made of special materials, such as cobblestones, the robot vacuum may recognize it as carpets and avoid it. It is recommended to disable the carpet recognition function in the Mi Home/Xiaomi Home app before cleaning the area.

Resume Cleanup

If the robot vacuum starts running low on battery during a cleaning task, it will automatically return to the charging dock to recharge, then resume cleanup where it left off after being charged sufficiently.

Pause

While the robot vacuum is running, press any button on the robot vacuum to pause it, and then press the button to resume the cleaning. Pressing the button will end the current cleaning task and send the robot vacuum back to the charging dock.
Note: Do not pick up or move the robot vacuum while it is paused, so as to avoid navigation errors that could prevent the robot vacuum from returning to the charging dock or cause the loss of map.

Sleep Mode

The robot vacuum will automatically enter sleep mode after it is paused for 10 minutes, and its indicator will go out. To wake it up, press any button on the robot vacuum.
Note: If the sleep time exceeds 12 hours, the robot vacuum will turn off automatically.

Update the Firmware

You can update the firmware via the app. Before updating, make sure the robot vacuum is on the charging dock and has at least 15% battery left.

Restart the Robot Vacuum

If the robot vacuum stops responding or cannot be turned off, press and hold the button for 15 seconds to forcefully turn it off. Then press and hold the button for 3 seconds to turn the robot vacuum on.

Restore Factory Settings

If the robot vacuum does not function properly after being restarted, you can use a pin to press the reset button until you hear a voice to indicate that the robot vacuum is restoring factory settings. This will reset the robot vacuum to its original factory settings.

Care & Maintenance

Sensors and Charging Contacts* It is recommended to clean every month.
Use a soft cloth to clean all sensors and charging contacts in the robot vacuum:
Care & Maintenance

  • The cliff sensors and the charging contacts at the bottom of the robot vacuum.
  • The LDS laser sensor on the top of the robot vacuum.
  • The bumper and the line laser sensors on the front of the robot vacuum.

Brush and Side Brush

* It is recommended to clean every two weeks.

  1. Flip the robot vacuum over and pinch the clips to remove the brush cover.
  2. Lift the brush out of the robot vacuum, then clean the brush bearings.
  3. Use the included cleaning tool to cut any tangled hairs on the brush, and remove the hairs and other debris from the brush.
  4. Remove the side brush upwards to clean it.
  5. Reinstall the brush, the side brush and the brush cover, and ensure they are securely in place.

Notes:

  • It is recommended to replace the brush every 6–12 months for optimal cleaning performance.
  • It is recommended to replace the side brush every 3–6 months for optimal cleaning performance.

Brush and Side Brush

If too much hair is tangled in the brush, or if the hair is tightly tangled, do not forcibly pull on it to avoid damaging the brush.

Omnidirectional Wheel

*Clean it as needed.

  1. Flip the robot vacuum over and pull out the omnidirectional wheel.
  2. Remove hair, dirt, and other debris from the wheel and axle.
  3. Reinsert the wheel and press it firmly back into place.

Notes:

  • A small screwdriver or other pry tool can be used to gently pop out and remove the wheel.
  • The wheel can be cleaned with water and reinstalled after drying.

Dust Compartment

* It is recommended to clean every week.

  1. Open the cover of the robot vacuum, and press the dust compartment clip to remove the dust compartment upwards.
  2. Open the dust compartment cover, and empty out the contents.
    Dust Compartment

Note: To prevent the filter from becoming clogged, lightly tap the dust compartment when emptying its contents.

Filter

* It is recommended to clean every two weeks.

  1. Remove the filter from the filter clip as illustrated.
  2. Rinse and gently tap the edges of the filter to remove any dust and debris until it is clean.
    Note: Do not attempt to clean the filter with a brush or finger.
    Filter - Step 1
  3. Open the dust compartment cover, fill the dust compartment with clean water and close the dust compartment cover. Shake the dust compartment from side to side and then pour the dirty water out of the compartment.
  4. Place the dust compartment and filter aside to dry before reinstallation.
    Filter - Step 2

Notes:

  • Only use clean water to clean the filter. Do not use detergent.
  • ·Thoroughly dry the dust compartment and the filter before putting them back.

Specifications

Robot Vacuum

Name Robotic Vacuum Cleaner
Model B105
Rated Voltage 14.4 V
Rated Power 55 W
Item Dimensions 350 × 350 × 97 mm
Battery 4800 mAh (Rated Capacity)
Charging Time Approx. 6 hours

Net Weight

(Robot Vacuum)

3.8 kg
Net Weight
(with Accessories)
4.4 kg
Compatible with Android 4.4 & iOS 10.0 or above
Wireless Connectivity Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, Bluetooth 4.2
Operation Frequency 2400–2483.5 MHz
Maximum Output Power < 20 dBm

Charging Dock

Model CDZ2101
Item Dimensions 130 × 126 × 93 mm
Rated Input 100–240 V 50/60 Hz 0.5 A
Rated Output 19.8 V 1 A

Under normal use of condition, this equipment should be kept a separation distance of at least 20 cm between the antenna and the body of the user.

Safety Information

Read this manual carefully before use, and retain it for future reference.

Usage Restrictions

  • This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting.
  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • The appliance is only to be used with the power supply unit provided with the appliance.
  • This appliance contains batteries that are only replaceable by skilled persons.
  • Children shall not play with this product. Ensure children and pets are kept at a safe distance from the robot vacuum while it is operating.
  • If the power cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
  • Do not use the robot vacuum in an area suspended above ground level without a protective barrier.
  • Do not place the robot vacuum upside down. Do not move the robot vacuum by using its LDS laser sensor cover, cover, or bumper as a handle.
  • Do not use the robot vacuum at an ambient temperature above 40°C or below 0°C or on a floor with liquids or sticky substances.
  • Do not install, charge, or use this robot vacuum outdoors, in bathrooms, or near a pool.
  • A hazard may occur if the appliance runs over the supply cord.
  • Remove fragile or small items from the floor to prevent the robot vacuum from bumping into and damaging them.
  • Keep the cleaning tool out of reach of children.
  • Do not place children, pets, or any item on top of the robot vacuum regardless of whether it is stationary or moving.
  • Keep hair, fingers, and other body parts away from the suction opening of the robot vacuum.
  • Do not use the robot vacuum to clean any burning substances.
  • Do not vacuum up hard or sharp objects.
  • The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
  • Do not wipe the robot vacuum or charging dock with a wet cloth or rinse them with any liquid. After cleaning washable parts, fully dry the parts before reinstalling and using them.
  • Make sure the robot vacuum is turned off when being transported and kept in its original packaging if possible.
  • Please use this product in accordance with the instructions in the user manual. Users are responsible for any loss or damage arising from improper use of this product.

Batteries and Charging

  • Do not use any third-party battery, power cord, or charging dock. The robot vacuum can only be used with the model CDZ2101 charging dock.
  • No action needed from users to shift the charging dock between 50 Hz and 60 Hz, and the product can adapt itself for both 50 Hz and 60 Hz.
  • Do not dismantle, repair, or modify the battery or charging dock on your own.
  • Do not place the charging dock near a heat source.
  • Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts.
  • If the robot vacuum will not be used for an extended period, fully charge it, then turn it off and store in a cool, dry place. Recharge the robot vacuum at least once every 3 months to avoid over-discharging the battery.
  • The lithium-ion battery pack contains substances that are hazardous to the environment. Before disposing of the robot vacuum, please first remove the battery pack, then discard, or recycle it in accordance with local laws and regulations of the country or region it is used in.
  • When removing the batteries from the product, it is better to use up the batteries and make sure your product is disconnected from power.
  1. Uninstall the screw on the bottom, then remove the cover.
  2. Unplug the battery connector, then remove the batteries. Do not damage the battery case to avoid any risk of injuries.
  3. Return the batteries to a professional recycling organization.

Laser Safety Information

  • The laser sensor in this product meets the IEC 60825-1: 2014 Standard for Class 1 laser products. Please avoid direct eye contact with it during use.
