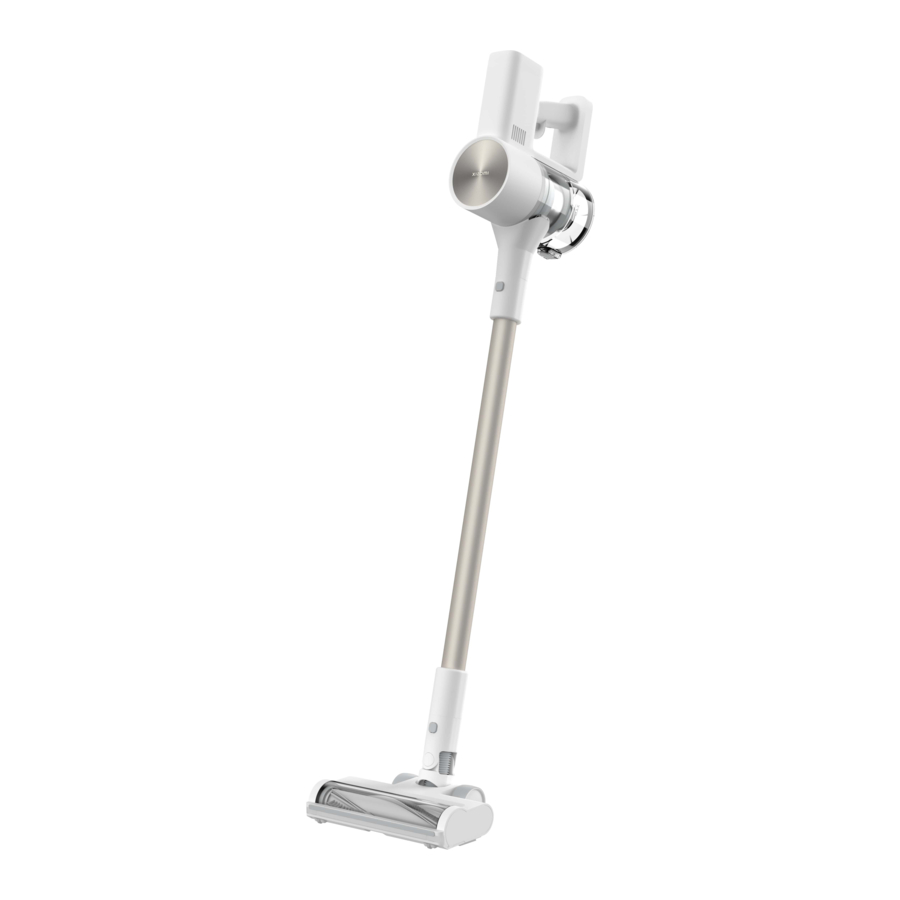

Xiaomi Vacuum Cleaner G20 (D205) Manual

Xiaomi Vacuum Cleaner G20 (D205) Manual

Also See for G20:

Advertisement

Xiaomi Vacuum Cleaner G20 (D205) Manual

Product Overview

Accessory List

Vacuum Cleaner
Product Overview
Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

How to Install

Installing the Accessories onto the Vacuum Cleaner
How to Install - Step 1

Installing the Wall Storage Mount
How to Install - Step 2

  1. Assemble the wall storage mount: Line up the storage mount pieces to attach them, then secure them in place by self-tapping screw A on the back, as illustrated.
  2. Choose the location: Find a cool and dry place with an electrical outlet nearby. The distance between the bottom of the wall storage mount and the ground is recommended to be 102.8 cm.
  3. Drill the holes: Make marks on the wall according to the holes on the storage mount. Use a power drill with a 5 mm drill bit to drill a hole approximately 40 mm deep in each marked position, and then insert the wall plug into each hole.
  4. Install the storage mount: Align the holes in the storage mount with the holes drilled in the wall, and then use the self-tapping screw B to secure the mount to the wall. Note: When drilling the holes, make sure that there are not any wires or pipes in the wall directly behind where the mount will be installed.

Charging

Charging the Vacuum Cleaner
Charging

Battery Level Indicator Status Description

Notes:

  • Fully charge the vacuum cleaner before using it for the first time. This will take about 3.5 hours.
  • The vacuum cleaner cannot be used while charging.
  • Once the vacuum cleaner is fully charged, the indicator will turn off after 20 seconds, and the vacuum cleaner will then enter the energy-saving mode.
  • Vacuuming in high power mode for a prolonged period will cause the battery to heat up, which could increase the charging time. Allow the vacuum cleaner to cool down for 30 minutes before charging it.

How to Use

Electric Brush Bar (Equipped with Headlight)
Suitable for cleaning marble floors, wooden floors, and short-pile carpets.

2-in-1 Brush Nozzle
Suitable for cleaning places with crevices, such as keyboards, curtains, sofas, ceilings, corners, and car interiors.
Note: To avoid potential safety hazards, do not expose the vacuum cleaner to direct sunlight or store it in environments with high temperatures like inside a car in summer.
How to Use

Mini Electric Brush
Suitable for cleaning fabrics such as sofas and mattresses.

Care & Maintenance

  • Before care and maintenance, unplug the power supply and make sure the vacuum cleaner is turned off.
  • Always use genuine parts to ensure normal operation and to keep your warranty valid.
  • If the filter, pre-filter, post-filter, extension rod, or 2-in-1 brush nozzle is blocked, the vacuum cleaner will stop working. Before using the vacuum cleaner again, turn it off and clean the blocked part.
  • If the electric brush bar or mini electric brush gets blocked, it will stop working but the vacuum cleaner itself will not. Please turn the vacuum cleaner off to clean the electric brush bar or mini electric brush, and then use it again.
  • Before cleaning, remove the brush head from the vacuum cleaner to prevent accidentally turning on the vacuum cleaner, which can cause injury.
  • If the vacuum cleaner will not be used for an extended period, fully charge it and disconnect it from the power then store it in a cool, low-humidity environment away from direct sunlight.
  • To avoid over-discharging the battery, recharge the vacuum cleaner at least once every three months.

Cleaning the Vacuum Cleaner

Wipe the vacuum cleaner with a soft, dry cloth.

Cleaning the Dust Compartment

The vacuum's cleaning ability will be reduced if the dust compartment is filled to the "MAX" mark. To regain performance, empty the dust compartment.
Empty the dust compartment: Hold the dust compartment over a trash bin, then press the dust release button to empty the contents.

Before cleaning the dust compartment, turn off the vacuum cleaner, disconnect the power supply, and remove the extension rod.
Cleaning the Dust Compartment

Cleaning the Filter Assembly

  1. As illustrated, release the dust compartment latch to remove the dust compartment outwards.
  2. Remove the pre-filter, lift the handle, and twist counterclockwise to take out the filter.
    Cleaning the Filter Assembly - Step 1
  3. Rotate counterclockwise to remove the post-filter.
  4. Rinse the filter, pre-filter, and post-filter under running tap water until clean, then set them aside to fully dry for at least 24 hours.
    Cleaning the Filter Assembly - Step 2
    Notes:
    • Never soak the pre-filter and post-filter.
    • When cleaning the post-filter, rinse it repeatedly and tap its edge lightly to remove any dust and debris until it is clean.
    • Do not clean the pre-filter and post-filter with your hands, a brush, or a sharp object to prevent damage.
    • If the suction power is still significantly reduced after the pre-filter and post-filter are cleaned, you can try to purchase and replace them with genuine ones.

Installing the Filter Assembly

  1. Align one end of the filter's handle with the unlocking mark "" and place the filter vertically into the dust compartment.
  2. Hold the handle and turn the filter clockwise until it is secured in place.
  3. Insert the pre-filter into place with its front side up.
  4. Insert the post-filter into the vacuum cleaner, and turn the post-filter clockwise into position.
  5. Reinstall the dust compartment and make sure it is secured into place.
    Installing the Filter Assembly

Cleaning the Electric Brush Bar

  1. Place the electric brush bar upside down, press the roller brush release button, open the roller brush lock, and take out the roller brush.
    Cleaning the Electric Brush Bar - Step 1
  2. Use a dry cloth or paper towel to wipe dust and debris from the suction opening and the transparent cover.
  3. Cut any hair tangled around the roller brush, and then clean it.
  4. Reinstall the roller brush in the correct direction as illustrated, and then press the roller brush lock to secure the roller brush into place.

    Do not clean the electric brush bar with water as it has a built-in motor.

Cleaning the Mini Electric Brush

  1. Use a suitable tool to rotate the roller brush clockwise as indicated to remove it.
  2. Use a dry cloth or paper towel to wipe dust and debris from the suction opening and the transparent cover.
  3. Cut any hair tangled around the roller brush, and then clean it.
    Cleaning the Mini Electric Brush - Step 1
  4. Reinstall the roller brush in the correct direction, and rotate it counterclockwise to lock it into place.

    Do not clean the mini electric brush with water as it has a built-in motor.
    Cleaning the Mini Electric Brush - Step 2

Common Issue

Common Issue Possible Cause Solution
The vacuum cleaner does not work. Battery is depleted. Charge the vacuum cleaner before use.
The suction opening, air duct, pre-filter, or post-filter is blocked. Check and clean immediately.
The filter, pre-filter, or post-filter is not installed in place. Check and install in place.
The battery overheat protection is triggered. Wait until the battery temperature returns to normal, and then try to use it again.
The suction power reduces. The dust compartment is full, or the pre-filter or the post-filter is blocked. Check and clean immediately.
Brush head is clogged. Clean the brush head.
Low battery life. Battery is not fully charged. Charge the vacuum cleaner before use.
The dust compartment is full, or the pre-filter or the post-filter is blocked. Check and clean immediately.
Brush head is clogged. Clean the brush head.
The roller brush does not rotate. The roller brush is stuck by foreign objects. Remove any foreign object, and then resume use.
The conductive contacts on the brush head or extension rod are dirty. Turn the vacuum cleaner off, and remove the brush head. Wipe the conductive contacts with a soft, dry cloth, then try again.
The vacuum cleaner does not charge. The power supply being used is not genuine. Only use the genuine power supply to charge the vacuum cleaner.
The battery charges slowly. The battery overheat protection is triggered. Wait until the battery temperature returns to normal, and then try to use it again.

Note: If the solutions above do not resolve the issue, please contact the after-sales service team.

Troubleshooting

If the vacuum cleaner is not working properly, the battery level indicator will display an error message. Refer to the table below for troubleshooting.

Error message Possible Cause Solution
LED 1, LED 2 and LED 3 blink red three times simultaneously. The power supply has an error. Only use the genuine power supply to charge the vacuum cleaner.
The battery overheat protection is triggered. Wait until the battery temperature returns to normal, and then try to use it again.
The battery cell, temperature sensor, or motor has an error. Contact the after-sales service team.
LED 1 blinks red 10 times. The battery is depleted. Only use the genuine power supply to charge the vacuum cleaner.

Specifications

Xiaomi Vacuum Cleaner G20
Name Cordless Vacuum Cleaner
Model D205
Rated Voltage 25.2 V =
Rated Power 460 W
Charging Voltage 31.0 V =
Net Weight 3.76 kg
Electric Brush Bar (Equipped with Headlight)
Model D205-DS
Rated Voltage 21.6 V =
Rated Power 30 W
Mini Electric Brush
Model D205-MN
Rated Voltage 21.6 V =
Rated Power 10 W
Power Supply
Manufacturer FOSHAN SHUNDE GUANYUDA POWER SUPPLY CO., LTD.
Model GC32-310100-2A
Rated Input 100-240 V ~ 50/60 Hz 1.0 A
Rated Output 31.0 V = 1.0 A 31.0 W
Average Active Efficiency 87.76%
Efficiency at Low Load (10%) 81.28%
No-load Power Consumption 0.09 W

Safety Instructions

This product is for household use only. Read this manual carefully before use, and retain it for future reference.

  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • This appliance contains batteries that are only replaceable by skilled persons.
  • The appliance is only to be used with the power supply unit provided with the appliance.
  • This vacuum is for indoor use only. Do not use or install it in outdoor, industrial, or commercial environments.
  • Do not charge or store the vacuum cleaner near heat sources or in humid areas, such as by a radiator or in a kitchen or bathroom.
  • Be aware of the risk of terminals of the battery-operated appliance or battery being short-circuited by metal objects.
  • Do not touch the plug or any electrical part with wet hands.
  • Only use replacement parts that are approved by Xiaomi.
  • Before installing, removing or replacing any parts, or cleaning or maintaining the vacuum cleaner, make sure to turn it off and unplug the power adapter to prevent personal injury.
  • To reduce the risk of fire, explosion, or personal injury, check before use to make sure the power adapter is undamaged. Do not use the vacuum cleaner if the power adapter is damaged.
  • Do not block the air inlet or outlet to prevent the vacuum cleaner from overheating and becoming damaged.
  • Do not place any objects on the vacuum cleaner's suction opening.
  • Do not use the vacuum cleaner if any part of it is damaged or not installed correctly.
  • When lifting or carrying the vacuum cleaner, make sure it is turned off, otherwise there may be a risk of personal injury.
  • During use of the vacuum cleaner, keep its moving parts such as the brush head away from people and pets.
  • When using the vacuum cleaner to clean stairs, make sure to pay attention to personal safety.
  • Do not use the vacuum cleaner to clean up fine dust, such as drywall dust or fireplace ash.
  • Do not use the vacuum cleaner to clean up smoking or burning materials such as charcoal, cigarette butts, or matches.
  • Do not use the vacuum cleaner to clean up sharp or hard objects, such as glass, nails, screws, or coins.
  • Do not use the vacuum cleaner to clean up highly greasy, sticky, or pigmented stains such as shoe polish, paint, or pigments.
  • Do not use the vacuum cleaner to clean up flammable or explosive liquids such as gasoline, or any toxic solutions such as chlorine bleach, ammonia, or drain cleaner.
  • Do not use the vacuum cleaner to clean up toner or ink used in laser printers or photocopiers, as this may cause fire or explosion.
  • Do not lean the vacuum cleaner on unstable objects such as chairs or tables, as it may fall over and cause damage or injury.
  • Do not submerge the vacuum cleaner or any of its parts in water or any other liquid for cleaning. After cleaning or maintenance of the vacuum cleaner, make sure that all parts of it are fully dry before reinstallation and use.
  • Do not use the vacuum cleaner if its opening is blocked. Keep free of dust, lint, hair, or other debris with regular cleaning; otherwise, the airflow may be compromised.
  • If the vacuum cleaner has the problem of overheating, strange noise, odor, or weak suction power, contact the official after-sales service team. Do not repair it by yourself.
  • The vacuum cleaner should only be repaired by the official after-sales service team to ensure it remains safe to use.
  • Do not use any third-party battery or power adapter.
  • Do not expose the appliance or battery to excessive temperatures.
  • Be aware of the risk of terminals of the battery-operated appliance or battery being short-circuited by metal objects.
  • If the power adapter is damaged, it must be replaced by a professional from the manufacturer, after-sales service department, or similar department to avoid safety hazards.

  • Fire Hazard Warning: Do not apply any type of fragrance to the vacuum cleaner's pre-filter and post-filter. These types of products are known to contain flammable chemicals which may cause the vacuum cleaner to catch fire.
  • Strictly follow the instructions in this user manual to charge the vacuum at an ambient temperature of 0℃ to 35℃. Improper charging may result in damage to the battery.
  • Please strictly follow the instructions in this user manual when using the vacuum cleaner. Users are responsible for any loss or damage that may arise from improper use of the vacuum cleaner.

  • Only use the supply unit provided with this appliance.

  • For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
  • Use only with GC32-310100-2A supply unit.

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Beijing Shunzao Technology Co., Ltd.
(a Mi Ecosystem company)
Address: 101, 1st floor, Building1, No.16, Anningzhuang East Road, Haidian
District, 100089 Beijing, PEOPLE'S REPUBLIC OF CHINA
For further information, please go to www.mi.com
