Xiaomi Mi mini, SSXCQ01XY Manual

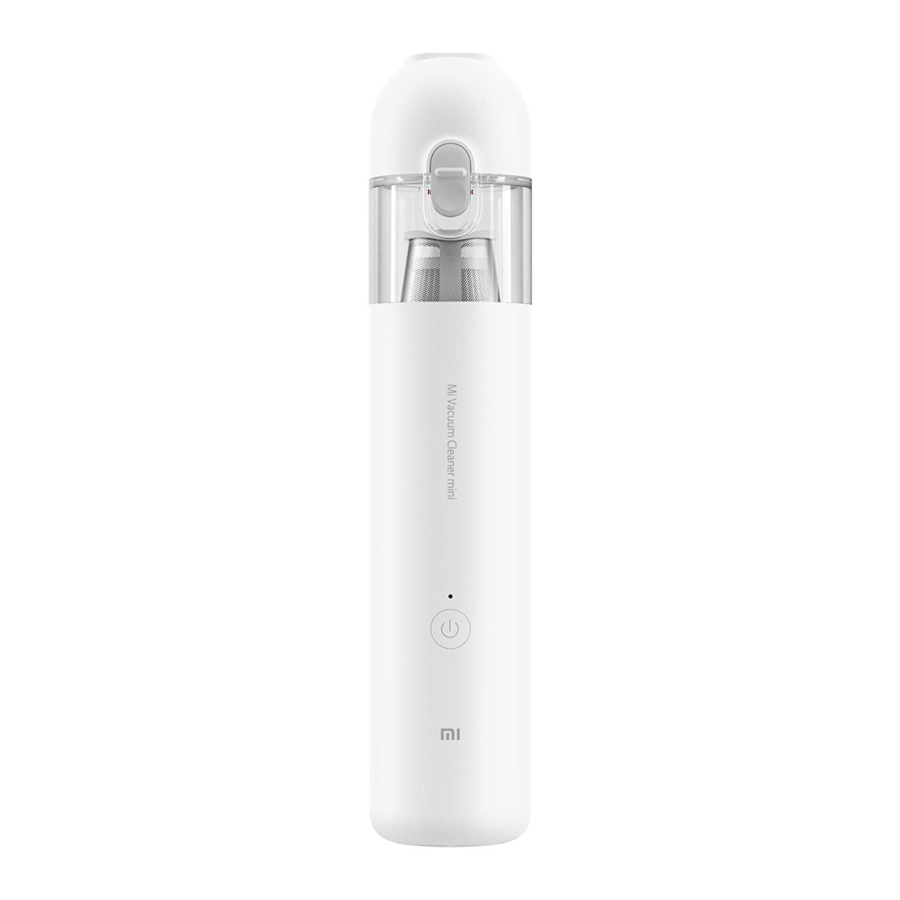

Product Overview

How to Use

Charging

• When using the vacuum cleaner for the first time or using it after being left unused for an extended period, make sure it is fully charged.
• It is recommended to charge the vacuum cleaner once every three months.
• Only use the original power adapter and the included type-C charging cable to charge the vacuum cleaner.

Indicator Description:

Installing Nozzles
Select the desired nozzle, then install it onto the nozzle connector.
Note: You can use the nozzles separately, or combined together.

Note:
To prevent debris from falling out of the vacuum cleaner during use, make sure the flap in the nozzle connector is not stuck.

Care & Maintenance

• Gently slide down and press the release button to pop open the dirt container, then empty out the contents.


• Rotate the dirt container counterclockwise, as illustrated, to unscrew it, then gently remove the dirt container.

• Pull out the filter assembly from the bottom of the dirt container.

• Rotate the outer mesh filter counterclockwise, then pull out the filter.

• The dirt container, mesh filter, filter, and nozzles can all be rinsed with water. Ensure each component is completely dry before reinstalling.


Note:
The vacuum cleaner is non-washable, but the exterior can be cleaned using a soft, damp cloth. Make sure that water does not get into the charging port. It is recommended to replace the filter once every 3 months.

Troubleshooting

Issue	Possible Cause	Solution
The indicator blinks red and white alternately after pressing the power button.	The dirt container is full.	Clean the dirt container.
	The filter is clogged.	Clean the filter.
	The nozzle is clogged.	Clean the nozzle.
The indicator does not light up while charging	The charging cable is not securely plugged in.	Make sure the charging cable is plugged in securely.
	Battery is fully charged.	Unplug the charging cable.
The indicator blinks red quickly while charging	The power adapter is not compatible.	Use a 5 V 2 A power adapter to charge the vacuum cleaner.

Specifications

Name	Mi Vacuum Cleaner mini (EU)
Model	SSXCQ01XY
Battery Capacity	2000 mAh
Rated Power	40 W
Rated Voltage	10.8 V
Rated Input	5 V 2 A
Connector Type	Type-C
Net Weight	Approx. 0.5 kg
Item Dimensions	267 × 55 × 55 mm
Power Consumption	Off mode: ≤0.5 W
Time to Enter the Condition	Off mode: ≤20 min

Power Adapter

Safety Instructions

To prevent accidents including electric shock or fire caused by improper use, please read this manual carefully before use, and retain it for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance is only to be used with the power supply unit provided with the appliance.
• This appliance contains batteries that are non-replaceable.
• If the power adapter is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• Do not use the appliance at ambient temperature above 40°C or below 0°C.

• The vacuum cleaner is intended for home and in-car use only. Do not use in outdoor, commercial, or industrial environments.
• The vacuum cleaner contains a built-in rechargeable battery. Do not expose the vacuum cleaner to fire, nor charge, use, or place it in a high-temperature environment. To prevent overheating and risk of fire or explosion, keep the vacuum cleaner out of direct sunlight when stored in a vehicle.
• Keep the vacuum cleaner out of reach of children at all times.
• To prevent injury, do not use the vacuum cleaner with wet hands.
• Do not vacuum any liquids, such as water or soda.
• Do not vacuum any burning or smoking substances, such as unextinguished cigarette butts.
• Do not vacuum any hard or sharp objects, such as building materials, glass, and nails.
• Do not apply any type of fragrance to the vacuum cleaner. These types of products are known to contain flammable chemicals which may cause the vacuum cleaner to catch fire.
• Please strictly follow the instructions in this user manual when using the vacuum cleaner. Users are responsible for any loss or damage that may arise from improper use of the vacuum cleaner.

Battery and Charging

• Do not charge the vacuum cleaner near heat sources such as radiators, or in humid areas like bathrooms.
• Do not use a wet cloth or wet hands to wipe or clean the vacuum cleaner while it is charging.
• The battery is not removable. When the vacuum cleaner reaches the end of its service life, please dispose of, or recycle it in accordance with local laws and regulations of the country or region it is used in.
• If the charging cable becomes damaged or broken, stop using it immediately.
• If the vacuum cleaner will not be used for an extended period, fully charge and unplug it then store it in a cool, dry place. To avoid battery damage, recharge the vacuum at least once every three months.

Transportation

• The vacuum cleaner should be powered off and kept in its original packaging during transport.
