- Page 1 BIRD'S EYE VIEW CAMERA SYSTEM RVS-77550 Installation and User Guide...
-
Page 2: Table Of Contents
BIRD'S EYE VIEW CAMERA SYSTEM Contents Introduction ............................4 Installation Principles ...........................4 2.1. Installer Qualifications ......................4 2.2. Positive Switch Signals Required ..................4 2.3. Reverse Wiring........................4 2.4. Turn Signal Wiring........................4 System Package..........................8 3.1. Component List ........................8 3.2. Optional Shrouds for Specific Mounting Requirements ............8 Installation Diagram ..........................11 Electronic Control Unit (ECU) ...................... -
Page 3: Introduction

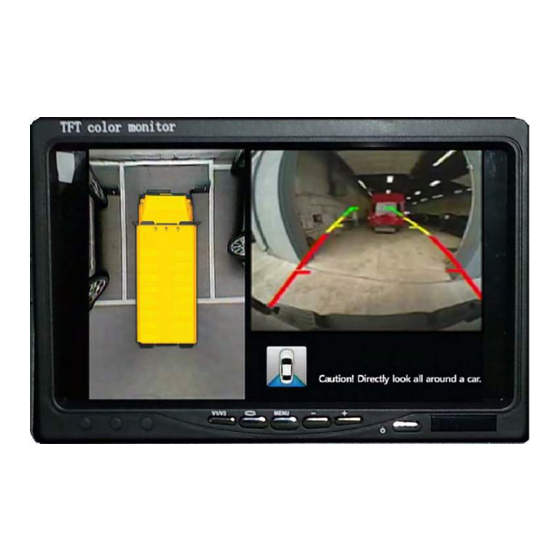

BIRD'S EYE VIEW CAMERA SYSTEM 1. Introduction This guide describes how to install and use the Bird's Eye View Camera System. The RVS-77550 provides drivers with a real-time, 360-degree picture of the area around their vehicle to eliminate blind spots, help improve pedestrian safety, prevent vehicle damage, and avoid liability costs. -
Page 4: Reverse Wiring
BIRD'S EYE VIEW CAMERA SYSTEM 2.3. Reverse Wiring The reverse signal is typically straightforward: connect to the wire that shows 12v when the reverse lever is activated and reverse lights come on. We highly recommend that a vehicle operator assists whenever testing the reverse signal to ensure control of the vehicle. - Page 5 BIRD'S EYE VIEW CAMERA SYSTEM The correct attachment point to a vehicle wired in this manner is to the front turn signal lights, as there is no brake output to those lights: Page 7 of 36...
-
Page 6: System Package
BIRD'S EYE VIEW CAMERA SYSTEM 3. System Package The typical contents are shown below (actual contents for your system may vary, depending on the options selected): 3.1. Component List This identifies the components in the image that follows: 1. Electronic Control Unit (ECU), 4 screws (SD Card for calibration not included) 3. - Page 7 BIRD'S EYE VIEW CAMERA SYSTEM 12. Camera extension cables (x4) 13. Camera, mounting plates, covers, drill template and screws (x4) 14. Screw covers (2 per camera) Page 9 of 36...
-
Page 8: Optional Shrouds For Specific Mounting Requirements
BIRD'S EYE VIEW CAMERA SYSTEM 3.2. Optional Shrouds for Specific Mounting Requirements While the inView 360 Around Vehicle Monitoring system ships with a standard commercial kit as shown above, the following shrouds may be used in particular installations. These mounting shrouds are special order only and do not come as part of the standard package. -
Page 9: Installation Diagram
BIRD'S EYE VIEW CAMERA SYSTEM 4. Installation Diagram Page 11 of 36... -
Page 10: Electronic Control Unit (Ecu)
BIRD'S EYE VIEW CAMERA SYSTEM 5. Electronic Control Unit (ECU) 5.1. ECU Installation Locations When deciding on a mounting location for the ECU, ensure you take into account that the calibration process will require access to each side of the unit: •... -
Page 11: Ecu Installation Requirements
BIRD'S EYE VIEW CAMERA SYSTEM 5.1.1. ECU Installation Requirements Ventilation Install the ECU away from any sort of heat outlet, heater, or AC blower. Do not operate the ECU in a closed-in area or restrict ventilation in any way. The ECU requires air circulation to maintain optimum operating temperature and provide best performance. -
Page 12: Installing The Ecu
BIRD'S EYE VIEW CAMERA SYSTEM 5.1.2. Installing the ECU Install with SD card (UPDATE) slot accessible, and leave room to connect cables in the back. 1. Choose a location as described above, and use the unit to mark drill positions. 2. -
Page 13: Installing The Push-Button Remote Control (Optional)
BIRD'S EYE VIEW CAMERA SYSTEM 7. Installing the Push-button Remote Control (optional) The remote controller has a blue button and a 1x2 connector for the extension cable, which then connects to the BUTTON (1x4 male) connector on the INTERFACE harness. 1. -
Page 14: Installing Cameras
BIRD'S EYE VIEW CAMERA SYSTEM 8. Installing Cameras 8.1. Determining Camera Locations Important: Confirm that camera positions will capture the required video before drilling holes in the vehicle. 1. Attach the cameras temporarily with tape or velcro. 2. Connect them to the ECU and power on the system. 3. -
Page 15: Installing Side Cameras Below Mirrors
BIRD'S EYE VIEW CAMERA SYSTEM 8.2. Installing Side Cameras Below Mirrors All four cameras in the Seon package are the same, and require 150 degrees of unimpeded view from a parallel perspective of the vehicle. The view must not include side mirrors. This is critical in placing the cameras, as shadowing can occur if the camera image that would typically capture the ground is catching the protruding side mirrors, as in the case shown below. -
Page 16: Selecting Symmetrical Side Camera Locations
BIRD'S EYE VIEW CAMERA SYSTEM When working on a new vehicle for the first time, the cameras should be temporarily attached to the vehicle, and the side images examined to determine if the camera image can see the side mirrors. The rule of thumb is typically that the shorter a vehicle is, the lower the cameras may need to be to avoid the mirrors in the image. -
Page 17: Under Mirror And Door Mount Option
BIRD'S EYE VIEW CAMERA SYSTEM All four cameras must be mounted at the furthest point toward the outside of the vehicle body as possible while minimizing image capture of the vehicle itself or protruding equipment, to avoid shadowing. 8.2.2. Under Mirror and Door Mount Option While the under-mirror mount does appear to solve some shadowing issues created by body panel mounting, it is not for a novice installer. -
Page 18: Removing Mirror Glass
BIRD'S EYE VIEW CAMERA SYSTEM • The mirror must have adequate extra space inside the mirror housing. • The mirror must be flat on the bottom, and have enough surface area to allow for mounting the cover. A 1 1/8” (28mm) diameter hole is required to accommodate the camera. -
Page 19: Mounting Cameras On Doors
BIRD'S EYE VIEW CAMERA SYSTEM If the mirror does not pop free easily, do not force it. 3. Examine the mechanism further and consider if a different pry location might be better. 4. Once the glass has been detached, proceed to removing the interior door panel and the outside mirror housing. - Page 20 BIRD'S EYE VIEW CAMERA SYSTEM Typically this is done through the existing rubber door boot. While it is typically not easy to get extra wiring through this boot, it can usually be done. A more significant challenge often comes at the door side of the boot. Many domestic manufacturers have opted to install a Molex plug at this end.
