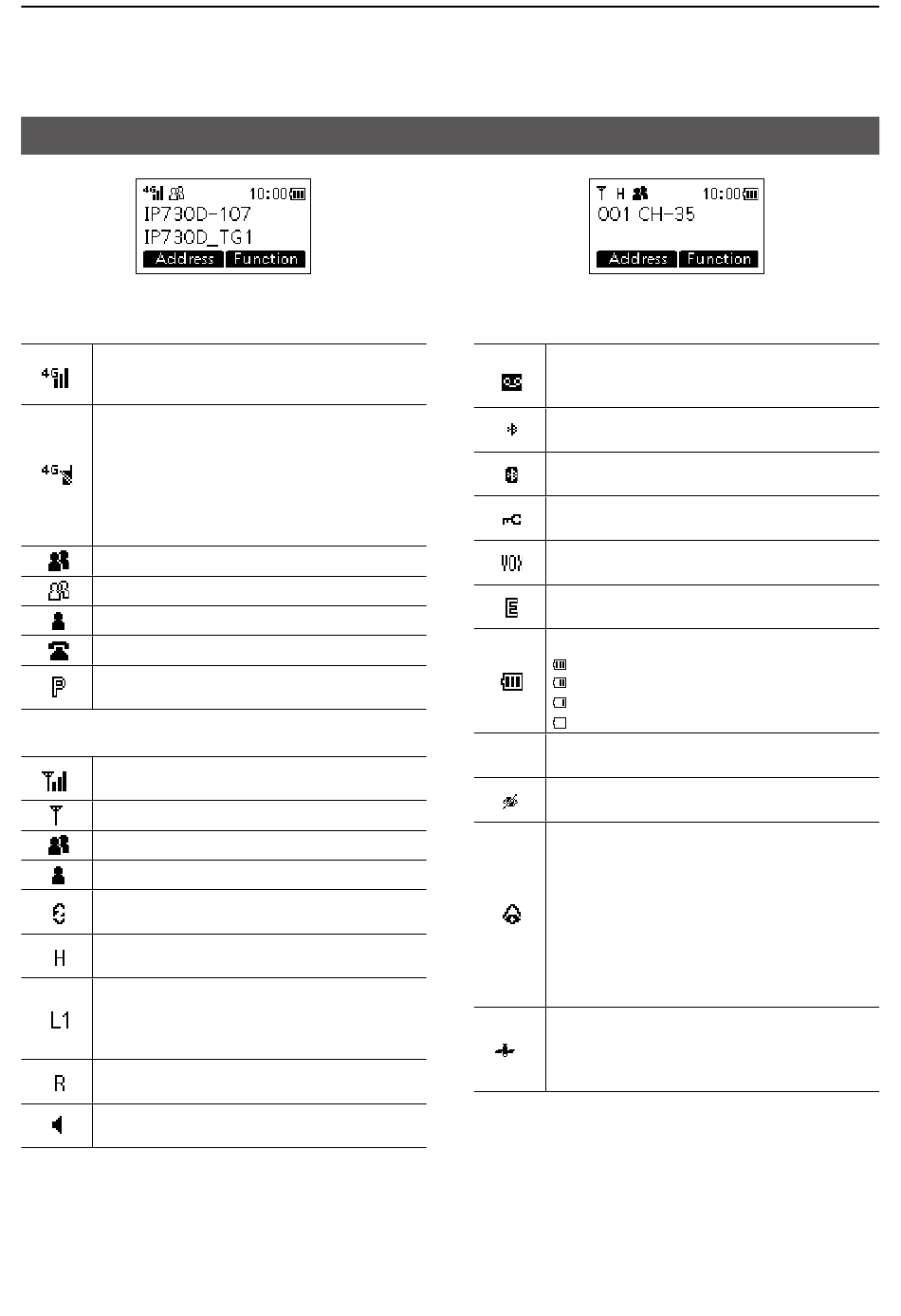

Function display
Cellular mode
D Cellular mode
Displays the signal strength level by 3 bars�
L A connected network type (4G or 3G) is
displayed on the left top�
• Blinks when the transceiver location is
out of the service area, or the transceiver
cannot receive a control signal�
• Displayed if the transceiver has not been
authenticated�
L A connected network type (4G or 3G) is
displayed on the left top�
All/Group Call
Talkgroup Call*
Individual Call
Phone Call* 1
Displayed when the P-Bell function is ON�
(p� 3-8)
D IDAS mode
Displays the relative receive signal strength
level�
Displayed when the signal level is low�
All/Group Call
Individual Call
Displayed when the Encryption function is
ON� (p� 4-4)
Displayed* 2 when high output power is
selected�
Displayed* when low output power is
2
selected�
L "L2" is displayed for 2 W, "L1" is displayed for
1 W�
Displayed* 2 when a receive-only channel is
selected�
Displayed when the channel is in the
audible (unmuted) mode�
1
D Cellular/IDAS mode
• Displayed when the Voice Recorder
function is ON� (p� 5-10)
• Blinks while recording audio�
Displayed when Bluetooth is activated�
(p� 5-2)
Displayed when a Bluetooth device is
connected� (p� 5-2)
Displayed when the Key Lock function is
ON� (p� 2-4)
Displayed when the VOX function is ON�
(p� 6-3)
Displayed when the Emergency Call
function is ON� (p� 5-6)
Displays the remaining battery charge�
: Full
: Mid
: Charging required
: Battery exhausted
Blinks when the transceiver is downloading
F
a new firmware.
Displayed when the Surveillance function is
ON� (p� 5-11)
Cellular mode:
• Displayed when the Pocket Beep function
is ON� (p� 3-8)
• Blinks when a call is received� It blinks
until the transceiver returns to the standby
mode after a received signal disappears�
IDAS mode:
Displayed or blinks when a matching signal
is received, depending on the presetting�
• Displayed when valid position data is
received�
* 3
• Blinks when no valid position data is
received�
* 1 May be usable, depending on a presetting�
* 2 Blinks when the transceiver temperature becomes
hot�
* 3 May not be displayed, depending on the transceiver
version or a presetting�
