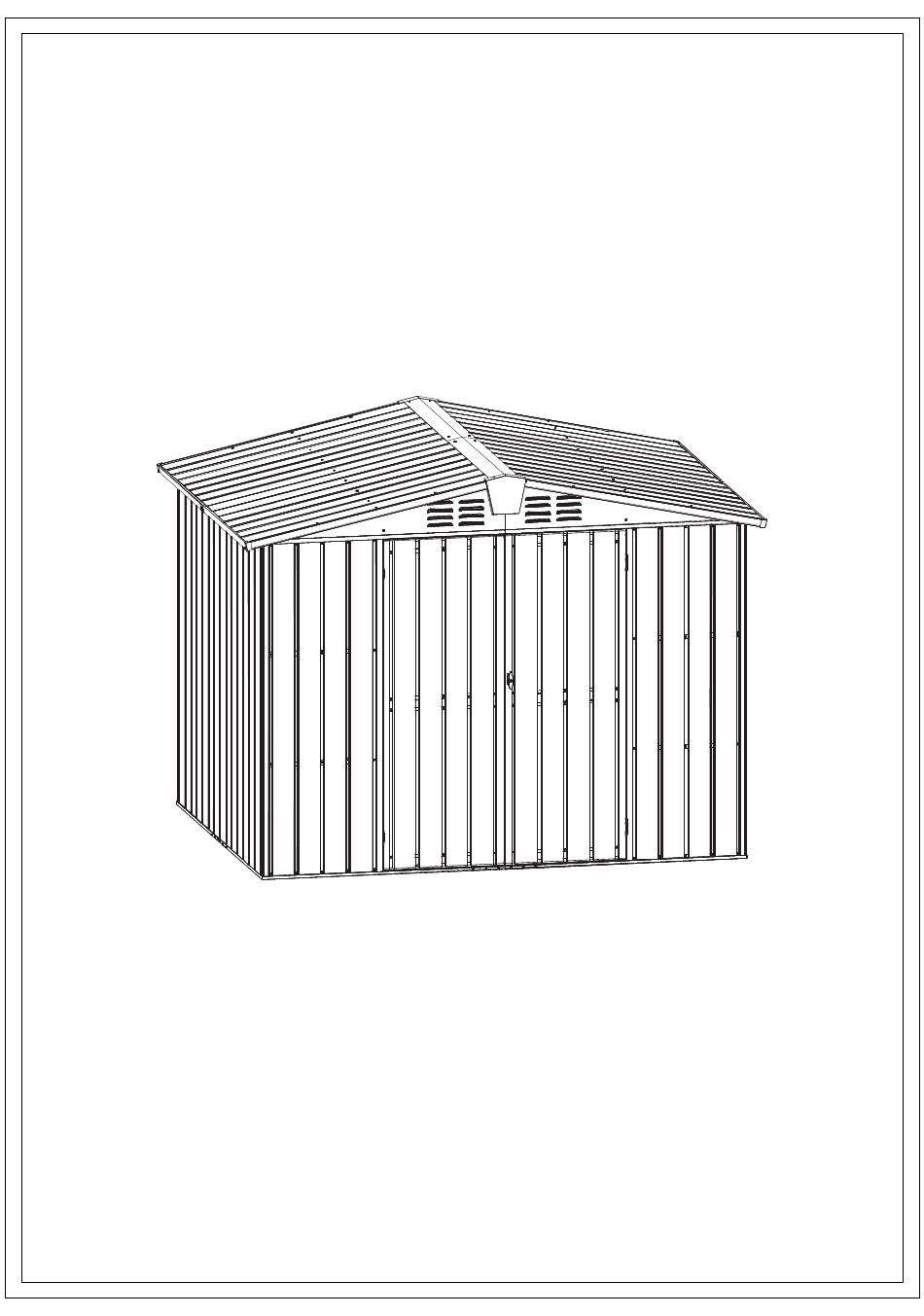

- Page 1 8.2'×6.2' TOOL STORAGE SHED ASSEMBLY MANUAL MODEL#: LGCF1551A Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2022-2024 domi LLC. I All Rights Reserved.
- Page 4 1551-List 1...
- Page 5 Hexagonal Hand Gloves socket wrench Hole position correction drill Cross screwdriver 1551-List 2...
- Page 7 Part 1 Bottom frame,wall panel and top frame assembly...
- Page 9 1# x16 2. Insert part #A to the corners and fix with 4 screws #1 & gaskets. 3.You need to prepare bolts by yourself to secure the frame to the ground. Attention: four corners MUST been right angles and check if the two diagonal distance of square is equal by tape measure.
- Page 10 J1 x2 1# x10 ①:Use 3 screws 9#, gaskets and caps to connect part H2 with part #C/J1/C1 to form a front side wall panel. Place the assembled front side wall panel (C/J1/C1) on the bottom frame(A1), using 5 screws 1# and gaskets to fix. ②:Use 3 screws 9#, gaskets and caps to connect part H1 with part #C2/J1/C to form a front side wall panel.
- Page 11 1# x8 J1 x2 Place part#J1 on the bottom frame(A6), using 4 screws 1# and gaskets to fix. Attention:To ensure the stability of the wall panel(J1) during assembly, you can temporarily reinforce this position(☆) with screws 3#, and replace it with other correct screws when the next installation is made.
-
Page 13: Front Side
1# x8 9# x8 Front Side Back Side Place part #J1/C on the bottom frame A6, using 4 screws 1# and gaskets to fix. ①: Use 1 screw 9# and gasket to install support tube(H6+H5) to wall panel #C & J1, then put on the plastic cap. ⑤: Use 2 screws 9# and gaskets to install support tube(H6+H5) to the 2 wall panels #J1, then put on the plastic caps. - Page 14 1# x6 9# x2 Front Side Back Side Place part #J on the bottom frame #A4, using 3 screws 1# and gaskets to fix. ③: Use screw 9# and gasket to install support tube(H4+H3) to wall panel #J & C, then put on the plastic cap.
- Page 15 Step 1: Use 7 screws 1# and gaskets to fix 2 part#J on the bottom frame(A5 & A6). Step 2: Use 3 screws 9# and gaskets to fix 2 part#J with support tube(H5+H6), then put on the plastic caps to form a whole side wall as shown in ①②. Repeat the above procedures to assemble another side wall.
- Page 17 9# x4 12# x16...
- Page 18 Place the assembled beam (B1,B2, B3, B4,B5,B6) on the upper end of the wall panel, and fix with 59 screws 1# and gaskets as shown in ①②. ③:Fix the upper end of the part#C1 with part#C4(already assembled on part#B1) by using screws 3#, the nuts and gaskets are on the back side. ④:Fix the upper end of the part#C2 with part#C4(already assembled on part#B2) by using screws 3#, the nuts and gaskets...
- Page 19 Part 2 Top beam and roof assembly...
- Page 21 Top Beam Assembly ①: Splice part#D1 & #D2, clamp the 2 sides with part #D; Use 2 screws 3# (including 1 screw ,2 gaskets and 1 nuts) to fix 2 part #D to part #D1 & #D2; Clamp the two sides with part#E1/E2, and tighten with 2 screws 3#, gaskets nuts.
- Page 22 ②: Use 4 screws 2#(including1 screw,1 gaskets and 1 nuts) to fix part #D3 with part #E4 &#D1. ③: Use 4 screws 2#(including1 screw,1 gaskets and 1 nuts)to fix part #D4 with part #E3 &#D2. Repeat the above procedures to assemble another side.
- Page 23 Cross Screwdriver Place the assembled top beam on the top frame, tighten with 20 screws #1 and gaskets.
- Page 25 Attention: The top plate can be installed in order or reverse order. If there is a deviation between the top plate and the top frame installation hole, it is generally caused by the diagonal size deviation of the frame beam. The diagonal distance of the frame beam can be measured and adjusted.
- Page 26 ②: Part #Z shall be inserted at the gap between roof panels and side top beam, Plastic Cap then fix with 14 Plastic Cap self-tapping screws #5 and caps to prevent rainwater ①: Secure the roof panel to the main top intrusion.
- Page 27 ③: The roof panel K1/K4 is fixed with top frame D1/D2 by using 12 bolts 2#, gaskets and nuts. ④: The roof panel is fixed to the side top frame(B5,B6) by using 28 self-tapping bolts #1 and gaskets.
- Page 31 Part 3 Door assembly...
- Page 32 The front side of left door The back side of left door Installation diagram of door panel, Section View frame and screw...
- Page 33 The back side of right door The front side of right door Installation diagram of door panel, Section View frame and screw...
