domi outdoor living LGCF1552A Assembly Manual

10'×8' tool storage shed

Advertisement

Quick Links

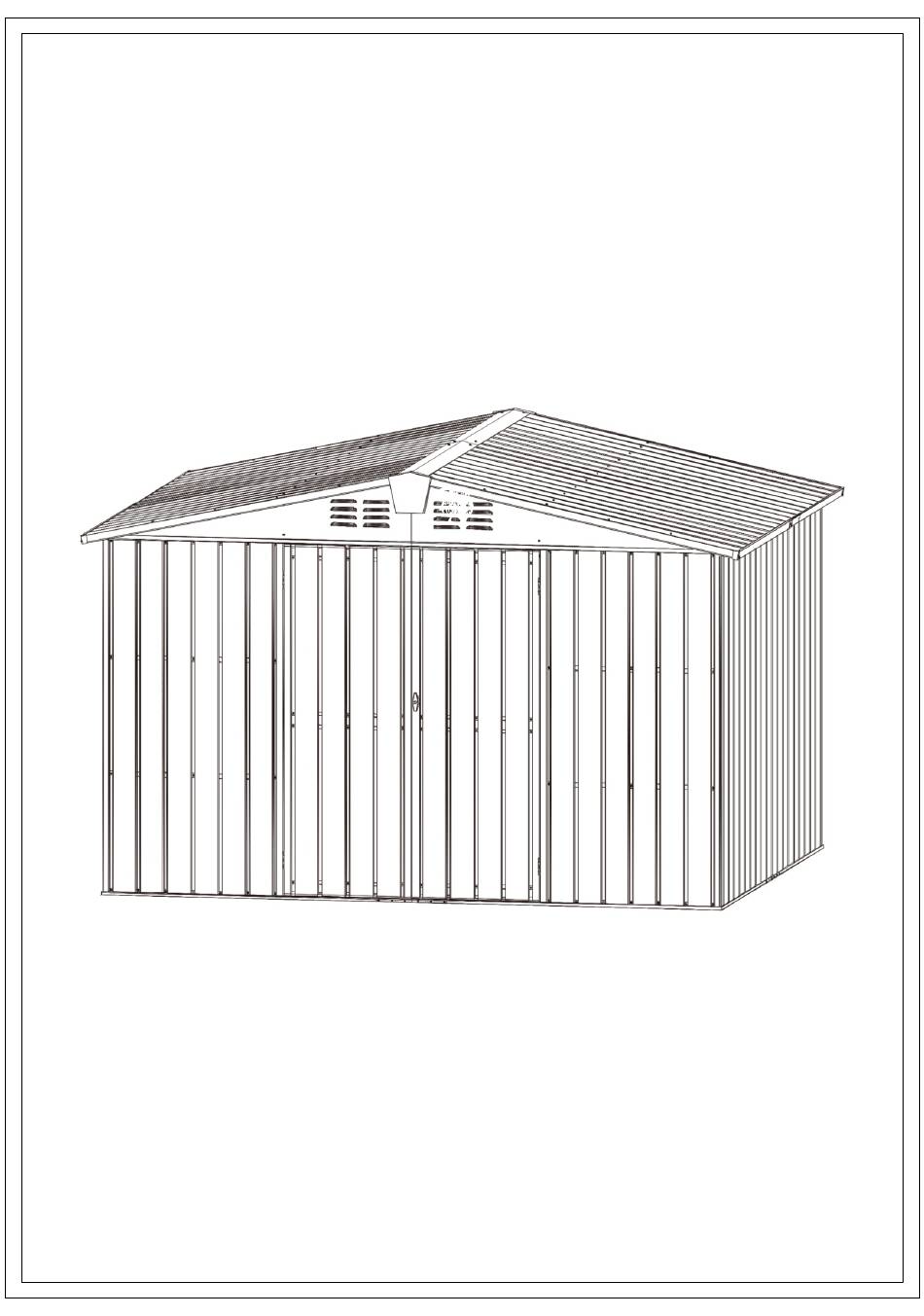

10'×8' Tool Storage Shed
ASSEMBLY MANUAL
MODEL#: LGCF1552A
Missing part? Damaged? Contact us via email at
service@domioutdoorliving.com
www.domioutdoorliving.com
©
Copyright 2022-2024 domi LLC. I All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LGCF1552A and is the answer not in the manual?

Questions and answers

Summary of Contents for domi outdoor living LGCF1552A

  • Page 1 10'×8' Tool Storage Shed ASSEMBLY MANUAL MODEL#: LGCF1552A Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2022-2024 domi LLC. I All Rights Reserved.
  • Page 4 List-1...
  • Page 5 Hexagonal Hand Gloves socket wrench Hole position Cross screwdriver correction drill List-2...
  • Page 10 H1 x1 H1 x1 9# x6 ①:Use 3 screws 9#, gaskets and caps to connect part H2 with part #C/J/J/C1 to form a front side wall panel. Place the assembled front side wall panel (C/J/J/C1) on the bottom frame(A1), using 7 screws 1# and gaskets to fix. ②...
  • Page 11 Place part#J on the bottom frame(A6), using 3 screws 1# and gaskets to fix. Attention: To ensure the stability of the wall panel(J) during assembly, you can temporarily reinforce this position(☆) with screws 3#, and replace it with other correct screws when the next installation is made. Repeat the above procedures to assemble the other side.
  • Page 13 9# x4 1# x6 Place part #J/C on the bottom frame A6, using 3 screws 1# and gaskets to fix. ①: Use 1 screw 9# and gasket to install support tube(H6+H5) to wall panel #C & J, then put on the plastic cap. Front Side Back Side Section View...
  • Page 14 9# x4 1# x8 Front Side Back Side Place part #J1 on the bottom frame #A4, using 4 screws 1# and gaskets to fix. ③: Use screw 9# and gasket to install support tube(H4+H3) to wall panel #J1 & C, then put on the plastic cap.
  • Page 15 Step 1: Use 13 screws 1# and gaskets to fix 4 part#J on the bottom frame(A5 & A6) Step 2: Use 5 screws 9# and gaskets to fix 4 part#J with part#(H5+H6), then put on the plastic caps to form a whole side wall as shown in ①②. Repeat the above procedures to assemble another side wall.
  • Page 20 Middle bean assembly Connection of the part #E1*2/E2*2/E5*2/E6 Plastic Caps Side bean assembly Connection of the part #E3/E4/E5 Plastic Caps...
  • Page 21 Top Beam Assembly ①: Splice part#D1 & #D2, clamp the 2 sides with part #D; Use 3 screws 3# (including 1 screw ,2 gaskets and 1 nuts) to fix 2 part #D to part #D1 & #D2; Clamp the two sides with part#E1/E2, and tighten with 2 screws 3#, gaskets nuts.
  • Page 22 ②: Use 4 screws 2#(including 1 screw,1 gaskets and 1 nuts) to fix part #D3 with part #E4 &#D1. ③: Use 4 screws 2#(including 1 screw,1 gaskets and 1 nuts)to fix part #D4 with part #E3 &#D2. Repeat the above procedures to assemble another side.
  • Page 26 ①: Secure the roof panel to the main top beam with 36 self-tapping screws 4# and part #Z, then put on the plastic caps. ②: Part #Z shall be inserted at the gap between roof panels and side top beam, then fix with 18 self-tapping screws #5 and caps to prevent rainwater intrusion.
  • Page 27 ③:The roof panel K1/K5 is fixed with top frame D1/D2 by using 16 bolts 2#, gaskets and nuts. ④:The roof panel is fixed to the side top frame(B5,B6) by using 36 self-tapping bolts #1 and gaskets.
  • Page 28 Section View Section View...
  • Page 30 Inside View...
