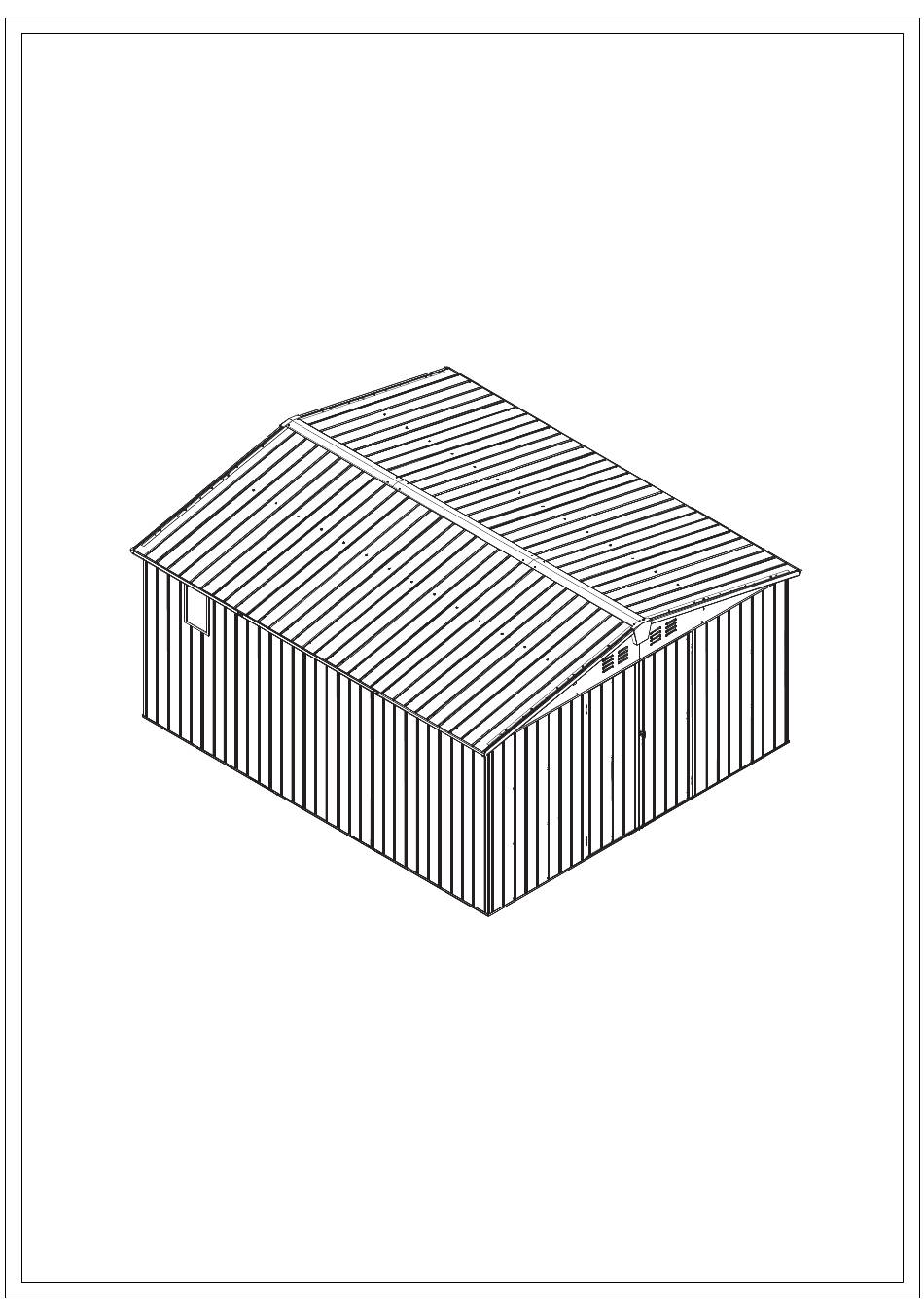

- Page 1 11'×12.5' Tool Storage Shed ASSEMBLY INSTRUCTIONS MODEL#: LGCF1621A Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2022-2024 domi LLC. I All Rights Reserved.
- Page 2 Please stand inside the shed frame when installing the panels for convenience.
- Page 4 List-1...
- Page 5 List-2...
- Page 6 Cross Screwdriver Hexagonal Hole Position Socket Wrench Correction Drill Gloves List-3...
- Page 8 Part 1 Bottom frame,wall panel and top frame assembly...
- Page 9 Plastic Gaskets 1# x72 ①:Use the part#A7 to connect the bottom frame respectively, and then screw with bolt #1 and gaskets as shown.
- Page 10 9# x4 1# x16 C3 x2 Plastic Gaskets Plastic Gaskets ①:Insert part #A to the corners. ②:Fix with 4 bolts #1 & gaskets. ② ① ③ ③:You need to prepare bolts by yourself to secure the frame to the ground. ⑤...
- Page 11 H1 x1 9# x10 H2 x1 Section View ①: Use 5 bolts 9#, gaskets and caps to connect part #H2 with part #C/J1/J1/C1 to form a front side wall panel. Section View ②: Use 5 bolts 9#, gaskets and caps to connect part #H1 with part #C2/J1/J1/C to form a front side wall panel.
- Page 12 Section View Section View Place part #J on the bottom frame(#A6), using 3 bolts 1# and gaskets to fix. Attention: To ensure the stability of the wall panel(#J) during assembly, you can temporarily reinforce this position(☆) with bolts 2#, and replace it with other correct bolts when the next installation is made.
- Page 13 H4 x1 H3 x1 H7 x5 H5 x2 H6 x2 3# x20 H8 x2 H5/H8 H8/H6 Use part#H7 to connect part #H3 and part #H4, and fix with bolts 3#, gaskets and nuts. Repeat the above procedures to connect part #H5 with part #H8/part #H8 with part #H6.
- Page 14 Outside View Inside View Side Window Assembly: Insert part #N to the wall panel #J2 (from outside to inside), place transparent board #N2, use 8 bolts #13 to fix part #N1 & part #N (from inside to outside). Repeat the above procedures to assemble another side window.
- Page 15 1# x12 9# x4 Place part #J2/J/C on the bottom frame #A6, using 6 bolts 1# and gaskets to fix. ①: Use 1 bolt 9# and gasket to install support tubes(H6+H8+H5) to wall panel #J, then put on the plastic caps. Front Side Back Side Side View...
- Page 16 9# x6 Place part #J1 on the bottom frame #A4, using 4 bolts 1# and gaskets to fix. Place part #J1 on the bottom frame #A3, using 4 bolts 1# and gaskets to fix. Front Side Back Side Section View Plastic Cap ③: Use 2 bolts 9# and gaskets to install 1 support tube(H6+H8+H5) &...
- Page 17 9# x23 Side View Side View Plastic Cap Plastic Cap Use 22 bolts 1# and gaskets to fix 7 part #J on the bottom frame(A5 & A8 & A6). ①/②: Use 8 bolts 9# and gaskets to fix 7 part #J with 1 support tube(H6+H8+H5) , then put on the plastic caps to form a whole side wall.
- Page 18 12# x36 Top Frame Assembly ①：Connect part #B1 & #B2, insert part #B7 & #B8 on the inside of part #B1/B2, fix with 6 screws 12# and gaskets ②: Connect part #B3 & #B4, insert part #B7 on the inside of part #B3/B4, fix with 6 bolts 12# and gaskets.
- Page 19 9# x4 12# x16 C4 x2 Plastic Gaskets Plastic Gaskets ①/②: Use #part #B to connect part #B5 & #B3, part #B4 & #B6, part #B5 & #B2, part #B1 & #B6, fix with 16 bolts 12# and gaskets. ② ①...
- Page 20 ①/②: Place the assembled frame on the upper end of the wall panel, and fix with 107 bolts 1# and gaskets. ③: Fix the upper end of the ④: Fix the upper end of the part#C1 with part #C4(already part#C2 with part #C4 assembled on part#B1) by using (already assembled on part#B2) bolts 3#, the gaskets and nuts...
- Page 21 Part 2 Top beam and roof assembly...
- Page 22 Connection of the middle top beam (part #E1*2/E2*2/E5*4/E6*2/E7*2) Plastic Cap Section View Connection of the 2 side top beam (part #E3/E8/E4/E5*2) Plastic Cap Section View...
- Page 23 Top Beam Assembly ①: Splice part#D1 & #D2, clamp the 2 sides with part #D; Use 3 bolts 3# (including 1 bolt ,2 gaskets and 1 nuts) to fix 2 part #D to part #D1 & #D2; Clamp the two sides with part#E1/E2, and tighten with 2 bolts 3#, gaskets nuts.
- Page 24 ②: Use 4 bolts 2#(including ③: Use 4 bolts 2#(including 1 bolt,1 gaskets and 1 nuts) 1 bolt,1 gaskets and 1 nuts) to fix part #D3 with part to fix part #D4 with part #E4 & #D1. #E3 & #D2. Repeat the above procedures to assemble another side.
- Page 25 Cross Screwdriver Place the assembled top beam on the top frame, tighten with 28 bolts #1 and gaskets.
- Page 26 Assemble part #G2 to the one side of part #K2 with 6 bolts 2# gaskets and nuts. Assemble part #G1 to the one side of part #K1 with 6 bolts 2# gaskets and nuts. Section View...
- Page 27 Attention: The top plate can be installed in order or reverse order. If there is a deviation between the top plate and the top frame installation hole, it is generally caused by the diagonal size deviation of the frame beam. The diagonal distance of the frame beam can be measured and adjusted.
- Page 28 Plastic Cap Plastic Cap ①: Secure the roof panel to ②: Part #Z shall be inserted at the gap the main top beam with between roof panels and side top beam, self-tapping bolts 4# and then fix with 28 self-tapping bolts #5 part #Z.
- Page 29 ③: The roof panel K1/K2 is fixed with top frame D1/D2 by using 20 bolts 2#, gaskets and nuts. ④: The roof panel is fixed to the side top frame (B5,B9,B6) by using 60 self-tapping bolts #1 and gaskets.
- Page 30 ①: Use 2 bolts 3#, 4 gaskets and 2 nuts to fix part #F with part #K1/K2 and part #D1/D2. Repeat the above procedures to assemble another side. Section View ②: Insert part #Z into the roof panel groove, use 4 bolts 11#, 8 gaskets and 4 nuts to fix part #F2 and part #F/#F3 to the roof top.
- Page 31 ③: Step.1:Use 30 bolts 2# gaskets and nuts to fix part #G3,#G8 and #G4 on the cornice of roof panel. Step.2:Use 8 bolts 2#,gaskets and nuts to cover part #G7 on the connection of part #G3 & #G8/ part #G8 &#G4. Repeat the above producers to assemble another side.
- Page 32 ①/②: Install part #G5/G6 to 4 corners of the roof, fix with 8 bolts #3, 16 gaskets and 8 nuts. ③: Use 4 bolts 7# to install part #F1 from inside. Repeat the above procedure to assemble another side.
- Page 33 Part 3 Door Assembly...
- Page 34 The front side of left door The back side of left door Installation diagram of door panel, Section View frame and screw...
- Page 35 The back side of right door The front side of right door Installation diagram of door panel, Section View frame and screw...
- Page 36 There is a latch on the left door There is a handle on the right door ①: This section is need to installed by the user. Lining board #Y is on the inside The hinge has been pre-installed on the of the door frame.
- Page 37 ①/②: Insert the latch and lock the left door. ③: Open the door: insert the key, rotate 180 counterclockwise, and rotate the handle counterclockwise to open the door. Lock the door: close the door, insert the key, rotate the handle clockwise, then rotate the key 180 clockwise and pull the key out.
