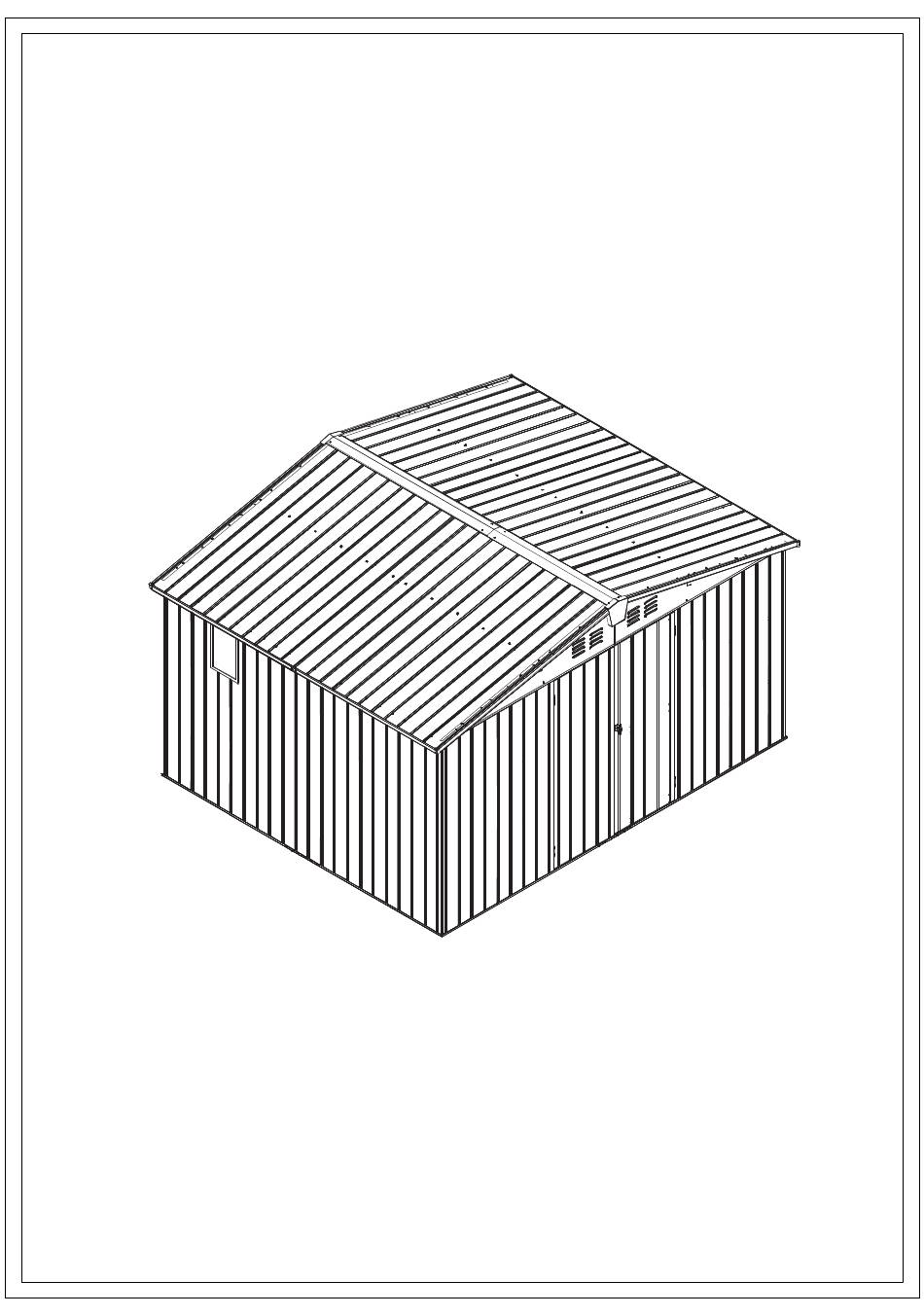

- Page 1 11'×9' Tool Storage Shed ASSEMBLY INSTRUCTIONS MODEL#: LGCF1620A Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2023-2025 domioutdoorliving LLC. All Rights Reserved.
- Page 2 Email me:service@domioutdoorliving.com...
- Page 3 Please stand inside the shed frame when installing the panels for convenience.
- Page 7 A1 x1 C x4 A2 x1 C1 x1 A3 x1 C2 x1 A4 x1 C3 x2 C4 x2 A5 x2 A6 x2 D1 x2 A7 x4 A x4 D2 x2 B1 x1 D3 x2 D4 x2 D x4 B2 x1 E1 x2 B3 x1 E2 x2...
- Page 8 F x1 F3 x1 F1 x2 F2 x1 G1 x2 J x18 J1 x6 J2 x2 G2 x2 G3 x2 K2 x2 G4 x2 K4 x3 G5 x2 G6 x2 G7 x2 H1 x1 H2 x1 K6 x1 H3 x1 H4 x1 K5 x1 H5 x2...
- Page 9 Cross Screwdriver Gloves Hexagonal Socket Wrench Hole Position Correction Drill List-3...
- Page 11 Part 1 Bottom frame,wall panel and top frame assembly...
- Page 13 ④ ⑤...
- Page 15 Attention: To ensure the stability of the wall panel(#J) during assembly, you can temporarily reinforce this position(☆) with bolts 3#, and replace it with other correct bolts when the next installation is made.
- Page 16 Use part #H7 to connect part #H3 and part #H4, and fix with bolts 3#, gaskets and nuts. Repeat the above procedures to connect part #H5 with part #H6. H3/H4 H5/H6...
- Page 18 1# x12 9# x4 Place part #J2/J/C on the bottom frame #A6, using 6 bolts 1# and gaskets to fix. ①: Use 1 bolt 9# and gasket to install support tubes(H6+H5) to wall panel #J, then put on the plastic caps. Front Side Back Side Side View...
- Page 19 9# x6 Place part #J1 on the bottom frame #A4, using 4 bolts 1# and gaskets to fix. Place part #J1 on the bottom frame #A3, using 4 bolts 1# and gaskets to fix. Front Side Back Side Section View Plastic Cap ③: Use 2 bolts 9# and gaskets to install 1 support tube(H6+H5) &...
- Page 20 Side View Side View Plastic Cap Plastic Cap Use 13 bolts 1# and gaskets to fix 4 part #J on the bottom frame(A5 & A6). ①: Use 5 bolts 9# and gaskets to fix 4 part #J with support tubes(H5+H6) , then put on the plastic caps to form a whole side wall.
- Page 22 ① ②...
- Page 23 ①/②: Place the assembled frame on the upper end of the wall panel, and fix with 89 bolts 1# and gaskets. ④: Fix the upper end of the part#C2 with part #C4 ③: Fix the upper end of the part#C1 (already assembled on part#B2) with part #C4(already assembled on by using 2 bolts 3#, the gaskets...
- Page 24 Part 2 Top beam and roof assembly...
- Page 28 Cross Screwdriver Place the assembled top beam on the top frame, tighten with 28 bolts #1 and gaskets.
- Page 30 Please stand inside the shed frame when installing the panels for convenience.
- Page 31 Please stand inside the shed frame when installing the panels for convenience.
- Page 36 Part 3 Door Assembly...
- Page 39 Use bolts #8, gaskets and nuts to install #Y to the inside of door frame.
