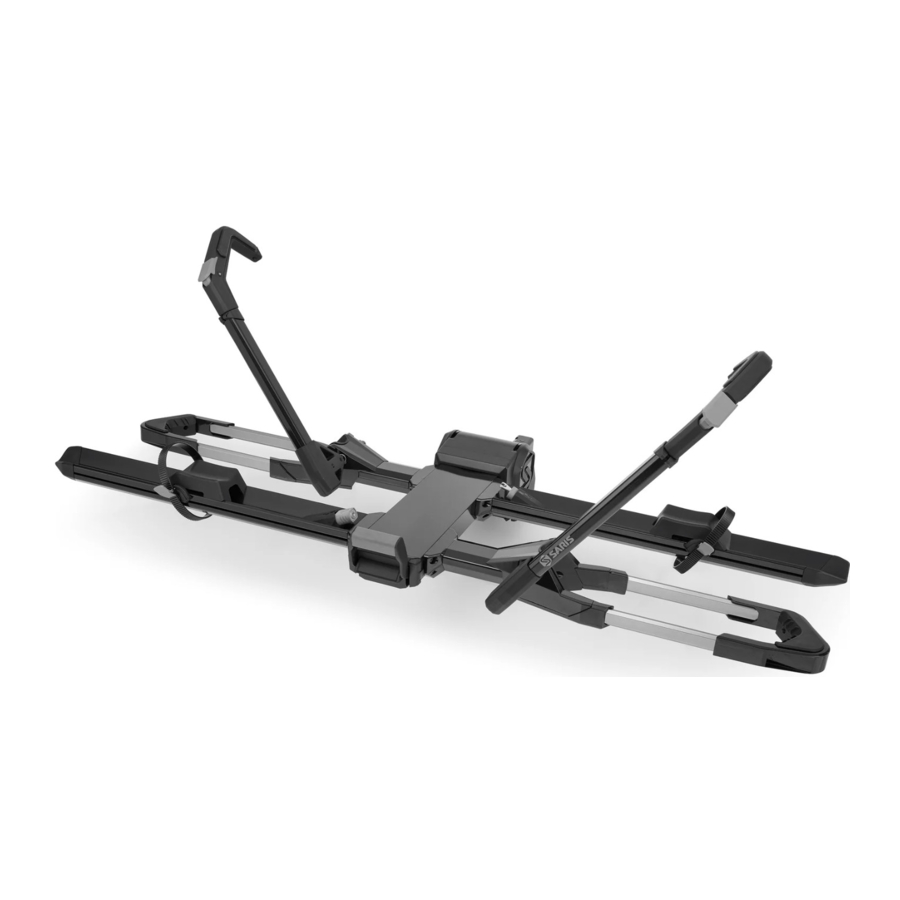

SARIS Edge 2-Bike, 4086 Manual

WHAT'S IN THE BOX

FOLLOW INSTRUCTIONS

VIEW OUR INSTALLATION VIDEO
Saris.com/en/instructional-videos-1.html

ASSEMBLE RACK

1. Match the letters on the end of each tray to the letters on the side of the hitch spine. Secure with M8 bolts and torque to 12N•M, as shown.
   NOTE: Assembly of this rack may be easier while the spine is in your vehicle's hitch.


ATTACH TO VEHICLE

1. Insert the rack into your hitch, matching the holes on your vehicle's receiver to the holes in the rack.

2. Install the hitch pin through the receiver pinhole and attach the lock.

3. Tighten the knob at the end of the rack base until the rack is tight in the vehicle's receiver. An extra lift on the rack while tightening the knob will ensure there is no wobble once the bikes are loaded.


LOAD BIKES

1. Place the front wheel in the wheel scoop. Ensure tire is straight and centered between support bars.

2. Press and hold the button at the top of the wheel hook and pull the arm out.

3. Bring the arm towards the bike until it stops. Then, release the hook and press tightly against the tire.


LOCK BIKES

1. Slide lock cables out of trays and through bike frames. Join fork and lock head and lock with key.
   When returning lock cables, be sure to fully slide lock cables and lock heads back to their home position.


TECHNICAL SPECIFICATIONS

Maximum bike weight per position: 80 lb.
Minimum wheel size: 24"
Maximum wheel size: 27.5 x 5" / 29" x 3"
Maximum wheelbase: 53"

MAINTENANCE AS NEEDED:
If hook arms become sticky, difficult to move, or do not retract on their own:

• Pull hook to fully extended position and clean inner arm tube.
• Flush water down inner arm tube and into the outer arm collar.
• Repeat until arm moves freely.
• Allow to dry, apply light, wax-based lubricant around the arm collar, and cycle the arm to allow the lubricant to reach the lower bushing surface.
• Wipe any excess lubricant off of the arm and collar area to prevent dirt build-up.

RECOMMENDED MAINTENANCE:
Each use:

• Check for signs of wear
• Check bike cradles and wheel scoops
• Check for loose bolts Every 90 days:
• Clean with water and mild soap
• Lubricate locks if applicable (use wet, oil-based lubricant; NO WD-40)

• All requirements for compatibility/fit as stated in the current Saris vehicle/carrier compatibility guide must be followed. (Available at any Saris dealer orwww.saris.com). If your vehicle is not listed or you have any questions, please call our customer service at 800-783-7257 or visit www.saris.com.
• Read and follow instructions carefully. Save owner's manual for future reference or parts information. Ensure that any other users of the bicycle carrier are familiar with their content.
• Drive slowly over speed bumps, 5 to 10 mph max speed.
• It is the end user's responsibility to ensure that use of this product meets all local and state laws.
• When cleaning vehicle and rack, use only water-soluble cleaners. Do not take rack through car wash.
• Ensure rack trays are a minimum of 12" from the ground when installed on the vehicle.
• Make sure bike tires are not directly behind exhaust pipe.
• Rack must be installed directly into vehicle hitch receiver or approved Saris accessory. Do not modify the hitch receiver or use hitch extenders.
• Approved for use on Class, A, B, and C Motorhomes or RV's. The receiver hitch must directly attached to the motorhome chassis, not just to the bumper.
• Not approved for use on tow-behind campers or trailers.
• Prior to usage on the road, remove all loose parts from bicycle, including (but not limited to) child seat, basket, lock, light, pump, etc.
• This carrier is not recommended for off-road use or use at speed exceeding 70 mph (113 km/h).
• The handling characteristics of a vehicle will change when a rear bicycles carrier is fitted and especially when it is loaded (in particular crosswind sensitivity, handling on bends and braking). Driving techniques should be altered to allow for these changes – reduce speed, especially on bends, and allow for longer braking distances.
• The vehicle's total length increases when the bike carrier is attached. The bikes themselves may increase the vehicle's total width and height. Take care when reversing and/or entering garages, ferries, etc.
• Remove carrier from vehicle when not in use.
• Tighten straps regularly during the journey.
• Vehicle should be in good condition in the area at which the hitch is located.
• Saris absolves itself of responsibility for any personal injuries or consequential damage to property or wealth caused by incorrect fitting or use.
• Do not exceed maximum load capacity of carrier (80 lbs max per bike tray) Secure properly and adjust for even load distribution, loading the heaviest/biggest bike first and closest to the vehicle. Minimum compatible wheel size 24". Maximum compatible wheel size: 29"x3" and 27.5" x 5". Maximum compatible wheelbase: 53".
