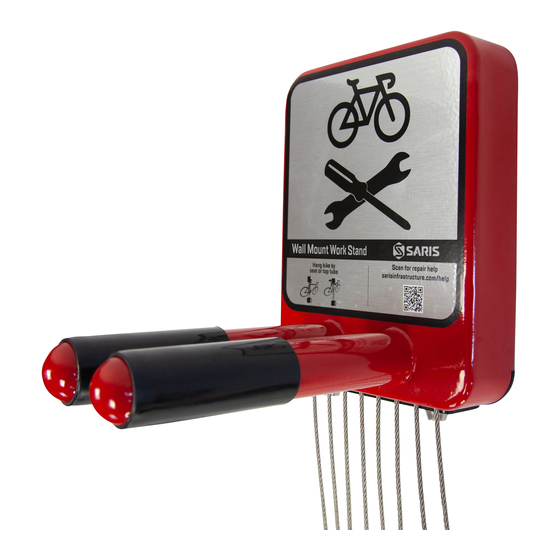

- Page 1 Customer Service WALL MOUNT WORK STAND 800.783.7257 sarisinfrastructure.com INSTALLATION MANUAL...
- Page 2 Tell Us What You Think sarisinfrastructure.com/ wallmountworkstand Register your product for updates sarisinfrastructure.com/registration...
- Page 3 The optional ADA compliance Wall Plate provides the required cane detection function which makes this product ideal for public spaces. Pair the Wall Mount Work Stand with any of our bike pumps to create a full service public use repair station that helps get cyclists back on the road with a dialed ride.
- Page 4 Tools Needed Recommended Setbacks: Drill and drill bits (mounting hard- See Figure 1 below for minimum space requirements. It is possible to ware dependent) mount a manual or electric pump within this setback region as well. Phillips Screwdriver Mounting Hardware (location dependent) Penta Nut Socket (included) 3/8”...
-
Page 5: Wall Mounting Instructions
Wall Mounting Instructions 1. Identify mounting location and be sure to follow recommended setbacks. The top of the work stand should be mounted at 62” (157.5cm) from the ground. If installing on a vending machine, mount in a position that does not inhibit the door opening (we usually mount on the left side of the machine). - Page 6 3. Once the back plate is secured, load the tools to the front cover as shown.
- Page 7 4. Lift the front cover onto the back plate so that the tabs fit into the slots. 5. Install and tighten penta nuts to approximately 5-6 Nm. Be careful not to over tighten.
- Page 8 Optional ADA compliance wall plate For some locations, it may be necessary to install the optional ADA compliance wall plate. This plate also protects the wall from tool damage. 1. Locate the wall plate directly below the work stand at a distance of 1” (2.54cm) off the floor. 2.
- Page 9 (3) its failure resulted from a defect in material or workmanship and not from normal wear expected in the use of the product; (4) the product or part is delivered, freight prepaid, to Saris Products.
