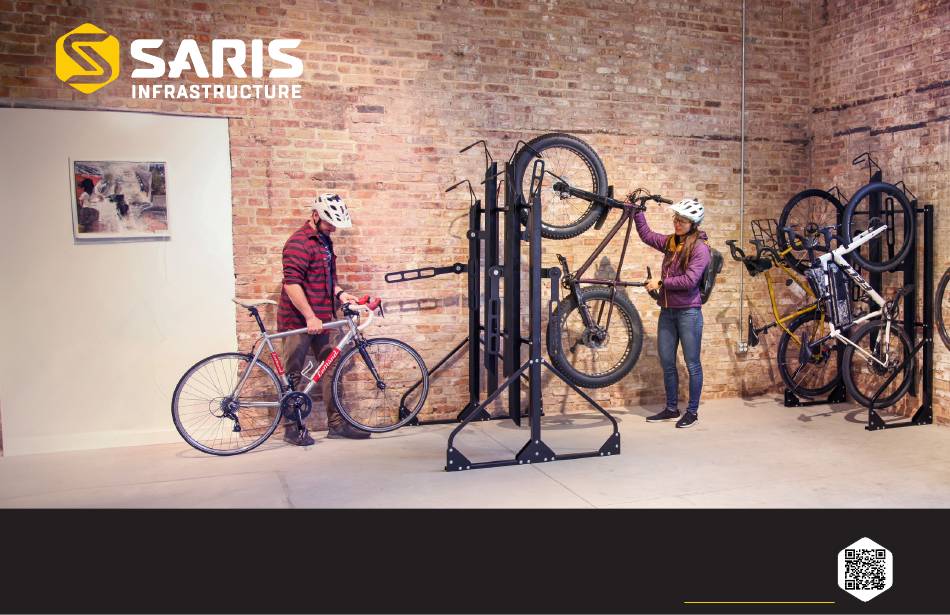

- Page 1 VERTICAL RACK DISCOVER MORE For more Saris Infrastructure products, INSTALLATION GUIDE scan the QR code or visit sarisinfrastructure.com...
-
Page 2: Tell Us What You Think
Tell Us What You Think! Sarisinfrastructure.com/product/ vertical-rack Submit Your Installation Photos! Nothing makes us happier than seeing our infrastructure products out in the wild! Submit your photos at the link below. www.sarisinfrastructure.com/contact/submit-photos... - Page 3 Please be sure to read and understand the following instructions before beginning your installation. Everyone here at Saris Infrastructure wants you to be happy with this product. Please contact us at sales@sarisinfrastructure.com or 800-783-7257 should you need anything.
-
Page 4: Required Tools
Required Tools Tools Required: • 9/16” combination wrench & 7/16” combination wrench • Hammer drill (for anchors) • ½” concrete drill bit (for anchors) • Tape measure • T30 Torx Security Bit Mounting Optional Anchor Hardware – part # 29173 (sold separately) Product shown 8144V... - Page 5 DECRIPITION SARIS PARTS NUMBER 32575 CARRIAGE BOLT, 3/8-16 X 1.75 32574 CARRIAGE BOLT, 3/8-16 X 2.75 23950 CARRIAGE BOLT, 1/4-20 X 2.5” 32590 TORX SCREW, T30 SECURE, 1/4-20X .50 32895 NUT, 3/8-16 18493 NUT, 3/4-20 6103/6106 BIKE TRAC,NON-LOCKING OR LOCKING...
- Page 6 Instructions Leg Assembly Assemble side supports and connect feet (Part O) to frame upright (Part K) using large brace plate (Part M) and carriage bolts (Part B) and nuts (Part E). 2. Install support leg (Part N) to upright (Part K) using small brace plate (Part L) and to foot with large brace plate (Part M) using bolts (Parts A and B) and nuts (Part E).
- Page 7 Horizontal Cross Bar Attach Horizontal Cross Bar (Part I) to each Frame Upright (Part K) using carriage bolt (Part C).
- Page 8 Attach Wheel Trays to Frame SINGLE AND DOUBLE SIDED: Use dimension chart to determine spacing of Bike Tracs along crossbars to achieve your desired configuration. Attach using Tray Mounting Clip (Part H) and secure with Torx Screw (Part D). Note: Tracs installed at 24” spacing can be placed at same height rather than staggered.
-
Page 9: Anchor Installation
Anchor Installation *DO NOT THROW AWAY THE PENTA SOCKET AFTER COMPLETING THE INSTALLATION. YOU WILL NEED IT TO REMOVE THE EQUIPMENT IF THAT IS NECESSARY. 1. Place the rack in the desired location (see setbacks document). Use a marker or pencil to outline the holes of the flange onto the base material. - Page 10 1. Before starting to drill the hole, it is important that eye and ear protection are used. Make sure the hammer drill is in the hammer mode and start drilling your hole. Continue drilling until the tape on the bit or the drill gauge meets the base material- this means that the required depth has been reached.
- Page 11 1. Next, insert the drop in anchor with the open side up. Tap lightly to get the anchor flush with the base material. 2. Now, take the setting tool and insert it into the anchor. Strike the setting tool with the hammer several times until the set tool no longer moves down.
- Page 12 Aisle Clearances Single-Sided Frame MINIMUM BIKE CLEARANCE INSTALLED AISLE SPACE MINIMUM SYSTEM TO SYSTEM Double-Sided Frame MINIMUM BIKE CLEARANCE...
- Page 13 Dimension Guide Key...
- Page 14 Aisle Clearances BIKE COUNT FRAME CONFIGURATION PART NUMBER A (TRAY POSITION) B (TRAY SPACING) C (FRAME SPACING) D (MINIMUM SIDE WALL CLEARANCE) E (FRAME WIDTH) 3 bike SINGLE SIDED 8133V 44.5 4 bike SINGLE SIDED 8144V 6.25 0 (3.5" loss) 62.5 5 bike SINGLE SIDED...
-
Page 15: Warranty
(3) its failure resulted from a defect in material or workmanship and not from normal wear expected in the use of the product; (4) the product or part is delivered, freight prepaid, to Saris Infrastructure. Manufacturer’s only obligation shall be to replace such products or parts proven to be defective.
