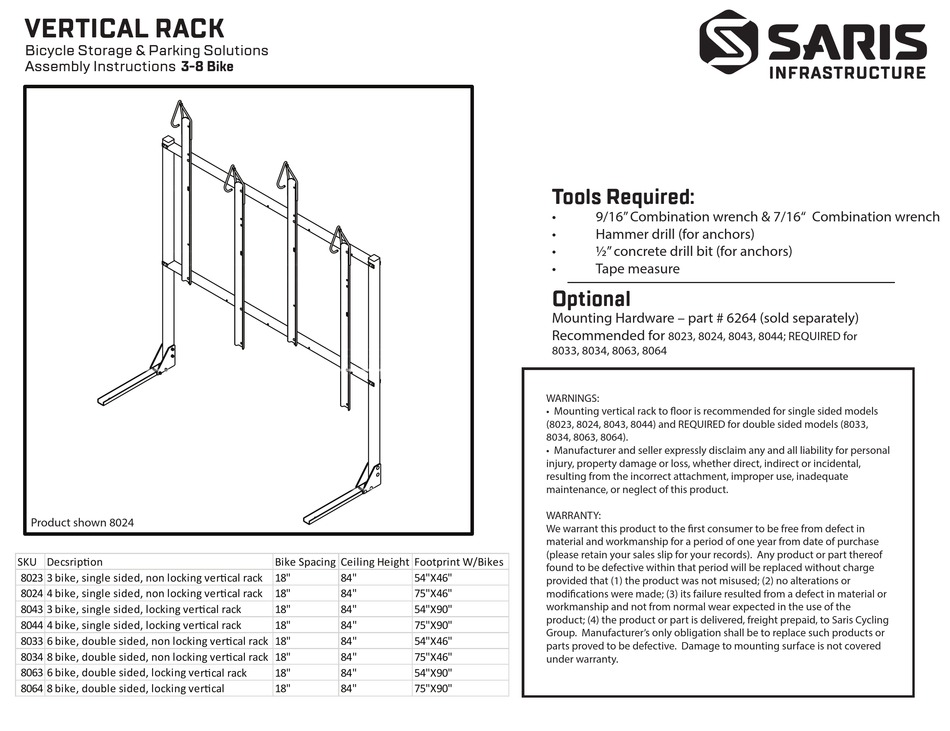

VERTICAL RACK
Bicycle Storage & Parking Solutions
Assembly Instructions
3-8 Bike
Product shown 8024
SKU Decsrip�on
8023 3 bike, single sided, non locking ver�cal rack 18"
8024 4 bike, single sided, non locking ver�cal rack 18"
8043 3 bike, single sided, locking ver�cal rack
8044 4 bike, single sided, locking ver�cal rack
8033 6 bike, double sided, non locking ver�cal rack 18"
8034 8 bike, double sided, non locking ver�cal rack 18"
8063 6 bike, double sided, locking ver�cal rack
8064 8 bike, double sided, locking ver�cal
Bike Spacing Ceiling Height Footprint W/Bikes
84"
54"X46"
84"
75"X46"
18"
84"
54"X90"
18"
84"
75"X90"
84"
54"X46"
84"
75"X46"
18"
84"
54"X90"
18"
84"
75"X90"

Tools Required:

9/16" Combination wrench & 7/16" Combination wrench
Hammer drill (for anchors)
½" concrete drill bit (for anchors)
Tape measure
Optional
Mounting Hardware – part # 6264 (sold separately)
Recommended for
8023, 8024, 8043, 8044; REQUIRED for
8033, 8034, 8063, 8064
WARNINGS:
• Mounting vertical rack to oor is recommended for single sided models
(8023, 8024, 8043, 8044) and REQUIRED for double sided models (8033,
8034, 8063, 8064).
• Manufacturer and seller expressly disclaim any and all liability for personal
injury, property damage or loss, whether direct, indirect or incidental,
resulting from the incorrect attachment, improper use, inadequate
maintenance, or neglect of this product.
WARRANTY:
We warrant this product to the rst consumer to be free from defect in
material and workmanship for a period of one year from date of purchase
(please retain your sales slip for your records). Any product or part thereof
found to be defective within that period will be replaced without charge
provided that (1) the product was not misused; (2) no alterations or
modi cations were made; (3) its failure resulted from a defect in material or
workmanship and not from normal wear expected in the use of the
product; (4) the product or part is delivered, freight prepaid, to Saris Cycling
Group. Manufacturer's only obligation shall be to replace such products or
parts proved to be defective. Damage to mounting surface is not covered
under warranty.
