Gardena Easy, Basic, 01896, 01898 Manual

Irrigation examples

Plant species	Frequency
	Every 8–24 hours
	Every 24–48 hours

Tip
The water requirements depend on:
Type and age of the plant
Root type (shallow/deep)
Location (shaded/sunny)
Soil type (light/heavy)

COMMISSIONING

The battery is not included in the scope of delivery.
The battery life is approx. one year. The battery life can vary depending on ambient temperature and frequency of use.

Inserting the battery

For reasons of functional safety, only 1.5 V alkaline manganese (alkaline), type IEC LR6, may be used.

1. Set the rotary knob to "OFF".The LED flashes once.
2. Open and remove the battery compartment.
3. Insert two new batteries into the battery compartment.
   • Note the polarity +/–.
4. Replace the battery compartment.
   The LED flashes once and the water control is ready for use.

LED display of battery

The LED lights up to confirm the set program. The colour of the LED indicates the battery charge status.
Green: Battery OK.
Orange: Battery low.
Replace the battery.
Red: Battery is empty, valve can no longer be opened. An open valve will be securely closed.
Replace the battery.

Note:
Do not remove the battery when watering is active, otherwise the valve's electrical connection will be interrupted and the valve will remain open.
The LED lights up orange 3 times every 10 seconds when the battery is low and red 3 times every 10 seconds when the battery is empty.

Connecting to the tap

• Screw the water control onto the tap.
• Depending on the size of the tap, use the included adapter.

OPERATION

(FIG. C)

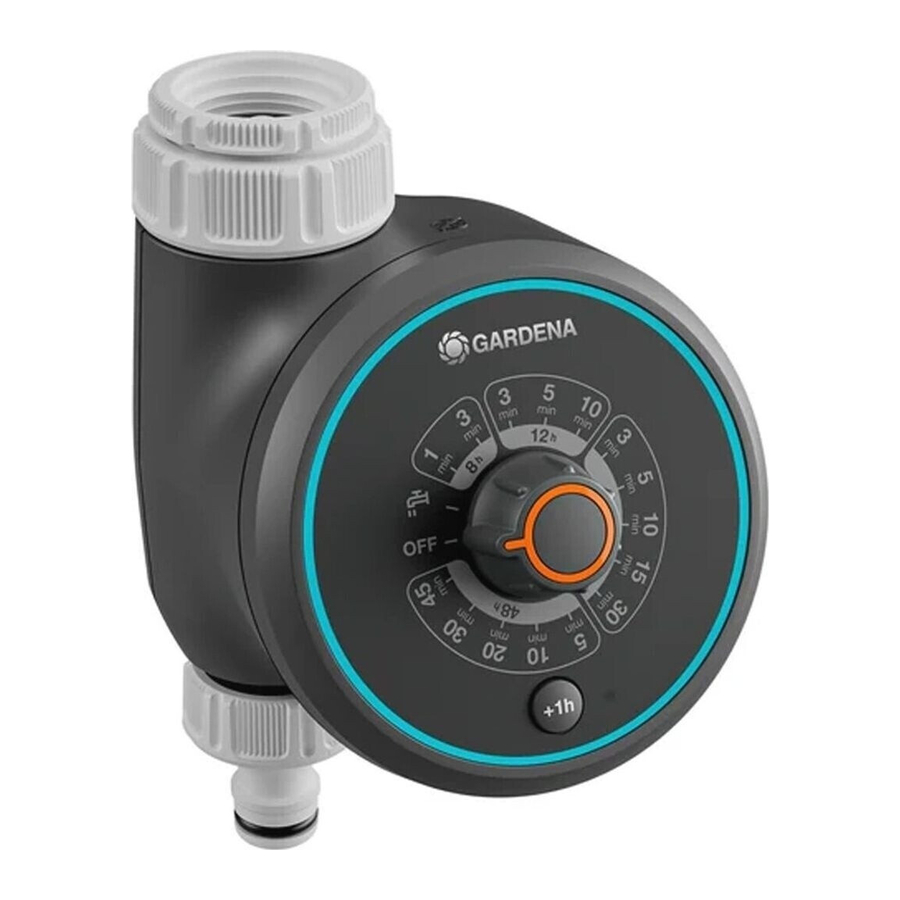

GARDENA® water control is configured via the rotary knob. It waters depending on the set program. Once the duration and frequency have been set, the selected program is confirmed by the LED. The first watering begins. The start time is now set and is retained when another program is selected.
The start time is reset by turning it to OFF.

Start delay

The start time can be changed by pressing the "+1h" button.
The start delay must take place within the first three seconds after the program has been selected.
Each time you press the button, the start time is changed by one hour (max. 23 hours).

Manual watering

When the rotary knob is set to manual watering, Water Now watering takes place for 15 minutes once.

Examples for use

Plant type		Watering system
	Potted plants	GARDENA® Micro-DripSystem
	Beds: flowers, vegetables, herbs	GARDENA® Micro-DripSystem
	Lawns	GARDENA® sprinklers
	Trees, hedges, shrubs, perennials	GARDENA® Micro-Drip- System GARDENA® soaker hose

STORAGE

The product must be stored away from children.
Remove the batteries from the product.
The product is not frost-proof (below 4°C).

Store the product in a dry, frost-free place.

TECHNICAL DATA

TROUBLESHOOTING/MAINTENANCE

Problem	Possible Cause	Remedy
LED does not light up	Battery is incorrectly inserted.	Observe the polarity (+/–).
	Battery is completely empty.	Insert two new 1.5 V alkaline manganese (alkaline), type IEC LR6.
Watering is not possible	Empty battery: LED flashes red.	Insert two new 1.5 V alkaline manganese (alkaline), type IEC LR6.
	The tap is closed.	Open the tap.
	Minimum pressure of 0.8 bar is not present	Ensure minimum pressure of 0.8 bar.
	Filter dirty, flow rate too low.	Clean the filter.
Water control does not close	Minimum delivery quantity is less than 20 l/h.	Connect more drip heads.
	Valve dirty	Flush in the opposite direction of normal flow.

SAFETY INSTRUCTIONS

For safety reasons, children and young people under 16 as well as anyone who is not familiar with this operator's manual should not use the product. Persons with reduced physical or mental abilities may use the product only if they are supervised or instructed by a responsible person. Children must be supervised to ensure that they do not play with the product. Never use the product if you are tired, ill or under the influence of alcohol, drugs or medication.

General safety instructions

• Read the operator's manual carefully before use and keep for future reference.

Intended use

GARDENA® water control is intended for private use in domestic and hobby gardens and is only to be used outdoors to control sprinklers and irrigation systems. It must not be used in industrial applications or in conjunction with chemicals, food or flammable and explosive substances.

Handling the batteries safely

• Keep the batteries away from children.
• Check the batteries regularly for damage.
• Do not use damaged batteries.
• Only batteries of the same type, brand and state of charge may be used.
• If the battery is not used for an extended period of time, it must be replaced when the battery symbol lights up red or orange to prevent the water control from failing due to a low battery.

Commissioning

• The water control must only be installed vertically and with the union nut facing upwards to prevent water from entering the battery compartment.
• The temperature of the water flowing through must not exceed 30°C.
  The minimum water delivery rate for a safe switching function of the water control is 20–30 l/h(For example, for micro-drip systems there should be at least 10 x 2 litre drip heads).
• Do not pull on the connected hose to avoid putting strain on it.
• Only use the product at an operating pressure of between 0.8 and 10 bar.

Additional electrical safety instructions

Risk of cardiac arrest! This product generates an electromagnetic field during operation. This electromagnetic field may affect the functionality of active or passive medical implants (e.g. pacemakers), which may result in serious injury or death. Consult your doctor and the manufacturer of your implant before using this product.

Service note:
For any other malfunctions, please contact the GARDENA® central service.
Repairs must only be done by GARDENA® service partners or specialist dealers approved by GARDENA®.
The current contact information for our service department can be found online: www.gardena.com/contact
