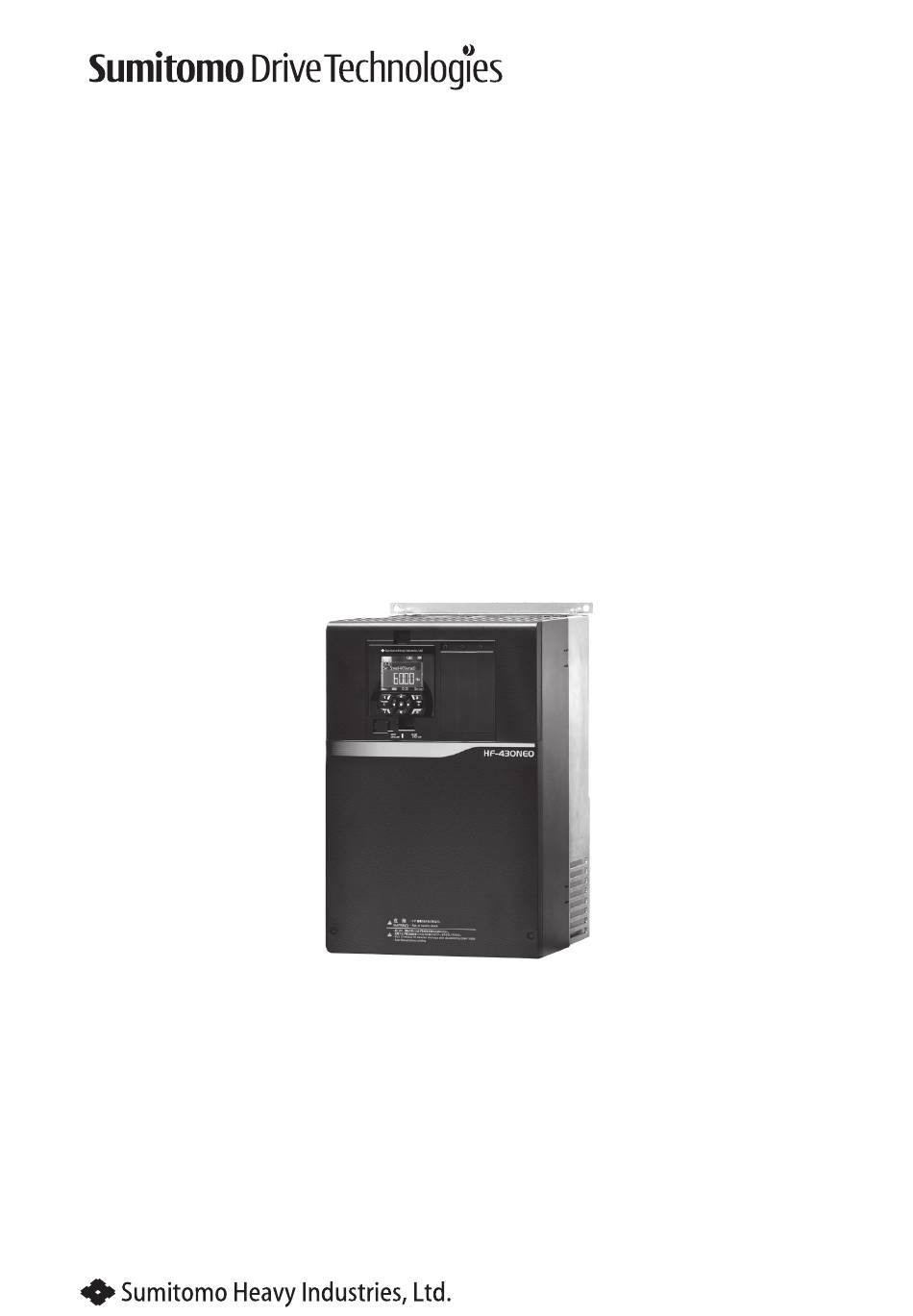

HF-430NEO

Screw type terminal option

Model : HF-TM2

Userʼs Guide

1. Make sure that this userʼs guide is delivered to the end user

of inverter unit.

2. Read the instruction manual and userʼs guide before installing or

operating the inverter unit, and store it in a safe place for reference.

Series

NOTICE

Userʼs Guide DM3413E

-1

Need help?

Do you have a question about the HF-TM2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumitomo Drive Technologies HF-TM2

Page 1 HF-430NEO Series Screw type terminal option Model : HF-TM2 Userʼs Guide NOTICE 1. Make sure that this userʼs guide is delivered to the end user of inverter unit. 2. Read the instruction manual and userʼs guide before installing or operating the inverter unit, and store it in a safe place for reference. Userʼs Guide DM3413E...
Page 2 Copyright © 2020 Sumitomo Heavy Industries,Ltd. All rights reserved. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of Sumitomo.
Page 3 Thank you for purchasing the HF-TM2: Screw type terminal option for HF-430NEO series inverter. This instruction manual describes how to handle and maintain the HF-TM2. Please read this manual carefully before using the HF-TM2, and keep it handy for those who operate, maintain and inspect it. ■User's Guide(this document) The User's Guide provides detailed information necessary for handling the product.
Page 4 3.2 About the enclosed items ......3-1 Chapter 4 Installation and wiring 4.1 About this chapter .......... 4-1 4.3 Wiring of HF-TM2 ..........4-3 4.2 Installation of HF-TM2 ........4-1 4.4 HF-TM2 Terminal arrangement .....4-5 Chapter 5 Precaution for using HF-TM2 5.1 About this chapter .......... 5-1 5.3 List of affected parameter modes ....5-2...
Page 5 Chapter 1 Safety Precautions Chapter 1 Safety Precautions 1.1 About this chapter This chapter contains the information about Safety precautions during the installation, wiring, operation and inspection. Before installation, wiring, operation, inspection, or usage please read completely and fully understand this guide.
Page 6 Chapter 1 Safety Precautions 1.3 Symbol explanation In this guide, there are some explanatory notes using different symbols. Please pay attention to this content and keep in mind itsinformation. Symbol definition When handling this product, this symbol indicates danger, warning or caution about ignition, electric shock, high temperature or other dangers.
Page 7 ● Risk of inverter failure! Failure ・DO NOT pull any wire after wiring. ・Be sure to operate the switch of HF-TM2 after power off. ・Be sure to fix on the wiring and avoid extra burden to the connector and terminal. Prohibited...
Page 8 ・Tighten each screw to the specified torque. hazard ・No screw must be left loose. ・Make sure that the inverter and HF-TM2 are fixed together with the securing screw. ・Make sure that the connector is properly fixed. ● Risk of an electric shock and injury! Electric ・Be sure to operate the switch of HF-TM2 after power off.
Page 9 ● Risk of an electric shock! Electric ・Be sure to screw HF-TM2 before turning on the inverter power. shock ・Do not disconnect HF-TM2 while power is being supplied to the inverter or voltage remains inside. ・Do not operate switches with wet hands. Prohibited Warning ●...
Page 10 Danger ● Risk of an injury, an electric shock and/or fire! Electric shock injury ・DO NOT modify HF-TM2. and Fire hazard Prohibited Note: In addition to the precautions described above, there are other precautions described in the chapter 8 of the inverter user's guide. Please read and follow those precautions as well.
Page 11 Guide 2.2 Applicable devices The contents of this guide are applicable to HF-TM2. Refer to the corresponding instruction guides for other products and optional parts. 2.3 Before reading this guide...
Page 12 ・In case there is any doubt or trouble with the product please contact your sales agent as soon as possible. Check that the items were not smashed or damaged during the delivery. Check that there is a HF-TM2, there is a User's Guides, when unpacking.
Page 13 Installation and Wiring Chapter 4 Installation and Wiring 4.1 About this chapter This chapter describes installation of HF-TM2 and wiring to HF-TM2. 4.2 Installation of HF-TM2 Installation procedure ① Remove the terminal cover of HF-430NEO and confirm the control terminal like the following picture (Fig.
Page 14 The following picture (Fig. 3) shows the terminal space after removing the standard control terminal board. Fig.3 ④ Align the connector of logic board with the connector of HF-TM2. And then connect HF-TM2 to the direction of the arrow (Fig.4). Fig.4 Direction to install ⑤...
Page 15 Chapter 4 Installation and Wiring 4.3 Wiring of HF-TM2 ■Outline of control circuit HF-TM2 Terminals Alarm relay 1C contact Equipment like Lamp, relay, PLC, RY Relay Input terminal Output terminal (Open collector) * Supporting sink/source DC24 ※When using source logic, connect the shield to BC.
Page 16 • Do not make them grounded via an external device. Prohibite • Separate the wiring to HF-TM2 from that of the main circuit line (power line) or relay control circuit. If it is unavoidable to do so, make them positioned at right angles to each Malfunction other.
Page 17 • Regarding to the default setting of parameters for each terminal function, refer to the user′s guide for HF-430NEO. • Refer to “4.3 Wiring of HF-TM2” as wiring sample. • All of terminal “CM1” has same electrical potential. • The logic for input terminals (Sink/Source) can be switched by the connection of the jumper.
Page 18 Installation and Wiring • Regarding to the default setting of parameters for each terminal function, refer to the user′s guide for HF-430NEO. • Refer to “4.3 Wiring of HF-TM2” as wiring sample. ■Output terminals (M3 screw terminal) Terminal Terminal Description...
Page 19 Installation and Wiring • Regarding to the default setting of parameters for each terminal function, refer to the user′s guide for HF-430NEO. • Refer to “4.3 Wiring of HF-TM2” as wiring sample. ■External Thermistor (M3 screw terminal) Terminal Terminal Electrical...
Page 20 Installation and Wiring • Regarding to the default setting of parameters for each terminal function, refer to the user′s guide for HF-430NEO. • Refer to “4.3 Wiring of HF-TM2” as wiring sample. ■Serial communication (Spring clamp terminal) Terminal Electrical Terminal name...
Page 21 Failure • While power is supplied to the inverter, don’t switch the slide switch due to prevention the inverter failure. Be sure to operate the switch of HF-TM2 after confirmation of turning off the power lamp on operator unit.
Page 22 Precaution for using HF-TM2 Chapter 5 Precaution for using HF-TM2 5.1 About this chapter This chapter contains the information about the precautions at using HF-TM2 and the affected parameters. 5.2 Precaution for using HF-TM2 Table 1 Comparison between HF-430NEO standard terminal and HF-TM2...
Page 23 Chapter 5 Precaution for using HF-TM2 5.3 List of affected parameter modes Some functions of terminals become invalid when HF-TM2 is connected. Please confirm the parameters. Code Function name Difference dA-51 Input terminal monitor Terminal [DFH] and [DHH] are always “L”.
Page 24 Warranty Warranty Warranty The warranty shall be 18 months from date of shipment or 12 months after initial period operation, whichever is shorter. In the event that any problem or damage to the Product arises during the “Warranty Period” from defects in the Product whenever the Product is properly installed and combined with the Buyer’s equipment or machines maintained as specified in the maintenance manual, and properly operated under the conditions described in the catalog or as otherwise agreed upon in writing between the Seller and Buyer or its...
Page 25 Worldwide Locations U.S.A Austria Korea Sumitomo (SHI) Cyclo Drive Germany GmbH Sumitomo Machinery Corporation of America Sumitomo (SHI) Cyclo Drive Korea, Ltd. (SCK) (SMA) (SCG) Royal Bldg. 19 Rm. 913, 5 Saemunan-ro 5-Gil Jongro-Gu SCG Branch Austria O ce 4200 Holland Blvd. Chesapeake, VA 23323, U.S.A. Seoul, Korea 03173 Gruentalerstraße 30A, 4020 Linz, Austria TEL (1)757-485-3355...
