Sumitomo Drive Technologies HF-430NEO Series Operating And Maintenance Manual

Cc-link for communication option
Hide thumbs Also See for HF-430NEO Series:
Table of Contents

Advertisement

Quick Links

Download this manual

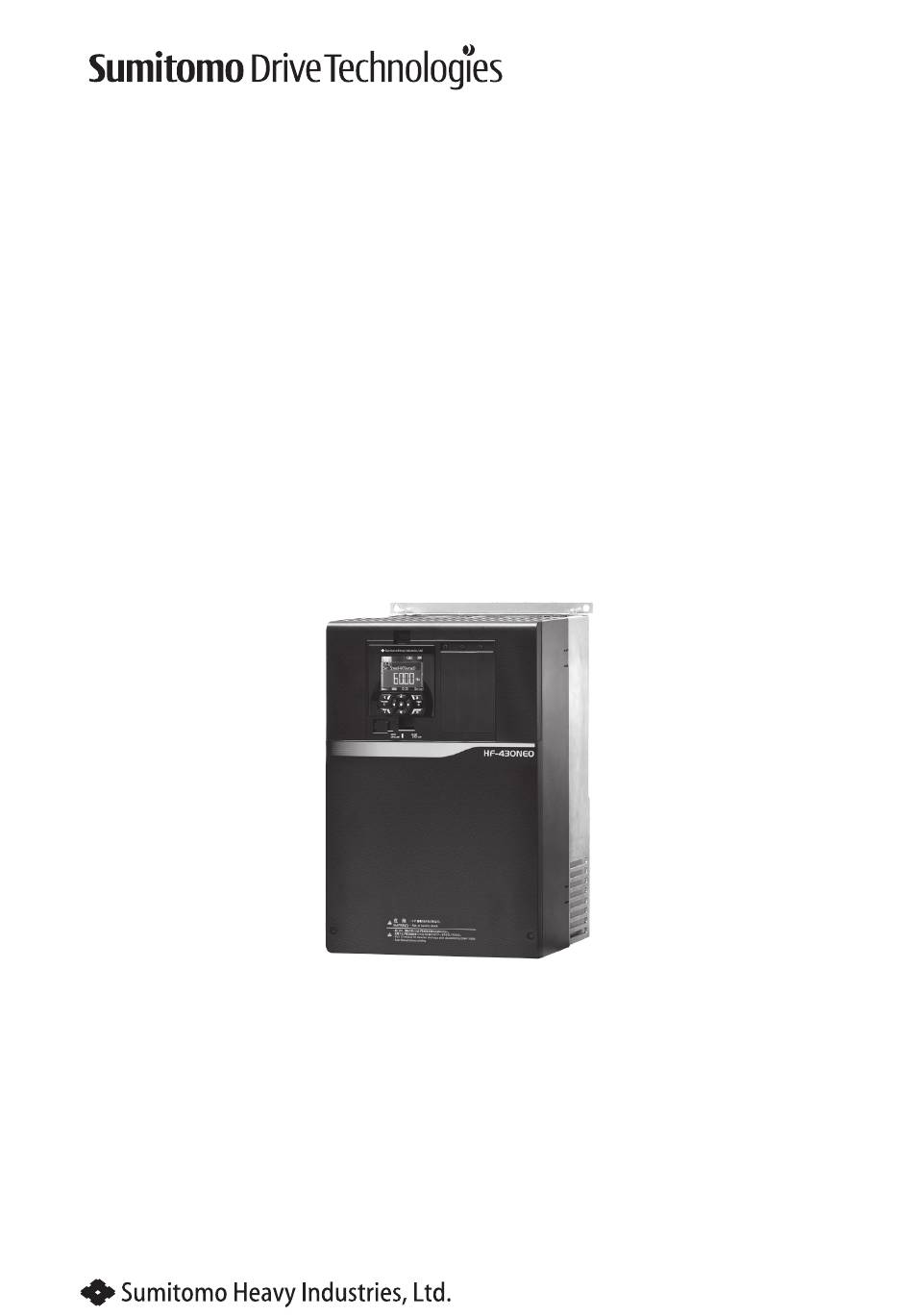

HF-430NEO
CC-Link for Communication option
Model : P1-CCL
Operating and Maintenance Manual
1.  Make sure that this operating and maintenence manual is

delivered to the end user of inverter unit.
2.  Read this manual before installing or operating the inverter

unit, and store it in a safe place for reference.
  Series
NOTICE
Manual  DM3410E
-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF-430NEO Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sumitomo Drive Technologies HF-430NEO Series

Summary of Contents for Sumitomo Drive Technologies HF-430NEO Series

  • Page 1 HF-430NEO   Series CC-Link for Communication option Model : P1-CCL Operating and Maintenance Manual NOTICE 1.  Make sure that this operating and maintenence manual is   delivered to the end user of inverter unit. 2.  Read this manual before installing or operating the inverter   unit, and store it in a safe place for reference. Manual  DM3410E...
  • Page 2 Copyright © 2020 Sumitomo Heavy Industries,Ltd. All rights reserved. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of Sumitomo.
  • Page 3 Introduction Thank you for purchasing the P1-CCL（Communication option for HF-430NEO series inverter）. This instruction manual describes how to handle and maintain the P1-CCL. Please read this manual carefully before using the P1-CCL, and keep it handy for those who operate, maintain and inspect it.

  • Page 4: Table Of Contents

    Table of Contents ● Introduction ・・・・・・・・・・・・・・・・・・・・・・・・・・・・1 ● Table of Contents ・・・・・・・・・・・・・・・・・・・・・・・・・・2 1. Precautions 1.1 Please be Careful！ ・・・・・・・・・・・・・・・・・・・・・・・・3 1.2 Precautions during the installation！ ・・・・・・・・・・・・・・・・3 1.3 Precautions during the wiring！ ・・・・・・・・・・・・・・・・・・・4 1.4 Precautions during operation！ ・・・・・・・・・・・・・・・・・・5 1.5 Precautions during Maintenance/Inspection！ ・・・・・・・・・・・6 1.6 Precautions for disposal！...

  • Page 5: Precautions

    1. Precautions 1.1 Please be Careful！ Danger ・If handled incorrectly or improperly, it might cause death, serious physical injuries, or damage to the inverter, motor or even the entire system. Caution ・Before installation, wiring, operation, inspection, or usage please read and fully understand this guide.

  • Page 6: Precautions During The Wiring！ ・・・・・・・・・・・・・・・・・・・4

    1.3 Precautions during the wiring! Danger ● Risk of an electric shock and/or fire！ ・Be sure to ground the inverter. Electric ・Entrust the wiring work only to a qualified electrician. shock and Fire ・Before the wiring work make sure to turn off the power supply and wait for more than 10 or 15 hazard minutes depending on the inverter model *.

  • Page 7: Precautions During Operation！ ・・・・・・・・・・・・・・・・・・5

    1.4 Precautions during operation! Danger ● Risk of an electric shock or fire！ Electric ・DO NOT touch the inside of this device, check the signal, do any wiring or plug/unplug the shock connectors while it energized. and Fire hazard ・DO NOT insert any sick or rod like objects inside this device while it is energized. Prohibited ●...

  • Page 8: Precautions During Maintenance/Inspection！ ・・・・・・・・・・・6

    1.5 Precautions during Maintenance /Inspection! Danger ● Risk of an electric shock！ ・Before any maintenance or inspection make sure to turn off the power supply and wait for more Electric than 10 or 15 minutes depending on the inverter model *. shock (Confirm that the charge lamp is OFF and the DC voltage between terminals P and N is 45 V or less.)

  • Page 9: The Enclosed Items

    2. The enclosed items ・Enclosed items External 24V Instruction Manual x1 CC-Link connector x2 P1-CCL x1 (This document) Input connector x1 3．Verification after the purchase ・Please verify the following items when unpacking. ・In case there is any doubt or trouble with the product, please contact your sales agent as soon as possible.

  • Page 10: External Features

    5. External Features External 24V input connector ・L.RUN LED ・L.ERR LED Station number setting switch ・SD LED X10 indicate the tens (2nd digit) ・RD LED X1 indicate the units (1st digit) Terminal resistor switch Transmission setting switch (There is a DIP switch on the board.) CC-Link connector Set this switch before installing the P1-CCL.

  • Page 11: How To Install ・・・・・・・・・・・・・・・・・・・・・・・・・・・9

    7.2 How to install Before installing the P1-CCL, please refer to the chapter 7“Inverter Setting“ of the user's guide and configure the inverter. For explanation purposes, it will be assumed that the P1-CCL is going to be installed in the SLOT1. (1) Remove the cover of the option cassette connection slot.
  • Page 12 (3) Secure the P1-CCL with the screw removed in (1) Option cassette connection slots SLOT1 SLOT2 SLOT3 RJ45 Keypad Fasten the screw. USB(micro-B) (4) Connect the FG terminal to functional ground. Option cassette connection slots SLOT1 SLOT2 SLOT3 RJ45 Keypad Connect to functional ground.

  • Page 13: Csp＋File

    8．Connection ・Make sure that the communication line and the power line are placed as far as possible from each other. If they are placed close to each other, the communication line will pick up noise from the power line that can interfere with the transmission. ・Make sure to set up the system, so that in an event of a network failure, the inverter output stops immediately.

  • Page 14: Device Specifications

    10. Device specifications ■Specifications Item Specification Model P1-CCL Weight 170g Ambient operating 0〜50℃ temperature No icing or condensation Ambient operating humidity 20〜90%RH conditions. Environment Storage temperature －20〜65℃ Vibration resistance 5.9m/s2(0.6G)、10〜55Hz Enclosure rating IP00 Station type Remote device station Transmission speed 10M / 5M / 2.5M / 625k / 156kbps Communication method Broadcast polling method...
  • Page 15 Item Specification Maximum 64 stations Maximum 42 stations only P1-CCL Number of connected stations / nodes need to satisfy all of the below requirements. [1] (a + a2 + a4 + a8) + (b + b2 + b4 + b8) x 2 + (c + c2 + c4 + c8) x 3 + (d + d2 + d4 + d8) x 4 ≦...

  • Page 16: Dimensions After Installed

    11．Dimensions after installed The dimensions of the P1-CCL after it is installed on HF-430NEO are shown in the image below. As shown on the image a part of this device will stand out from HF-430NEO. Please be cautious when installing the device. HF-430NEO inverter 31.3mm...

  • Page 17: Warranty

    Warranty Warranty Warranty The warranty shall be 18 months from date of shipment or 12 months after initial period operation, whichever is shorter. In the event that any problem or damage to the Product arises during the “Warranty Period” from defects in the Product whenever the Product is properly installed and combined with the Buyer’s equipment or machines maintained as specified in the maintenance manual, and properly operated under the conditions described in the catalog or as otherwise agreed upon in writing between the Seller and Buyer or its...
  • Page 18 Worldwide Locations U.S.A Austria Korea Sumitomo (SHI) Cyclo Drive Germany GmbH Sumitomo (SHI) Cyclo Drive Korea, Ltd. (SCK) Sumitomo Machinery Corporation of America (SMA) (SCG) Royal Bldg. 19 Rm. 913, 5 Saemunan-ro 5-Gil Jongro-Gu SCG Branch Austria O ce 4200 Holland Blvd. Chesapeake, VA 23323, U.S.A. Seoul, Korea 03173 Gruentalerstraße 30A, 4020 Linz, Austria TEL (1)757-485-3355...
