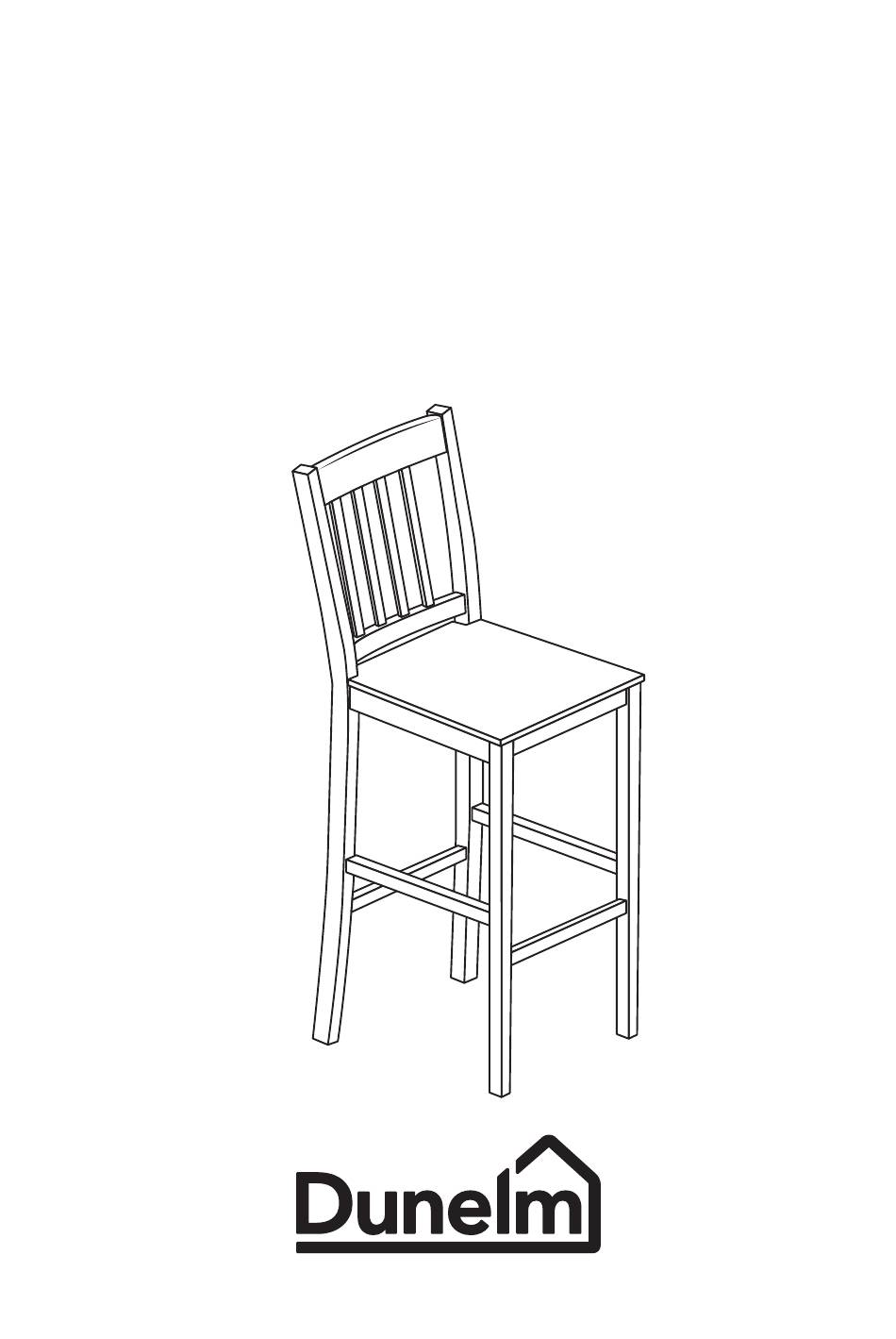

- Page 1 Bromley Bar Stool Grey I N STRU CT IONS www.dunelm.com...
- Page 2 Thank you Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
- Page 3 Component parts supplied Dimensions Visual Dimensions Visual 8x41x102cm 1.8x2.2x37cm 3.5x40x65.5cm 2x5.5x35.5cm 1.5x42.5x43cm 1.8x2.2x37cm...
- Page 4 Parts and fittings Fixtures and fittings supplied(actual size) Ref Dimensions M6x50mm Spring Washer M4x32mm Wood Dowel Fixtures and fittings supplied (not to scale) Dimensions Visual www.dunelm.com...
- Page 5 Exploded view www.dunelm.com...
- Page 6 Then fix using bolts (A), spring washers (B) . Important note: Fasten bolts using the allen key (E) but do not fully tighten at this stage. Use oval head of allen key when tigthening bolts on corner positions. A x 2 B x 2 www.dunelm.com...
- Page 7 (1). Fix the backrest (1) to siderail (2) using bolts (A), spring washers (B). Important note: Fasten bolts using the allen key (E) but do not fully tighten at this stage. A x 4 B x 4 www.dunelm.com...
- Page 8 (E). Step 6: Secure the stretchers (3) (4) to the backrest (1) and front leg (5) using scews (C). Tighten screws using a crosshead screwdriver. C x4 www.dunelm.com...
- Page 9 Step 7: Secure the side rail and front to the seat using screws (B). Tighten with screws with a crosshead screwdriver.. Assembly complete. C x 3 Assembly complete. www.dunelm.com...
- Page 10 Finally, we hope you enjoy When placing furniture on a wooden or laminate floor, your furniture for many years please ensure that the plastic or felt protectors are to come and thanks again for securely fitted and in place. your purchase. www.dunelm.com...
