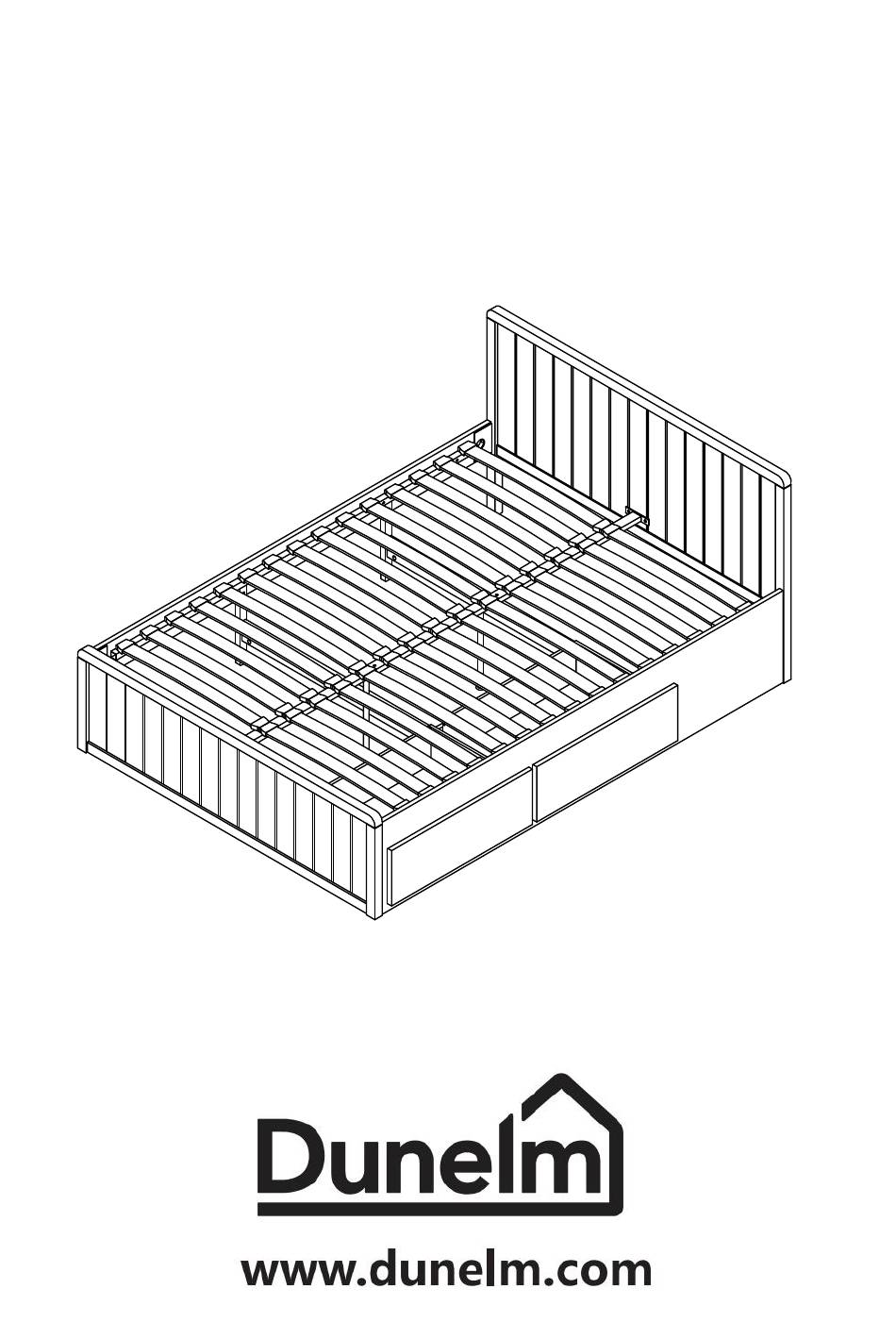

- Page 1 Adrian Storage Drawer Double Bed Instructions...
- Page 2 Thank You Dear Customer Thank you for purchasing your new piece of furniture from Dunelm.We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
- Page 3 × Drawer side Centre support bar 1337 × × × × Centre support bar Drawer side 1337 × × × × Cross bar Drawer bottom × × × × 318.5 Side Leg × × Drawer bottom rail × × www.dunelm.com...
- Page 4 Ø8 × Wood dowel Ø6 × Locking Nut Locking Pin Screw Ø4 × Screw Ø7 × Bolt × Bolt × Bolt × × (Already inserted into support legs) Allen Key Allen Key Spanner Double Plastic cap Single Plastic cap www.dunelm.com...
- Page 5 TIGHTENING INSTRUCTIONS www.dunelm.com...
- Page 6 STEP1 35 2pcs Ø8 30 4pcs M6 Allen key × × STEP2 Ø8 30 4pcs 8pcs 8pcs × www.dunelm.com...
- Page 7 STEP 3 M6 Allen key 74 5pcs × 60 2pcs Ø10 40 8pcs Ø8 30 2pcs × × × STEP 4 M6 Allen key Ø7 60 1pc 5pcs 5pcs 8*12 5pcs Spanner × www.dunelm.com...
- Page 8 STEP 5 Ø4 35 4pcs × STEP 6 LOOSEN 35 2pcs × M8 Allen key (Already inserted into support legs) www.dunelm.com...
- Page 9 STEP 7 M6 Allen key 15 4pcs × STEP 8 Double plastic cap 15pcs Single plastic cap 30pcs www.dunelm.com...
- Page 10 STEP 9 × 2 Ø4 35 5pcs Ø6 30 3pcs × × STEP 10 × 2 Ø6 30 3pcs 5pcs 5pcs × www.dunelm.com...
-
Page 11: Product Dimensions
STEP 11 Product Dimensions 1422 1993 Double bed: H85 × W144.2 × D199.3cm www.dunelm.com... - Page 12 When in use the legs will create the support required Do not dray your assembled bed. Always remove the mattress and lift the bed with 2x people. After moving always check that the centre support legs are securely fixed and in a vertical position www.dunelm.com...
