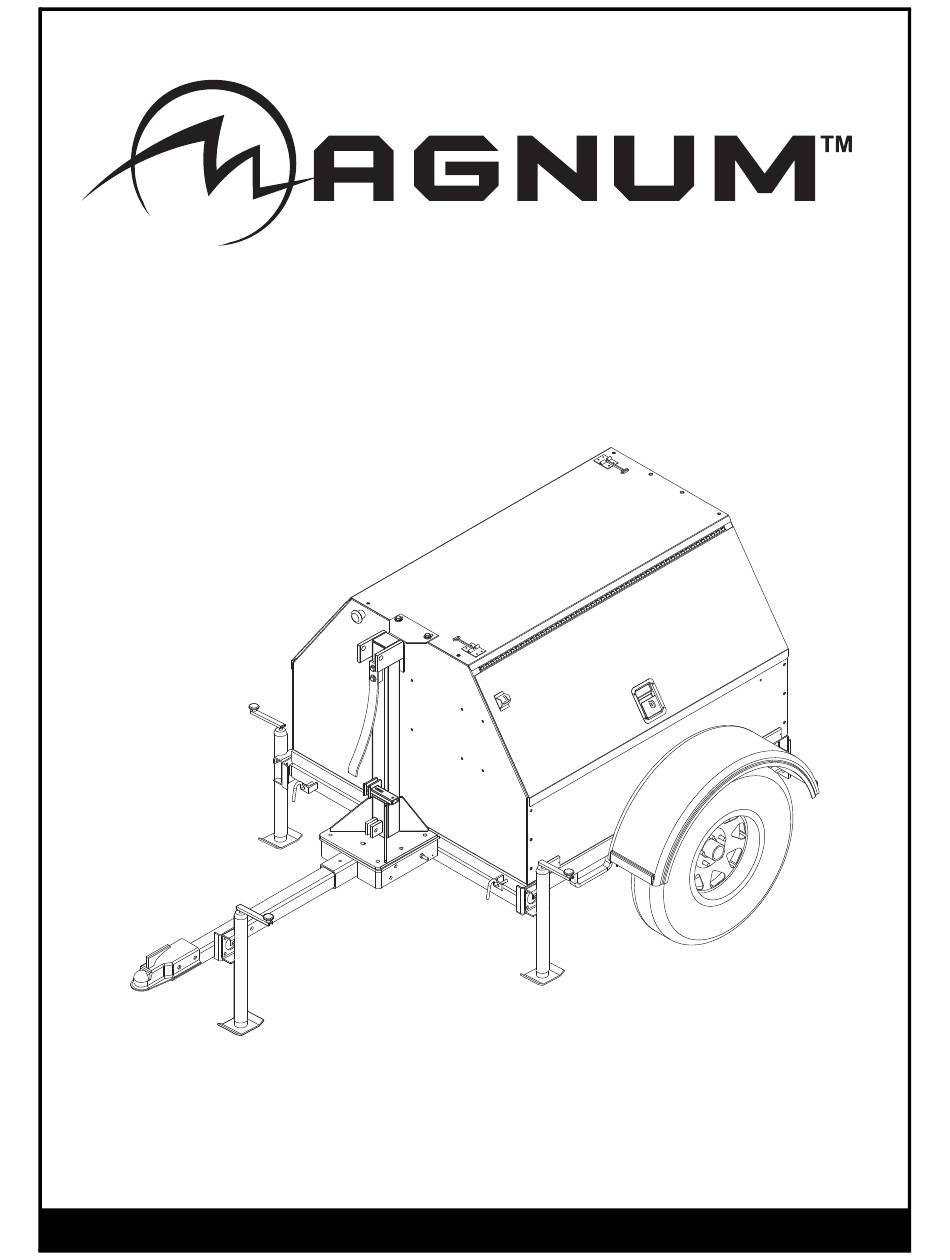

- Page 1 POWER PRODUCTS LLC DIESEL GENERATOR MLG8M HALIBRITE 00323 OPERATING MANUAL Parts manuals available online! www.m-p-llc.com...
-
Page 2: Introduction
Magnum Power Products LLC, or can be found at www.m-p-llc.com.The information contained in this manual was based on machines in production at the time of publication. Magnum Power Products LLC reserves the right to change any portion of this information without notice. -
Page 3: Table Of Contents
TABLE OF CONTENTS Page INTRODUCTION ..........................2 SAFETY NOTES ..........................4 OPERATING SAFETY ........................4 ENGINE SAFETY..........................5 SERVICE SAFETY..........................5 TOWING SAFETY..........................6 REPORTING TRAILER SAFETY DEFECTS ..................6 UNIT SERIAL NUMBER LOCATIONS ....................6 SAFETY SYMBOL SUMMARY ......................7 SPECIFICATIONS.......................... -
Page 4: Safety Notes
SAFETY NOTES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. This manual contains DANGERS, WARNINGS, CAUTIONS, NOTICES and NOTES which must be followed to prevent the possibility of improper service, damage to the equipment, personal injury or death. -
Page 5: Engine Safety
• Make sure all lifting devices have enough weight-bearing capacity to hold the equipment safely. Always remain aware of the position of other people around you when lifting the equipment. ENGINE SAFETY Internal combustion engines present special hazards during operation and fueling. Failure to follow the safety guidelines described below could result in severe injury or death. -
Page 6: Towing Safety
REPORTING TRAILER SAFETY DEFECTS If you believe your trailer has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Magnum Power Products LLC. -
Page 7: Safety Symbol Summary
Unit ID Tag VIN Tag Manufactured by MAGNUM POWER PRODUCTS LLC A wholly owned subsidiary of Generac Power Systems, Inc. TIRE AND LOADING INFORMATION MANUFACTURED BY/FABRIQUE PAR: Magnum Power Products LLC DATE: 00/0000 GVWR/PNBV: 000KG (0000LBS) COLD INF. PRESS./ RENSEIGNEMENTS SUR LES 215 Power Drive •... -
Page 8: Specifications
SPECIFICATIONS MAGNUM MODEL MLG8M Halibrite Engine Make/Brand..........................Mitsubishi Model ............................L3E-W461ML EPA Tier ..........................4f Horsepower - prime hp (kW) ....................10.5 (7.8) Horsepower - standby hp (kW) ....................12.2 (9.1) Operating Speed rpm ......................1800 Displacement in (L) ......................58 (1) Cylinders - qty .........................3 Fuel Consumption - 100% prime gph (Lph) ................0.63 (2.38) Battery Type..........................Group 24... -
Page 9: Component Locations
COMPONENT LOCATIONS 00325 1. FUEL FILLER LOCATION (under door): Use clean DIESEL FUEL ONLY. 2. EMERGENCY STOP SWITCH: For emergency shutdown; stops engine and trips main circuit breaker. 3. MAST POST: Used to support lights. 4. CONTROL PANEL LOCATION (under door): Refer to page 5. -
Page 10: Main Control Panel Components
MAIN CONTROL PANEL COMPONENTS MAIN BREAKER 240V TURN MAIN BREAKER 120V 120V BREAKER BREAKER GLOW PLUG ACTIVATION GLOW GLOW PRE-HEAT TIMES BASED ON 240V PLUGS PLUGS AMBIENT AIR TEMPERATURE BREAKER START START ABOVE 50°F (10°C) = 10 SEC. 50°F (10°C) TO 23°F (-5°C) = 15-20 SEC. -
Page 11: Unit Set Up
UNIT SET UP 1. Place the unit on firm ground that is relatively flat, then block the wheels to keep it from moving (A). This will make it easier to level the unit. 2. Pull the locking pin on the tongue jack and rotate the jack 90°... -
Page 12: Wet Stacking
2. Check the condition of the electrical cord on the inside of the unit. 3. Check that the main circuit breaker and individual circuit breakers for each of the outlets are in the “OFF/O” position. Note: When the red “TURN MAIN BREAKER OFF” light is illuminated, the main circuit breaker must be turned “OFF/ O”. -
Page 13: Emergency Stop Switch
The regulator has three screwdriver adjustable potentiometers that may be adjusted for voltage, stability and under frequency (U/F). The voltage regulator is adjusted before shipment from the factory. Contact Magnum Power Products LLC for additional information before attempting to adjust the voltage regulator. -
Page 14: Jack Maintenance
2. Raise the outrigger jacks completely and release the jack locking pin to swing the jacks up into the travel position. Make sure the locking pins snap into place. Release the outrigger locking pins and slide the outriggers into the trailer frame until the locking pins snap into place. -
Page 15: Trailer Wheel Bearings
TOP-WIND MODELS • Apply a lightweight oil to the screw stem. Grease Grease Grease 00243 TRAILER WHEEL BEARINGS The trailer axles are equipped with a grease zerk fitting to allow lubrication of the wheel bearings without the need to disassemble the axle hub. To lubricate the axle bearings, remove the small rubber plug on the grease cap, attach a standard grease gun fitting to the grease zerk fitting and pump grease into the fitting until new grease is visible around the nozzle of the grease gun. -
Page 16: Basic Maintenance Schedule - Mitsubishi Engine
BASIC MAINTENANCE SCHEDULE - MITSUBISHI ENGINE Refer to the original equipment manufacturer’s operating manual for a complete list of maintenance requirements. Failure to comply with the procedures as described in the engine operator’s manual will nullify the warranty, decrease performance and cause equipment damage or premature equipment failure. -
Page 17: Ac Wiring Diagram
AC WIRING DIAGRAM 30 AMP TWIST MAIN GFCI GFCI SOME UNITS 67115_A_12.13.13... -
Page 18: Dc Wiring Diagram
DC WIRING DIAGRAM... -
Page 19: Trailer Lights Wiring Diagram
TRAILER LIGHTS WIRING DIAGRAM SPADE SPADE... -
Page 20: Service Log
SERVICE LOG OIL GRADE AND TYPE: ___________________________ BRAND: ___________________________________ COOLANT MIXTURE: _____________________________ BRAND: ___________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________... -
Page 21: Notes
NOTES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________... - Page 22 __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
- Page 24 REV: ORG PART NO: 36431 02.10.14...
