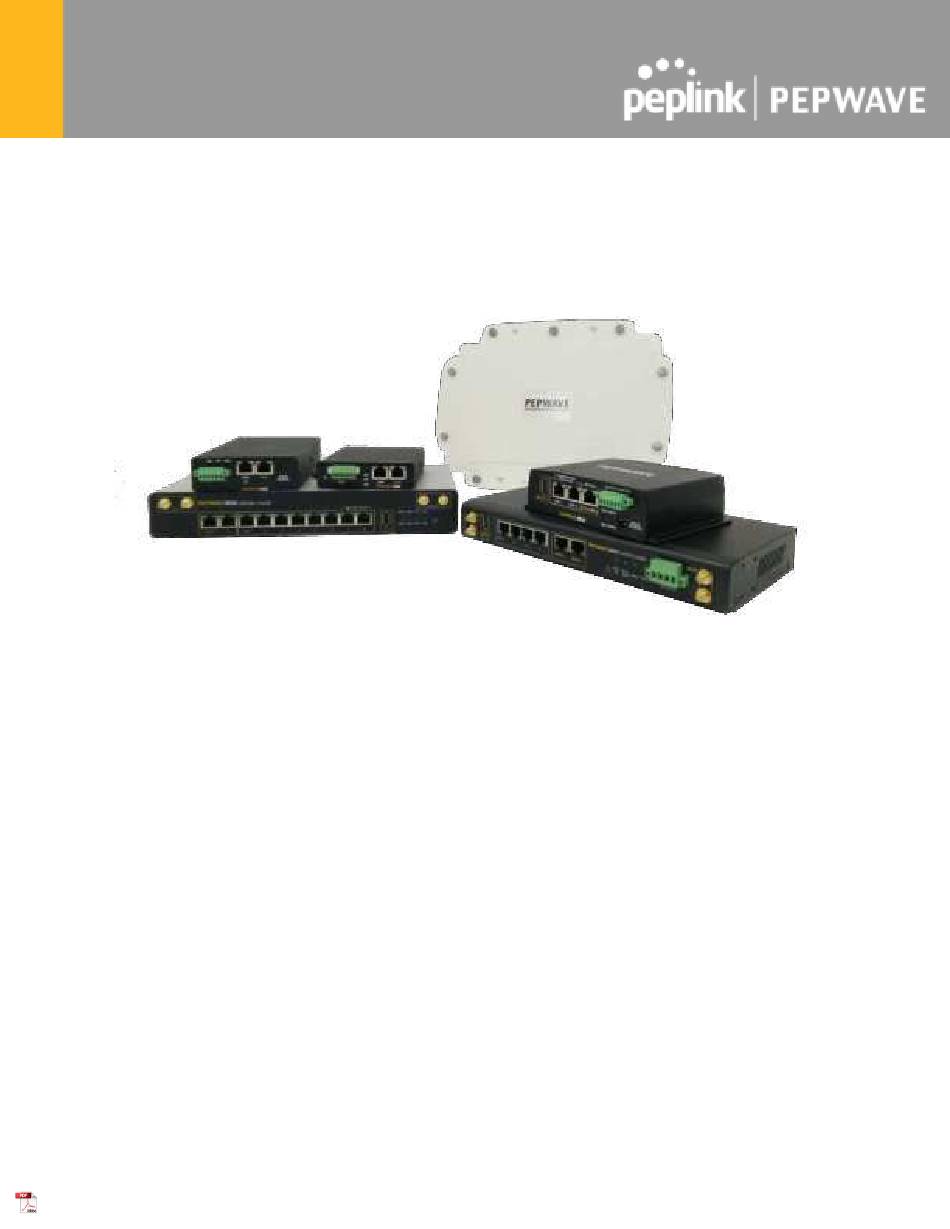

MAX Series
User Manual
Pepwave Products:
MAX 700 / HD2 / HD2 IP67 / HD2 Mini / HD2 MBX 5G / HD2 MBX / HD Dome / HD Dome Pro /
HD4 / HD4 MBX 5G / HD4 MBX / MBX Mini / HD4 IP67 / Transit / Transit Duo / Transit 5G /
Transit Core / Transit Mini / Transit Pro E / Transit Duo Pro / BR1 Classic / BR1 MK2 / BR1 Slim
/ BR1 ENT / BR1 M2M / BR1 Mini (HW2) / BR1 Mini (HW3) / BR1 Mini 5G / BR1 Mini Core /
BR1 Mini Core (HW3) / BR1 Mini M2M / BR1 ESN / BR1 Pro LTE / BR1 Pro (CAT-20) / BR1 Pro
5G / BR2 Pro / BR1 IP55 / BR1 IP67 / BR2 IP55 / On-The-Go / HD2 with MediaFast / HD4 with
MediaFast / BR2 Micro / UBR LTE / UBR Plus / PDX
Pepwave Firmware 8.4.0
April 2024
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
Copyright © 2021 Peplink Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink International
Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners.
Advertisement
Table of Contents
Related Manuals for Pepwave peplink MAX Series
Summary of Contents for Pepwave peplink MAX Series
- Page 1 Specifications are subject to change without notice. Copyright © 2021 Peplink Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Peplink International Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners.
- Page 2 Table of Contents Introduction and Scope Glossary 1 Product Features 1.1 Supported Network Features 1.2 Other Supported Features 2 Pepwave MAX Mobile Router Overview 2.1 MAX 700 2.2 MAX HD2 2.3 MAX HD2 IP67 2.4 MAX HD2 mini 2.5 MAX HD Dome 2.6 MAX HD Dome Pro...
- Page 3 2.29 MAX BR1 Mini Core (HW3) 2.30 MAX BR1 Mini M2M 2.31 MAX BR1 M2M 2.32 MAX BR1 ENT 2.33 MAX BR1 Pro 2.34 MAX BR1 Pro (CAT-20) 2.35 MAX BR1 Pro 5G 2.36 MAX BR2 Pro 2.37 MAX Hotspot 2.38 MAX BR1 IP55 2.39 MAX BR2 IP55 2.40 MAX BR1 IP67...
-
Page 4: Introduction And Scope
This manual covers setting up Pepwave routers and provides an introduction to their features and usage. Tips Want to know more about Pepwave routers? Visit our YouTube Channel for a video introduction! https://youtu.be/13M-JHRAICA https://www.peplink.com Copyright @ 2021 Peplink... - Page 5 Glossary The following terms, acronyms, and abbreviations are frequently used in this manual: Term Definition 3rd generation standards for wireless communications (e.g., HSDPA) 4th generation standards for wireless communications (e.g., LTE) DHCP Dynamic Host Configuration Protocol Domain Name System EVDO Evolution-Data Optimized FQDN Fully Qualified Domain Name...
-
Page 6: Product Features
Internet connections can be bonded together using our SpeedFusion technology. This allows better reliability, larger bandwidth, and increased wireless coverage compared to use only one 4G LTE modem. Below is a list of supported features on Pepwave routers. Features vary by model. For more information, please see peplink.com/products. Supported Network Features 1.1.1 WAN... - Page 7 ● Extended DHCP option support ● Static routing rules ● VLAN on LAN support 1.1.3 VPN ● SpeedFusion VPN with SpeedFusion ● SpeedFusion VPN performance analyzer ● X.509 certificate support ● VPN load balancing and failover among selected WAN connections ●...
- Page 8 ● Configure and manage Pepwave AP devices ● Review the status of connected APs 1.1.8 QoS ● Quality of service for different applications and custom protocols ● User group classification for different service levels ● Bandwidth usage control and monitoring on group- and user-level ●...
-
Page 9: Other Supported Features
Other Supported Features ● User-friendly web-based administration interface ● HTTP and HTTPS support for web admin interface (default redirection to HTTPS) ● Configurable web administration port and administrator password ● Firmware upgrades, configuration backups, ping, and traceroute via web admin interface ●... -
Page 10: Pepwave Max Mobile Router Overview
Pepwave MAX Mobile Router Overview MAX 700 2.1.1 Panel Appearance Note: For proper Wi-Fi performance and operations, please ensure all 4 Wi-Fi antenna connectors (labeled Wi-Fi 1 and Wi-Fi 2) have antennas attached. The LED indicators of Wi-Fi 1 & 2 shown as below is referring to the default settings of Wi-Fi Operation mode is WAN + AP under the AP. - Page 11 2.1.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Blue Ready Wi-Fi AP Indicators WiFi AP is disabled. Wi-Fi 1 WiFi AP is enabled. Wi-Fi WAN Indicators Disabled Intermittent Blinking slowly...
- Page 12 MAX HD2 2.2.1 Panel Appearance 2.2.2 LED Indicators https://www.peplink.com Copyright @ 2021 Peplink...
- Page 13 The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready Wi-Fi WAN Indicators Disabled Intermittent Blinking slowly Connecting to wireless network(s) Wi-Fi WAN Blinking Connected to wireless network(s) with traffic Connected to wireless network(s) without traffic...
- Page 14 2.3.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready https://www.peplink.com Copyright @ 2021 Peplink...
-
Page 15: Max Hd2 Mini
MAX HD2 mini 2.4.1 Panel Appearance 2.4.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking red Boot up error Green Ready Cellular Indicators Disabled or no SIM card inserted Cellular 1 / Blinking slowly Connecting to network(s)
