Page 1 Copyright & Trademarks Specifications are subject to change without notice. Copyright © 2017 Pepwave Ltd. All Rights Reserved. Pepwave and the Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners.
Page 2: Table Of Contents
Glossary Product Features Supported Network Features Firewall Captive Portal Outbound Policy AP Controller Other Supported Features Pepwave MAX Mobile Router Overview MAX 700 MAX HD2 MAX HD2 IP67 MAX HD2 mini MAX Transit MAX HD4 MAX BR1 MAX BR1 Slim...
Page 3 Connecting to the Web Admin Interface Configuring the LAN Interface(s) Basic Settings Port Settings Captive Portal Configuring the WAN Interface(s) Ethernet WAN DHCP Connection Static IP Connection PPPoE Connection L2TP Connection Cellular WAN Wi-Fi WAN http://www.peplink.com Copyright @ 2017 Pepwave...
Page 4 MediaFast Configuration Setting Up MediaFast Content Caching Scheduling Content Prefetching Viewing MediaFast Statistics Bandwidth Bonding SpeedFusionTM / PepVPN PepVPN The Pepwave Router Behind a NAT Router SpeedFusionTM Status IPsec VPN IPsec VPN Settings Outbound Policy Management Outbound Policy Custom Rules for Outbound Policy...
Page 5 Content Blocking Application Blocking Web Blocking Customized Domains Exempted User Groups Exempted Subnets URL Logging OSPF & RIPv2 Remote User Access Miscellaneous Settings High Availability PPTP Server Certificate Manager Service Forwarding SMTP Forwarding Web Proxy Forwarding http://www.peplink.com Copyright @ 2017 Pepwave...
Page 6 AP Controller Status Info Access Point (Usage) Wireless SSID Wireless Client Nearby Device Event Log Toolbox System Settings Admin Security Firmware Time Schedule Email Notification Event Log SNMP InControl Configuration Feature Add-ons Reboot Tools Ping http://www.peplink.com Copyright @ 2017 Pepwave...
Page 7 Traceroute Test PepVPN Test Wake-on-LAN CLI (Command Line Interface Support) Status Device GPS Data Active Sessions Client List WINS Client UPnP / NAT-PMP SpeedFusion Status Event Log Bandwidth Status Real-Time Hourly Daily Monthly Appendix B: Declaration http://www.peplink.com Copyright @ 2017 Pepwave...
Page 8: Introduction And Scope
This manual covers setting up Pepwave routers and provides an introduction to their features and usage. Tips Want to know more about Pepwave routers? Visit our Y ouTube Channel for a v ideo introduction ! http://youtu.be/UCkVQThLKO4 http://www.peplink.com Copyright @ 2017 Pepwave...
Page 9: Glossary
Local Area Network MAC Address Media Access Control Address Maximum Transmission Unit Maximum Segment Size Network Address Translation PPPoE Point to Point Protocol over Ethernet Quality of Service SNMP Simple Network Management Protocol Transmission Control Protocol http://www.peplink.com Copyright @ 2017 Pepwave...
Page 10: Product Features
4G LTE modem. Below is a list of supported features on Pepwave routers. Features vary by model. For more information, please see peplink.com/products. Supported Network Features 3.1.1 WAN...
Page 11: Lan
IPsec VPN for network-to-network connections (works with Cisco and Juniper only) ● Ability to route Internet traffic to a remote VPN peer ● Optional pre-shared key setting TM ● SpeedFusion throughput, ping, and traceroute tests ● PPTP server ● PPTP and IPsec passthrough http://www.peplink.com Copyright @ 2017 Pepwave...
Page 12: Firewall
Traffic prioritization and DSL optimization ● Prioritize and route traffic to VPN tunnels with Priority and Enforced algorithms 3.1.7 AP Controller ● Configure and manage Pepwave AP devices ● Review the status of connected APs 3.1.8 QoS ● Quality of service for different applications and custom protocols ●...
Page 13: Other Supported Features
● UPnP / NAT-PMP ● Real-time, hourly, daily, and monthly bandwidth usage reports and charts ● IPv6 support ● Support USB tethering on Android 2.2+ phones * Not supported on MAX Surf-On-The-Go, and BR1 variants http://www.peplink.com Copyright @ 2017 Pepwave...

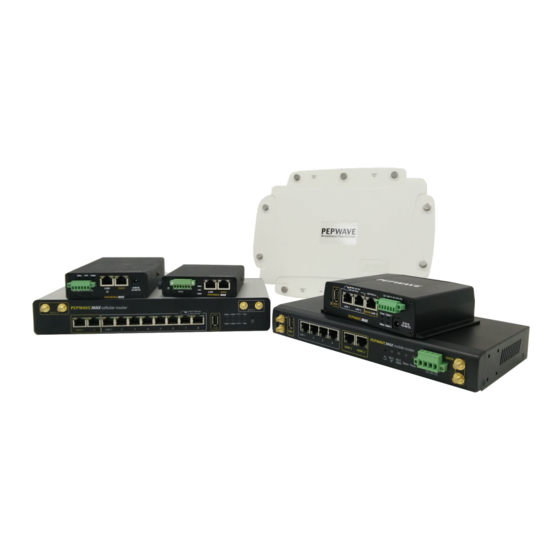

Page 14: Pepwave Max Mobile Router Overview
Pepwave MAX Mobile Router Overview MAX 700 4.1.1 Panel Appearance 4.1.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking Boot up error Green Ready http://www.peplink.com...
Page 15 Client(s) connected to wireless network LAN and Ethernet WAN Ports Green LED 10 / 100/ 1000 Mbps Blinking Data is transferring Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports http://www.peplink.com Copyright @ 2017 Pepwave...
Page 16: Max Hd2
MAX HD2 4.2.1 Panel Appearance 4.2.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 17 Connected to wireless network(s) without traffic LAN and Ethernet WAN Ports Green LED 10 / 100 / 1000 Mbps Blinking Data is transferring Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports http://www.peplink.com Copyright @ 2017 Pepwave...
Page 18: Max Hd2 Ip67
MAX HD2 IP67 4.3.1 Panel Appearance The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking Boot up error Green Ready http://www.peplink.com Copyright @ 2017 Pepwave...
Page 19: Max Hd2 Mini
MAX HD2 mini 4.4.1 Panel Appearance 4.4.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking Boot up error Green Ready Cellular WAN Indicators Disabled intermittent...
Page 20: Max Transit
Auto MDI/MDI-X ports MAX Transit 4.5.1 Panel Appearance 4.5.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking Boot up error http://www.peplink.com Copyright @ 2017 Pepwave...
Page 21 * For MAX-TST_DUO LAN and Ethernet WAN Ports Green LED 10 / 100 / 1000 Mbps Blinking Data is transferring Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports http://www.peplink.com Copyright @ 2017 Pepwave...
Page 22: Max Hd4
MAX HD4 / HD2 and HD4 with MediaFast 4.6.1 Panel Appearance 4.6.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking Boot up error Green Ready...
Page 23: Max Br1
Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports MAX BR1 4.7.1 Panel Appearance 4.7.2 LED Indicators The statuses indicated by the front panel LEDs are as follows: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 24 Connecting or connected to network(s) LAN and Ethernet WAN Ports 100 Mbps Green LED 10 Mbps Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports http://www.peplink.com Copyright @ 2017 Pepwave...
Page 25: Max Br1 Slim
Wi-Fi Indicators Disabled intermittent Blinking slowly Connecting to wireless network(s) Wi-Fi Blinking C o nnected to wireless network(s) with traffic Connected to wireless network(s) without traffic Cellular Indicators Disabled or no SIM card inserted Cellular http://www.peplink.com Copyright @ 2017 Pepwave...
Page 26 4.9.1 Panel Appearance 4.9.2 LED Indicators ● The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Booting up or busy Status Blinking Boot up error Green Ready Cellular Indicators http://www.peplink.com Copyright @ 2017 Pepwave...
Page 27: Max Br1 Pro Lte
4.10 MAX BR1 Pro LTE 4.10.1 Panel Appearence 4.10.2 LED Indicators ● The statuses indicated by the front panel LEDs are as follows: Status Indicators System initializing Status Booting up or busy Blinking Boot up error http://www.peplink.com Copyright @ 2017 Pepwave...
Page 28 Connecting or connected to network(s) LAN and Ethernet WAN Ports 100 Mbps Green LED 10 Mbps Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports http://www.peplink.com Copyright @ 2017 Pepwave...
Page 29: Max Hotspot
4.11.2 LED Indicators LAN and Ethernet WAN Ports Green LED 10 / 100 / 1000 Mbps Blinking Data is transferring Orange LED No data is being transferred or port is not connected Port Type Auto MDI/MDI-X ports http://www.peplink.com Copyright @ 2017 Pepwave...
Page 30: Br1 Mini
4.12 BR1 Mini 4.12.1 Panel Appearance 4.12.2 LED Indicators Status Indicators System initializing Status Booting up or busy Blinking Boot up error http://www.peplink.com Copyright @ 2017 Pepwave...
Page 31: Max Br1/2 Ip55
LAN and Ethernet WAN Ports 100 Mbps Green LED 10 Mbps Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports 4.13 MAX BR1/2 IP55 4.13.1 Panel Appearance http://www.peplink.com Copyright @ 2017 Pepwave...
Page 32: Max On-The-Go
LAN and Ethernet WAN Ports 100 Mbps Green LED 10 Mbps Port is connected without traffic Orange LED Blinking Data is transferring Port is not connected Port Type Auto MDI/MDI-X ports 4.14 MAX On-The-Go 4.14.1 Panel Appearance http://www.peplink.com Copyright @ 2017 Pepwave...
Page 33 Disconnected from AP Wi-Fi Green Connected to AP Status Indicators System initializing Status Booting up or busy Green Ready LAN and Ethernet WAN Ports 100 Mbps Green LED 10 Mbps Port is connected without traffic Orange LED http://www.peplink.com Copyright @ 2017 Pepwave...
Page 34: Advanced Feature Summary
And if the Peplink router loses power for any reason, L AN Bypass will safely and automatically bypass the Peplink router to resume your original network connection. Compatible with: MAX 700, MAX HD2 (All variants), HD4 (All Variants) http://www.peplink.com Copyright @ 2017 Pepwave...
Page 35: Qos: Clearer Voip
QoS: Clearer VoIP VoIP and videoconferencing are highly sensitive to latency. With QoS, Peplink routers can detect VoIP traffic and assign it the highest priority, giving you crystal-clear calls. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 36: Per-User Bandwidth Control
With per-user bandwidth control, you can define bandwidth control policies for up to 3 groups of users to prevent network congestion. Define groups by IP address and subnet, and set bandwidth limits for every user in the group. High Availability via VRRP http://www.peplink.com Copyright @ 2017 Pepwave...
Page 37: Usb Modem And Android Tethering
For increased WAN diversity, plug in a USB LTE modem as backup. Peplink routers are compatible with over 2 00 modem types . You can also tether to smartphones running Android 4.1.X and above. Compatible with: MAX 700, HD2 (all variants except IP67), HD4 (All variants) http://www.peplink.com Copyright @ 2017 Pepwave...
Page 38: Built-In Remote User Vpn Support
Use L2TP with IPsec to safely and conveniently connect remote clients to your private network. L2TP with IPsec is supported by most devices, but legacy devices can also connect using PPTP. Click here for full instructions on setting up L2TP with IPsec. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 39: Sim-Card Ussd Support
C lick here for full instructions on using USSD. Installation The following section details connecting Pepwave routers to your network. Preparation Before installing your Pepwave router, please prepare the following as appropriate for your installation: ● At least one Internet/WAN access account and/or Wi-Fi access information ●...
Page 40: Constructing The Network
With another Ethernet cable or a USB modem/Wi-Fi antenna/PC Card/Express Card, connect to one of the WAN ports on the Pepwave router. Repeat the same procedure for other WAN ports. Connect the power adapter to the power connector on the rear panel of the Pepwave router, and then plug it into a power outlet.
Page 41: Configuring The Network Environment
Configuring the Network Environment To ensure that the Pepwave router works properly in the LAN environment and can access the Internet via WAN connections, please refer to the following setup procedures: ● LAN configuration For basic configuration, refer to S ection 8 , Connecting to the Web Admin Interface .
Page 42: Connecting To The Web Admin Interface
Connecting to the Web Admin Interface 1. Start a web browser on a computer that is connected with the Pepwave router through the LAN. 2. To connect to the router’s web admin interface, enter the following LAN IP address in the address field of the web browser: http://192.168.50.1...
Page 43: Configuring The Lan Interface(S)
The A pply Changes b utton causes the changes to be saved and applied. Configuring the LAN Interface(s) Basic Settings LAN interface settings are located at N etwork>LAN>Network Settings . Navigating to that page will result in the following dashboard: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 44 The IP address and subnet mask of the P epwave router on the LAN. Network Settings Name Enter a name for the LAN. Enter a number for your VLAN. VLAN ID Inter-VLAN Check this box to enable routing between virtual LANs. routing http://www.peplink.com Copyright @ 2017 Pepwave...
Page 45 Captive Portal Check this box to turn on captive portals. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 46 To connect to hosts on the LAN (email notification, remote syslog, etc.), the default gateway address will be used. The Pepwave router will listen for this IP address when LAN hosts access services provided by the Pepwave router (web admin access from the WAN, DNS proxy, etc.).
Page 47 DHCP Server each computer that is connected via LAN and configured to obtain an IP address via DHCP. The Pepwave router’s DHCP server can prevent IP address collision on the LAN. IP Range & These settings allocate a range of IP addresses that will be assigned to LAN computers by Subnet Mask the Pepwave router’s DHCP server.
Page 48 A uto is selected by default. You can choose not to advertise the port speed if the port has difficulty negotiating with the peer device. Static Route Settings http://www.peplink.com Copyright @ 2017 Pepwave...
Page 49 DNS replies will be cached until the records’ TTL has DNS Caching been reached. This feature can help improve DNS lookup time. However, it cannot return the most up-to-date result for those frequently updated DNS http://www.peplink.com Copyright @ 2017 Pepwave...
Page 50 IP address. When looking up the host name from the Local DNS Records LAN to LAN IP of the Pepwave router, the corresponding IP address will be returned. Press to create a new record. Press to remove a record.
Page 51: Subnet Mask
The following settings are displayed when creating a new LAN or editing an existing LAN. IP Settings IP Address & Enter the Pepwave router’s IP address and subnet mask values to be used on the LAN. Subnet Mask Network Settings Name Enter a name for the LAN.
Page 52 Check this box to turn on captive portals. DHCP Server Settings When this setting is enabled, the Pepwave router’s DHCP server automatically assigns an IP address to each computer that is connected via LAN and configured to obtain an IP address via DHCP.
Page 53 Option 82. Once DHCP is set up, configure L AN Physical Settings , S tatic Route Settings , W INS Server Settings , and D NS Proxy Settings as noted above. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 54: Port Settings
The captive portal serves as gateway that clients have to pass if they wish to access the internet using your router. To configure, navigate to N etwork>LAN>Captive Portal . Captive Portal Settings Check E nable and then, optionally, select the LANs/VLANs that will use the captive Enable portal. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 55: Radius Server
Networks to the listing. Here, you can choose between using the Pepwave router’s built-in captive portal and Splash Page redirecting clients to a URL you define. http://www.peplink.com...
Page 56 If you have any additional messages for your users, enter them in this field. Terms & If you would like to use your own set of terms and conditions, please enter them here. If Conditions left empty, the built-in portal will display the default terms and conditions. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 57: Configuring The Wan Interface(S)
You can also set priorities on the D ashboard . Click the D etails button in the corresponding row to modify the connection setting. Important Note Connection details will be changed and become effective immediately after clicking the S ave and Apply b utton. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 58: Ethernet Wan
If a health check test cannot be completed within the specified amount of time, the test will Timeout be treated as failed. Health Check This is the time interval between each health check test. Interval http://www.peplink.com Copyright @ 2017 Pepwave...
Page 59 Start Day This option allows you to select which day of the month a billing cycle starts. Monthly This field is to specify the bandwidth allowance for each billing cycle. Allowance http://www.peplink.com Copyright @ 2017 Pepwave...
Page 60: Dhcp Connection
● DNS-O-Matic Select D isabled to disable this feature. See S ection 9 .5 f or configuration details. 10.1.1 DHCP Connection There are four possible connection methods: DHCP Static IP PPPoE http://www.peplink.com Copyright @ 2017 Pepwave...
Page 61: Static Ip Connection
DNS server addresses for this WAN connection into the D NS Server 1 and D NS Server 2 fields. 10.1.2 Static IP Connection The static IP connection method is suitable if your ISP provides a static IP address to connect directly. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 62: Pppoe Connection
DNS server addresses for this WAN connection into the DNS Server 1 and D NS Server 2 fields. 10.1.3 PPPoE Connection This connection method is suitable if your ISP provides a login ID/password to connect via PPPoE. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 63: Default Gateway
Selecting O btain DNS server address automatically results in the DNS servers being assigned by the WAN DHCP server to be used for outbound DNS lookups over the connection. (The DNS servers are obtained along with the http://www.peplink.com Copyright @ 2017 Pepwave...
Page 64: L2Tp Connection
Each ISP may provide a set of DNS servers for DNS lookups. This setting specifies the DNS Servers DNS (Domain Name System) servers to be used when a DNS lookup is routed through this http://www.peplink.com Copyright @ 2017 Pepwave...
Page 65: Cellular Wan
WAN connection into the DNS server 1 and D NS server 2 fields. 10.2 Cellular WAN To access cellular WAN settings, click N etwork>WAN>Details . ( A vailable on the Pepwave MAX BR1, HD2, and HD2 IP67 only) Cellular Status http://www.peplink.com...
Page 66 This is the International Mobile Subscriber Identity which uniquely identifies the SIM card. This IMSI is applicable to 3G modems only. Some Pepwave routers support both HSPA and EV-DO. For Sprint or Verizon Wireless EV-DO MEID users, a unique MEID identifier code (in hexadecimal format) is used by the carrier to associate the EV-DO device with the user.
Page 67 When U se the following DNS server address(es) is selected, you can enter custom DNS server addresses for this WAN connection into the DNS server 1 and D NS server 2 fields. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 68 Indicate which SIM card this cellular WAN will use. Only applies to cellular WAN with SIM Card redundant SIM cards. If both cards were enabled on the above field, then you can designate the priority of the SIM Preferred SIM card slots here. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 69 Start Day This option allows you to define which day of the month each billing cycle begins. Monthly This field is for defining the maximum bandwidth usage allowed for the WAN connection each month. Allowance http://www.peplink.com Copyright @ 2017 Pepwave...
Page 70 This is the number of consecutive check failures before treating a connection as down. Retries Recovery This is the number of responses required after a health check failure before treating a connection as up again. Retries http://www.peplink.com Copyright @ 2017 Pepwave...
Page 71: Wi-Fi Wan
This field is for specifying the Maximum Transmission Unit value of the WAN connection. An excessive MTU value can cause file downloads stall shortly after connected. You may consult your ISP for the connection's MTU value. 10.3 Wi-Fi WAN To access Wi-Fi WAN settings, click N etwork>WAN>Details . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 72 The auto-detection will run each time the WAN connection establishes Reply to ICMP If this setting is disabled, the WAN connection will not respond to ICMP ping requests. By default, this setting is enabled. PING http://www.peplink.com Copyright @ 2017 Pepwave...
Page 73 This option is to specify whether the Wi-Fi WAN will connect to any open mode access Any Open points it finds. Mode AP Beacon Miss This sets the threshold for the number of missed beacons. Counter http://www.peplink.com Copyright @ 2017 Pepwave...
Page 74 This setting specifies the health check method for the WAN connection. This value can be Method configured as D isabled , P ING , D NS Lookup , or H TTP . The default method is D NS http://www.peplink.com Copyright @ 2017 Pepwave...
Page 75 DNS servers. Connections will be considered as up if DNS responses are received from any one of the health check DNS servers, regardless of a positive or negative result. By default, the first http://www.peplink.com Copyright @ 2017 Pepwave...
Page 76 This setting specifies the number of consecutive successful ping/DNS lookup responses Recovery that must be received before the Peplink Balance treats a previously down WAN connection http://www.peplink.com Copyright @ 2017 Pepwave...
Page 77 Update All Hosts Check this box to automatically update all hosts. This setting specifies a list of hostnames or domains to be associated with the public Internet IP address of the WAN connection. Hosts / Domain http://www.peplink.com Copyright @ 2017 Pepwave...
Page 78: Creating Wi-Fi Connection Profiles
You can manually create a profile to connect to a Wi-Fi connection. This is useful for creating a profile for connecting to hidden-SSID access points. Click N etwork>WAN>Details>Create Profile… to get started. This will open a window similar to the one shown below Wi-Fi Connection Profile Settings http://www.peplink.com Copyright @ 2017 Pepwave...
Page 79: Wan Health Check
WPA/WPA2 – Enterprise 10.4 WAN Health Check To ensure traffic is routed to healthy WAN connections only, the Pepwave router can periodically check the health of each WAN connection. The health check settings for each WAN connection can be independently configured via N etwork>WAN>Details .
Page 80 DNS servers, regardless of a positive or negative result. By default, the first two DNS servers of the WAN connection are used as the health check DNS servers. Health Check Method: HTTP HTTP connections will be issued to test connectivity with configurable URLs and strings to match. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 81 Automatic Public DNS Server Check on DNS Test Failure When the health check method is set to D NS Lookup and health checks fail, the Pepwave router will automatically perform DNS lookups on public DNS servers. If the tests are successful, the WAN may not be down, but rather the target DNS server malfunctioned.
Page 82: Dynamic Dns Settings
IP of each WAN will be automatically reported to the DNS service provider. Either upon a change in IP addresses or every 23 days without link reconnection, the Pepwave router will connect to the dynamic DNS service provider to perform an IP address update within the provider’s records.
Page 83: Advanced Wi-Fi Settings
DNS host will automatically expire if the host record has not been updated for a long time. Therefore the Pepwave router performs an update every 23 days, even if a WAN’s IP address has not changed.
Page 84 4 relative power levels available – M ax , H igh , M id , and L ow . The actual output power will be bound by the regulatory limits of the selected country. Client Signal Strength This setting determines the maximum strength at which the Wi-Fi AP can broadcast Threshold http://www.peplink.com Copyright @ 2017 Pepwave...
Page 85 This option is for setting the transmit bit rate for sending a beacon. By default, 1 Mbps is Beacon Rate selected. This option is for setting the time interval between each beacon. By default, 1 00ms is Beacon Interval selected. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 86 By default, this field is set to 4 8 µs . Frame This option allows you to enable frame aggregation to increase transmission throughput. Aggregation A - Advanced feature, please click the button on the top right-hand corner to activate. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 87 This option is for specifying the transmission output power for the Wi-Fi AP. There are Output Power 4 relative power levels available – M ax , H igh , M id , and L ow . The actual output power http://www.peplink.com Copyright @ 2017 Pepwave...
Page 88: Mediafast Configuration
This setting allows caching to be applied to the user-specified IP subnets. If "Any" is selected, then caching will apply to all subnets. Subnet Check these boxes to cache the listed content types or leave boxes unchecked to disable Content Type caching for the listed types. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 89: Scheduling Content Prefetching
Result This field indicates whether downloads are in progress ( ) or complete ( Last Download Check this field to ensure that the most recent download file size is within the expected http://www.peplink.com Copyright @ 2017 Pepwave...
Page 90: Viewing Mediafast Statistics
To clear all cached content, click this button. Note that this action cannot be undone. Cache Clear Statistics To clear all prefetch and status page statistics, click this button. 12.3 Viewing MediaFast Statistics To get details on storage and bandwidth usage, select Status>MediaFast . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 92: Bandwidth Bonding Speedfusiontm / Pepvpn
SpeedFusion license to increase the number of site-to-site connections allowed. Pepwave routers can aggregate all WAN connections’ bandwidth for routing SpeedFusion traffic. Unless all the WAN connections of one site are down, Pepwave routers can keep the VPN up and running.
Page 93 VPN profile (you may have to first save the displayed default profile in order to acesss the N ew Profile button). Each profile specifies the settings for making VPN connection with one remote Pepwave or Peplink device. Note that available settings vary by model.
Page 94 When the peer is running firmware 5.0+, this Pre-shared Key setting will be ignored. Enter Remote IDs either by typing out each Remote ID and Pre-shared Key, or by pasting a http://www.peplink.com Copyright @ 2017 Pepwave...
Page 95 Checking this button enables the use of IP ToS header field. Traffic will be stopped for links that exceed the specified millisecond value with respect to Latency the lowest latency link. (e.g. Lowest latency is 100ms, a value of 500ms means links with http://www.peplink.com Copyright @ 2017 Pepwave...
Page 96 Send All Traffic To This feature allows you to redirect all traffic to a specified PepVPN connection. Click the button to select your connection and the following menu will appear: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 97 The local ID is a text string to identify this local unit when establishing a VPN connection. When creating a profile on a remote unit, this local ID must be entered in the remote unit's R emote ID field. Click the icon to edit L ocal ID . PepVPN Settings http://www.peplink.com Copyright @ 2017 Pepwave...
Page 98 TCP port 32015 and UDP port 4500 for establishing VPN connections. If you have a firewall in front of your Pepwave devices, you will need to add firewall rules for these ports and protocols to allow inbound and outbound traffic to pass through the firewall.
Page 99: The Pepwave Router Behind A Nat Router
13.2 The Pepwave Router Behind a NAT Router TM Pepwave routers support establishing SpeedFusion over WAN connections which are behind a NAT (network address translation) router. To enable a WAN connection behind a NAT router to accept VPN connections, you can configure the NAT router in front of the WAN connection to inbound port-forward TCP port 32015 to the Pepwave router.
Page 100: Ipsec Vpn
Data, voice, and video communications between these locations are kept safe and confidential across the public Internet. IPsec VPN on Pepwave routers is specially designed for multi-WAN environments. For instance, if a user sets up multiple IPsec profiles for a multi-WAN environment and WAN1 is connected and healthy, IPsec traffic will go through this link.
Page 101 VPN with a selection of encryption standards, such as 3DES, AES-128, and AES-256. To configure IPsec VPN on Pepwave devices that support it, navigate to A dvanced>IPsec VPN. A N AT-Traversal o ption and list of defined I Psec VPN p rofiles will be shown. N AT-Traversal should be enabled if your system is behind a NAT router.
Page 103: Host Name
Choose M ain Mode if both IPsec peers use static IP addresses. Choose A ggressive Mode Mode if one of the IPsec peers uses dynamic IP addresses. Force UDP For forced UDP encapsulation regardless of NAT-traversal, tick this checkbox. Encapsulation http://www.peplink.com Copyright @ 2017 Pepwave...
Page 104 Group 5 : 1 536-bit is the third option. Phase 2 SA This setting specifies the lifetime limit of this Phase 2 Security Association. By default, it is set at 2 8800 seconds. Lifetime http://www.peplink.com Copyright @ 2017 Pepwave...
Page 105: Outbound Policy Management
WAN Connection Select the appropriate WAN connection from the drop-down menu. 15 Outbound Policy Management Pepwave routers can flexibly manage and load balance outbound traffic among WAN connections. Important Note Outbound policy is applied only when more than one WAN connection is active...
Page 106 ● Normal Application Compatibility ● Custom Note that some Pepwave routers provide only the S end All Traffic To setting here. See Section 12.1 for details. Outbound Policy Settings High Outbound traffic from a source LAN device is routed through the same WAN connection Application regardless of the destination Internet IP address and protocol.
Page 107: Custom Rules For Outbound Policy
This setting specifies the ratio of WAN connection usage to be applied on the specified IP protocol and port. This setting is applicable only when A lgorithm is set to W eighted Balance . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 108 Matching traffic distributed to Cellular 1 is 16.7% = (10 / 60) x 100%. Matching traffic distributed to Cellular 2 is 16.7% = (10 / 60) x 100%. Matching traffic distributed to USB is 16.7% = (10 / 60) x 100%. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 109: Algorithm: Persistence
Also, the Internet IP depends on the WAN connections over which communication actually takes place. As a result, a LAN client computer behind the Pepwave router may communicate using multiple Internet IP addresses. For example, a LAN client computer behind a Pepwave router with three WAN connections may communicate on the Internet using three different IP addresses.
Page 110: Algorithm: Enforced
The highest priority WAN connection available will always be used for routing the specified type of traffic. A lower priority WAN connection will be used only when all higher priority connections have become unavailable. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 111: Algorithm: Overflow
WAN connection is calculated from the total download bandwidth specified on the WAN settings page and the current download usage. The available bandwidth and WAN selection is determined every time an IP session is made. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 112: Algorithm: Lowest Latency
A latency sensitive application must be routed through the lowest latency WAN, regardless of the WAN’s available bandwidth. 15.2.8 Expert Mode Expert Mode is available on some Pepwave routers for use by advanced users. To enable the feature, click on the help icon and click turn on Expert Mode .
Page 113: Inbound Access
16 Inbound Access 16.1 Port Forwarding Service Pepwave routers can act as a firewall that blocks, by default, all inbound access from the Internet. By using port forwarding, Internet users can access servers behind the Pepwave router. Inbound port forwarding rules can be defined at A dvanced>Port Forwarding .
Page 114 The I P Protocol setting, along with the P ort setting, specifies the protocol of the service as TCP, UDP, ICMP, or IP. Traffic that is received by the Pepwave router via the specified protocol at the specified port(s) is forwarded to the LAN hosts specified by the S ervers setting. Please see below for details on the ...
Page 115: Upnp / Nat-Pmp Settings
NAT mappings allow IP address mapping of all inbound and outbound NAT’d traffic to and from an internal client IP address. Settings to configure NAT mappings are located at Advanced>NAT Mappings . To add a rule for NAT mappings, click A dd NAT Rule . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 116 IP Address is selected in the L AN Client(s) field. Mappings Note that inbound mapping is not needed for WAN connections in drop-in mode or IP forwarding mode. Also note that each WAN IP address can be associated to one NAT mapping only. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 117: Qos
t he LAN clients defined in the DHCP Reservation table on the LAN settings page. E veryone represents all clients that are not defined in any rule above. Click on a rule to change its group. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 118: Bandwidth Control
(for each WAN connection) that each individual Staff and Guest member can consume. No limit can be imposed on individual Manager members. By default, download and upload bandwidth limits are set to unlimited (set as 0 ) . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 119: Application
18.3 Application 18.3.1 Application Prioritization On many Pepwave routers, you can choose whether to apply the same prioritization settings to all user groups or customize the settings for each group. Three application priority levels can be set: ↑ H igh...
Page 120: Dsl/Cable Optimization
Internet) and the LAN side of the network. It can protect the local network from potential hacker attacks, access to offensive websites, and/or other inappropriate uses. The firewall functionality of Pepwave routers supports the selective filtering of data traffic in both directions: ●...
Page 121: Outbound And Inbound Firewall Rules
19.1 Outbound and Inbound Firewall Rules 19.1.1 Access Rules The outbound firewall settings are located at A dvanced>Firewall>Access Rules>Outbound Firewall Rules . Click A dd Rule t o display the following screen: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 122 Rules are matched from top to bottom. If a connection matches any one of the upper rules, the matching process will stop. If none of the rules match, the D efault r ule will be applied. By http://www.peplink.com Copyright @ 2017 Pepwave...
Page 123 If the traffic matches the specified protocol/IP/port, actions will be taken by the Pepwave router based on the other parameters of the rule. If the box is not checked, the firewall rule does not take effect. The Pepwave router will disregard the other Enable parameters of the rule.
Page 124: Apply Firewall Rules To Pepvpn Traffic
NAT mapping rules. However, if the default inbound rule is set as D eny , a corresponding Allow firewall rule will be required. 19.1.2 Apply Firewall Rules to PepVpn Traffic When this option is enabled, Outbound Firewall Rules will be applied to PepVPN traffic. T o http://www.peplink.com Copyright @ 2017 Pepwave...
Page 125: Intrusion Detection And Dos Prevention
, check the E nable c heck box, a nd press the the Internet. To turn on this feature, click Save b utton. When this feature is enabled, the Pepwave router will detect and prevent the following kinds of intrusions and denial-of-service attacks. ● Port scan...
Page 126: Content Blocking
19.2 Content Blocking 19.2.1 Application Blocking Choose applications to be blocked from LAN/PPTP/PepVPN peer clients' access, except for http://www.peplink.com Copyright @ 2017 Pepwave...
Page 127: Web Blocking
User groups can be defined at Q oS>User Groups section. Please refer to S ection 1 7.1 for details. 19.2.5 Exempted Subnets With the subnet defined in the field, clients on the particular subnet(s) can be exempted from the access blocking rules. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 128: Url Logging
This is an overview of the OSPFv2 areas you have defined. Click on the area name to Area configure it. To set a new area, click A dd . To delete an existing area, click http://www.peplink.com Copyright @ 2017 Pepwave...
Page 129 M D5 and T ext . Enter the authentication key next to the drop-down menu. Determine which interfaces this area will use to listen to and deliver OSPF packets Interfaces To access RIPv2 settings, click http://www.peplink.com Copyright @ 2017 Pepwave...
Page 130: Remote User Access
Determine which interfaces this group will use to listen to and deliver RIPv2 packets. 21 Remote User Access a Networks routed by a Peplink Balance can be remotely accessed via L2TP with IPsec or PPTP. To configure this feature, navigate to N etwork > Remote User Access http://www.peplink.com Copyright @ 2017 Pepwave...
Page 131 Remote User Access Settings Click the checkbox to enable Remote User Access. Enable VPN Type Determine whether remote devices can connect to the Balance using L2TP with IPsec or http://www.peplink.com Copyright @ 2017 Pepwave...
Page 132: Miscellaneous Settings
21.1 High Availability Many Pepwave routers support high availability (HA) configurations via an open standard virtual router redundancy protocol (VRRP, RFC 3768). In an HA configuration, two Pepwave routers provide redundancy and failover in a master-slave arrangement. In the event that the master unit is down, the slave unit becomes active.
Page 133 In the diagram, the WAN ports of each Pepwave router connect to the router and to the modem. Both Pepwave routers connect to the same LAN switch via a LAN port. An elaboration on the technical details of the implementation of the virtual router redundancy protocol (VRRP, RFC 3768) by Pepwave routers follows: ●...
Page 134 Group This number identifies a pair of Pepwave routers operating in a high availability configuration. The two Pepwave routers in the pair must have the same G roup Number v alue. Number This setting specifies whether the Pepwave router operates in master or slave mode. Click Preferred Role the corresponding radio button to set the role of the unit.
Page 135 Important Note For Pepwave routers in NAT mode, the virtual IP (VIP) should be set as the default gateway for all hosts on the LAN segment. For example, a firewall sitting behind the Pepwave router should set its default gateway as the virtual IP instead of the IP of the master router.
Page 136: Pptp Server
Please note that the drop-in WAN cannot be configured as a LAN bypass port while it is configured for high availability. 21.2 PPTP Server Pepwave routers feature a built-in PPTP server, which enables remote computers to conveniently and securely access the local network. PPTP server settings are located at Advanced>Misc. Settings>PPTP Server .
Page 137 L ocal User Accounts, LDAP Server, o r RADIUS Server . Local User Accounts - User accounts are stored in the Pepwave router locally. You can add/modify/delete accounts in the U ser Accounts table.
Page 138: Certificate Manager
W eb Proxy Interception Settings will be intercepted. These Forwarding connections will be redirected to a specified web proxy server and port number. Web proxy interception settings and proxy server settings for each WAN can be specified http://www.peplink.com Copyright @ 2017 Pepwave...
Page 139: Smtp Forwarding
ISP’s e-mail server host name or IP address. Under S MTP Port , enter the TCP port number for each WAN. The Pepwave router will intercept SMTP connections. Choose a WAN port according to the outbound policy, and then forward the connection to the SMTP server if the chosen WAN has enabled forwarding.
Page 140: Web Proxy Forwarding
(see S ection 14.2 ) . 21.4.2 Web Proxy Forwarding When this feature is enabled, the Pepwave router will intercept all outgoing connections destined for the proxy server specified in W eb Proxy Interception Settings , choose a WAN connection with reference to the outbound policy, and then forward them to the specified web proxy server and port number.
Page 141: Service Passthrough
Service passthrough settings can be found at A dvanced>Misc. Settings>Service Passthrough . Some Internet services need to be specially handled in a multi-WAN environment. Pepwave routers can handle these services such that Internet applications do not notice being behind a multi-WAN router.
Page 142: Gps Forwarding
21.6 GPS Forwarding Using the GPS forwarding feature, some Pepwave routers can automatically send GPS reports to a specified server. To set up GPS forwarding, navigate to A dvanced>GPS Forwarding . GPS Forwarding Enable Check this box to turn on GPS forwarding.
Page 143: Ap Controller
APs from a single Pepwave router interface. Special Note Each Pepwave router can control a limited number of routers without additional cost. To manage more, a Full Edition license is required. Please contact your Authorized Reseller or the Peplink Sales Team for more information and pricing details.
Page 144 The AP controller for managing Pepwave APs can be enabled by checking this box. When this option is enabled, the AP controller will wait for management connections originating from APs over the LAN on TCP and UDP port 11753. It will also wait for captive portal connections Management on TCP port 443.
Page 145 Broadcast SSID network. B roadcast SSID is enabled by default. Select A uto to allow the Pepwave router to set the data rate automatically, or select Data Rate Fixed and choose a rate from the displayed drop-down menu.
Page 146 The selected P rotocol and C hannel Bonding settings will affect the rate options and values available here. To allow the Pepwave router to l isten to internet group management protocol (IGMP) IGMP Snooping network traffic, select this option.
Page 147 RADIUS Server Settings Enter the IP address of the primary RADIUS server and, if applicable, the secondary RADIUS Host server. Enter the RADIUS shared secret for the primary server and, if applicable, the secondary Secret RADIUS server. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 148: Settings
In field, enter the UDP accounting port(s) used by your RADIUS server(s) or click the D efault button to enter 1 813 . Port 22.2 Settings On many Pepwave models, the AP settings screen ( A P>Settings ) looks similar to the example below: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 149 Balance does not detect whether the AP is capable of transmitting at both frequencies. Instructions to transmit at unsupported frequencies will be ignored by the AP. This drop-down menu specifies the national / regional regulations which the AP should Operating follow. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 150 Clients profile. This field specifies the VLAN ID to tag to management traffic, such as AP to AP Management controller communication traffic. The value is 0 by default, meaning that no VLAN tagging http://www.peplink.com Copyright @ 2017 Pepwave...
Page 151 This field is only available when F rame Aggregation is enabled. It specifies the frame Frame Length length for frame aggregation. By default, it is set to 5 0000 . A - Advanced feature. Click the button on the top right-hand corner to activate. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 152 This field allows you to specify a new administrator password. You may also click the Admin Password Generate button and let the system generate a random password automatically. Navigating to A P>Settings on some Pepwave models displays a screen similar to the one shown below: Wi-Fi Radio Settings Operating This option sets the country whose regulations the Pepwave router follows.
Page 153 This option allows you to enable frame aggregation to increase transmission Aggregation throughput. This setting allows choosing a short or long guard period interval for your Guard Interval transmissions. A - Advanced feature, please click the button on the top right-hand corner to activate. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 154: Ap Controller Status
2.4GHz and 5 GHz frequencies. The colored boxes indicate the SSID to display information for. Clicking any colored box SSID will toggle the display of information for that SSID. By default, all the graphs show information for all SSIDs. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 155: Access Point (Usage)
M ore… link for additional records. Access Point (Usage) 23.2 A detailed breakdown of data usage for each AP is available at A P > Controller Status > Access Point . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 156 On the right of the table, you will see the following icons: Click the icon to see a usage table for each client: Managed Wireless Devices Click the icon to configure each client http://www.peplink.com Copyright @ 2017 Pepwave...
Page 157 For easier network management, you can give each client a name and designate its location. You can also designate which firmware pack (if any) this client will follow, as well as the channels on which the client will broadcast. Click the icon to see a graph displaying usage: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 158: Wireless Ssid
Click the E vent tab next to W ireless Usage to view a detailed event log for that particular device: Wireless SSID 23.3 In-depth SSID reports are available under A P > Controller Status > Wireless SSID . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 159: Wireless Client
Click the blue arrow on any SSID to obtain more detailed usage information on each SSID. Wireless Client 23.4 You can search for specific Wi-Fi users by navigating to A P > Controller Status > Wireless Client . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 160: Nearby Device
Nearby Device 23.5 A listing of near devices can be accessed by navigating to A P > Controller Status > Nearby Device . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 161: Event Log
Event Log 23.6 You can access the AP Controller Event log by navigating to A P > Controller Status > Event Log . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 162: Toolbox
To receive new firmware packs, you can click C heck for Updates to download new packs, or you can click Manual Upload to manually upload a firmware pack. Click D efault to define which firmware pack is default. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 163: System Settings
For security reasons, after logging in to the web admin Interface for the first time, it is recommended to change the administrator password. Configuring the administration interface to be accessible only from the LAN can further improve system security. Administrative settings configuration is located at S ystem>Admin Security . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 164 Admin Settings This field allows you to define a name for this Pepwave router. By default, R outer Name Router Name is set as M AX_XXXX , where X XXX refers to the last 4 digits of the unit’s serial number.
Page 165 This field specifies the number of hours and minutes that a web session can remain idle Web Session before the Pepwave router terminates its access to the web admin interface. By default, it Timeout is set to 4 hours .
Page 166 Source IP restriction. Subnets ● Allow access from the following IP subnets only - Restrict web admin access only from the defined IP subnets. When this is chosen, a text input area will be displayed http://www.peplink.com Copyright @ 2017 Pepwave...
Page 167: Firmware
To update using a firmware image, click C hoose File t o select the firmware file from the local computer, and then click M anual Upgrade t o send the firmware to the Pepwave router. It will then automatically initiate the firmware upgrade process.
Page 168: Time
Do not attempt to upload a non-firmware file or a firmware file that is not supported by Peplink. Upgrading the Pepwave router with an invalid firmware file will damage the unit and may void the warranty.
Page 169 Click this checkbox to enable this schedule profile. Note that if this is disabled, then any Enabling associated features will also have their scheduling disabled. Name Enter your desired name for this particular schedule profile. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 170: Email Notification
This setting specifies whether or not to enable email notification. If Enable is checked, the Email Pepwave router will send email messages to system administrators when the WAN status changes or when new firmware is available. If Enable is not checked, email notification is Notification disabled and the Pepwave router will not send email messages.
Page 171 This field allows you to verify and confirm the new administrator password. Password Sender’s Email This setting specifies the email address the Pepwave router will use to send reports. Address Recipient’s This setting specifies the email address(es) to which the Pepwave router will send email Email Address notifications.
Page 172: Event Log
This setting specifies the IP address or hostname of the remote syslog server. Host The Pepwave router can also send push notifications to mobile devices that have our Push Events Mobile Router Utility installed. Check the box to activate this feature.
Page 173: Snmp
25.7 SNMP SNMP or simple network management protocol is an open standard that can be used to collect information about the Pepwave router. SNMP configuration is located at S ystem>SNMP . SNMP Settings SNMP Device This field shows the router name defined at S ystem>Admin Security .
Page 175 When MD5 or SHA is selected, an entry field will appear for the password. This setting specifies via a drop-down menu one of the following valid privacy protocols: Privacy Protocol ● NONE ● When DES is selected, an entry field will appear for the password. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 176: Incontrol
InControl is a cloud-based service which allows you to manage all of your Peplink and Pepwave devices with one unified system. With it, you can generate reports, gather statistics, and configure your devices automatically. All of this is now possible with InControl.
Page 177 d iscard on the main page of the web admin interface. Upload In a high availability (HA) configuration, a Pepwave router can quickly load the configuration Configurations of its HA counterpart. To do so, click the U pload b utton. After loading the settings,...
Page 178: Feature Add-Ons
This page provides a reboot button for restarting the system. For maximum reliability, the Pepwave router can equip with two copies of firmware. Each copy can be a different version. You can select the firmware version you would like to reboot the device with. The firmware marked with ...
Page 179: Traceroute Test
26.2 Traceroute Test The traceroute test tool traces the routing path to the destination through a particular Ethernet interface or a SpeedFusion TM connection. The traceroute test utility is located at System>Tools>Traceroute . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 180: Pepvpn Test
You can define the T est Type , D irection , and D uration of the test, and press G o! t o perform the throughput test. The VPN test utility is located at S ystem>Tools>PepVPN Test , illustrated as follows: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 181: Wake-On-Lan
The below settings specify which TCP port and which interface(s) should accept remote SSH CLI access. The user name and password used for remote SSH CLI access are the same as those used for web admin access. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 183: Status
This shows the firmware version this device is currently running. PepVPN This shows the current PepVPN version. Version Modem This shows the modem support version. For a list of supported modems, click Modem Support Support List . Version http://www.peplink.com Copyright @ 2017 Pepwave...
Page 184: Gps Data
End User License Agreement (EULA), click Important Note If you encounter issues and would like to contact the Pepwave Support Team ( h ttp://www.pepwave.com/contact/ ) , please download the diagnostic report file and attach it along with a description of your issue.
Page 185 WAN port. In addition, you can see which clients are initiating the most sessions. You can also perform a filtered search for specific sessions. You can filter by subnet, port, protocol, and interface. To perform a search, navigate to S tatus>Active Sessions>Search . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 186: Client List
This A ctive Sessions section displays the active inbound/outbound sessions of each WAN connection on the Pepwave router. A filter is available to sort active session information. Enter a keyword in the field or check one of the WAN connection boxes for filtering.
Page 187: Upnp / Nat-Pmp
Client List (see previous section). Click F lush All t o flush all WINS client records. 27.6 UPnP / NAT-PMP The table that shows the forwarded ports under UPnP and NAT-PMP protocols is located at Status>UPnP/NAT-PMP . This section appears only if you have enabled UPnP / NAT-PMP as http://www.peplink.com Copyright @ 2017 Pepwave...
Page 188: Speedfusion Status
S tatus>SpeedFusion TM Current SpeedFusion TM Details about SpeedFusion connection peers appears as below: Click on the corresponding peer name to explore the WAN connection(s) status and subnet information of each VPN peer. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 189 Click the button for a chart displaying real-time throughput, latency, and drop-rate information for each WAN connection. When pressing the button, the following menu will appear: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 190 After clicking the icon, the following menu appears: Select the L2 protocol (TCP/UDP), direction, and duration and click the S tart button to begin the general throughput test. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 191 After clicking the icon, the analyzer will require several minutes to perform its analysis depending the number of WAN links in the SpeedFusion TM Tunnel. Once the test the complete, the report will appear: http://www.peplink.com Copyright @ 2017 Pepwave...
Page 192: Event Log
"Tx Avg." is the averaged throughput across the full 10 seconds time, while "Tx Max." is the averaged throughput of the fastest 30% of time. 27.8 Event Log Event log information is located at S tatus>Event Log . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 193: Bandwidth Status
The log section displays a list of events that has taken place on the Pepwave router. Check Auto R efresh to refresh log entries automatically. Click the C lear Log button to clear the log. Bandwidth Status This section shows bandwidth usage statistics and is located at S tatus>Bandwidth .
Page 194: Real-Time
28.2 Hourly This page shows the hourly bandwidth usage for all WAN connections, with the option of viewing each individual connection. Select the desired connection to check from the drop-down menu. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 195: Daily
WAN connection. The scale of the graph can be set to display megabytes ( M B ) or gigabytes ( G B ) . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 196: Monthly
WAN connection. The scale of the graph can be set to display megabytes ( M B ) or gigabytes ( G B ) . http://www.peplink.com Copyright @ 2017 Pepwave...
Page 197 All WAN Monthly Bandwidth Usage http://www.peplink.com Copyright @ 2017 Pepwave...
Page 198 Ethernet WAN Monthly Bandwidth Usage By default, the scale of data size is in M B . 1GB equals 1024MB. http://www.peplink.com Copyright @ 2017 Pepwave...
Page 199 To restore the factory default settings on a Pepwave router, follow the steps below: 1. Locate the reset button on the front or back panel of the Pepwave router. 2. With a paper clip, press the reset button and hold it for at least 10 seconds, until the unit reboots itself.
Page 200: Appendix B: Declaration
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. IMPORTANT NOTE http://www.peplink.com Copyright @ 2017 Pepwave...
Page 201 FCC Radiation Exposure Statement (for MAX700/ HD2/ HD2 IP67/ BR1) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Page 202 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. 3. CE Statement for Pepwave Routers Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
Page 203 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment http://www.peplink.com Copyright @ 2017 Pepwave...
Page 204 Hierbij verklaart [ naam van de fabrikant] dat het toestel [ type van toestel] in Nederlands overeenstemming is met de essentiële eisen en de andere relevante bepalingen [Dutch] van richtlijn 1999/5/EG. Hawnhekk, [ isem tal-manifattur], jiddikjara li dan [ il-mudel tal-prodott] jikkonforma Malti http://www.peplink.com Copyright @ 2017 Pepwave...
Page 205 Härmed intygar [ företag] att denna [ utrustningstyp] står I överensstämmelse med Svenska [Swedish] de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. 4. NCC for Pepwave Routers For MAX Transit WLAN [ 警語 ] 「電磁波曝露量 M PE 標準值 1 mW/cm2 ，本產品使用時建議應距離人體 24 cm 」...
Page 206 警告使用者 : 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採取某些適當的對策。 http://www.peplink.com Copyright @ 2017 Pepwave...
