Page 6: Introduction And Scope
Pepwave MAX and Surf User Manual Introduction and Scope Tips http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 7: Glossary
Pepwave MAX and Surf User Manual Glossary Term Definition http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 8: Product Features
Pepwave MAX and Surf User Manual Product Features Supported Network Features 3.1.1 WAN 3.1.2 LAN http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 9 Pepwave MAX and Surf User Manual 3.1.3 VPN 3.1.4 Firewall 3.1.5 Captive Portal 3.1.6 Outbound Policy 3.1.7 AP Controller http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 10: Other Supported Features
Pepwave MAX and Surf User Manual 3.1.8 QoS Other Supported Features http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 11: Pepwave Max Mobile Router Overview

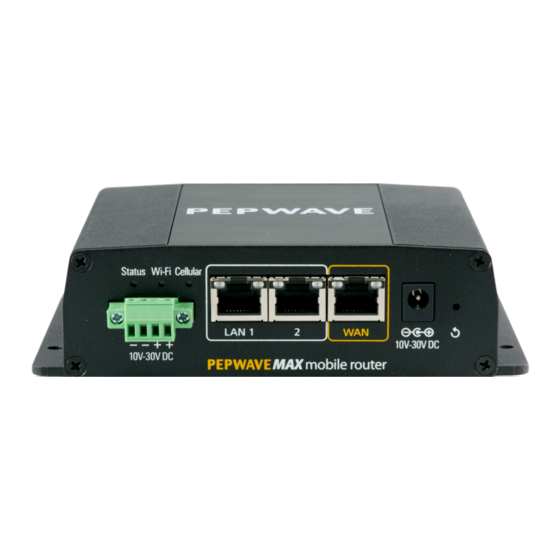

Pepwave MAX and Surf User Manual Pepwave MAX Mobile Router Overview MAX 700 4.1.1 Panel Appearance http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 12 Pepwave MAX and Surf User Manual 4.1.2 LED Indicators Status Indicators Status Wi-Fi AP and Wi-Fi WAN Indicators Wi-Fi WAN Wi-Fi AP LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 13: Max Hd2
Pepwave MAX and Surf User Manual MAX HD2 4.2.1 Panel Appearance http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 14 Pepwave MAX and Surf User Manual 4.2.2 LED Indicators Status Indicators Status Wi-Fi AP and Wi-Fi WAN Indicators Wi-Fi WAN / Cellular 1 / Cellular 2 LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 15: Max Hd2 Ip67
Pepwave MAX and Surf User Manual MAX HD2 IP67 4.3.1 Panel Appearance Status Indicators Status http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 16: Max Hd2 Mini
Pepwave MAX and Surf User Manual MAX HD2 mini 4.4.1 Panel Appearance http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 17 Pepwave MAX and Surf User Manual 4.4.2 LED Indicators Status Indicators Status Cellular WAN Indicators Cellular 1 / Cellular 2 LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 18: Max Transit
Pepwave MAX and Surf User Manual MAX Transit 4.5.1 Panel Appearance 4.5.2 LED Indicators Status Indicators Status Cellular WAN Indicators Cellular 1 / Cellular 2* LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 19: Max Hotspot
Pepwave MAX and Surf User Manual MAX Hotspot 4.6.1 Panel Appearance 4.6.2 LED Indications LED Indicators LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 20: Max Hd4
Pepwave MAX and Surf User Manual MAX HD4 4.7.1 Panel Appearance 4.7.2 LED Indicators Status Indicators Status Wi-Fi AP and Wi-Fi WAN Indicators Wi-Fi WAN / Cellular 1 / Cellular 2 LAN and Ethernet WAN Ports Green LED Orange LED http://www.pepwave.com...
Page 21 Pepwave MAX and Surf User Manual Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 22: Max Br1
Pepwave MAX and Surf User Manual MAX BR1 4.8.1 Panel Appearance 4.8.2 LED Indicators Status Indicators Status Wi-Fi Indicators Wi-Fi http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 23 Pepwave MAX and Surf User Manual Cellular Indicators Cellular LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 24: Max Br1 Mini
Pepwave MAX and Surf User Manual MAX BR1 Mini 4.9.1 Panel Appearance 4.9.2 LED Indicators Status Indicators Status Wi-Fi Indicators Wi-Fi Cellular Indicators Cellular http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 25: Max Br1 Slim
Pepwave MAX and Surf User Manual 4.10 MAX BR1 Slim 4.10.1 Panel Appearance 4.10.2 LED Indicators Status Indicators Status Wi-Fi Indicators Wi-Fi Cellular Indicators Cellular http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 26 Pepwave MAX and Surf User Manual LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 27: Max Br1 Ent
Pepwave MAX and Surf User Manual 4.11 MAX BR1 ENT 4.11.1 Panel Appearance 4.11.2 LED Indicators Status Indicators Status Cellular Indicators Cellular LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 28: Ro Lte
Pepwave MAX and Surf User Manual 4.12 MAX BR1 Pro LTE 4.12.1 Panel Appearence 4.12.2 LED Indicators Status Indicators Status Cellular Indicators Cellular LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 29: Max Br1/2 Ip55
Pepwave MAX and Surf User Manual 4.13 MAX BR1/2 IP55 4.13.1 Panel Appearance 4.13.2 LED Indicators Status Indicators Status http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 30 Pepwave MAX and Surf User Manual Wi-Fi Indicators Wi-Fi Cellular Indicators Cellular LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 31: Max On-The-Go
Pepwave MAX and Surf User Manual 4.14 MAX On-The-Go 4.14.1 Panel Appearance 4.14.2 LED Indicators Cellular Indicators Wi-Fi Indicators Wi-Fi Status Indicators Status LAN and Ethernet WAN Ports Green LED Orange LED Port Type http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 32: Surf Soho
Pepwave MAX and Surf User Manual 4.15 Surf SOHO 4.15.1 Panel Appearance 4.15.2 LED Indicators Wi-Fi and Status Indicators Wi-Fi Status LAN and Ethernet WAN Ports Green LED Orange LED Port type Wi-Fi Signal Signal strength http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 33: Advanced Feature Summary
Peplink router to resume your original network connection. Compatible with: MAX 700, MAX HD2 (All variants), HD4 (All Variants) QoS: Clearer VoIP VoIP and videoconferencing are highly sensitive to latency. With QoS, Peplink routers can detect VoIP traffic and assign it the highest priority, giving you crystal-clear calls.
Page 34: Per-User Bandwidth Control
Peplink routers in High Availability mode. With High Availability mode, the second device will take over when needed. Compatible with: MAX 700, MAX HD2 (All variants), HD4 (All Variants) http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 35: Usb Modem And Android Tethering
You can also tether to smartphones running Android 4.1.X and above. Compatible with: MAX 700, HD2 (all variants except IP67), HD4 (All variants) Built-In Remote User VPN Support Use L2TP with IPsec to safely and conveniently connect remote clients to your private network.
Page 36: Sim-Card Ussd Support
Pepwave MAX and Surf User Manual SIM-card USSD support Cellular-enabled routers can now use USSD to check their SIM card’s balance, process pre-paid cards, and configure carrier-specific services.Click here for full instructions on using USSD. http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 37: Installation
Pepwave MAX and Surf User Manual Installation Preparation Ethernet WAN Embedded modem Wi-Fi WAN PC Card/Express Card WAN: http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 38: Constructing The Network
Pepwave MAX and Surf User Manual Constructing the Network http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 39: Configuring The Network Environment
Pepwave MAX and Surf User Manual Configuring the Network Environment Section 8, Connecting to the Web Admin Interface Section 9, Configuring the LAN Interface(s) Section 8, Connecting to the Web Admin Interface Section 9.2, Captive Portal http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 40: Mounting The Unit
Pepwave MAX and Surf User Manual Mounting the Unit Wall Mount Car Mount IP67 Installation Guide http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 41: Connecting To The Web Admin Interface
Pepwave MAX and Surf User Manual Connecting to the Web Admin Interface 1. Start a web browser on a computer that is connected with the Pepwave router through the LAN. 2. To connect to the router’s web admin interface, enter the following LAN IP address in the address field of the web browser: http://192.168.50.1...
Page 42 Pepwave MAX and Surf User Manual Device Information Section 22. Important Note Save Apply Changes http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 43: Configuring The Lan Interface(S)
Pepwave MAX and Surf User Manual Configuring the LAN Interface(s) Basic Settings Network>LAN>Basic Settings IP Settings IP Address Network Settings Name VLAN ID Inter-VLAN routing http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 44 Pepwave MAX and Surf User Manual Captive Portal http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 45 Pepwave MAX and Surf User Manual Drop-in Mode Settings Enable WAN for Drop- WAN 1 with LAN Bypass In Mode Share Drop-In Shared IP Address WAN Default have other host(s) on WAN segment Gateway WAN DNS Servers Layer 2 PepVPN Bridging...
Page 46 Pepwave MAX and Surf User Manual Address when bridge connected DHCP Server Settings DHCP Server IP Range & Subnet Mask Lease Time DNS Servers Assign DNS server automatically built-in WINS server external WINS servers WINS Server WINS Server Status>WINS Clients...
Page 47 Pepwave MAX and Surf User Manual DHCP Name Reservation 00:AA:BB:CC:DD:EE Client List Status>Client List Section 22.3. LAN Physical Settings Speed Auto Static Route Settings w.x.y.z Static Route WINS Server Settings Enable Status>WINS Clients http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 48 Pepwave MAX and Surf User Manual DNS Proxy Settings Network>LAN>DNS Proxy Settings Enable DNS servers/resolvers DNS Caching DNS Caching enabled Include Google Public DNS Servers Local DNS Records Network>LAN>DNS Proxy Settings>DNS Resolvers DNS Resolvers http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 49 Pepwave MAX and Surf User Manual Save Bonjour Forwarding Settings Enable Bonjour Service Client Service http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 50 Pepwave MAX and Surf User Manual IP Settings New LAN IP Settings IP Address & Subnet Mask Network Settings Name VLAN ID Inter-VLAN routing Captive Portal http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 51 Pepwave MAX and Surf User Manual DHCP Server Settings DHCP Server IP Range & Subnet Mask Lease Time Lease Time DNS Servers Assign DNS server automatically WINS Servers DHCP WINS Servers Status>WINS Clients BOOTP Extended DHCP Option DHCP Name Reservation...
Page 52 Pepwave MAX and Surf User Manual 22.3 DHCP Server DHCP Relay Settings Enable DHCP Server IP Address DHCP Server 1 DHCP Server 2. DHCP Option LAN Physical Settings Static Route Settings WINS Server Settings DNS Proxy Settings http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 53: Captive Portal
Pepwave MAX and Surf User Manual Captive Portal Network>LAN>Captive Portal Captive Portal Settings Enable Enable Hostname Default Open Access User Access Mode Authentication RADIUS Server LDAP Server http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 54 Pepwave MAX and Surf User Manual Access Quota Daily Quota Reset minutes after quota reached Time Allowed Networks Splash Page Portal Customization http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 55: Configuring The Wan Interface(S)
Pepwave MAX and Surf User Manual Portal Customization Logo Choose File Image Message Terms & Conditions Custom Landing Page 10 Configuring the WAN Interface(s) Network>WAN Disabled Dashboard Details Important Note Save and Apply http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 56: Ethernet Wan
Pepwave MAX and Surf User Manual 10.1 Ethernet WAN Network>WAN, Details WAN Port (Section 1) Connection Name Schedule DHCP • Connection Static IP • PPPoE Method • Routing Mode IP Forwarding Address/Subnet Mask/Default Gateway http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 57 Pepwave MAX and Surf User Manual Hostname DNS Servers WAN Port (Section 2) Standby State Remain connected Disconnect Remain Connected Upstream Bandwidth Downstream Bandwidth Least Used Persistence (Auto) Managed by Custom Rules Section 15.2) Health Check Disabled Ping DNS Lookup...
Page 58 Pepwave MAX and Surf User Manual Timeout Health Check Interval Health Check Retries Recovery Retries WAN Port (Section 3) • Dynamic DNS • Service • Provider • • Disabled Section 9.5 Bandwidth Allowance Monitor Auto Port Speed Advertise Speed Custom...
Page 59 Pepwave MAX and Surf User Manual Auto WAN Port (Section 4) Auto Auto MAC Address Clone Default VLAN Reply to ICMP PING enabled IP Address Additional Public IP Address Down Arrow IP Address http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 60 Pepwave MAX and Surf User Manual IPv6 IPv6 10.1.1 DHCP Connection DHCP Connection Settings NAT allows substituting the real address in a packet with a mapped address that is Routing Mode routable on the destination network. By clicking the help icon in this field, you can display the IP Forwarding option, if your network requires it.
Page 61 Pepwave MAX and Surf User Manual IP Address/ Subnet Mask/ Default Gateway Hostname (Optional) Obtain DNS server address automatically DNS Servers Use the following DNS server address(es) DNS Server 1 DNS Server 2 10.1.2 Static IP Connection Static IP Settings...
Page 62 Pepwave MAX and Surf User Manual DNS Server 1 DNS Server 2 10.1.3 PPPoE Connection PPPoE Settings NAT allows substituting the real address in a packet with a mapped address that is Routing Mode routable on the destination network. By clicking the help icon in this field, you can display the IP Forwarding option, if your network requires it.
Page 63 Pepwave MAX and Surf User Manual Use the following DNS server address(es) DNS Server 1 DNS Server 2 10.1.4 L2TP Connection L2TP Settings L2TP User Name / Password Confirm L2TP Password Server IP Address / Host Address Type DNS Servers Obtain DNS server address automatically http://www.pepwave.com...
Page 64: Cellular Wan
Pepwave MAX and Surf User Manual Use the following DNS server address(es) DNS server 1 DNS server 2 10.2 Cellular WAN Network>WAN>Details Available on the Pepwave MAX BR1, HD2, and HD2 IP67 only) Cellular Status IMSI MEID IMEI http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 65 Pepwave MAX and Surf User Manual WAN Connection Settings Connection Name Schedule Network Mode Subnet Selection Routing Mode Forwarding Obtain DNS server address automatically DNS Servers Use the following DNS server address(es) DNS server 1 DNS server 2 http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 66 Pepwave MAX and Surf User Manual Cellular Settings Network Selection 3G/2G PAP Only CHAP Only Authentication Auto Data Roaming http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 67 Pepwave MAX and Surf User Manual Auto Operator Settings Custom APN Login Password Dial Number Auto APN / Login / Auto Password / Custom SIM PIN Bandwidth Allowance Monitor Disconnect when usage hits 100% of monthly allowance Action Start Day...
Page 68 Pepwave MAX and Surf User Manual Health Check Settings Heath Check Disabled, Ping, DNS Lookup, HTTP, SmartCheck Method DNS Lookup Section 10.4 Timeout Health Check Interval Health Check Retries Recovery Retries Dynamic DNS Settings • Dynamic DNS • Service •...
Page 69: Wan
Pepwave MAX and Surf User Manual 10.3 Wi-Fi WAN Network>WAN>Details Wi-Fi Connection Settings WAN Connection Name Schedule Standby State Remain Connected Disconnect Custom 1440 Default Auto Reply to ICMP PING Wi-Fi WAN Settings Channel Selection http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 70 Pepwave MAX and Surf User Manual Roaming Checking this box will enable Wi-Fi roaming. Click the icon for additional options. Connect to Any Open Mode AP Bandwidth Allowance Monitor Error! Reference source not found. Disconnect when usage hits 100% of monthly allowance...
Page 71 Pepwave MAX and Surf User Manual Health Check Settings Disabled PING DNS Lookup HTTP Method Lookup Method Disabled SmartCheck Health Check Disabled Disabled Method Health Check Method: PING Use first two DNS servers as Ping Hosts PING Hosts Health Check Method: DNS Lookup http://www.pepwave.com...
Page 72 Pepwave MAX and Surf User Manual Use first two DNS servers as Health Check DNS Servers Host 1 Host 2 Health Check Include public DNS servers DNS Servers Health Check Method: HTTP WAN Settings>WAN Edit>Health Check Settings>URL1 String to Match...
Page 73 Pepwave MAX and Surf User Manual Other Health Check Settings Timeout 5 seconds Health Check 5 seconds Interval Health Check Health Retries Retries Recovery Recover Retries Retries Dynamic DNS Settings • • Service Provider • • • Disabled User ID / User /...
Page 74 Pepwave MAX and Surf User Manual TZO Key Update All Hosts Hosts / Domain Important Note 10.3.1 Creating Wi-Fi Connection Profiles Network>WAN>Details>Create Profile… http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 75: Ealth Check
Pepwave MAX and Surf User Manual Wi-Fi Connection Profile Settings Type Network Name (SSID) Open • • WPA/WPA2 – Personal • Security • WPA/WPA2 – Enterprise 10.4 WAN Health Check Network>WAN>Details Health Check Settings Disabled PING DNS Lookup HTTP Method...
Page 76 Pepwave MAX and Surf User Manual Disabled Method Health Check Method: PING Use first two DNS servers as Ping Hosts PING Hosts Health Check Method: DNS Lookup Use first two DNS servers as Health Check DNS Servers Host 1 Host 2...
Page 77: Dynamic Dns Settings
Pepwave MAX and Surf User Manual WAN Settings>WAN Edit>Health Check Settings>URL2 URL 2 URL2 Other Health Check Settings Timeout 5 seconds Health Check 5 seconds Interval Health Check Health Retries Retries Recovery Recover Retries Retries Automatic Public DNS Server Check on DNS Test Failure DNS Lookup 10.5 Dynamic DNS Settings...
Page 78 Pepwave MAX and Surf User Manual Network>WAN>Details>Dynamic DNS Service Provider/Dynamic DNS Settings Dynamic DNS Settings • • • Dynamic DNS • • • Disabled Account Name / Email Address Password / TZO Hosts / Domain Important Note http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 79 Pepwave MAX and Surf User Manual http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 80: Advanced Wi-Fi Settings
Pepwave MAX and Surf User Manual 11 Advanced Wi-Fi Settings Advanced>Wi-Fi Settings AP>Settings Wi-Fi Radio Settings • Operating Country • Important Note Wi-Fi AP Settings Protocol 802.11ng 802.11na 802.11ng Channel 1 Channel (2.412 GHz) 20 MHz 40 MHz Auto (20/40 MHz)
Page 81 Pepwave MAX and Surf User Manual Wi-Fi AP Settings AP>Settings Wi-Fi AP Advanced Settings Advanced>Wi-Fi Settings Wi-Fi AP Advanced Settings 1Mbps Beacon Rate 100ms Beacon Interval DTIM 1 ms Slot Time ACK Timeout 48 s Frame Aggregation Guard Interval http://www.pepwave.com...
Page 82 Pepwave MAX and Surf User Manual Advanced>Wi-Fi Settings Advanced>Wi-Fi WAN Wi-Fi WAN Settings 20/40 MHz 20 MHz 20/40 MHz, Channel Width Bit Rate Auto Max High Mid Output Power Boost http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 83: Mediafast Configuration
Pepwave MAX and Surf User Manual 12 MediaFast Configuration Network 12.1 Setting Up MediaFast Content Caching Advanced>Cache Control Cache Control Settings Cache on all domains Cache Domain the specified domains only Do not cache the specified domains Source IP Subnet...
Page 84: Scheduling Content Prefetching
Pepwave MAX and Surf User Manual 12.2 Scheduling Content Prefetching Advanced >Prefetch Schedule Prefetch Schedule Settings Name Status Next Run Time/Last Run Time Last Duration Result Last Download http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 85: Viewing Mediafast Statistics
Pepwave MAX and Surf User Manual Actions New Schedule Clear Web Cache Clear Statistics 12.3 Viewing MediaFast Statistics Status>MediaFast http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 86 Pepwave MAX and Surf User Manual http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 87: Bandwidth Bonding Speedfusion Tm / Pepvpn
Pepwave MAX and Surf User Manual Bandwidth Bonding SpeedFusion / PepVPN http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 88: Pepvpn
Pepwave MAX and Surf User Manual 13.1 PepVPN Advanced>SpeedFusion™ Advanced>PepVPN Static Route Advanced>SpeedFusion™ Advanced>PepVPN New Profile New Profile http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 89 Pepwave MAX and Surf User Manual Link Failure Detection Time New Profile PepVPN Profile Settings Name Active 256-bit AES Encryption By Remote ID Only Preshared Key X.509 Authentication By Remote ID Only Remote ID Remote ID / Pre-shared Key Authentication...
Page 90 Pepwave MAX and Surf User Manual X.509 Remote ID/Remote Certificate Show Details Allow Shared Remote ID NAT Mode NAT Mode NAT Mode Remote IP Address / Host Names (Optional) Default Data Port Custom Bandwidth Limit Cost Smoothing Network>LAN>Basic Settings>*LAN Profile Name* http://www.pepwave.com...
Page 91 Pepwave MAX and Surf User Manual 8.41 WAN Connection Priority Connection Priority Send All Traffic To Backup Site Outbound Policy/PepVPN Outbound Custom Rules Advanced>PepVPN Section http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 92 Pepwave MAX and Surf User Manual PepVPN Local ID Remote ID Local PepVPN Settings Handshake custom Port Backward Latest Compatibility Recommended Link Failure Detection Time Fast Faster Extreme Important Note http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 93 Pepwave MAX and Surf User Manual http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 94: The Pepwave Router Behind Anat Router
Pepwave MAX and Surf User Manual 13.2 The Pepwave Router Behind a NAT Router Remote IP Addresses / Host Names 212.1.1.1 Peer IP Addresses / Host Names 212.1.1.1 212.2.2.2 212.3.3.3 http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 95: Speed Fusion Tm Status
Pepwave MAX and Surf User Manual 13.3 SpeedFusion Status Dashboard Status Status>SpeedFusion Section 22.6 IP Subnets Must Be Unique Among VPN Peers http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 96: Ipsec Vpn
Pepwave MAX and Surf User Manual 14 IPsec VPN 14.1 IPsec VPN Settings Advanced>IPsec VPN. NAT-Traversal IPsec VPN NAT- Traversal Profile http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 97 Pepwave MAX and Surf User Manual IPsec VPN Settings Name Active http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 98 Pepwave MAX and Surf User Manual Connect Upon Disconnection Remote Gateway IP Aggressive Mode Address / Host Name Local Networks Remote Networks Authentication Preshared Key X.509 Certificate Main Mode Aggressive Mode Mode Force UDP Encapsulation Pre-shared Remote Certificate X.509 Certificat...
Page 99 Pepwave MAX and Surf User Manual Main Mode Aggressive Mode Remote Gateway IP Remote ID Address Main Mode Phase 1 (IKE) Aggressive Mode Proposal Phase 1 DH Group Group 2 1024-bit Group 5 1536-bit Phase 1 SA Lifetime 3600 Main Mode...
Page 100: Outbound Policy Management
Pepwave MAX and Surf User Manual 15 Outbound Policy Management Important Note Advanced>Outbound Policy Advanced>PepVPN 15.1 Outbound Policy Network>Outbound Policy> Advanced>PepVPN>Outbound Policy. Send All Traffic To Section 12.1 Outbound Policy Settings High http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 101: Custom Rules For Outbound Policy
Pepwave MAX and Surf User Manual Application Compatibility Normal Application Compatibility Custom Normal Application Compatibility 15.2 Custom Rules for Outbound Policy Outbound Policy Custom Save http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 102 Pepwave MAX and Surf User Manual Default Service Default Auto Default Rule Custom Add Rule Advanced>PepVPN>PepVPN Outbound Custom Rules http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 103 Pepwave MAX and Surf User Manual New Custom Rule Settings Service Name Enable Enable Enable Source Domain Name foobar.com Destination foobar.com *.foobar.com foobar.*, www.foobar.com www.foobar.co.jp foobar.co.uk http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 104 Pepwave MAX and Surf User Manual Protocol and Port Algorithm Terminate Weighted, Persistence Priority Sessions on Link Recovery http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 105 Pepwave MAX and Surf User Manual 15.2.1 Algorithm: Weighted Balance Algorithm Weighted Balance • • • • • • http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 106 Pepwave MAX and Surf User Manual 15.2.2 Algorithm: Persistence By Source By Destination By Source: By Destination: By Source Auto Load Distribution Downstream Bandwidth Custom http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 107 Pepwave MAX and Surf User Manual 15.2.3 Algorithm: Enforced Algorithm Enforced 15.2.4 Algorithm: Priority 15.2.5 Algorithm: Overflow http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 108 Pepwave MAX and Surf User Manual 15.2.6 Algorithm: Least Used Connection 15.2.7 Algorithm: Lowest Latency Connection • http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 109 Pepwave MAX and Surf User Manual • 15.2.8 Expert Mode Expert Mode turn on Expert Mode. SpeedFusion Routes Custom Rules Priority Enforced http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 110: Inbound Access
Pepwave MAX and Surf User Manual 16 Inbound Access 16.1 Port Forwarding Service Advanced>Port Forwarding Add Service Port Forwarding Settings Enable Enable Service Name IP Protocol Port Servers Port Servers Protocol Selection IP Protocol Tool Protocol Selection Tool http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 111 Pepwave MAX and Surf User Manual Port Any Port Single Port Port Range Port Map Range Mapping Any Port Servers IP Protocol Port Any Port Single Port Servers IP Protocol Port Single Port Service Port Port Range Port Servers IP Protocol...
Page 112 Pepwave MAX and Surf User Manual 16.1.1 UPnP / NAT-PMP Settings Status>UPnP / NAT-PMP http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 113: Nat Mappings
Pepwave MAX and Surf User Manual 17 NAT Mappings Advanced>NAT Mappings Add NAT Rule NAT Mapping Settings IP Address IP Range Client(s) Network Address IP Address Range IP Range Network IP Network http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 114 Pepwave MAX and Surf User Manual Inbound IP Address LAN Client(s) Mappings Outbound Mappings Outbound Policy Save Important Note Inbound Mappings http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 115: Qos
Pepwave MAX and Surf User Manual 18 QoS 18.1 User Groups Manager, Staff, and Guest Bandwidth Control Application All DHCP reservation clients Everyone All DHCP reservation client represents Everyone Add / Edit User Group Subnet / IP IP Address Subnet...
Page 116: Bandwidth Control
Pepwave MAX and Surf User Manual 18.2 Bandwidth Control 18.3 Application 18.3.1 Application Prioritization ↑ ↑ ↑ ↑ High ━ ━ ━ ━ Normal ↓ ↓ ↓ ↓ Low http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 117 Pepwave MAX and Surf User Manual 18.3.2 Prioritization for Custom Applications Action Supported Applications Custom Applications 18.3.3 DSL/Cable Optimization DSL/Cable Optimization http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 118: Firewall
Pepwave MAX and Surf User Manual 19 Firewall 19.1 Outbound and Inbound Firewall Rules 19.1.1 Access Rules Advanced>Firewall>Access Rules>Outbound Firewall Rules. http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 119 Pepwave MAX and Surf User Manual Add Rule Advanced>Firewall>Access Rules>Inbound Firewall Rules. Add Rule Default Default Allow http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 120 Pepwave MAX and Surf User Manual Inbound / Outbound Firewall Settings Rule Name Enable Connection (Inbound) • • ICMP • Protocol • Protocol Selection Tool Protocol Selection Tool Source IP & Port Source IP & Port Source IP & Port Destination IP &...
Page 121 Pepwave MAX and Surf User Manual Status>Event Log Aug 13 23:47:44 Denied CONN=Ethernet WAN SRC=20.3.2.1 DST=192.168.1.20 LEN=48 PROTO=TCP SPT=2260 DPT=80 CONN: • SRC: Event Logging • DST: • LEN: • PROTO: • SPT: • DPT: • Save Add Rule •...
Page 122 Pepwave MAX and Surf User Manual 19.1.2 Apply Firewall Rules to PepVpn Traffic Enable Save 19.1.3 Intrusion Detection and DoS Prevention Enable Save • • • http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 123: Content Blocking
Pepwave MAX and Surf User Manual 19.2 Content Blocking 19.2.1 Application Blocking 19.2.2 Web Blocking http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 124: Ospf & Rip
Pepwave MAX and Surf User Manual 19.2.3 Customized Domains 19.2.4 Exempted User Groups QoS>User Groups Section 17.1 19.2.5 Exempted Subnets 19.2.6 URL Logging enable 19.3 OSPF & RIPv2 Network OSPF & RIPv2 http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 125 Pepwave MAX and Surf User Manual OSPF Router ID Custom Area OSPF Settings Area ID Area ID Link Type Authentication Text Interfaces http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 126: Remote User Access
Pepwave MAX and Surf User Manual RIPv2 Settings Authentication Text Interfaces 19.4 Remote User Access Network > Remote User Access http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 127 Pepwave MAX and Surf User Manual Remote User Access Settings Enable VPN Type Preshared Key Listen On User Accounts http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 128: Miscellaneous Settings
Pepwave MAX and Surf User Manual Miscellaneous Settings 19.5 High Availability http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 129 Pepwave MAX and Surf User Manual Advanced>Misc. Settings>High Availability High Availability Enable Group Number Group Number Preferred Role Resume Master Preferred Role Master Role Upon Master Recovery Slave Preferred Role Master Serial Number Configuration Sync. LAN IP Address Subnet Mask...
Page 130 Pepwave MAX and Surf User Manual Important Note http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 131: Erver
Pepwave MAX and Surf User Manual 19.6 PPTP Server Advanced>Misc. Settings>PPTP Server. Status>Client List Section 22.3 http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 132: Certificate Manager
Pepwave MAX and Surf User Manual PPTP Server Settings Listen On Local User Accounts, LDAP Server, RADIUS Server Local User Accounts User Accounts LDAP Server Authentication RADIUS Server User Accounts 19.7 Certificate Manager 19.8 Service Forwarding Advanced>Misc. Settings>Service Forwarding Service Forwarding SMTP Forwarding http://www.pepwave.com...
Page 133 Pepwave MAX and Surf User Manual Enable Web Proxy Interception Settings Web Proxy Forwarding Enable DNS Forwarding Custom Service Forwarding 19.8.1 SMTP Forwarding Enable SMTP Forwarding Setup Enable Forwarding SMTP Server SMTP Port Note http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 134 Pepwave MAX and Surf User Manual Section 14.2 19.8.2 Web Proxy Forwarding Web Proxy Interception Settings 19.8.3 DNS Forwarding 19.8.4 Custom Service Forwarding enable http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 135: Service Passthrough
Pepwave MAX and Surf User Manual 19.9 Service Passthrough Advanced>Misc. Settings>Service Passthrough Service Passthrough Support Standard Mode Compatibility Mode Define custom signal ports H.323 Define custom control ports TFTP Enable IPsec NAT-T Define custom ports Route IPsec Site-to-Site VPN http://www.pepwave.com...
Page 136: Gps Forwarding
Pepwave MAX and Surf User Manual 19.10 GPS Forwarding Advanced>GPS Forwarding GPS Forwarding Enable Server GPS Report Format NMEA Sentence Type GPRMC GPGGA GPVTG GPGSA GPGSV Vehicle ID TAIP Sentence Type/TAIP ID PV—Position / Velocity Solution CP—Compact Velocity (optional) Solution TAIP ID http://www.pepwave.com...
Page 137: Ap Controller
Pepwave MAX and Surf User Manual 20 AP Controller Special Note 20.1 Wireless SSID AP>Wireless SSID AP Controller CAPWAP Access Controller addresses Management AP Controller Permitted AP Approved List http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 138 Pepwave MAX and Surf User Manual SSID SSID Settings SSID Enable VLAN ID Broadcast SSID Broadcast SSID Auto Data Rate Fixed Multicast Filter http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 139 Pepwave MAX and Surf User Manual Multicast Rate Protocol Channel Bonding IGMP Snooping DHCP Option 82 Network Priority Gold Silver Bronze (QoS) Layer 2 Layer 2 Isolation Band Steering Enforce Prefer Disable Security Settings Security Open (No Encryption) WPA/WPA2 - Personal WPA/WPA2 – Enterprise...
Page 140 Pepwave MAX and Surf User Manual V1 V2 WPA/WPA2- Personal Shared Key Static WEP MAC Address List RADIUS Server Settings Host Secret Authentication Port Default 1812 Accounting Default Port 1813 http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 141: Settings
Pepwave MAX and Surf User Manual 20.2 Settings AP>Settings AP Settings AP Profile Name SSID Operating http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 142 Pepwave MAX and Surf User Manual Country • • Preferred Frequency 5 GHz Protocol 5GHz Channel Bonding Auto 5 GHz Channel 2.4 GHz Protocol 2.4 GHz Channel Bonding 2.4 GHz Channel Auto Management VLAN ID Operating System>Schedule Schedule Power Boost...
Page 143 Pepwave MAX and Surf User Manual Max number of Clients Client Signal Strength Threshold Beacon Rate 1Mbps 2Mbps 5.5Mbps 6Mbps 11Mbps Beacon Interval 100ms 250ms 500ms DTIM RTS Threshold Fragmentation Threshold Distance/Time Converter Slot Time 9μs. ACK Timeout 48μs. Frame...
Page 144 Pepwave MAX and Surf User Manual Enable Web Access HTTP HTTPS Protocol Management Port HTTPS Web Access Protocol HTTP to HTTPS Redirection Admin User admin Name Admin Password Generate AP>Settings http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 145: Toolbox
Pepwave MAX and Surf User Manual Wi-Fi Radio Settings Operating Country Wi-Fi Antenna Important Note Per FCC regulations, the country selection is not available on all models marketed in the US. All US models are fixed to US channels only.
Page 146: System Settings
Pepwave MAX and Surf User Manual Firmware Packs Check for Updates Manual Upload Default 21 System Settings 21.1 Admin Security admin user http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 147 Pepwave MAX and Surf User Manual Web Session Timeout Logout 0 hours 0 minutes default System>Admin Security http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 148 Pepwave MAX and Surf User Manual Admin Settings Router Name Router Name MAX_XXXX Surf_SOHO_XXXX XXXX Admin User Admin User Name admin Name Admin Password Confirm Admin Password Read-only User Read-only User Name user Name User Password Confirm User Password Web Session...
Page 149 Pepwave MAX and Surf User Manual Section 21.16 CLI SSH Port CLI SSH Access Security • • • Web Admin Port Web Admin • Access • WAN Connection Access Settings WAN Connection Access Settings • Allow access from the following IP subnets only •...
Page 150 Pepwave MAX and Surf User Manual • • Allowed WAN IP Address(es) http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 151: Firmware
Pepwave MAX and Surf User Manual 21.2 Firmware System>Firmware Check for Firmware Choose File Manual Upgrade Important Note Important Note http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 152: Time
Pepwave MAX and Surf User Manual 21.3 Time Time Settings System>Time Time Settings Time Zone Time Zone Show all Time Server 21.4 Schedule System > Schedule New Schedule http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 153: Email Notification
Pepwave MAX and Surf User Manual Edit Schedule Profile Enabling Name Schedule Schedule Map 21.5 Email Notification System>Email Notification http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 154 Pepwave MAX and Surf User Manual Email Notification Settings Enable Email Notification Enable SMTP Server Require authentication SMTP Port SSL Encryption SMTP Port Encryption Default SMTP User Name / Require authentication SMTP Server Password Confirm SMTP Password Sender’s Email Address Recipient’s...
Page 155: Event Log
Pepwave MAX and Surf User Manual Send Test Notification 21.6 Event Log System>Event Log Event Log Settings Remote Syslog Remote Syslog Host http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 156 Pepwave MAX and Surf User Manual Push Events http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 157: Snmp
Pepwave MAX and Surf User Manual 21.7 SNMP System>SNMP SNMP Settings SNMP Device System>Admin Security Name SNMP Port SNMPv1 SNMPv2 SNMPv3 Add SNMP Community Community Name http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 158 Pepwave MAX and Surf User Manual SNMP Community Settings Community Name Allowed Source Subnet 192.168.1.0 Address Add SNMP User SNMPv3 User Name SNMPv3 User Settings User Name Authentication • Protocol • • Privacy Protocol • • http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 159: Incontrol
Pepwave MAX and Surf User Manual 21.8 InControl 21.9 Configuration http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 160 Pepwave MAX and Surf User Manual System>Configuration Configuration Restore Restore Factory Settings Configuration Apply Changes to Factory Settings Download Download Active Configurations Choose File Upload Upload Apply Changes Configurations discard Upload Configurations Upload from High Availability Pair http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 161: Feature Add-Ons
Pepwave MAX and Surf User Manual 21.10 Feature Add-ons Activation Activate Apply Changes 21.11 Reboot (Running) Please note that a firmware upgrade will always replace the inactive firmware partition. http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 162: Ping
Pepwave MAX and Surf User Manual 21.12 Ping Number of times Packet Size System>Tools>Ping, http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 163: Traceroute Test
Pepwave MAX and Surf User Manual 21.13 Traceroute Test System>Tools>Traceroute 21.14 PepVPN Test PepVPN Test Test Type Direction Duration System>Tools>PepVPN Test http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 164: Wake-On-Lan
Pepwave MAX and Surf User Manual 21.15 Wake-on-LAN Peplink routers can send special “magic packets” to any client specified from the Web UI. To access this feature, navigate to System > Tools > Wake-on-LAN Send 21.16 CLI (Command Line Interface Support) http://www.pepwave.com...
Page 165: Status
Pepwave MAX and Surf User Manual 22 Status 22.1 Device Status>Device System Information Router Name Router Name System>Admin Security Model Product Code Hardware Revision Serial Number Firmware PepVPN Version Modem Modem Support Support List Version Host Name Uptime System Time...
Page 166 Pepwave MAX and Surf User Manual Remote Turn on Assistance Important Note System>Reboot. 22.1.1 GPS Data Status>Device http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 167: Active Sessions
Pepwave MAX and Surf User Manual 22.2 Active Sessions Status>Active Sessions>Overview. http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 168 Pepwave MAX and Surf User Manual Status>Active Sessions>Search Active Sessions http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 169: Client List
Pepwave MAX and Surf User Manual 22.3 Client List Status>Client List Network>LAN Section 19.2), Section 12.1 Section 20 Name 22.4 WINS Client Status>WINS Client Network>Interfaces>LAN Flush All http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 170: Upnp / Nat-Pmp
Pepwave MAX and Surf User Manual 22.5 UPnP / NAT-PMP Status>UPnP/NAT-PMP Section 16.1.1 Delete All Important Note Delete All, Save Confirm 22.6 SpeedFusion Status Status>SpeedFusion http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 171 Pepwave MAX and Surf User Manual http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 172 Pepwave MAX and Surf User Manual Start http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 173 Pepwave MAX and Surf User Manual Please note that the PepVPN Analyzer will temporarily interrupt VPN connectivity and will restore after test. http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 174: Event Log
Pepwave MAX and Surf User Manual 22.7 Event Log Status>Event Log Auto Refresh Clear Log 22.8 Bandwidth Status>Bandwidth http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 175 Pepwave MAX and Surf User Manual 22.8.1 Real-Time Data transferred since installation Data transferred since last reboot http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 176 Pepwave MAX and Surf User Manual 22.8.2 Hourly 22.8.3 Daily http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 177 Pepwave MAX and Surf User Manual Bandwidth Monitoring Current Billing Cycle http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 178 Pepwave MAX and Surf User Manual 22.8.4 Monthly Bandwidth Monitoring Billing Cycle Calendar Month http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 179 Pepwave MAX and Surf User Manual http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 180: Appendix A. Restoration Of Factory Defaults
Pepwave MAX and Surf User Manual Restoration of Factory Defaults Appendix A. Important Note http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 181 Pepwave MAX and Surf User Manual Appendix B: Declaration 1. The device supports time division technology 2. Federal Communication Commission and Industry Canada Interference Statement IMPORTANT NOTE FCC Radiation Exposure Statement (for MAX700/ HD2/ HD2 IP67/ BR1/ Surf SOHO) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
Page 182 Pepwave MAX and Surf User Manual FCC Radiation Exposure Statement (for MAX HD4) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 40cm between the radiator & your body.
Page 183 Pepwave MAX and Surf User Manual Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en...
Page 184 Pepwave MAX and Surf User Manual Avertissement: Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Page 185 Pepwave MAX and Surf User Manual 0081 [Jméno výrobce] [typ zařízení] http://www.pepwave.com Copyright @ 2016 Pepwave...
Page 186 Pepwave MAX and Surf User Manual [fabrikantens navn] [udstyrets typebetegnelse] [Name des Herstellers] [Gerätetyp] [tootja nimi = name of manufacturer] [seadme tüüp = type of equipment] [name of manufacturer] [type of equipment] [nombre del fabricante] [clase de equipo] [name of manufacturer]...
Page 187 Pepwave MAX and Surf User Manual [Ime proizvajalca] [tip opreme] [Meno výrobcu] [typ zariadenia] [ Valmistaja = manufacturer] [type of equipment = laitteen tyyppimerkintä] [företag] [utrustningstyp] 4. NCC for Pepwave Routers 警語「電磁波曝露量...
Page 188 Contact Us: Sales Support Business Development and Partnerships...

This manual is also suitable for:

Max hd2 Max transit Max hotspot Max hd2 ip67 Max br1 Max hd2 mini ... Show all

Pepwave MAX 700 User Manual

Introduction and Scope

Glossary

Product Features

Pepwave Max Mobile Router Overview

Advanced Feature Summary

Installation

Mounting the Unit

Connecting to the Web Admin Interface

Configuring the Lan Interface(S)

Configuring the Wan Interface(S)

Advanced Wi-Fi Settings

Mediafast Configuration

Bandwidth Bonding Speedfusion Tm / Pepvpn

Ipsec Vpn

Outbound Policy Management

Inbound Access

Nat Mappings

Qos

Firewall

Miscellaneous Settings

Ap Controller

System Settings

Status

Appendix A. Restoration of Factory Defaults

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pepwave MAX 700

Summary of Contents for Pepwave MAX 700

This manual is also suitable for:

Table of Contents
