Garmin GNC 215 Pilot's Manual

Garmin GNC 215 Pilot's Manual

Hide thumbs Also See for GNC 215:

Advertisement

Quick Links

Download this manual
™
GTR
205
®
GNC
215
Pilot's Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the GNC 215 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garmin GNC 215

Summary of Contents for Garmin GNC 215

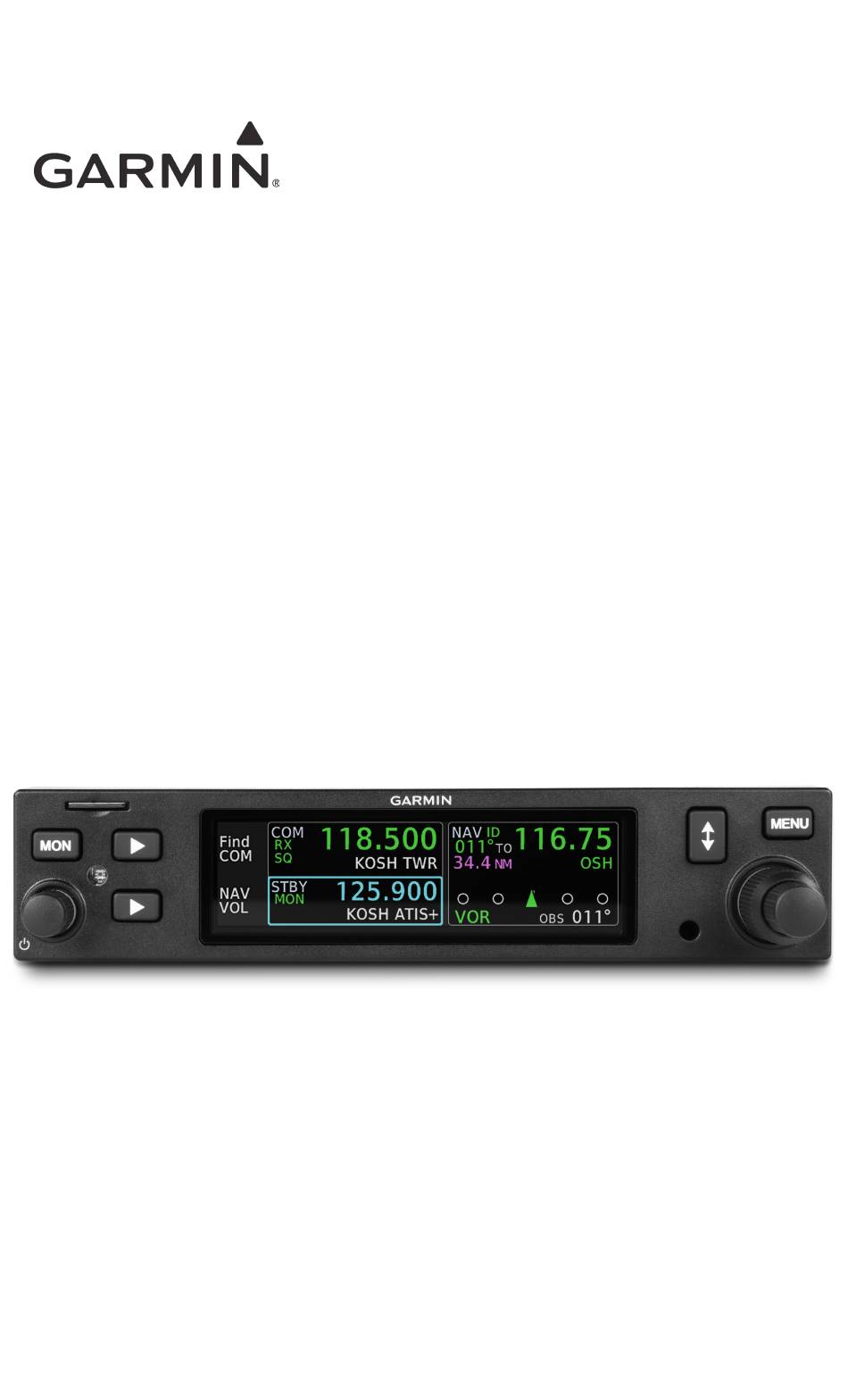

  • Page 1 ™ ® Pilot's Guide...
  • Page 2 Garmin. ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Other trademarks and trade names are those of their respective owners. ® Jeppesen is a registered trademark of Jeppesen, Inc.
  • Page 3 State of California to cause cancer, birth defects, or reproductive harm. This notice is being provided in accordance with California’s Proposition 65. If you have any questions or would like additional information, please refer to our website at www.garmin.com/prop65. 190-02766-02 Rev. B Pilot’s Guide...
  • Page 4 They will harm the anti-reflective coating. Use a clean, lint-free cloth and anti-reflective lens cleaner. CAUTION Ensure that any unit repairs are made by an authorized Garmin service center. Unauthorized repairs or modifications could void both the warranty and affect the airworthiness of the aircraft.
  • Page 5 “Aviation Database Alerts.” NOTE Contact Garmin Product Support if you want or need to adjust the database. NOTE Garmin requests the flight crew report any observed discrepancies related to database information. These discrepancies could come in the form of any displayed item used for navigation or communication in the air or on the ground.
  • Page 6 01.28.25 Updates for software v2.22. 01.11.24 Production Release. Available for Download Electronic Pilot’s Guide A version of this guide saved in Adobe Acrobat. Available for viewing on your computer or portable device. Go to garmin.com/manuals. Pilot’s Guide 190-02766-02 Rev. B...
  • Page 7 Unless otherwise stated, information pertaining to the unit is applicable to both products: GTR 205 and GNC 215 Feature Depictions Except for cases when operational differences dictate, the GNC 215 display is shown as typical. 190-02766-02 Rev. B Pilot’s Guide...
  • Page 8 Gray boxes highlight information about a particular feature or application function. Green boxes may include references to additional information or a useful pilot’s tip. Blue boxes address common questions about Garmin product features and services. Pilot’s Guide 190-02766-02 Rev. B...
  • Page 9 Reference Documentation Reference Websites WEBSITE QR CODE (SCAN/GO) Aviation Limited Warranty https://www.garmin.com/en-US/legal/aviation-limited-warranty Declarations of Conformity https://www.garmin.com/compliance 190-02766-02 Rev. B Pilot’s Guide...
  • Page 10 INTENTIONALLY LEFT BLANK viii Pilot’s Guide 190-02766-02 Rev. B...
  • Page 11 Table of Contents 1 SYSTEM AT A GLANCE ..................... 1-1 Overview ..............................1-2 Unit Configurations ..................1-2 Unit Features ....................1-3 Pilot Interface ............................1-4 Bezel ......................1-4 microSD Card Slot ..................1-5 Display Features ..................... 1-6 Soft Keys ....................1-6 Function Keys ..................... 1-8 Menu Tabs ....................
  • Page 12 Table of Contents Adjust COM Radio Volume & Squelch ..................3-6 Open Squelch ....................3-6 Adjust Squelch Threshold ................3-7 Tune a COM Frequency ........................3-8 Tune a Standby Frequency ................3-9 Transfer Frequency to Active (Flip-Flop) ............3-10 Monitor a COM Frequency ......................3-11 Find a COM Frequency ........................
  • Page 13 Table of Contents Play Media ...............................8-3 Enhance Media Audio ........................8-4 Choose an Equalizer Setting ................8-4 Add Bass ....................... 8-4 9 PHONE ............................9-1 View Phone ..............................9-2 Phone Status Icons ..................9-3 Phone Status Annunciations ............... 9-3 Adjust Phone Volume ........................9-4 Silence Ringer ............................9-4 Make a Call ..............................9-5 Accept a Call ............................9-5...
  • Page 14 INTENTIONALLY LEFT BLANK Pilot’s Guide 190-02766-02 Rev. B...
  • Page 15 1 System at a Glance OVERVIEW.........................1-2 PILOT INTERFACE ....................1-4 COMPATIBLE EQUIPMENT................1-20...
  • Page 16 3.2” high-resolution color liquid-crystal display. They comprise the Slimline series of 1.35” by 6.25” panel-mount COM radio products. GNC 215 shown as typical. Each unit has 10 W of transmit power. Optional 16 W of transmit power is available with the purchase of a feature enablement.
  • Page 17 System at a Glance Unit Features Features vary depending on model and unit configuration. GTR 205 GNC 215 COM TRANSCEIVER NAV/COM TRANSCEIVER • • 2-place intercom system 2-place intercom system • • 3D audio (COM & ICS) 8.33 kHz or 25 kHz channel spacing •...
  • Page 18 System at a Glance Pilot Interface Bezel The bezel provides a combination of mechanical knobs and push-keys. Soft keys correspond to selectable features on the display screen. Display Screen microSD Card Slot Menu Key Inner & Outer Knobs Provides direct access Interface for loading Multipurpose dual database, exporting log...
  • Page 19 Formatting the microSD card improperly can cause it to not be recognized by the avionics system. To avoid this, and to ensure maximum compatibility with Garmin avionics and your personal computer, format the microSD card with the Master Boot Record (MBR) partition scheme and the FAT32 (MS-DOS) file system format.
  • Page 20 Reset timer. inputting data. Start timer. Stop timer. Edit a selected user frequency. GNC 215 SPECIFIC COMMANDS Not all options may be available. Adjust NAV radio Display NAV frequency volume. search options. Set the manual CDI Display intercom OBS selector on direct controls.
  • Page 21 System at a Glance GTR 205 SPECIFIC COMMANDS Not all options may be available. Transmit pilot audio Enable pilot isolation over the active COM mode. channel (push to talk). Mute/unmute wired music audio. Bluetooth Commands These commands require connection to a Bluetooth enabled device. Play Bluetooth Pause Bluetooth media audio.
  • Page 22 System at a Glance Function Keys Toggle keys turn a specific function on or off. The current state of the function is indicated below the key label. Menu Tabs Tabs group information and related controls into individual panes. Contents may include scrolling lists, data fields, function keys, or a combination of controls.
  • Page 23 • Enabling/disabling ident tone for the NAV radio • Switching between COM, Timer/OBS, and NAV functions Feature availability dependent upon unit and configuration. GNC 215 only. OBS and NAV functions available with GNC 215 only. 190-02766-02 Rev. B Pilot’s Guide...
  • Page 24 Adjust COM radio Tune COM standby volume frequency • • Override automatic Access frequency search squelch options COM Standby Frequency Active, GNC 215 Available knob functions: • • Adjust COM radio Tune active standby volume frequency • • Override automatic...
  • Page 25 • Reset timer Select timer type • • Start/Stop timer Set countdown timer • Set knob focus to COM/NAV standby frequency • Access frequency search options NAV radio options available with GNC 215 only. 190-02766-02 Rev. B Pilot’s Guide 1-11...
  • Page 26 System at a Glance KNOB FOCUS INDICATIONS A cyan border around the active feature window indicates changes in knob focus. This is useful when transitioning between different control modes. Text within the active window turns cyan to indicate that it is selectable.
  • Page 27 System at a Glance Knob Shortcuts For convenience, the unit allows you to access certain controls quickly via knob push. TUNE A COM FREQUENCY From the Home page: Pushing the dual concentric knob once switches knob focus from the COM radio to right side features (if available).
  • Page 28 System at a Glance FIND A COM FREQUENCY From any page or tab: Pushing and holding the dual concentric control knob for 1.5 seconds automatically displays frequency search options. The Select Frequency menu opens from the last viewed search result. 1.5 s Prior to activation, the “Hold for Find”...
  • Page 29 System at a Glance TUNE OR FIND NAV FREQUENCY AVAILABLE WITH: GNC 215 From the Home page: Pushing the dual concentric knob once enables standby NAV frequency tuning. Turn the inner and outer knobs to tune the NAV standby frequency.
  • Page 30 System at a Glance SET AN OBS COURSE AVAILABLE WITH: GNC 215 From the Home page: If enabled, pushing the dual concentric knob once activates the OBS entry field. Turn the inner and outer knobs to set a course. Three-way Toggle Indication...
  • Page 31 System at a Glance Pushing the inner knob moves the locater through the available functions. The COM standby frequency window is active by default. COM Active OBS/Timer Active Push to activate OBS/timer control. Push to activate NAV frequency control. NAV Active Push to activate COM frequency control.
  • Page 32 System at a Glance Screenshots FEATURE REQUIREMENTS • A microSD card in the FAT32 format, with memory capacity between 8 GB and 32 GB Save images to a microSD card at any time using Screenshot. 1. Verify that a microSD card is present in the slot. 2.
  • Page 33 System at a Glance Color Conventions • Radio failure Green • Active radio frequency, function • Valid station ID (decoded from Morse code) • VOR/localizer data White • Active system message, mode • Current data and values • Menu options •...
  • Page 34 OPTIONAL LRUs maintenance and unit replacement. Optional LRUs may include compatible equipment from either Garmin or a third party G500/G600 manufacturer. These vary by unit and installation type (VFR or IFR). G500(H)/G600/G700 TXi Some LRUs provide features that...
  • Page 35 2 Get Started POWER UP THE UNIT ..................2-2 LOAD DATABASE ....................2-3 SET UP BLUETOOTH..................2-12 CUSTOMIZE PILOT SETTINGS ..............2-15 VIEW SYSTEM INFORMATION..............2-21...
  • Page 36 Bezel key backlight momentarily illuminates • Navigation database automatically updates if a newer version is available Splash Page Garmin logo displays as the unit checks for an available database update. Read more about database update methods in Load Database. Power Off the Unit WARNING Never attempt to power off the unit while airborne unless operational procedures dictate.
  • Page 37 This system uses the Navigation purchase individual databases or database database for frequency related packages, go to flyGarmin.com. information (Garmin or Jeppesen). Active and Standby Databases The unit uses two types of databases. Both transfer to the unit’s internal storage. Active Database Standby Database •...
  • Page 38 Get Started DATABASE TRANSFER & ACTIVATION The Navigation database automatically transfers from the microSD card to the unit’s internal Standby storage if it is newer than the database currently in standby. Total transfer time depends on the microSD card type. Activation of the standby database is required to complete the update.
  • Page 39 Get Started Load Database from a microSD Card NOTE The unit supports microSD cards in the FAT32 format only, with capacities ranging between 8 GB and 32 GB. The unit stores all databases it receives in its internal storage. After a database updates, the microSD card is no longer required.
  • Page 40 Get Started Automatic Updates Updates occur during power up when a Automatic updates occur newer version of the database is available. when: The same process occurs when you load a new database for the first time. • A newer database is detected on the microSD card or in the internal Standby storage...
  • Page 41 Get Started Database Errors If a database error occurs: • An advisory appears in the message list • Details regarding the state of the database display on the appropriate information tab Aviation Database Errors Visit flyGarmin.com to report any discrepancies in database information.
  • Page 42 Get Started Revert to Previous Database Version Updating a database does not overwrite its previous version. Once the update process completes, the previously active version of the database transfers to the unit’s internal Standby storage. In the event that an automatic update is undesirable, you can revert to the previous version using the manual update feature.
  • Page 43 Get Started View Database Information WHERE TO FIND IT During normal operation, you can view information about active and standby databases Menu from the Database Information page. MENU > System > Database System Database Select the appropriate menu tab to view information about active and standby databases.
  • Page 44 Get Started Standby Database Selecting Standby displays information about the database that is not currently in use by the system. The previously installed database also appears here once an update completes. “Standby database OK” appears at the bottom of the Standby tab whenever a valid database is present on the installed microSD card or in the internal memory.
  • Page 45 Get Started Understand Database Effective Cycles DATABASE EFFECTIVE STATUS • Effective during a specific period • Database with Unit determines database status using the current date specified and time from GPS effective dates • Automatic activation occurs on the effective date during unit power cycle NO VALID DATABASE A message informs you when no...
  • Page 46 Get Started Set Up Bluetooth AVAILABLE WITH: GTR 205 WHERE TO FIND IT During normal operation, you can pair and manage Bluetooth enabled devices from the Bluetooth wireless audio page. MENU MENU > Setup > Bluetooth Setup Bluetooth FEATURE REQUIREMENTS •...
  • Page 47 Get Started 3. Observe that the Bluetooth device name appears in the message window. 4. Select Pair New Device to initiate pairing. The Bluetooth enabled device name appears upon detection. Depending on the device type, phone and/or media icons appear. On your personal electronic device: 5.
  • Page 48 Get Started BLUETOOTH DISABLED This message displays on the setup and feature pages when the Interface option is set to Disabled. Example of “Bluetooth Disabled” status message on the Media page. DEVICE NOT CONNECTED Bluetooth wireless audio controls become inactive when the device connection is lost (i.e., the unit and the paired device are out of range).
  • Page 49 • View COM status GTR 205 only. GNC 215 only. CDI and flight timer functions are mutually exclusive; enabling one automatically disables the other. On GNC 215, intercom controls are accessible from the Setup tab. Available only when the database source is configured as Internal.
  • Page 50 Get Started Customize Display Layout AVAILABLE WITH: GNC 215 Choose any combination of features for display in the active and/or standby areas of the NAV radio. Options are accessible from the Display tab (MENU > Display). Knob focus is set to Off by default.
  • Page 51 Get Started From Adds decoded “to” bearing Adds decoded “from” radial information to the active NAV information to the active NAV frequency. frequency. “To” and “from” information includes distance to station when an internal database and GPS source are present. Adds an active timer to the Replaces NAV STBY window lower right of the display.
  • Page 52 MENU > Setup > Softkey Settings Setup Softkey Settings FEATURE REQUIREMENTS • GTR 205/GNC 215 software v2.22 or later FEATURE LIMITATIONS • Available shortcut options are dependent upon configuration Soft key commands related to active functions and page navigation still appear as required (e.g.,MSG, BACK, HOME).
  • Page 53 Get Started Customize Unit Settings WHERE TO FIND IT Customize the display unit settings. Selecting Units opens a menu of available unit types. Menu MENU > Setup > Units Setup Units To specify unit type: 1. Review the current unit selections.
  • Page 54 Installer configured curves determine the amount of change in brightness that occurs in response to a control adjustment. If brightness control is not satisfactory, contact a Garmin dealer to adjust the lighting curves. 2-20 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 55 Get Started View System Information WHERE TO FIND IT View information specific to the unit and its software. Menu MENU > System > System Info System System Info Refer here when contacting customer service. System Info • Serial number • System ID •...
  • Page 56 INTENTIONALLY LEFT BLANK 2-22 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 57 3 COM SET UP COM RADIO.....................3-2 ADJUST COM RADIO VOLUME & SQUELCH...........3-6 TUNE A COM FREQUENCY ................3-8 MONITOR A COM FREQUENCY..............3-11 FIND A COM FREQUENCY ................3-12 CREATE COM USER FREQUENCIES............3-19 VIEW COM STATUS ................... 3-22 RESPOND TO A COM ALERT ................ 3-23...
  • Page 58 Set Up COM Radio WHERE TO FIND IT VHF COM radio customization options are accessible via the Setup tab. Menu MENU > Setup > COM Settings Setup COM Settings COM RADIO SETTINGS Set transceiver squelch to Auto or adjust the threshold COM Squelch manually.
  • Page 59 Set COM Channel Spacing The unit supports channel tuning for both 8.33 kHz and 25 kHz channels within radio-frequency range. Channel spacing is set to 25 kHz by default. Turning the inner knob toggles the transceiver channel spacing between 8.33 kHz and 25 kHz. 25 kHz 8.33 kHz 8.33 kHz step configuration...
  • Page 60 Adjust Sidetone Volume Offset FEATURE LIMITATIONS • Availability dependent upon configuration • Offset range: +/-25% of total COM audio volume range Numeric If the unit is wired for audio output, Offset Value set the sidetone volume offset to the preferred level. By default, the offset value is set to zero percent.
  • Page 61 Enablement occurs upon system startup. While this process is quick, use of a ground power unit or running the engine may be advised depending on the aircraft. GTR 205/GNC 215 software earlier than v2.22: 16 W COM Transmitter Output feature requires enablement by the installer. Contact dealer for support.
  • Page 62 Adjust COM Radio Volume & Squelch Percent of Adjust radio volume with the small knob Max Volume according to your preference. The unit retains volume settings over power cycles. Relative Volume Indicator Open Squelch Push the volume/squelch knob to override the automatic squelch function.
  • Page 63 Adjust Squelch Threshold WHERE TO FIND IT Adjust the squelch threshold via the manual control in the Setup tab. Setup MENU > Setup > COM Settings > COM Settings COM Squelch COM Squelch Default Threshold Push the dual concentric knob to Value select COM Squelch and activate Numeric Offset...
  • Page 64 Tune a COM Frequency Communication frequencies are split between two selectable windows: • The upper window presents the active COM radio frequency. This is the frequency currently in use for transmit and receive operations. • The lower window presents the standby radio frequency. This frequency may be set and activated at any time.
  • Page 65 Tune a Standby Frequency The dual concentric control knob allows you to enter a standby frequency. Pushing and holding the dual concentric control knob for 1.5 seconds automatically displays frequency search options. The selected STBY window turns cyan when you use the control knob to change the standby COM frequency.
  • Page 66 Transfer Frequency to Active (Flip-Flop) The transfer (or flip-flop) function allows you to swap the active and standby frequency values. Before After 3-10 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 67 Monitor a COM Frequency Enabling monitor mode allows you to listen to the standby frequency while the unit continues monitoring the active COM channel. When the COM active frequency receives a signal, the unit automatically switches back to the active frequency. Once activity on the COM active channel ceases, the unit returns to listening to the standby frequency.
  • Page 68 Find a COM Frequency Find and select a standby COM frequency from a list of available database frequencies. Pushing the Find COM soft key while the COM radio is active provides access to multiple search options. Each category displays a list of selectable identifiers based on specific criteria. FEATURE REQUIREMENTS •...
  • Page 69 SEARCH RESULTS Each frequency includes general information about the associated waypoint. Bearing Waypoint & Distance Identifier & Facility Name Nearest airports include bearing and distance to field information based on GPS data. MULTIPLE FREQUENCIES A selector appears when more than one frequency type is available at the indicated identifier.
  • Page 70 FREQUENCY SEARCH ERRORS Search errors may display if any one of the following conditions exist. Nearest Frequency Search Options The unit is configured for GPS The unit is configured for GPS but is not receiving a position. but no database is present. Database Search Option No database is present.
  • Page 71 Reverse Frequency Look-up This function automatically displays the facility identifier and frequency type for active and standby frequencies. The unit verifies the displayed frequency against the database at least once per minute. Facility Identifier “+” denotes more than one type associated with the frequency.
  • Page 72 DATA SIZE & POSITION The size and location of Reverse Frequency Look-up text is dependent upon the status of right side features. Default View Text is larger for easier viewing. Timer Enabled Text shifts beneath the frequency value when you enable right side features.
  • Page 73 DATA SOURCE PRIORITY RFL data prioritization is dependent upon certain required conditions, including whether the database source is configured as internal or external. Internal Database RFL information is received from the following sources in order of priority, from highest (1) to lowest (3). SOURCE REQUIRED CONDITIONS Proximity search of database...
  • Page 74 Remote Frequency Selection FEATURE LIMITATIONS • Availability dependent upon configuration If configured for remote frequency recall, COM user frequencies are selectable via a remote switch. • Pressing the switch once loads the next user frequency into the STBY window • Pressing the switch repeatedly scrolls through the list of presets •...
  • Page 75 Create COM User Frequencies FEATURE LIMITATIONS • Names may be up to 10 characters in length • Maximum number of 20 user frequencies Add a frequency to the user frequency list. Controls are accessible via the Select Frequency menu. 1. Open the Select Frequency menu.
  • Page 76 Edit a COM User Frequency Modify an existing user frequency. Selecting a user frequency gives you the EDIT option. 1. Select the user frequency from the list. 2. Push the Edit soft key. 3. Modify the current frequency name and/or value using the dual concentric knob.
  • Page 77 Delete a COM User Frequency Selecting Delete opens a confirmation page. From here you can delete the selected user frequency or all user frequencies in the list. Confirm the request to remove the selected user frequency from the list. Selecting Delete All Frequencies opens a pop-up. Confirming the request removes all COM user frequencies from the list.
  • Page 78 View COM Status WHERE TO FIND IT View COM radio transmit voltage and received noise. This information is accessible via the Menu System tab. System MENU > System > COM Status COM Status This page is for reference only. Information includes: •...
  • Page 79 Respond to a COM Alert Radio failures are indicated by one or more of the following: • Red “X” displays over the COM radio control • Advisory message alerts • COM control options are not available COM radio fail annunciations are designed to be immediately recognizable. For information regarding pilot response to a COM radio failure, consult the AFMS.
  • Page 80 INTENTIONALLY LEFT BLANK 3-24 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 81 GNC 215 ONLY 4 NAV ADJUST NAV RADIO VOLUME ...............4-2 ACTIVATE NAV IDENT ..................4-2 TUNE A NAV FREQUENCY................4-3 MONITOR A NAV FREQUENCY..............4-6 FIND A NAV FREQUENCY .................4-7 VIEW NAVIGATION DATA.................4-9 SPECIFY AN OBS COURSE................4-11 RESPOND TO A NAV ALERT ................. 4-13...
  • Page 82 Adjust NAV Radio Volume Pushing the NAV VOL soft key while the NAV or COM radio is selected provides access to volume controls. Adjust radio volume with the inner and outer control knobs according to your preference. Percent of Relative Volume Max Volume Indicator You can adjust the volume by increments of ten...
  • Page 83 Tune a NAV Frequency Navigation frequency tuning, transfer, and selection functions are identical to those used for communication frequencies. NAV STATUS INDICATIONS Frequency The unit automatically decodes Morse code Identifier from and displays the Ident for the active frequency Morse Code above it.
  • Page 84 Received from Database & GPS Received from Morse Code Station information appears The identifier turns green when white when the identifier is a valid ID is decoded from inferred from the database Morse code. and current location. Custom User NAV Frequencies User stored NAV frequencies may display in the absence of a remote source or internal...
  • Page 85 STANDBY NAV FREQUENCY ENTRY To change the standby NAV frequency: Active NAV Frequency 1. Activate the standby NAV frequency window by selecting Home, then pushing the dual concentric control knob once or twice depending on pilot settings. Upon selection, the standby NAV frequency window remains active for approximately 30 seconds.
  • Page 86 Monitor a NAV Frequency The NAV radio provides a monitor function for VORs as the standby channel similar to the COM radio. Pushing the MON key while the NAV standby frequency is selected activates VOR monitoring. Morse ID During monitor mode: Unavailable •...
  • Page 87 Find a NAV Frequency Find and select a standby NAV frequency from a list of available database frequencies. Pushing the Find NAV soft key while the NAV radio is selected provides access to multiple search options. Each category displays a list of selectable identifiers based on specific criteria. FEATURE REQUIREMENTS •...
  • Page 88 FREQUENCY SEARCH ERRORS Search errors may display if any one of the following conditions exist. Nearest Frequency Search Options The unit is configured for GPS The unit is configured for GPS but is not receiving a position. but no database is present. Database Search Option No database is present.
  • Page 89 View Navigation Data Depending on configuration, you may Navigation data include: view supplemental navigation data in the • Decoded From radial and active and standby areas of the NAV radio. To bearing Data options are selectable from the • Distance to station Display tab (MENU >...
  • Page 90 When enabled, a CDI replaces the NAV STBY window. It appears between the active and standby windows when you are actively monitoring the NAV standby frequency. Active NAV Frequency The CDI presents a sliding lateral Frequency Look-up deviation indicator on a horizontal Window Result scale.
  • Page 91 Specify an OBS Course The unit allows manual entry of the OBS selected course in the absence of an external CDI/HSI selected course input. Specify a selected course using the dual concentric knob. Exit entry mode by doing one of the following: •...
  • Page 92 OBS SOURCE LOST A message informs you when GNC 215 loses selected course input from the external NAV indicator. When this occurs, you may select OBS. 4-12 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 93 Respond to a NAV Alert Radio failures are indicated by one or more of the following: • Red “X” displays over the NAV radio control • Advisory message alerts • NAV control options are not available NAV radio fail annunciations are designed to be immediately recognizable. Use an alternate method of navigation in response to a NAV radio failure.
  • Page 94 INTENTIONALLY LEFT BLANK 4-14 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 95 5 Timers VIEW TIMERS ......................5-2 SET COUNTDOWN TIMER ................5-4 SET COUNT UP TIMER..................5-4...
  • Page 96 Timers View Timers Set a generic timer for general timing needs. Two stopwatch style counters allow you to count up or count down. WHERE TO FIND IT Select the Timer option from the Display tab. MENU > Display > Timer MENU Display Timer...
  • Page 97 Timers Timer Controls ACTION SOFT KEY Basic timer functions are accessible via dual concentric knob push. Cancel start value Cancel Control options change according to entry the current timer state. Start timer Start Stop timer Stop Reset timer Reset Countdown timer only. 190-02766-02 Rev.
  • Page 98 Timers Set Countdown Timer The unit retains the most recent count down value following a power cycle. 1. Set direction to count down (CNT DN) using the outer control knob. 2. Specify countdown time using the inner and outer control knobs. •...
  • Page 99 GTR 205 ONLY 6 Audio Sources MANAGE AUDIO SOURCES................6-2 ENABLE 3D AUDIO ....................6-4 MUTE AUDIO SOURCES..................6-5...
  • Page 100 Audio Sources Manage Audio Sources WHERE TO FIND IT View and control all configured audio sources from a single location. The Audio Sources page is MENU accessible from the Display tab. MENU > Display > Audio Sources Display Audio Sources Audio on/off controls appear to the right of the COM display.
  • Page 101 Audio Sources Audio Controls From here, you may toggle an auxiliary audio source (e.g., dual-COM, other radios, alerts) and/or the cabin speaker on or off. Depending on configuration, Intercom, Media, and Phone functions are accessible from here. Example of audio control keys. To enable or disable an audio input: 1.
  • Page 102 Audio Sources Enable 3D Audio 3D audio is useful when multiple audio sources are present. When enabled, this feature creates the illusion that each audio source is coming from a unique location or seat position, allowing you to focus on and understand one source at a time. 3D audio settings reside in the Setup tab.
  • Page 103 Audio Sources Mute Audio Sources Set the intercom and/or media player to mute during certain conditions. Mute settings reside in the Setup tab. COM MUTES ICS/MUSIC Mute intercom and/or media audio when the COM radio is receiving a transmission on the active frequency or transmitting sidetone audio. 1.
  • Page 104 INTENTIONALLY LEFT BLANK Pilot’s Guide 190-02766-02 Rev. B...
  • Page 105 7 Intercom VIEW INTERCOM ....................7-2 ADJUST ICS VOLUME ..................7-3 ADJUST ICS MUSIC VOLUME................7-3 ENABLE NAV AUDIO....................7-4 ENABLE PILOT ISOLATION................7-4 ENHANCE INTERCOM AUDIO................7-5...
  • Page 106 Intercom View Intercom WHERE TO FIND IT Allow the copilot to hear what the pilot hears. Intercom is accessible from the Display tab. MENU MENU > Display > Intercom Display Intercom Controls for pilot and copilot intercoms appear to the right of the COM display. Pushing the dual concentric knob once sets the knob focus to Intercom.
  • Page 107 Intercom Adjust ICS Volume Volume may be set separately for pilot and copilot intercoms. Adjust intercom volume using the inner and outer control knobs. Turn the outer knob to select the recipient (pilot or copilot). Turn the inner knob to set the volume level according to your preference.
  • Page 108 Intercom Enable NAV Audio AVAILABLE WITH: GNC 215 Enable NAV audio to hear Morse code identifier tones over the intercom. Select NAV by turning the outer control knob. Push the inner knob to enable NAV audio. Enable Pilot Isolation AVAILABLE WITH: GTR 205 Isolate pilot communication from the copilot.
  • Page 109 Intercom Enhance Intercom Audio WHERE TO FIND IT Intercom customization options are accessible from the Setup tab. MENU MENU > Setup > ICS Settings Setup ICS Settings INTERCOM SETTINGS 3D Intercom Enable 3D audio for intercom communication. Set intercom to automatically mute media playback when ICS Mutes Music active.
  • Page 110 INTENTIONALLY LEFT BLANK Pilot’s Guide 190-02766-02 Rev. B...
  • Page 111 GTR 205 ONLY 8 Media VIEW MEDIA PLAYER...................8-2 ADJUST MEDIA VOLUME ..................8-3 PLAY MEDIA ......................8-3 ENHANCE MEDIA AUDIO .................8-4...
  • Page 112 Media View Media Player WHERE TO FIND IT The Media function provides playback controls for your connected Bluetooth enabled device. MENU Open the media player by selecting the Media option on the Display tab. Display MENU > Display > Media Media Playback controls appear to the right of the COM display.
  • Page 113 Media Adjust Media Volume Select the volume control to set the media player volume to a preferred level. Volume displays as a percentage of the maximum volume, with 0% being muted and 100% being maximum volume. The volume control is available only when the media player is connected to an audio source.
  • Page 114 Media Enhance Media Audio WHERE TO FIND IT Media audio customization options are accessible from the Setup tab. MENU MENU > Setup > Media Settings Setup Media Settings MEDIA SETTINGS Choose an equalization setting. Equalizer Options: • Off (default) • Rock • Classic • Pop Adjust the current bass level.
  • Page 115 GTR 205 ONLY 9 Phone VIEW PHONE ......................9-2 ADJUST PHONE VOLUME ................9-4 SILENCE RINGER....................9-4 MAKE A CALL ......................9-5 ACCEPT A CALL.......................9-5 IGNORE A CALL ......................9-6...
  • Page 116 Phone View Phone WHERE TO FIND IT Make and receive telephone calls using Bluetooth wireless connectivity and your portable electronic MENU device. Phone is accessible from the Display tab. MENU > Display > Phone Display Phone Controls appear to the right of the COM display. Pushing the dual concentric knob once sets the knob focus to Phone.
  • Page 117 Phone Phone Status Icons Ringer is on Ringer is off Battery charge Cellular connection status strength Phone Status Annunciations Refer to the status window for current operating status. ANNUNCIATION MEANING Phone is not connected via Bluetooth wireless Not Connected technology. Pair the device via the Bluetooth setup option (Menu >...
  • Page 118 Phone Adjust Phone Volume Select the volume control to set phone volume to a preferred level. Volume displays as a percentage of the maximum volume, with 0 being muted and 15 being maximum volume. The volume control is available only when the phone is connected to a Bluetooth enabled device.
  • Page 119 Phone Make a Call Make a call using your portable electronic device. Phone displays the number as you dial. “Active Call” annunciates in the status window when you make or accept a call. Accept a Call Incoming calls generate a status message.
  • Page 120 Phone Ignore a Call Select Ignore. This disconnects the call. Pilot’s Guide 190-02766-02 Rev. B...
  • Page 121 10 Messages VIEW SYSTEM MESSAGES ................10-2...
  • Page 122 Messages View System Messages WHERE TO FIND IT Advisories are system-related messages relative to the display. A list of active advisories is viewable from the System tab: Menu MENU > System > Messages System You can open the list directly by pushing the Messages MSG soft key when an active message is present.
  • Page 123 Messages Bluetooth Connectivity Advisories AVAILABLE WITH: GTR 205 ADVISORY CONDITION CORRECTIVE ACTION The unit is not Bluetooth is Service required. communicating with the inoperative. Contact dealer for support. Bluetooth module. COM Radio Advisories ADVISORY CONDITION CORRECTIVE ACTION COM radio is reporting COM radio needs that it requires service.
  • Page 124 Messages ADVISORY CONDITION CORRECTIVE ACTION Unit detects the specified key in the pressed Verify that the key is not position for 30 seconds. COM MIC <1/2> key stuck. Contact dealer for is stuck. The input is ignored as service if message persists. a result.
  • Page 125 No action necessary. The database successfully Database updated activated upon system successfully. start-up. Navigation Advisories AVAILABLE WITH: GNC 215 ADVISORY CONDITION CORRECTIVE ACTION NAV radio is reporting Navigation receiver that it requires service. Service required. needs service.
  • Page 126 Messages Pilot Specified Advisories These advisories display when the associated timer expires or reaches a preset value. They are informational only. Other than acknowledging the message, no action is necessary. ADVISORY CONDITION Timer has expired. Countdown timer is reaching zero. 10-6 Pilot’s Guide 190-02766-02 Rev.
  • Page 127 Messages System Hardware Advisories ADVISORY CONDITION CORRECTIVE ACTION The unit cannot Configuration communicate with its module needs configuration module. Contact dealer for service. service. Unit configuration may still be valid. Unit temperature exceeds Decrease cabin temperature Unit over the over temperature and increase cabin airflow temperature.
  • Page 128 Messages ADVISORY CONDITION CORRECTIVE ACTION System detects the indicated bezel key is depressed for at least 30 seconds. It will now ignore this input. Push the indicated key again. Includes: <Name> key is stuck. If it remains stuck, contact • Bottom soft key dealer for service.
  • Page 129 Messages VLOC/GS Advisories AVAILABLE WITH: GNC 215 ADVISORY CONDITION CORRECTIVE ACTION Verify glideslope deviation indications with another source and cross-check final Glideslope board is approach fix crossing altitude. Glideslope receiver reporting that it requires If another source is not needs service.
  • Page 130 INTENTIONALLY LEFT BLANK 10-10 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 131 ATIS Automatic Terminal Information Service Course Deviation Indicator Database Distance Measuring Equipment Federal Communication Commission From Flight Service Station Garmin Flight Controller Garmin NAV/COM Global Positioning System Glideslope Garmin Transceiver Radio Horizontal Situation Indicator Intercom System Instrument Flight Rules Instrument Landing System...
  • Page 132 Glossary Liquid Crystal Display Localizer Line Replaceable Unit Message Navigation NAVAID Navigation Aid NVIS Night Vision Imaging System Omni Bearing Selector Radius to Fix Receive, Receiver Secure Digital Squelch Open STBY Standby True Transmit Visual Flight Rules Very High Frequency VLOC VOR/Localizer Very High Frequency Omnidirectional Range...
  • Page 133 Glossary Weather 190-02766-02 Rev. B Pilot’s Guide 11-3...
  • Page 134 INTENTIONALLY LEFT BLANK 11-4 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 135 12 Regulatory Information COMPLIANCE......................12-2 SOFTWARE LICENSE AGREEMENT ............12-3...
  • Page 136 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com/compliance. UK Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: www.garmin.com/compliance.
  • Page 137 AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grants you a limited license to use the software embedded in the Garmin Product (the “Software”) in binary executable form in the normal operation of the Garmin Product.
  • Page 138 INTENTIONALLY LEFT BLANK 12-4 Pilot’s Guide 190-02766-02 Rev. B...
  • Page 140 190-02766-02 Rev. B...
