Garmin GTR 205x Pilot's Manual
  1. Manuals
  2. Brands
  3. Garmin Manuals
  4. Transceiver
  5. GTR 205x
  6. Pilot's manual
Garmin GTR 205x Pilot's Manual

Garmin GTR 205x Pilot's Manual

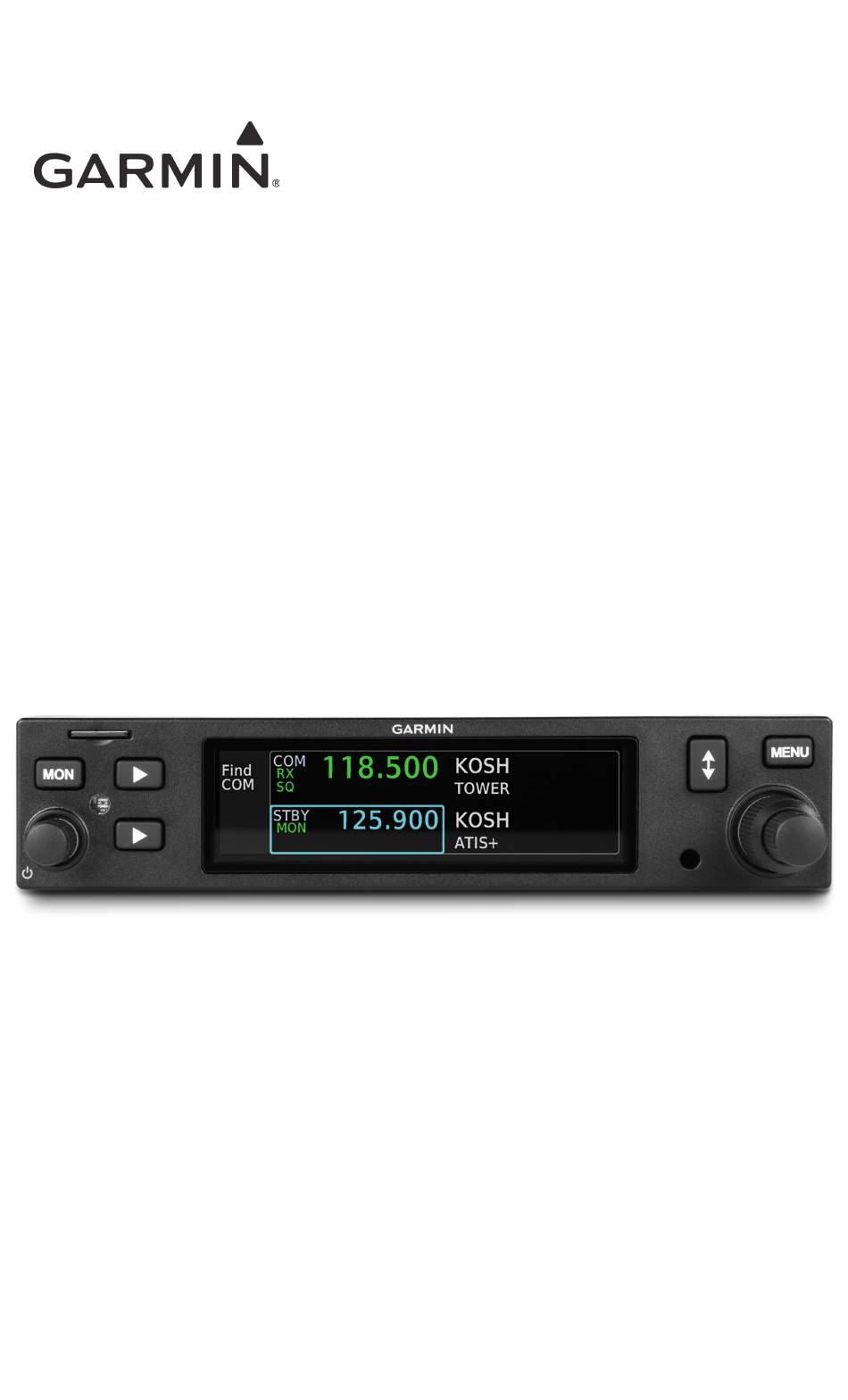

Panel-mount com radio transceiver
Hide thumbs Also See for GTR 205x:

Advertisement

Quick Links

Download this manual
GTR 205x
Pilot's Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the GTR 205x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garmin GTR 205x

Summary of Contents for Garmin GTR 205x

  • Page 1 GTR 205x Pilot's Guide...

  • Page 2: Copyright And Trademarks

    Garmin. ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Other trademarks and trade names are those of their respective owners. ® Jeppesen is a registered trademark of Jeppesen, Inc.
  • Page 3 State of California to cause cancer, birth defects, or reproductive harm. This notice is being provided in accordance with California’s Proposition 65. If you have any questions or would like additional information, please refer to our website at www.garmin.com/prop65. 190-02766-22 Rev. A Pilot’s Guide...
  • Page 4 They will harm the anti-reflective coating. Use a clean, lint-free cloth and anti-reflective lens cleaner. CAUTION Ensure that any unit repairs are made by an authorized Garmin service center. Unauthorized repairs or modifications could void both the warranty and affect the airworthiness of the aircraft.
  • Page 5 “Aviation Database Alerts.” NOTE Contact Garmin Product Support if you want or need to adjust the database. NOTE Garmin requests the flight crew report any observed discrepancies related to database information. These discrepancies could come in the form of any displayed item used for navigation or communication in the air or on the ground.

  • Page 6: Change Description

    Record of Revision REVISION DATE CHANGE DESCRIPTION 06.27.24 Production Release. Available for Download Electronic Pilot’s Guide A version of this guide saved in Adobe Acrobat. Available for viewing on your computer or portable device. Go to garmin.com/manuals. Pilot’s Guide 190-02766-22 Rev. A...
  • Page 7 Gray boxes highlight information about a particular feature or application function. Green boxes may include references to additional information or a useful pilot’s tip. Blue boxes address common questions about Garmin product features and services. 190-02766-22 Rev. A Pilot’s Guide...
  • Page 8 Reference Documentation Reference Websites WEBSITE QR CODE (SCAN/GO) Aviation Limited Warranty https://www.garmin.com/en-US/legal/aviation-limited-warranty Declarations of Conformity https://www.garmin.com/compliance Pilot’s Guide 190-02766-22 Rev. A...

  • Page 9: Table Of Contents

    Table of Contents 1 SYSTEM AT A GLANCE ..................... 1-1 Overview ..............................1-2 Unit Features ....................1-3 Pilot Interface ............................1-4 Bezel ......................1-4 microSD Card Slot ..................1-5 Display Features ..................... 1-6 Soft Keys ....................1-6 Function Keys ..................... 1-8 Menu Tabs ....................1-8 Pop-ups .....................
  • Page 10 Table of Contents Adjust Squelch Threshold ................3-7 Tune a COM Frequency ........................3-8 Tune a Standby Frequency ................3-9 Transfer Frequency to Active (Flip-Flop) ............3-10 Monitor a COM Frequency ......................3-11 Find a COM Frequency ........................3-12 Reverse Frequency Look-up ................3-15 Remote Frequency Selection ................
  • Page 11 Table of Contents View System Messages ........................9-2 Active Message Indication ................9-2 Bluetooth Connectivity Advisories ..............9-3 COM Radio Advisories ................... 9-3 Database Advisories ..................9-5 Pilot Specified Advisories ................9-5 System Hardware Advisories ................9-6 10 GLOSSARY ..........................10-1 11 REGULATORY INFORMATION ................11-1 Compliance ............................
  • Page 12 INTENTIONALLY LEFT BLANK Pilot’s Guide 190-02766-22 Rev. A...

  • Page 13: System At A Glance

    1 System at a Glance OVERVIEW.........................1-2 PILOT INTERFACE ....................1-4 COMPATIBLE EQUIPMENT................1-16...

  • Page 14: Overview

    System at a Glance Overview GTR 205x is a panel-mount COM radio transceiver that employs a 3.2” high-resolution color liquid-crystal display. It is part of the Slimline series of 1.35” by 6.25” COM radio products. 3.2" The unit has 10 W of transmit power. Optional 16 W of transmit power is available with the purchase of a feature enablement.

  • Page 15: Unit Features

    System at a Glance Unit Features Features vary depending on model and unit configuration. GTR 205x COM TRANSCEIVER • • 2-place intercom system Media player • • 3D audio (COM & ICS) NVIS • • 16 W transmit power capability Hands free calling •...

  • Page 16: Pilot Interface

    System at a Glance Pilot Interface Bezel The bezel provides a combination of mechanical knobs and push-keys. Soft keys correspond to selectable features on the display screen. Display Screen microSD Card Slot Menu Key Inner & Outer Knobs Provides direct access Interface for loading Multipurpose dual database, exporting log...

  • Page 17: Microsd Card Slot

    Formatting the microSD card improperly can cause it to not be recognized by the avionics system. To avoid this, and to ensure maximum compatibility with Garmin avionics and your personal computer, format the microSD card with the Master Boot Record (MBR) partition scheme and the FAT32 (MS-DOS) file system format.

  • Page 18: Display Features

    System at a Glance Display Features A high-resolution color LCD display provides onscreen controls that correspond to the mechanical knobs and push-keys on the bezel. Optional night vision compatibility (NVIS) is available with the purchase of a feature enablement. Soft Keys Selections change based on the active page or function.
  • Page 19 System at a Glance CUSTOMIZABLE COMMANDS Not all options may be available. Transmit pilot audio Enable pilot isolation over the active COM mode. channel (push to talk). Display COM Mute/unmute wired frequency search music audio. options. Bluetooth Commands These commands require connection to a Bluetooth enabled device. Play Bluetooth Pause Bluetooth media audio.

  • Page 20: Function Keys

    System at a Glance Function Keys Toggle keys turn a specific function on or off. The current state of the function is indicated below the key label. Menu Tabs Tabs group information and related controls into individual panes. Contents may include scrolling lists, data fields, function keys, or a combination of controls.

  • Page 21: Control Knobs

    System at a Glance Control Knobs Outer Inner Dual Concentric Knob Volume/Power Knob Inner and outer control knobs offer A single volume knob controls the ability to select and modify audio volume for the COM radio data and settings. and powers the unit on/off. Pushing these knobs momentarily performs additional functions.

  • Page 22: Knob Function Indicators

    System at a Glance Knob Function Indicators Available knob functions annunciate at the bottom of the display. Icons indicate the associated pilot actions: knob turn and/or push. Outer Knob Single or Inner Knob Turn Only Turn & Push Indications include, but are not limited to: COM Standby Frequency Active Available knob functions: •...
  • Page 23 System at a Glance Menu Active Find Frequency Active Available knob functions: Available knob functions: • • Scroll search categories Scroll menu tabs • • Select frequency Select list items • Add user frequency System Message List Active Available knob functions: •...

  • Page 24: Knob Shortcuts

    System at a Glance Knob Shortcuts For convenience, the unit allows you to access certain controls quickly via knob push. TUNE A COM FREQUENCY From the Home page: Pushing the dual concentric knob once switches knob focus from the COM radio to right side features (if available).

  • Page 25: Activate Timer

    System at a Glance FIND A COM FREQUENCY From any page or tab: Pushing and holding the dual concentric control knob for 1.5 seconds automatically displays frequency search options. The Select Frequency menu opens from the last viewed search result. 1.5 s Prior to activation, the “Hold for Find”...

  • Page 26: Screenshots

    System at a Glance Screenshots FEATURE REQUIREMENTS • A microSD card in the FAT32 format, with memory capacity between 8 GB and 32 GB Save images to a microSD card at any time using Screenshot. 1. Verify that a microSD card is present in the slot. 2.

  • Page 27: Color Conventions

    System at a Glance Color Conventions • Radio failure Green • Active radio frequency, function • Valid station ID (decoded from Morse code) White • Active system message, mode • Current data and values • Menu options • Scales and markings •...

  • Page 28: Compatible Equipment

    Optional LRUs may include compatible equipment from either G500/G600 Garmin or a third party G500(H)/G600/G700 TXi manufacturer. These vary by unit and installation type (VFR or IFR). GFC 500/600(H) Some LRUs provide features that...

  • Page 29: Get Started

    2 Get Started POWER UP THE UNIT ..................2-2 LOAD DATABASE ....................2-3 SET UP BLUETOOTH..................2-12 CUSTOMIZE PILOT SETTINGS ..............2-15 VIEW SYSTEM INFORMATION..............2-19...

  • Page 30: Power Up The Unit

    Bezel key backlight momentarily illuminates • Navigation database automatically updates if a newer version is available Splash Page Garmin logo displays as the unit checks for an available database update. Read more about database update methods in Load Database. Power Off the Unit WARNING Never attempt to power off the unit while airborne unless operational procedures dictate.

  • Page 31: Load Database

    This system uses the Navigation purchase individual databases or database database for frequency related packages, go to flyGarmin.com. information (Garmin or Jeppesen). Active and Standby Databases The unit uses two types of databases. Both transfer to the unit’s internal storage. Active Database Standby Database •...
  • Page 32 Get Started DATABASE TRANSFER & ACTIVATION The Navigation database automatically transfers from the microSD card to the unit’s internal Standby storage if it is newer than the database currently in standby. Total transfer time depends on the microSD card type. Activation of the standby database is required to complete the update.

  • Page 33: Load Database From A Microsd Card

    Get Started Load Database from a microSD Card NOTE The unit supports microSD cards in the FAT32 format only, with capacities ranging between 8 GB and 32 GB. The unit stores all databases it receives in its internal storage. After a database updates, the microSD card is no longer required.

  • Page 34: Automatic Updates

    Get Started Automatic Updates Updates occur during power up when a Automatic updates occur newer version of the database is available. when: The same process occurs when you load a new database for the first time. • A newer database is detected on the microSD card or in the internal Standby storage...

  • Page 35: Database Errors

    Get Started Database Errors If a database error occurs: • An advisory appears in the message list • Details regarding the state of the database display on the appropriate information tab Aviation Database Errors Visit flyGarmin.com to report any discrepancies in database information.

  • Page 36: Revert To Previous Database Version

    Get Started Revert to Previous Database Version Updating a database does not overwrite its previous version. Once the update process completes, the previously active version of the database transfers to the unit’s internal Standby storage. In the event that an automatic update is undesirable, you can revert to the previous version using the manual update feature.

  • Page 37: View Database Information

    Get Started View Database Information WHERE TO FIND IT During normal operation, you can view information about active and standby databases Menu from the Database Information page. MENU > System > Database System Database Select the appropriate menu tab to view information about active and standby databases.

  • Page 38: Standby Database

    Get Started Standby Database Selecting Standby displays information about the database that is not currently in use by the system. The previously installed database also appears here once an update completes. “Standby database OK” appears at the bottom of the Standby tab whenever a valid database is present on the installed microSD card or in the internal memory.

  • Page 39: Understand Database Effective Cycles

    Get Started Understand Database Effective Cycles DATABASE EFFECTIVE STATUS • Effective during a specific period • Database with Unit determines database status using the current date specified and time from GPS effective dates • Automatic activation occurs on the effective date during unit power cycle NO VALID DATABASE A message informs you when no...

  • Page 40: Set Up Bluetooth

    Setup Bluetooth FEATURE REQUIREMENTS • All portable devices must be Bluetooth enabled to connect to GTR 205x FEATURE LIMITATIONS • The unit allows up to eight total device connections via Bluetooth wireless technology, with only one active device connection at a time Pair a Bluetooth Enabled Device Pair a device from the Bluetooth wireless audio setup page.
  • Page 41 Once the device is paired, icons along the right of the display indicate the presence of a wireless connection and feature active status. A purple connected icon means the indicated device is connected to GTR 205x via Bluetooth wireless technology. This icon is absent when the device is not connected.

  • Page 42: Device Not Connected

    Reconnecting Your Device after a Software Update Bluetooth connections are lost during software updates on the GTR 205x COM transceiver. To reconnect, open the Bluetooth settings on your personal electronic device and select the “GTR 205x” device name.

  • Page 43: Customize Pilot Settings

    Get Started Customize Pilot Settings Unit customization options are accessible via the MENU key. For details about specific radio settings and timer functions, refer to the respective section. MENU OPTIONS • Manage audio sources • View intercom • View media player Display Tab •...

  • Page 44: Assign Soft Key Shortcuts

    Get Started Assign Soft Key Shortcuts WHERE TO FIND IT Customize the default function of the top and bottom soft keys. Options are accessible from MENU the Setup tab. MENU > Setup > Softkey Settings Setup Softkey Settings FEATURE LIMITATIONS • Available shortcut options are dependent upon configuration Soft key commands related to active functions and page navigation still appear as required (e.g.,MSG, BACK, HOME).

  • Page 45: Customize Unit Settings

    Get Started Customize Unit Settings WHERE TO FIND IT Customize the display unit settings. Selecting Units opens a menu of available unit types. Menu MENU > Setup > Units Setup Units To specify unit type: 1. Review the current unit selections.

  • Page 46: Adjust Display Brightness

    Installer configured curves determine the amount of change in brightness that occurs in response to a control adjustment. If brightness control is not satisfactory, contact a Garmin dealer to adjust the lighting curves. 2-18 Pilot’s Guide 190-02766-22 Rev. A...

  • Page 47: View System Information

    Get Started View System Information WHERE TO FIND IT View information specific to the unit and its software. Menu MENU > System > System Info System System Info Refer here when contacting customer service. System Info • Serial number • System ID •...
  • Page 48 INTENTIONALLY LEFT BLANK 2-20 Pilot’s Guide 190-02766-22 Rev. A...

  • Page 49: Com

    3 COM SET UP COM RADIO.....................3-2 ADJUST COM RADIO VOLUME & SQUELCH...........3-6 TUNE A COM FREQUENCY ................3-8 MONITOR A COM FREQUENCY..............3-11 FIND A COM FREQUENCY ................3-12 CREATE COM USER FREQUENCIES............3-19 VIEW COM STATUS ................... 3-22 RESPOND TO A COM ALERT ................ 3-23...

  • Page 50: Set Up Com Radio

    Set Up COM Radio WHERE TO FIND IT VHF COM radio customization options are accessible via the Setup tab. Menu MENU > Setup > COM Settings Setup COM Settings COM RADIO SETTINGS Set transceiver squelch to Auto or adjust the threshold COM Squelch manually.

  • Page 51: Set Com Channel Spacing

    Set COM Channel Spacing The unit supports channel tuning for both 8.33 kHz and 25 kHz channels within radio-frequency range. Channel spacing is set to 25 kHz by default. Turning the inner knob toggles the transceiver channel spacing between 8.33 kHz and 25 kHz. 25 kHz 8.33 kHz 8.33 kHz step configuration...

  • Page 52: Adjust Sidetone Volume Offset

    Adjust Sidetone Volume Offset FEATURE LIMITATIONS • Availability dependent upon configuration • Offset range: +/-25% of total COM audio volume range Numeric If the unit is wired for audio output, Offset Value set the sidetone volume offset to the preferred level. By default, the offset value is set to zero percent.

  • Page 53: Enable 16 W Com Transmitter Output

    You must be the aircraft account Output enablement is available for holder to download this feature. download at flyGarmin.com. This process Contact your Garmin dealer for is similar to downloading the database assistance. and does not require a visit to the dealer.

  • Page 54: Adjust Com Radio Volume & Squelch

    Adjust COM Radio Volume & Squelch Percent of Adjust radio volume with the small knob Max Volume according to your preference. The unit retains volume settings over power cycles. Relative Volume Indicator Open Squelch Push the volume/squelch knob to override the automatic squelch function.

  • Page 55: Adjust Squelch Threshold

    Adjust Squelch Threshold WHERE TO FIND IT Adjust the squelch threshold via the manual control in the Setup tab. Setup MENU > Setup > COM Settings > COM Settings COM Squelch COM Squelch Default Threshold Push the dual concentric knob to Value select COM Squelch and activate Numeric Offset the manual threshold setting.

  • Page 56: Tune A Com Frequency

    Tune a COM Frequency Communication frequencies are split between two selectable windows: • The upper window presents the active COM radio frequency. This is the frequency currently in use for transmit and receive operations. • The lower window presents the standby radio frequency. This frequency may be set and activated at any time.

  • Page 57: Tune A Standby Frequency

    Tune a Standby Frequency The dual concentric control knob allows you to enter a standby frequency. Pushing and holding the dual concentric control knob for 1.5 seconds automatically displays frequency search options. The selected STBY window turns cyan when you use the control knob to change the standby COM frequency.

  • Page 58: Transfer Frequency To Active (Flip-Flop)

    Transfer Frequency to Active (Flip-Flop) The transfer (or flip-flop) function allows you to swap the active and standby frequency values. Before After 3-10 Pilot’s Guide 190-02766-22 Rev. A...

  • Page 59: Monitor A Com Frequency

    Monitor a COM Frequency Enabling monitor mode allows you to listen to the standby frequency while the unit continues monitoring the active COM channel. When the COM active frequency receives a signal, the unit automatically switches back to the active frequency. Once activity on the COM active channel ceases, the unit returns to listening to the standby frequency.

  • Page 60: Find A Com Frequency

    Find a COM Frequency Find and select a standby COM frequency from a list of available database frequencies. Pushing the Find COM soft key while the COM radio is active provides access to multiple search options. Each category displays a list of selectable identifiers based on specific criteria. FEATURE REQUIREMENTS •...

  • Page 61: Search Results

    SEARCH RESULTS Each frequency includes general information about the associated waypoint. Bearing Waypoint & Distance Identifier & Facility Name Nearest airports include bearing and distance to field information based on GPS data. MULTIPLE FREQUENCIES A selector appears when more than one frequency type is available at the indicated identifier.
  • Page 62 FREQUENCY SEARCH ERRORS Search errors may display if any one of the following conditions exist. Nearest Frequency Search Options The unit is configured for GPS The unit is configured for GPS but is not receiving a position. but no database is present. Database Search Option No database is present.

  • Page 63: Reverse Frequency Look-Up

    Reverse Frequency Look-up This function automatically displays the facility identifier and frequency type for active and standby frequencies. The unit verifies the displayed frequency against the database at least once per minute. Facility Identifier “+” denotes more than one type associated with the frequency.
  • Page 64 DATA SIZE & POSITION The size and location of Reverse Frequency Look-up text is dependent upon the status of right side features. Default View Text is larger for easier viewing. Timer Enabled Text shifts beneath the frequency value when you enable right side features.

  • Page 65: Required Conditions

    DATA SOURCE PRIORITY RFL data prioritization is dependent upon certain required conditions, including whether the database source is configured as internal or external. Internal Database RFL information is received from the following sources in order of priority, from highest (1) to lowest (3). SOURCE REQUIRED CONDITIONS Proximity search of database...

  • Page 66: Remote Frequency Selection

    Remote Frequency Selection FEATURE LIMITATIONS • Availability dependent upon configuration If configured for remote frequency recall, COM user frequencies are selectable via a remote switch. • Pressing the switch once loads the next user frequency into the STBY window • Pressing the switch repeatedly scrolls through the list of presets •...

  • Page 67: Create Com User Frequencies

    Create COM User Frequencies FEATURE LIMITATIONS • Names may be up to 10 characters in length • Maximum number of 20 user frequencies Add a frequency to the user frequency list. Controls are accessible via the Select Frequency menu. 1. Open the Select Frequency menu.

  • Page 68: Edit A Com User Frequency

    Edit a COM User Frequency Modify an existing user frequency. Selecting a user frequency gives you the EDIT option. 1. Select the user frequency from the list. 2. Push the Edit soft key. 3. Modify the current frequency name and/or value using the dual concentric knob.

  • Page 69: Delete A Com User Frequency

    Delete a COM User Frequency Selecting Delete opens a confirmation page. From here you can delete the selected user frequency or all user frequencies in the list. Confirm the request to remove the selected user frequency from the list. Selecting Delete All Frequencies opens a pop-up. Confirming the request removes all COM user frequencies from the list.

  • Page 70: View Com Status

    View COM Status WHERE TO FIND IT View COM radio transmit voltage and received noise. This information is accessible via the Menu System tab. System MENU > System > COM Status COM Status This page is for reference only. Information includes: •...

  • Page 71: Respond To A Com Alert

    Respond to a COM Alert Radio failures are indicated by one or more of the following: • Red “X” displays over the COM radio control • Advisory message alerts • COM control options are not available COM radio fail annunciations are designed to be immediately recognizable. For information regarding pilot response to a COM radio failure, consult the AFMS.
  • Page 72 INTENTIONALLY LEFT BLANK 3-24 Pilot’s Guide 190-02766-22 Rev. A...

  • Page 73: Timers

    4 Timers VIEW TIMERS ......................4-2 SET COUNTDOWN TIMER ................4-4 SET COUNT UP TIMER..................4-4...

  • Page 74: View Timers

    Timers View Timers Set a generic timer for general timing needs. Two stopwatch style counters allow you to count up or count down. WHERE TO FIND IT Select the Timer option from the Display tab. MENU > Display > Timer MENU Display Timer...

  • Page 75: Timer Controls

    Timers Timer Controls ACTION SOFT KEY Basic timer functions are accessible via dual concentric knob push. Cancel start value Cancel Control options change according to entry the current timer state. Start timer Start Stop timer Stop Reset timer Reset Countdown timer only. 190-02766-22 Rev.

  • Page 76: Set Countdown Timer

    Timers Set Countdown Timer The unit retains the most recent count down value following a power cycle. 1. Set direction to count down (CNT DN) using the outer control knob. 2. Specify countdown time using the inner and outer control knobs. •...

  • Page 77: Audio Sources

    5 Audio Sources MANAGE AUDIO SOURCES................5-2 ENABLE 3D AUDIO ....................5-4 MUTE AUDIO SOURCES..................5-5...

  • Page 78: Manage Audio Sources

    Audio Sources Manage Audio Sources WHERE TO FIND IT View and control all configured audio sources from a single location. The Audio Sources page is MENU accessible from the Display tab. MENU > Display > Audio Sources Display Audio Sources Audio on/off controls appear to the right of the COM display. Pushing the dual concentric knob once sets the knob focus to Audio Sources.

  • Page 79: Audio Controls

    Audio Sources Audio Controls From here, you may toggle an auxiliary audio source (e.g., dual-COM, other radios, alerts) and/or the cabin speaker on or off. Depending on configuration, Intercom, Media, and Phone functions are accessible from here. To enable or disable an audio input: 1.

  • Page 80: Enable 3D Audio

    1. Menu > Setup > ICS Settings. 2. Enable the 3D Intercom setting. GTR 205x processes intercom positions according to relative seat location (pilot or copilot). By default, the unit assumes that the pilot is in the left seat. This position is configurable.

  • Page 81: Mute Audio Sources

    Audio Sources Mute Audio Sources Set the intercom and/or media player to mute during certain conditions. Mute settings reside in the Setup tab. COM MUTES ICS/MUSIC Mute intercom and/or media audio when the COM radio is receiving a transmission on the active frequency or transmitting sidetone audio. 1.
  • Page 82 INTENTIONALLY LEFT BLANK Pilot’s Guide 190-02766-22 Rev. A...

  • Page 83: Intercom

    6 Intercom VIEW INTERCOM ....................6-2 ADJUST ICS VOLUME ..................6-3 ADJUST ICS MUSIC VOLUME................6-3 ENABLE PILOT ISOLATION................6-3 ENHANCE INTERCOM AUDIO................6-4...

  • Page 84: View Intercom

    Intercom View Intercom WHERE TO FIND IT Allow the copilot to hear what the pilot hears. Intercom is accessible from the Display tab. MENU MENU > Display > Intercom Display Intercom Controls for pilot and copilot intercoms appear to the right of the COM display. Pushing the dual concentric knob once sets the knob focus to Intercom.

  • Page 85: Adjust Ics Volume

    Intercom Adjust ICS Volume Volume may be set separately for pilot and copilot intercoms. Adjust intercom volume using the inner and outer control knobs. Turn the outer knob to select the recipient (pilot or copilot). Turn the inner knob to set the volume level according to your preference.

  • Page 86: Enhance Intercom Audio

    Intercom Enhance Intercom Audio WHERE TO FIND IT Intercom customization options are accessible from the Setup tab. MENU MENU > Setup > ICS Settings Setup ICS  Settings INTERCOM SETTINGS 3D Intercom Enable 3D audio for intercom communication. Set intercom to automatically mute media playback when ICS Mutes Music active.

  • Page 87: Media

    7 Media VIEW MEDIA PLAYER...................7-2 ADJUST MEDIA VOLUME ..................7-3 PLAY MEDIA ......................7-3 ENHANCE MEDIA AUDIO .................7-4...

  • Page 88: View Media Player

    Media View Media Player WHERE TO FIND IT The Media function provides playback controls for your connected Bluetooth enabled device. MENU Open the media player by selecting the Media option on the Display tab. Display MENU > Display > Media Media Playback controls appear to the right of the COM display.

  • Page 89: Adjust Media Volume

    Media Adjust Media Volume Select the volume control to set the media player volume to a preferred level. Volume displays as a percentage of the maximum volume, with 0% being muted and 100% being maximum volume. The volume control is available only when the media player is connected to an audio source.

  • Page 90: Enhance Media Audio

    Media Enhance Media Audio WHERE TO FIND IT Media audio customization options are accessible from the Setup tab. MENU MENU > Setup > Media Settings Setup Media Settings MEDIA SETTINGS Choose an equalization setting. Equalizer Options: • Off (default) • Rock • Classic • Pop Adjust the current bass level.

  • Page 91: Phone

    8 Phone VIEW PHONE ......................8-2 ADJUST PHONE VOLUME ................8-4 SILENCE RINGER....................8-4 MAKE A CALL ......................8-5 ACCEPT A CALL.......................8-5 IGNORE A CALL ......................8-6...

  • Page 92: View Phone

    Phone View Phone WHERE TO FIND IT Make and receive telephone calls using Bluetooth wireless connectivity and your portable electronic MENU device. Phone is accessible from the Display tab. MENU > Display > Phone Display Phone Controls appear to the right of the COM display. Pushing the dual concentric knob once sets the knob focus to Phone.

  • Page 93: Phone Status Icons

    Phone Phone Status Icons Ringer is on Ringer is off Battery charge Cellular connection status strength Phone Status Annunciations Refer to the status window for current operating status. ANNUNCIATION MEANING Phone is not connected via Bluetooth wireless Not Connected technology. Pair the device via the Bluetooth setup option (Menu >...

  • Page 94: Adjust Phone Volume

    Phone Adjust Phone Volume Select the volume control to set phone volume to a preferred level. Volume displays as a percentage of the maximum volume, with 0 being muted and 15 being maximum volume. The volume control is available only when the phone is connected to a Bluetooth enabled device.

  • Page 95: Make A Call

    Phone Make a Call Make a call using your portable electronic device. Phone displays the number as you dial. “Active Call” annunciates in the status window when you make or accept a call. Accept A Call Incoming calls generate a status message.

  • Page 96: Ignore A Call

    Phone Ignore a Call Select Ignore. This disconnects the call. Pilot’s Guide 190-02766-22 Rev. A...

  • Page 97: Messages

    9 Messages VIEW SYSTEM MESSAGES .................9-2...

  • Page 98: View System Messages

    Messages View System Messages WHERE TO FIND IT Advisories are system-related messages relative to the display. A list of active advisories is viewable from the System tab: Menu MENU > System > Messages System You can open the list directly by pushing the Messages MSG soft key when an active message is present.

  • Page 99: Bluetooth Connectivity Advisories

    Messages Bluetooth Connectivity Advisories ADVISORY CONDITION CORRECTIVE ACTION The unit is not Bluetooth is Service required. communicating with the inoperative. Contact dealer for support. Bluetooth module. COM Radio Advisories ADVISORY CONDITION CORRECTIVE ACTION COM radio is reporting COM radio needs that it requires service.
  • Page 100 Messages ADVISORY CONDITION CORRECTIVE ACTION Unit detects the specified switch is active for 30 seconds. The input is ignored as a result. Radio stops transmitting. Includes: • Verify that the switch is not Standby monitor COM <name> stuck. Contact dealer for remote switch switch is stuck.

  • Page 101: Database Advisories

    Database Advisories ADVISORY CONDITION CORRECTIVE ACTION Re-download and install Active DB corrupt. The active database is database. Contact a Garmin Remove or replace. unavailable or corrupt. dealer for support. The unit is configured for Database card external databases and a Power off the unit and remove ignored.

  • Page 102: System Hardware Advisories

    Messages System Hardware Advisories ADVISORY CONDITION CORRECTIVE ACTION The unit cannot Configuration communicate with its module needs configuration module. Contact dealer for service. service. Unit configuration may still be valid. Unit temperature exceeds Decrease cabin temperature Unit over the over temperature and increase cabin airflow temperature.
  • Page 103 Messages ADVISORY CONDITION CORRECTIVE ACTION System detects the indicated bezel key is depressed for at least 30 seconds. It will now ignore this input. Push the indicated key again. Includes: <Name> key is stuck. If it remains stuck, contact • Bottom soft key dealer for service.
  • Page 104 INTENTIONALLY LEFT BLANK Pilot’s Guide 190-02766-22 Rev. A...

  • Page 105: 10 Glossary

    Air Route Traffic Control Center ATIS Automatic Terminal Information Service Database Distance Measuring Equipment Federal Communication Commission Flight Service Station Garmin Flight Controller Global Positioning System Garmin Transceiver Radio Intercom System Instrument Flight Rules Liquid Crystal Display Line Replaceable Unit...
  • Page 106 Glossary Radius to Fix Receive, Receiver Secure Digital Squelch Open STBY Standby True Transmit Visual Flight Rules Very High Frequency Weather 10-2 Pilot’s Guide 190-02766-22 Rev. A...

  • Page 107: 11 Regulatory Information

    11 Regulatory Information COMPLIANCE......................11-2 SOFTWARE LICENSE AGREEMENT ............11-3...

  • Page 108: Compliance

    2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.garmin.com/compliance. UK Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: www.garmin.com/compliance.

  • Page 109: Software License Agreement

    AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY. Garmin Ltd. and its subsidiaries (“Garmin”) grants you a limited license to use the software embedded in the Garmin Product (the “Software”) in binary executable form in the normal operation of the Garmin Product.
  • Page 110 INTENTIONALLY LEFT BLANK 11-4 Pilot’s Guide 190-02766-22 Rev. A...
