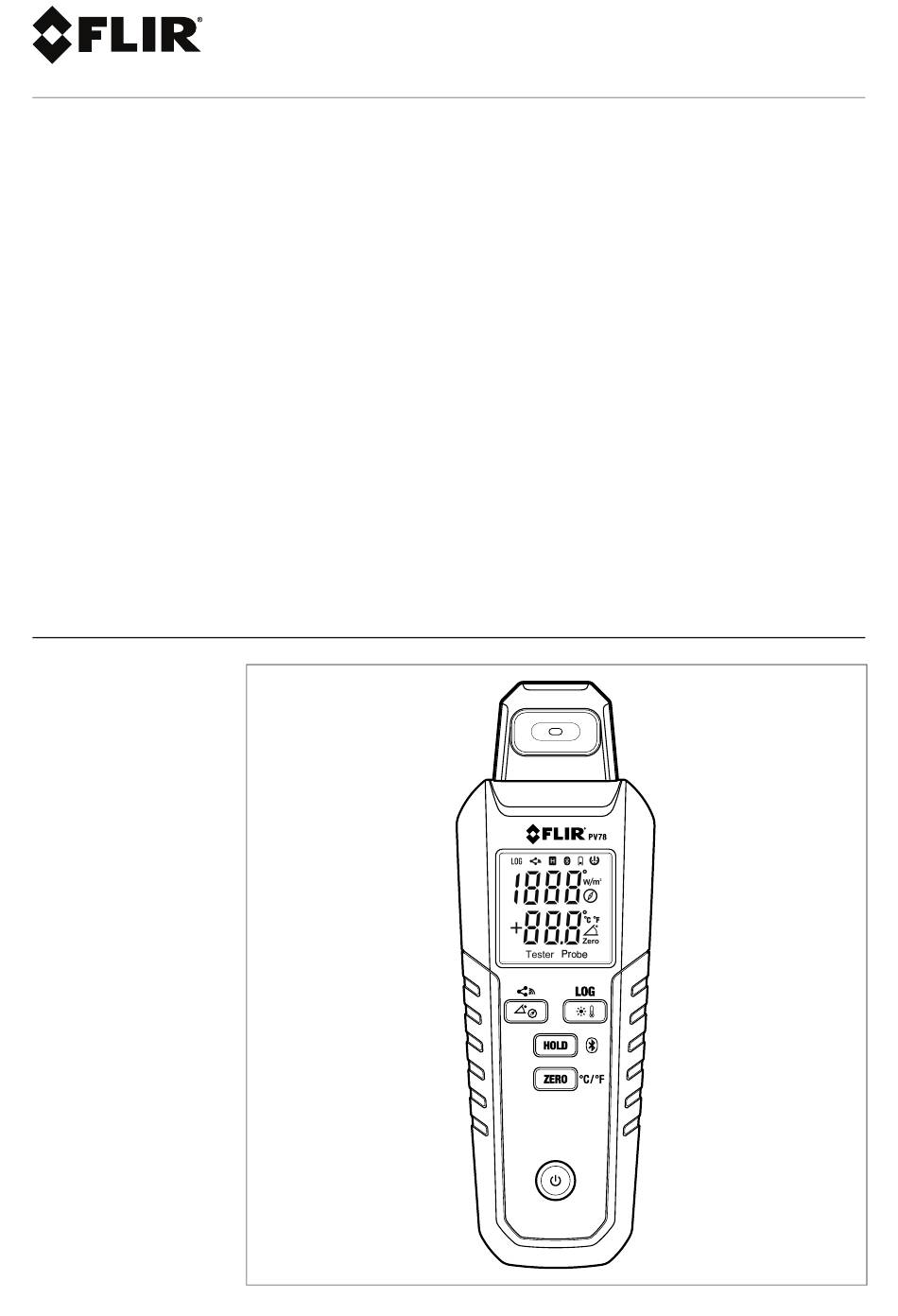

- Page 1 USER MANUAL Solar Irradiance Meter MODEL PV78...
- Page 3 USER MANUAL Solar Irradiance Meter #NAS100246; r. AA/103945/103947; en-US...
-
Page 5: Table Of Contents
Table of contents Introduction................1 Safety ................2 Safety Warnings and Cautions........2 FCC Compliance ............3 Product Description ............4 Meter (Front) ............. 4 Meter (Back) ............. 5 Control Buttons ............6 Display ..............7 External Probe ............8 Battery Power ..............9 Automatic Power OFF (APO)......... - Page 6 Table of contents Customer Support............. 22 Warranty ................23 #NAS100246; r. AA/103945/103947; en-US...
-
Page 7: Introduction
Introduction Thank you for your purchase of the FLIR PV78 Solar Irradiance Meter. The PV78 is designed for solar site surveys, panel installation, and mainte- nance of photovoltaic systems. It measures solar irradiation (in watts per square meter) as required by the IEC 62446-1 Electrical Safety of PV Installa- tions standard. -
Page 8: Safety
Safety 2.1 Safety Warnings and Cautions WARNING • Read, understand, and follow all safety information and operating instructions in this manual before using this meter. • Do not use this meter if it appears damaged or is operating abnormally. If in doubt, con- tact customer support. -
Page 9: Fcc Compliance
Safety 2.2 FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 10: Product Description
Product Description 3.1 Meter (Front) Figure 3.1 Front view of meter. See descriptions below. 1. Embedded temperature sensor (back). 2. External temperature probe jack. 3. Irradiance sensor. 4. Multifunction display. 5. Inclination/compass and data transmit button. 6. Data Hold and Bluetooth button. 7. -
Page 11: Meter (Back)
Product Description 3.2 Meter (Back) Figure 3.2 Rear view of meter. See descriptions below. 1. Embedded temperature sensor. 2. Tripod mount. 3. Battery compartment screw. 4. Battery compartment cover. 5. Scratch protection base. #NAS100246; r. AA/103945/103947; en-US... -
Page 12: Control Buttons
Product Description 3.3 Control Buttons Power ON/OFF button Short press to switch the meter ON/OFF. To disable APO, with the meter ON, long press this button (the APO icon will switch OFF). Irradiance, Temperature, and Data Log button. Short press to access the irradiance and temperature mode. This is the default mode of operation. -
Page 13: Display
Product Description 3.4 Display Figure 3.3 Meter display. See descriptions below. 1. Data logger is recording. 2. Data log file is transmitting. 3. Data Hold is active. 4. Bluetooth is active. 5. Battery is low. 6. APO is enabled. 7. Unit of measure for Irradiance. 8. -
Page 14: External Probe
Product Description 3.5 External Probe Figure 3.4 External temperature probe. See descriptions below. 1. Temperature sensor. 2. Suction cup to affix probe to panel. 3. Attachment base with scratch protection ring. 4. Meter connecting cable. #NAS100246; r. AA/103945/103947; en-US... -
Page 15: Battery Power
Battery Power The meter is powered by one 9 V alkaline battery. The battery compartment is located on the back of the meter, secured by one screw. Short press the power button to switch the meter ON or OFF. When bat- tery power is low, the battery icon will appear on the top of the display. -
Page 16: Irradiance Measurements
Irradiance Measurements Irradiance is a measure of light intensity in units of W/m (watts per meter squared). 1. Switch the meter ON. 2. The meter powers up in the Irradiance/Temperature mode. Press the Irra- diance button to return to this mode from other modes. 3. -
Page 17: Temperature Measurements
Temperature Measurements The meter measures the solar panel’s surface temperature in degrees C or F using the embedded temperature sensor or the external temperature probe (supplied). 6.1 Embedded Temperature Sensor 1. Switch the meter ON. 2. The meter powers up in the Irradiance/Temperature mode. Press the Irra- diance/Temperature button to return to this mode from other modes. -
Page 18: External Temperature Probe
Temperature Measurements 6.2 External Temperature Probe 1. Switch the meter ON. 2. The meter powers up in the Irradiance/Temperature mode. Press the Irra- diance/Temperature button to return to this mode from other modes. 3. Connect the external probe to the meter, as shown in Fig. 6.2. 4. -
Page 19: Inclination Angle
Figure 7.1 Ensure a level surface when performing a zero degree calibration. 7.2 Inclination Angle Measurements The PV78 has an internal inclination sensor that measures the solar panel’s tilt angle in degrees. Place the meter, face up, on the surface of the panel, and secure with electri- cal tape, if necessary. -
Page 20: Compass Heading
Compass Heading 8.1 Compass Considerations The PV78 has an internal compass that senses geomagnetic north for refer- ence orientation. If the meter is placed near metallic objects, the sensor will become disoriented. Take compass readings at least 6.6 ft. (2 m) away from metal objects including solar panels, metal roofs, reinforced concrete surfa- ces, and electronic equipment. -
Page 21: Compass Calibration
Compass Heading 8.3 Compass Calibration Calibrate the meter often, especially if it has not been used recently or if it is being used in a new location. Figure 8.2 Slowly rotate the meter 360 degrees on a horizontal plane for at least one minute, with more than six rotations. -
Page 22: Data Logger
Each time the data logger is stopped and started, the saved data log file is overwritten, since the PV78 does not support pause and resume logging. The APO function is disabled while the data logger is running, and the data logger will not start if the battery power is low. -
Page 23: Sharing A Data Log File With A Mobile Device
3. Open METERLiNK on your mobile device. The app will recognize the PV78 and begin showing real-time readings. Instructions for general use are provided in the application. 4. To share a file, long press the PV78 Transmit button . The transmit icon will flash on the PV78 display. -
Page 24: Changing The Data Log Time Stamp
Data Logger 9.4 Changing the Data Log Time Stamp The default time stamp is one minute, meaning that when the data log file is viewed on the mobile device, one reading will be shown for every minute of data logging. To change the time stamp, in order to view readings over a longer time inter- val, follow the steps below. -
Page 25: Maintenance
Maintenance 10.1 Battery Replacement To replace the 9 V battery, remove the screw located on the back (centre) of the meter and remove the battery compartment cover. When inserting a battery for the first time, remove the rectangular safety strip. Remove the old battery and dispose of responsibly and in accordance with all applicable regulations. -
Page 26: Specifications
Certifications CE, FCC, RCM EMC compliance EN61326-1/-2-2, EN300328, EN301489-1/-17, EN62479 FCC Part 15B/C Ingress rating IP40 Drop test 4.9 ft. (1.5 m) Supplied equipment PV78 meter, external temperature probe, battery, printed Quick Start guide, carry pouch #NAS100246; r. AA/103945/103947; en-US... -
Page 27: Measurement Specifications
Specifications 11.2 Measurement Specifications Irradiance Measurements Measurement range 50 to 1400 W/m Resolution 1 W/m Accuracy ± 5% Temperature Measurements Measurement range meter: 14 to 122℉ (–10 to 50℃) Probe: -22 to 212℉ (–30 to 100℃) Resolution 0.1℃ 0.2℉ (<100℉); 1℉ (>100℉) Accuracy ±2.7℉... -
Page 28: Customer Support
Customer Support Customer Support Telephone List https://support.flir.com/contact Repair, Calibration, and Technical Support https://support.flir.com #NAS100246; r. AA/103945/103947; en-US... -
Page 29: Warranty
Warranty This product is protected by FLIR’s Limited 3-Year Warranty. Visit www.flir.com/testwarranty to read the warranty document. #NAS100246; r. AA/103945/103947; en-US... - Page 30 #NAS100246; r. AA/103945/103947; en-US...
- Page 32 Customer support http://support.flir.com Copyright © 2025, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations.
