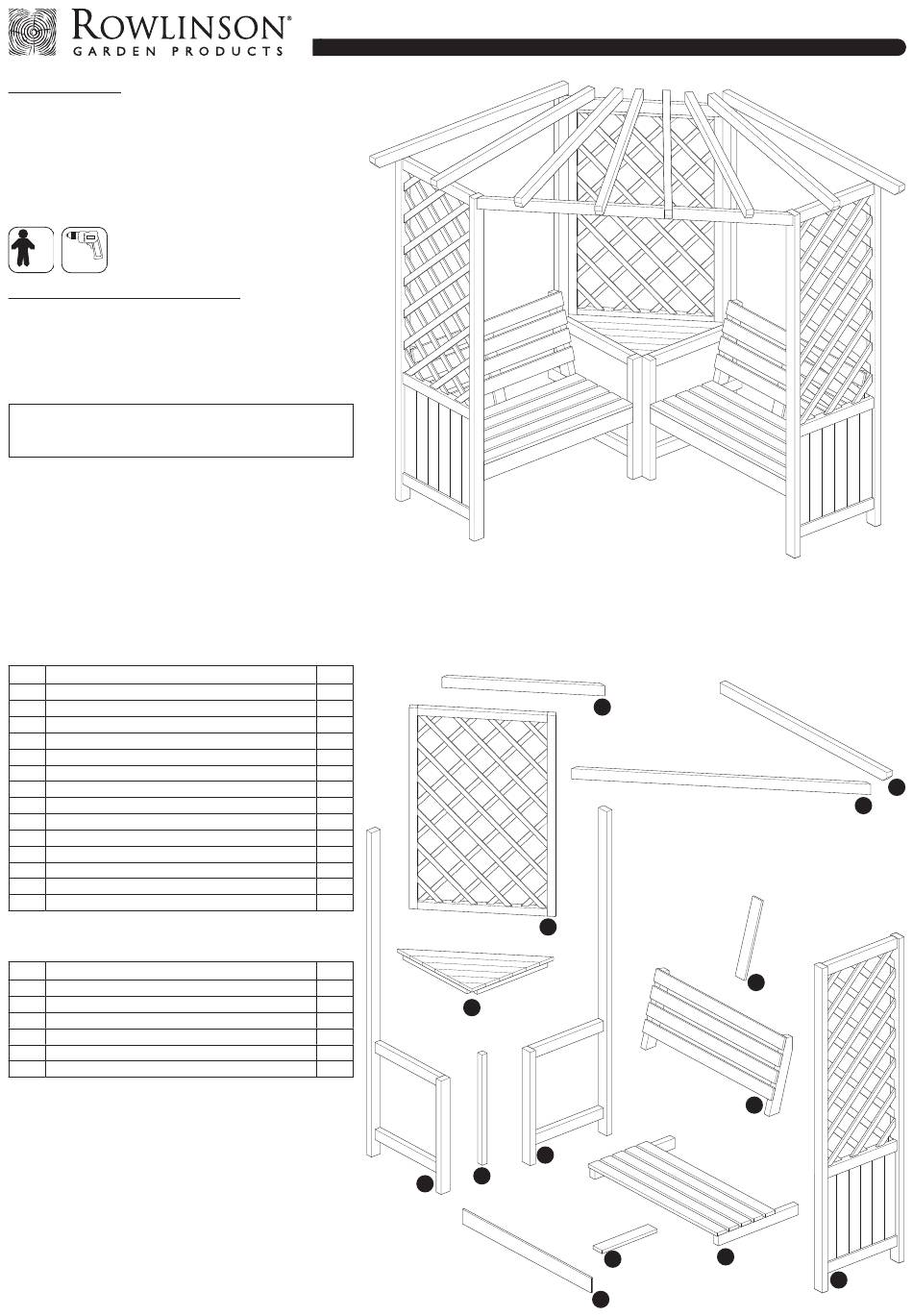

Rowlinson Garden Products SS698 Assembly Instructions

Before assembly
•
We recommend that time is taken to read the instructions
before starting assembly, then follow the step by step guide.
The instruction sheet is only a guide to the assembly. Certain
items may not be shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no less than two adults.
•
Never attempt to erect the assembly in high winds.
•
Drill components where indicated.
x2
Drill
Recommended tools for assembly
• Power Drill Screwdriver
• Cross-head screwdriver bit
• 3mm diameter drill bit
• Tape measure
Biocidal Products Regulation EU 528/2012
Korasit KS treated wood, is a treated article incorporating biocidal products: copper Hydroxide
®
Carbonate and N,N-didecyl-N-methypoly ammoniumpropionate . They protect wood against fungal
decay, rot and insect attack. Wear gloves when handling freshly treated wood. Avoid breathing dust when
cutting wood. Dispose of off-cuts responsibly.
No. Components
1 Seat
2 Seat support centre rail
(70x20x398mm)
3 Outer upright
4 Right-hand corner upright frame
5 Left-hand corner upright frame
6 Seat fascia
(90x12x1000mm)
7 Corner support
(35x35x680mm)
8 Table
9 Seat back
10 Seat back centre rail
(70x20x470mm)
11 Front top frame
12 Rear top frame
13 Corner trellis panel
14 Rafter
No. Fixing Kit
15 Metal bracket
16 100mm screws
17 80mm screws
18 60mm screws
19 40mm screws
20 35mm screws
Pemberley Corner Arbour
Assembly Instructions
Qty.
2
2
2
1
1
2
1
1
2
2
1
1
1
8
Qty.
4
16
8
24
22
14
56
7
5
12
13
4
2
6
English SS698
14
11
10
9
1
3
