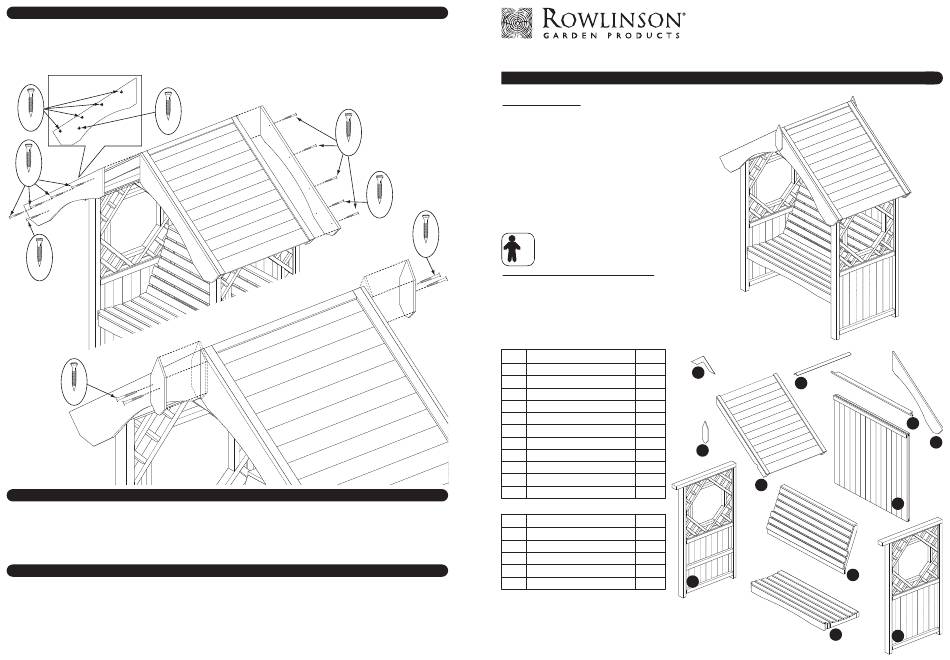

5. Bargeboards and finials
Position bargeboards at the front so that the top edge is flush with the roof line and the two boards meet evenly in the
middle secure each board using 4 x 40mm and 1 x 70mm screws. Screw through the pre-drilled holes, using the diagram
below for the positions of the 70mm screws. Attach a finial centrally over the join between the bargeboards use
2 x 40mm screws. In the same way fit two bargeboards and a finial to the back of the arbour.
40mm
70mm
40mm
70mm
40mm
Safety information
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Periodically check all fastenings for tightness
For domestic use only
If in doubt of any aspect regarding the assembly, use or safety of your arbour please contact us :
Help Line (Normal Office Hours) 01829 261 121
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
40mm
70mm
40mm
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2013 © Rowlinson Garden Products Ltd
Britannia Arbour
Assembly Instructions
Before assembly
•
We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step
by step guide.The instruction sheet
is only a guide to the assembly.
Certain items may not be shown to scale.
•
Check all components prior to assembly
•
This product should be assembled
by no less than two people.
•
Never attempt to erect the assembly
in high winds.
x 2
Recommended tools for assembly
•
Power drill/screwdriver
•
Cross head screwdriver bit
No.
Components
Qty.
1
Left upright
1
2
Right upright
1
3
Seat
1
4
Seat back
1
5
Back panel
1
6
Top rail
1
7
Roof panel
2
8
Gusset
2
9
Roof coverstrip
1
10
Bargeboard
4
11
Finial
2
No.
Fixing kit
Qty.
12
90mm screws
2
13
70mm screws
12
14
50mm screws
5
15
40mm screws
36
16
35mm screws
4
English SS307
8
9
11
7
4
1
3
6
10
5
2
