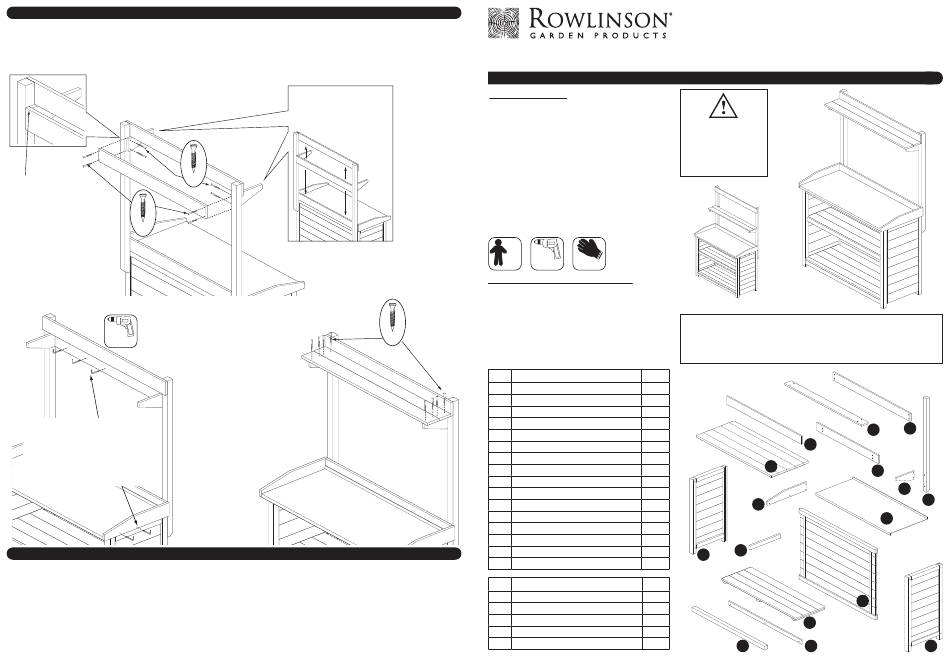

Rowlinson Garden Products SS305B Assembly Instructions

6. High level shelf
Position each shelf bracket at the desired height on the inside of the posts. Allow a gap at the back of the bracket
for the shelf bracket back board to sit between and flush to the back edge of the posts. Secure each bracket using
2 x40mm screws. When both brackets are in place fix the shelf bracket back board to the back edge of the brackets using
2 x 40mm screws at each end of the board. Screw the five hooks into you desired location. Place the two shelf boards
on top of the brackets and secure each board at each end with 2 x 40mm screws.
40mm
Important note:
Ensure the brackets
are positioned
so that the shelf
bracket back board
fits between the
40mm
posts.
It is recommended to drill a
pilot hole for each hooks with
3mm
a 3mm drill bit.
Drill
Important note:
The five hooks can be positioned
at you're preferred location.
For example, they can be evenly
spaced along the shelf bracket
backboard or into the worktop
sides.
Information
If in doubt of any aspect regarding the assembly, use or safety of your Multifunction Table, please contact us:
Help Line (Normal Office Hours) 01829 261 121
Email: support@rowgar.co.uk
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
www.rowgar.co.uk
Important note:
When attaching the shelf
brackets, they can be set
at you're preferred height.
40mm
We constantly improve the quality of our products, occasionally
the components may differ from the components shown and are
only correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2022 © Rowlinson Garden Products Ltd
Multifunction Table
Assembly Instructions
Before assembly
• We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step by
step guide. The instruction sheet is only
a guide to the assembly. Certain items may
not be shown to scale.
•
Check all components prior to assembly
• This product should be assembled
by no less than two people
• Drill all components where indicated
•
Some of the components may have sharp
edges wear protective work gloves while
handling components.
x 2
drill Gloves
Recommended tools for assembly
•
Power drill/screwdriver
• 3mm drill bit
• Cross head screwdriver bit
• Tape measure
•
Rubber mallet
•
Spirit level
•
Sharp knife
Components Qty.
No.
1 Back panel 1
2 Left panel 1
3 Right panel 1
4 Front rails 2
5 Mid shelf support 2
6 Shelf 2
7 Shelf coverstrips 2
8 Work top 1
Metal work top 1
9
10 Work top sides 2
11 Work top back board 1
12 High level shelf posts 2
13 Shelf bracket 2
14 Shelf bracket back board 1
15 Shelf board 2
16 Shelf back board 1
No. Fixing Kit Qty.
17 Hook 5
18 90mm screw 16
19 40mm screw 39
20 30mm screw 4
21 14mm screw 6
English SS305B
CAUTION
This product contains
sheet metal. Wear
protective work
gloves while handling
these components.
Biocidal Products Regulation EU 528/2012
Wolmanit CX treated wood is a treated article that incorporates biocidal products: copper
hydroxide carbonate/II/ and boric acid. They protect wood against fungal decay /rot/ and
insect attack. Keep away from food, drink and animal feeding stuffs. Avoid breathing dust
when cutting treated wood.
11
8
10
5
2
1
6
4 7
16
15
14
13
12
9
3
