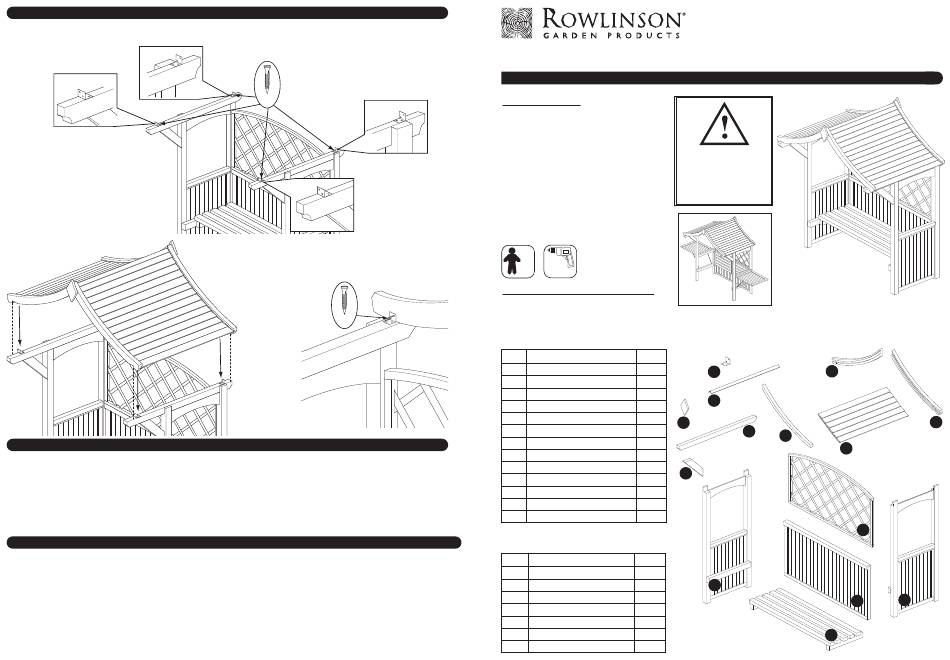

Rowlinson Garden Products SS141E Assembly Instructions

6. Roof section to uprights
Fix the L-brackets to the uprights using 2 x 40mm screws per bracket. Lift roof onto uprights so that rebates in the
roof rafters rest on the uprights, secure roof to L-bracket using 2 x 40mm screws per bracket.
Safety information
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
When the side tables are put in the raised position, ensure they are locked in place by turning the turn buttons.
When used as a Barbecue Station, the barbecue should not be left unattended.
Periodically check all fastenings for tightness
For domestic use only
If in doubt of any aspect regarding the assembly, use or safety of your Arbour please contact us:
Help Line: (Normal Office Hours) 01829 261 121
Email: support@rowgar.co.uk
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
www.rowgar.co.uk
40mm
40mm
We constantly improve the quality of our products, occasionally
the components may differ from the components shown and are
only correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2016 © Rowlinson Garden Products Ltd
BBQ Party Arbour
Assembly Instructions
Before assembly
•
We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step
by step guide.The instruction sheet
is only a guide to the assembly.
Certain items may not be shown to
scale.
•
Check all components prior to assembly
barbecue should not be
•
This product should be assembled
by no less than two people.
•
Never attempt to erect the assembly
in high winds.
•
Drill all components where indicated.
x 2
Drill
Recommended tools for assembly
•
Cross head screw driver
•
Drill with 3mm diameter drill bit
•
13mm Spanner
No. Components Qty.
1 Seat back 1
2 Seat 1
3 Left upright 1
4 Right upright 1
5 Upright top rail 2
13
6 Upright top rail support 2
7 Lattice back panel 1
8 Roof slat sections 4
9 FR/BL* roof rafters 2
10 FL/BR* roof rafters 2
11 Centre roof rafter 2
12 Roof coverstrips 1
13 Finials 2
*FR/BL = Front right/back left
FL/BR = Front left/back right
No. Fixing kit Qty.
14 Metal L-brackets 6
15 70mm screws 8
16 60mm screws 12
17 40mm screws 54
18 100mm Bolts 2
19 Nuts 2
20 Washers 2
English SS141E
Caution
When used as a
Barbecue Station, the
left unattended.
9
14
12
5
11
8
6
7
3
1
2
10
4
