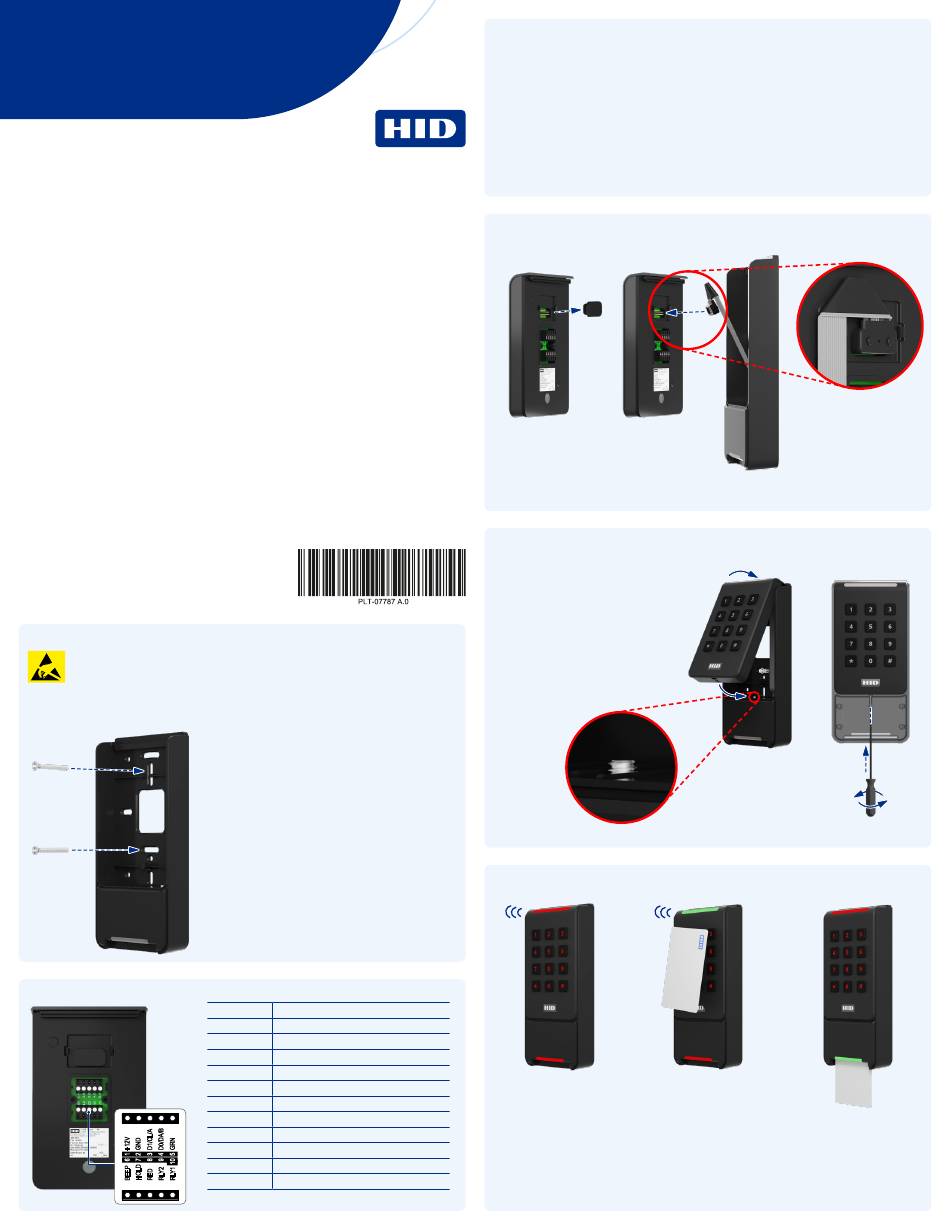

HID Signo 40TC Install Manual

HID Signo PIV Contact Reader
® ™
Install Guide
13.56 MHz / 125 kHz / 2.4 GHz Contact Reader
SRD Model: 40TC
Supplied parts
• HID Signo mechanical keypad reader (1)
• Mounting plate with contact module
• Install Guide (1)
• Flat head/countersunk 0.138-20 x 1.5" self–tapping screws (2) – for installing the reader directly to a wall
(no junction box)
• Flat head/countersunk 0.138-32 x 0.375" machine screws (3) – for Imperial (US) junction box installation
(2) and attaching the reader to the mounting plate (1)
• Flat head/countersunk M3.5 x 12mm machine screws (2) – for Metric (EU etc) junction box installation
• Flat head/countersunk 0.138-32 x 0.375" security screw (1)
• 5-pin terminal connectors (2)
Recommended parts (not supplied)
• 5/64" hex key tool for securing the reader to the mounting plate with contact module
(part number EQM-00843)
• Cable, 5-10 conductor Twisted Pair Over-All Shield and UL approved, Belden 3107A or equivalent (OSDP)
• Certified LPS DC power supply
• Metal or plastic junction box
• Drill with various bits for mounting hardware
• Mounting hardware
• 10 degree angled spacer for alternate mounting scenarios (part number 40C-K-10). Refer to the Reader
and Credentials How to Order Guide (PLT-02630) for available options and part numbers at
www.hidglobal.com/documents/how-to-order. For installation refer to the HID Signo PIV Contact 10
Degree Spacer Install Guide (PLT-08107)
• HID® Reader Manager™ app for configuration of the reader (available for download from the App Store
or Google Play)
1. Mount the mounting plate with contact module
ATTENTION
Observe precautions for handling
ELECTROSTATIC SENSITIVE DEVICES
IMPORTANT: If you are mounting multiple HID Signo readers to metal stud walls, and the readers are
positioned within six feet (1.8 m) of each other, refer to the additional installation recommendations in
https://www.hidglobal.com/PLT-05722
technical bulletin PLT-05722
2a. Wire the reader
CAUTION: Install the reader on a flat, stable surface.
Failure to do so may compromise the IP rating and/or
tamper feature. If mounting on or near metal, a spacer
is recommended for optimal read performance. Refer
to the Readers and Credentials How to Order Guide
(PLT-02630) for available options and part numbers.
CAUTION: Use the supplied screws to ensure correct
fitting and to avoid damaging the reader or mounting
plate. HID is not responsible for damage due to use of
unapproved mounting hardware.
For Imperial (US):
Use supplied flat head/countersunk 0.138-32 x 0.375"
screws.
For Metric (EU etc):
Use supplied flat head/countersunk M3.5 x 12mm
screws.
When installing with a 10 degree angled spacer, refer to
the HID Signo PIV Contact 10 Degree Spacer Install
Guide (PLT-08107).
TERMINAL DESCRIPTION
1 +VDC
2 Ground (RTN)
3 Data 1 / Clock / RS485-A*
4 Data 0 / Data / RS485-B*
5 LED Input (GRN)
6 Beeper Input
7 Hold Input
8 LED Input (RED)
9 Tamper 2 (RLY2)
10 Tamper 1 (RLY1)
— Drain (pigtail models only)
*Dependent upon reader configuration.
2b. Wire the reader
Notes:
• Wiring the reader incorrectly may permanently damage the reader.
• Previous iCLASS® readers had reversed RS-485 wiring (P2-7 & P2-6 - A & B). When upgrading to a
HID Signo reader, ensure proper connections as defined above.
• Data 0 and Data 1 wires for Wiegand may be reused for OSDP. However, standard Wiegand cable
may not meet RS485 twisted pair recommendations.
• For OSDP cable lengths greater than 200 ft (61 m) or EMF interference, install 120Ω +/- 2Ω resistor
across RS-485 termination ends.
• For readers with Tamper Evident Labels, inspect your reader after first unboxing. If any seals are
broken, please contact HID Technical Support.
3. Connect the contact module to the reader
1
https://
1. Remove the grommet from the back of
the Signo reader.
2. Plug the backplate connector into the
the Signo expansion port.
4. Secure the reader to the mounting plate
1. Hook the top of the reader on the top of
the mounting plate.
2. Align the bottom of the reader with the
bottom of the mounting plate.
3. Insert a hex key tool through the hole at
the bottom of the mounting plate and
tighten the captive screw to hand tight.
Note: Make sure that the screw that is
captive in the mounting plate is pushed
down before attaching the reader to the
mounting plate.
5. Power and test the reader
Power the reader. The
reader will beep and the
LED will flash.
Note: Idle LED may vary
depending on reader
configuration.
2
1
2
Test the reader with a Test the reader by inserting
credential. The reader a credential into the card
will beep and the top slot. Wait for the LEDs to
LED will flash. Enter the flash, then enter a PIN.
credential PIN and wait
for a green LED.
3
