Assembly Book
Revised July 12, 2024
Manufactured by RBS Holdings, LLC
205 Arlington Drive
Greenville, PA 16125

Advertisement

loading
Need help?

Need help?

Do you have a question about the Shedquarters and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Best Barns Shedquarters

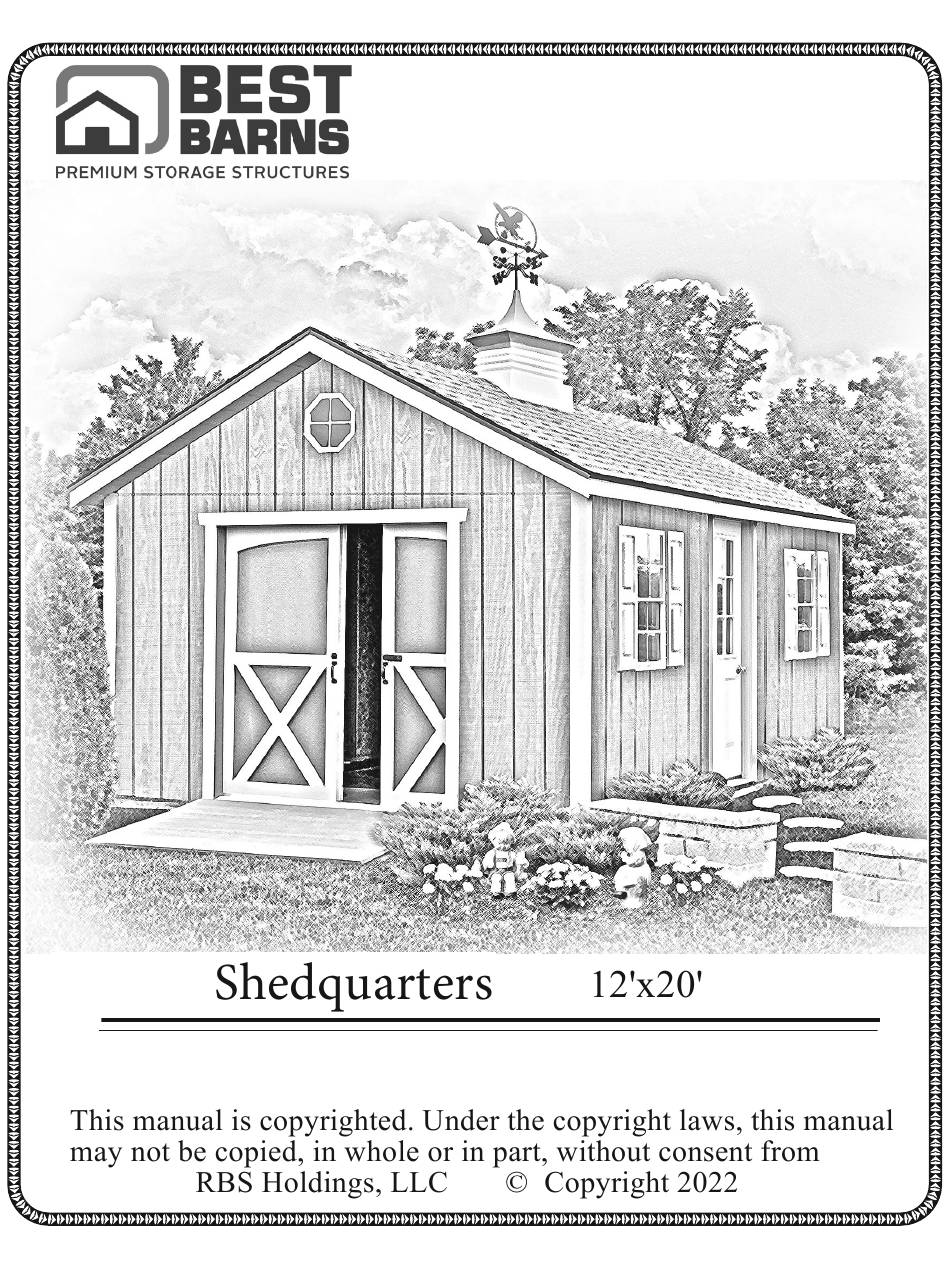

  • Page 1 Assembly Book Revised July 12, 2024 Manufactured by RBS Holdings, LLC 205 Arlington Drive Greenville, PA 16125...
  • Page 2 MPORTANT NFORMATION BOUT Always wear safety glasses when cutting or nailing! Not included in kit: Primed Siding Detail LAP Edge Tongue Edge 800-245-1577 724-866-4357 Email...
  • Page 3 Constructing Details for Optional Floor System 15-1/4" 16" 16" Treated lumber may be thicker than 1-1/2". Take this into account when cutting the length of floor joists. Shorten joist measurements if necessary to obtain 12'-0" building width. 4x8 Flooring Front Floor Section 4x4-8' Treated Runner 4x4-12' Treated...
  • Page 4 Step 1 Assemble Sidewalls Do not discard any material until construction is complete, including short 2x4 blocks. Wall Plates Top Wall Plate Bottom Plate 24" 19-3/4" 24" Stud Spacing The length of pre-cut studs will vary from 92-1/4" to 93" depending on you locality.
  • Page 5 Step 3 Assemble 12' Back Wall Wall Plate Top Wall Plate Bottom Plate 24" 23-1/4" 24" Stud Spacing 144" Wall Plate Pre-Cut Wall Studs 144" Bottom Plate Depending on length of pre-cut studs siding may extend below bottom plate. Flush to Top Edge Siding Flush...
  • Page 6 Step 4 Assemble Front Wall Frame Install these Studs Centered 33" 33" 2x4 Blocks nail nail 2x8 Door Header 78-1/2" Header Support 72" Between Header Supports Flush Cut Siding Flush 'LAP' Edge Flush...
  • Page 7 Step 5 Set Wall Panels IMPORTANT End Marked 'C' Back Wall End Marked 'C' Cut 2x4 Plate End Marked 'C' from Opening...
  • Page 8 Step 6 Assemble Roof Gables that may have an angle on one end Barbed Metal Plate 80-1/2" long 2x4 Truss Rafter 2x4 Block Bottom Gable Plate 23-1/2" Gable Stud 2x4 Block...
  • Page 9 Step 7 Assemble Roof Trusses Detail B Ridge Gusset 80-1/2" Truss Rafter Collar Tie Flush with Rafter 2x4-82" Collar Tie Detail 'B' 80-1/2" Truss Rafter 2x4 Block...
  • Page 10 Step 8 Install Primed Soffit and Fillers Flush with Inside of 2x4 3-1/2" Filler 7" Soffit Side Wall Front Wall Tongue Edge Flush Step 9 Install Roof Gables 'Z' Flashing...
  • Page 11 Step 10 Install Siding on Gables Gable siding is factory cut to be installed either working from left to right or right to left. Regardless of the direction always begin with the 'LAP' Edge flush with end of the gable. LAP Edge Flush Tongue Edge...
  • Page 12 Step 12 Layout Roof Trusses & Install Soffit Blocks Important: Detail 'D' Measure from Backside of 2x4 Detail 'D' 20-5/8" 24" Inside of Building 2x4 Block 2x4 Block with Gable Frame...
  • Page 13 Step 13A Install Trim packed with the hardware Siding Filler Side Back Wall Wall When installing trim in later steps space nails and seal as described in this step. Side Back Wall Wall See diagram. 72" Long 1x3 Trim Nail Staggered Nail 3/8"...
  • Page 14 Step 13B Install Trim Do not install gable trim on front in this step. called a keystone Keystone 82-1/2" Long 1x4 Trim 72" Long 1x4 Trim...
  • Page 15 Step 14 Install Fascia on Side Walls See Detail 'E' Roof Sheathing 1x4 Fascia 2x4 Tie Plate 2x4 Soffit Block Detail 'E' Nail Fascia to 2x4 Block 1x4 -6' Fascia Board Step 15A Install Roof Sheathing 42-3/8" Long 2x3 Front Gable...
  • Page 16 Step 15B Install Roof Sheathing continued Sheets should meet at center of trusses when installed 36-1/2" x 96" 36-1/2" x48" 36-1/2" x 72" 36-1/2" x 33-1/4" 48" x 72" 48" x 96" 48" x 81-1/4" Step 16 Install Front Soffit 42-3/8"...
  • Page 17 Step 17 Install Door Flashing 3-1/2"x5" Flashing Galv. Sill 82-1/2” Long 1x4 Gable Trim Step 18 Install Gable & Door Trim Step 13 this board has angle cuts on both ends Step 19 Finish Side Wall Trim 1x4 Fascia...
  • Page 18 Step 20 Install Pocket Doors Track Important 2x3 Track Support Assembly 2x8 Door Header Notch 82-3/4" View From Inside to Floor Galv. Sill View From Inside Screw Used as Spacer Treated Sill Board Building Tip; run a bead of caulking where flashing, treated sill and aluminum sill meet to prevent moisture from penetrating.
  • Page 19 Step 21A Install Doors see detail below shown below IMPORTANT: Install track rollers on this track leg. Screw Stop Adjustment Screws First DoorTrim & Siding Extends Past Siding...
  • Page 20 Step 21B Install Doors continued Sliding Bolt on the back of left door Step 22 Install Roofing — Not Supplied in Kit Metal Roof Edge Optional Roof Covering Roof Sheathing List for Wood Doors...
  • Page 21 12 x20 List angle cut angle cut Additional material not used in this model Material Supplied by Local Supplier Material Shipped in 4' Extension Kit...
