- Page 1 W30 Smart Ec / Emerald eZA Single-phase Motor Installation, Operation and Maintenance Manual...
- Page 2 For further information or explanations, check our FAQ at www.weg.net/br/faq. The instructions presented in this document are valid for W30 Smart Ec / Emerald eZA products. 2 | W30 Smart Ec / Emerald eZA Manual...
-
Page 3: Table Of Contents
10. Maintenance ....................26 11. Environmental information ................ 27 12. Additional information................27 12.1. Warranty term .................... 27 13. Technical specifications ................28 13.1. Power supply ..................... 28 13.2. Standards and directives ................28 W30 Smart Ec / Emerald eZA Manual | 3... -
Page 4: General Information

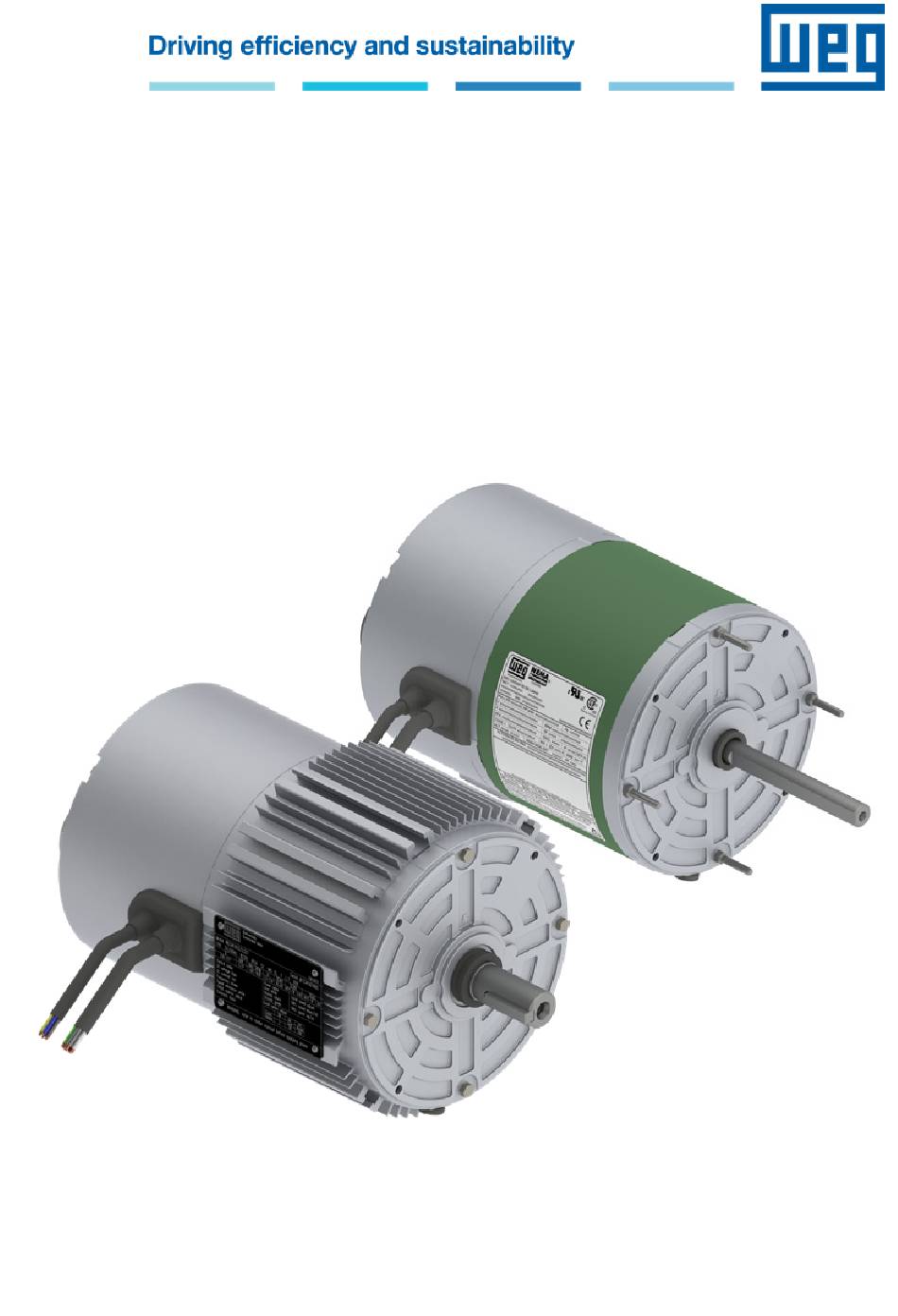

1. General information W30 Smart Ec / Emerald eZA product is an Electronically Commutated Motor composed by a permanent magnet motor and a drive with features customized for commercial ventilation solutions. This Manual contains only the required information that allows qualified and trained personnel to carry out their services. -
Page 5: Shipment, Storage And Handling
Check the conditions of the motor immediately upon receipt. Where any damage is noticed, this must be reported in writing to the transportation company, and immediately communicated to the insurance company and to WEG. In this case, no installation job can be started before the detected problem has been solved. -
Page 6: Installation
-20 °C and +60 °C for TEAO condition Air relative humidity: 5 % to 95 % non-condensing. Altitudes up to 1000 meters above sea level (nominal conditions) Consult WEG engineering for different temperatures, ventilation and altitudes. 6 | W30 Smart Ec / Emerald eZA Manual... - Page 7 1 - All belt loads are considered to act in vertically downward direction. 2 - Overhung loads include belt tension and weight of sheave. 3 - Overhung load limits do not include any effect of unbalanced magnetic pull. W30 Smart Ec / Emerald eZA Manual | 7...
- Page 8 The motor must always be positioned so the drain hole is at the lowest position; Slinger: W30 Smart Ec / Emerald product in vertical shaft up mounting should be fitted with water slinger ring to prevent water ingress inside the motor. Consult WEG about this optional. ATTENTION! Motors installed outdoors or in the vertical position require the use of additional shelter to protect them from water.
-
Page 9: Power Connections
Make the line, neutral and ground connections according nameplate indication; WEG declares that the W30 Smart Ec / Emerald eZA motor line is intended to be used as a part of an end-product and thus is not an independently used machine. All cables of this product need to be internally installed into the enclosure of the final product. -
Page 10: Emc Requirements For Conforming Installations
Table 5 - W30 Smart Ec - EMC category compliance for drive attached to the motor, according to IEC 61800-3 For any other condition different than here described please consult WEG for specifying a solution that better comply with your installation requirements. -
Page 11: Operation Instructions
If the rotation direction is changed while the product is running, the motor will decelerate, reverse the direction and accelerate to the same speed that was running before. Local speed adjust: W30 Smart Ec / Emerald eZA Manual | 11... - Page 12 Pressing the button >1s, the rotation increase / decrease rate is 300 RPM/s The product will not go to speeds higher than the value adjusted to be the maximum speed by WEG EC Motor Speed Controller or Modbus communication; or, case not used, the nominal Nameplate Speed;...
- Page 13 DC current Black 300 m 24 AWG Frequency Brown Black 10 m 24 AWG Modbus (optional) Yellow Black 10 m 24 AWG Table 7 - Maximum conductors' length recomended for signal wires W30 Smart Ec / Emerald eZA Manual | 13...
-
Page 14: Control Output Reference
On the W30 Smart Ec standard communication version, there are two ways to change the maximum speed value for the remote speed adjust signals: Using the product local tact buttons (only up to the maximum speed set by WEG EC Motor Speed Controller) Select local speed reference in the DIP switch number 1 (switch in ON position - see item 7.2);... -
Page 15: External Speed Controller (Optional)
7.5. External speed controller (optional) The target speed and the maximum speed adjust can be done using the external WEG EC Motor speed controller. Connect the control cables at the WEG EC Motor speed controller borne. Below picture gives the connection sequence. -
Page 16: Fire Mode Function (Optional)
WEG strongly recommends to follow the cares and procedures above before using the W30 Smart Ec / Emerald eZA in the “Fire Mode” function, and it will not be liable to the final user or third parties for any losses or damages direct or indirectly incurred due to the programming and operation of the W30 Smart Ec / Emerald eZA in “Fire Mode”... -
Page 17: Product Protections And Fault Diagnosis
IPM critical temperature is reached, or when the rotation speed is lower than 300 RPM. Output overcurrent / short-circuit protection; W30 Smart Ec / Emerald eZA products have a LED in the opening on the back side that indicate the solution status and to help in the fault diagnosis: The LED #1 will stay ON while the motor is running (speed bigger than zero);... - Page 18 Table 10 - The blinking behavior according to fault type *1 Valid for all Software / Firmware versions of W30 Smart Ec / Emerald eZA single-phase line products. *2 Only to be performed by a professional technical service authorized by WEG *3 Only valid for MODBUS communication versions at address 0x0050.
-
Page 19: Information For Contacting Technical Support
(W(06) 0x01C4) and Local/Remote mode (W(05) 0x00DC). Define the application maximum speed in the register W(06) 0x01C2 (max speed) Define the motor rotation speed in the register W(06) 0x01C3 (target speed) W30 Smart Ec / Emerald eZA Manual | 19... -
Page 20: Led Indication
R(02): read Discrete Inputs; R(03): read Holding Registers; R(04): read Input Registers. Write: W(05): write single Coil; W(15): write multiple Coils; W(06): write single Holding Register; W(16): write multiple Holding Registers. 20 | W30 Smart Ec / Emerald eZA Manual... - Page 21 For software version V1.03 and V1.04S02 use table 12. For software version V1.09, 1.10 and 1.11 use table 13. All other examples in this manual are based on the function codes and register address from software version V1.09. Contact WEG if there is any questions regarding software version.
- Page 22 Slaver Parity and stop bit W: 0009 setting 0: No action W(06) Enable serial parameters W: 000A 1: Enable W(06) Communication time-out period (Seconds) W: 000B Value in seconds (Default:0 - disabled) 22 | W30 Smart Ec / Emerald eZA Manual...
- Page 23 0351 Running or stopped 1: Motor running R (03) W (06) 0x0190 0400 Safety Speed 0: out fire mode R (01) W (05) 0x0191 0401 Fire Mode 1: in fire mode W30 Smart Ec / Emerald eZA Manual | 23...
-
Page 24: Special Functions
Time-out state: When the product enters time-out state (communication loss), the motor will automatically start the sequence for “Safety Speed”. The sequence for Safety speed will differ according to the firmware version the motor if using. 24 | W30 Smart Ec / Emerald eZA Manual... -
Page 25: How To Exit The Time-Out State
NOTE: When the Analogue function is activated through the 10VDC method described above, the register W(05)/R(01): 0x00DD will automatically change to the value “0” as the Modbus is “Disabled”. W30 Smart Ec / Emerald eZA Manual | 25... -
Page 26: Fire Mode Function
50033244 available in the website or contact WEG. When contacting WEG, please, have the full description of the motor at hand, as well as the Motor model, Batch Number and manufacturing date, indicated on the motor nameplate. -
Page 27: Warranty Term
It will not cover defects and/or problems resulting from force majeure or other causes not imputable to WEG, such as, but not limited to: incorrect or incomplete specifications or data supplied by the customer; transportation, storage, handling, installation, operation and maintenance not complying with the provided instructions;... -
Page 28: Technical Specifications
UL/IEC 61800-5-1:2007: Adjustable speed electrical power drive systems - Part 5-1: Safety requirements - Electrical, thermal and energy 2017/2102 (amending 2011/65/EU) - RoHS 2014/35/EU - The Low Voltage Directive (LVD) 2014/30/EU - Electromagnetic Compatibility (EMC) Directive 28 | W30 Smart Ec / Emerald eZA Manual... - Page 29 Notes W30 Smart Ec / Emerald eZA Manual | 29...
-
Page 30: Eu Declaration Of Conformity
We undertake to transmit, in response to a reasoned request by the national authorities, relevant information on the product identified above (partly completed machinery) through WEG authorized representative established in the European Union. The method of transmission shall be electronic or physical method and shall be without prejudice to the intellectual property rights of the manufacturer. -
Page 31: Declaration Of Conformity
We undertake to transmit, in response to a reasoned request by the national authorities, relevant information on the product identified above (partly completed machinery) through WEG authorized representative established in the United Kingdom. The method of transmission shall be electronic or physical method and shall be without prejudice to the intellectual property rights of the manufacturer. - Page 32 +55 47 3276.4000 motores@weg.net Jaraguá do Sul - SC - Brazil Cod: 50078700 | Rev: 05 | Date (m/a): 12/2024. The values shown are subject to change without prior notice. The information contained is reference values.
