Summary of Contents for Datecs EP-700

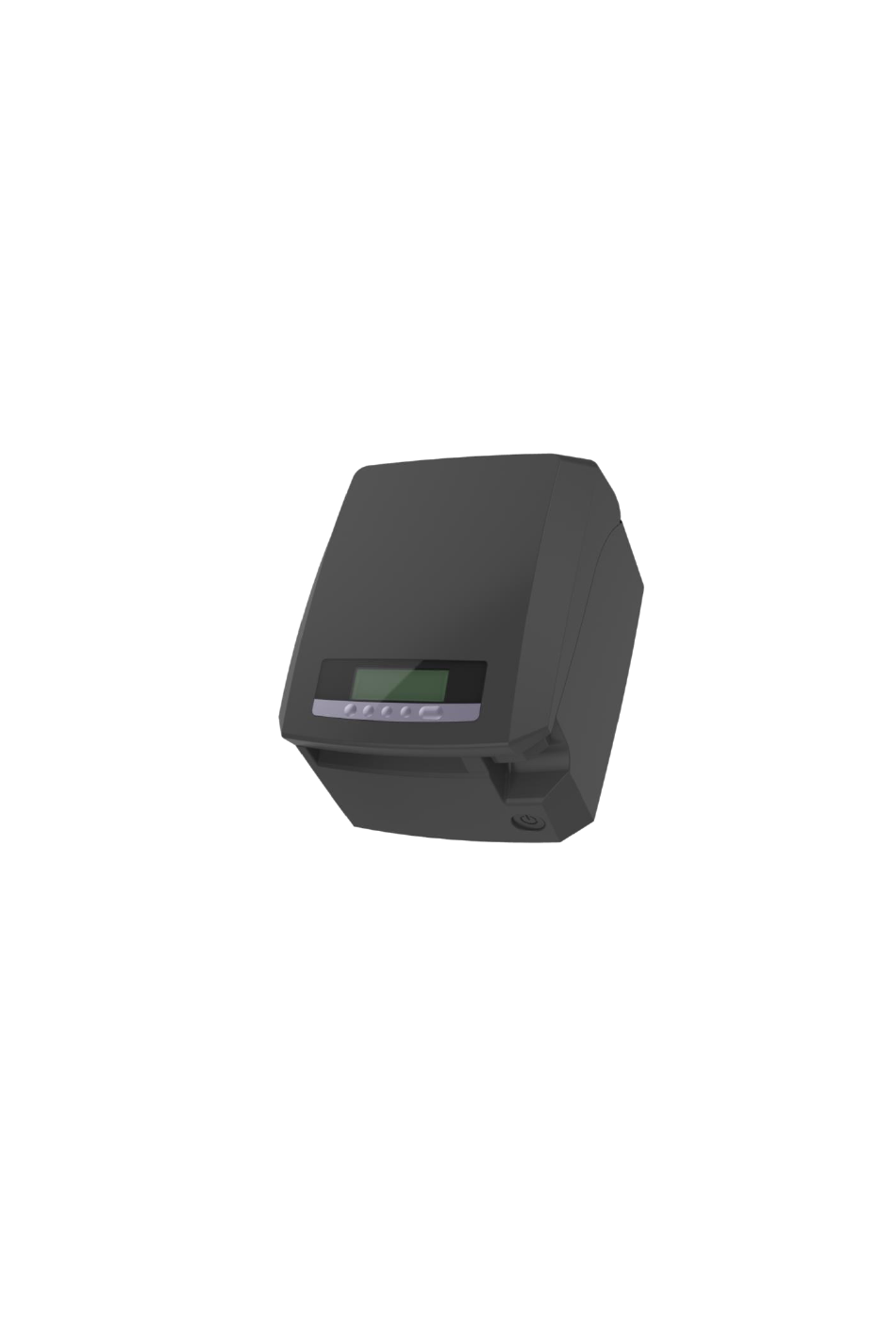

- Page 1 1 DATECS EP-700 User Manual...
- Page 2 1 DATECS EP-700 User’s Manual Version Data Range Change description Author 1.0.0 12.05.2025г. All document First release Stefan Derev Updated section “Regulatory” 1.1.0 15.05.2025г. Regulatory Stefan Derev UM 07.01.84/v1.1.0...
- Page 3 1 DATECS EP-700 User’s Manual THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD. UM 07.01.84/v1.1.0...
- Page 4 1 DATECS EP-700 User’s Manual Regulatory FCC Statement FCC ID: YRW-EP700 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 5 1 DATECS EP-700 User’s Manual 1. Introduction EP-700 is the highest-class ESC/POS printer. It is designed to support large retail points of sales and services offering RS 232, USB, Bluetooth, Wi-Fi and Ethernet connectivity. UM 07.01.84/v1.1.0...
- Page 6 1 DATECS EP-700 User’s Manual 2. Technical and functional specifications Parameter Comments Printing Mechanism Direct line thermal printer Printing Width 80 mm (640 dots) Printing Resolution 203 x 203 dpi (8 x 8 dpmm) Printing Speed Max 200 mm per second Font A –...
- Page 7 1 DATECS EP-700 User’s Manual 3. Device operation 1. 220V Power supply 2. Drawer 3. Display 4. USB Type B Port 5. RS232 Port 6. Ethernet 7. Display and control panel 8. Open top cover button 9. Power On/Off button...
- Page 8 1 DATECS EP-700 User’s Manual 4. Control panel and buttons 4.1. Buttons functions Button Function - Power ON/OFF the printer - If there is no selected menu and the printer is in working state – feeds paper - If a menu is selected, enter the selected option...
- Page 9 1 DATECS EP-700 User’s Manual 5. Main menu To enter the main menu, hold button for 2-3 seconds. To move through the menu use buttons. To enter a menu press button. To exit a menu press button. 5.1. Common settings 5.1.1 Printer name...
- Page 10 1 DATECS EP-700 User’s Manual 5.7 Diagnostic 5.7.1 Short 5.7.2 Full 5.7.3 Test mode 5.8 Set clock 5.9 Factory reset 5.10 Save settings UM 07.01.84/v1.1.0...
- Page 11 1 DATECS EP-700 User’s Manual 6. Power ON/OFF the printer The ESC/POS printer can be powered ON by pressing the button. The ESC/POS printer can be powered OFF by pressing and holding the button. 7. Changing the paper roll The ESC/POS printer has easy paper loading function.
- Page 12 8. Bluetooth and Wi-Fi ESC/POS Printer EP-700 provides Bluetooth and Wi-Fi communication. On the connected device (COTS or PC) a special application must be installed for working with ESC/POS EP-700 Printer. For more information, please contact your distributor. UM 07.01.84/v1.1.0...
- Page 13 1 DATECS EP-700 User’s Manual 9. Work with system The ESC/POS printer must be connected to a PC, tablet, telephone or some other device via USB, RS232 or LAN. The ESC/POS printer executes commands that are sent by user’s application.
- Page 14 1 DATECS EP-700 User’s Manual 10. Safety Please contact with your local Datecs representative or service provider to receive a spare original battery. Don't leave ESC/POS Printer for long time without main battery, otherwise cryptographic keys can be deleted. •...
- Page 15 1 DATECS EP-700 User’s Manual Never use thinner, trichloroethylene, or ketone-based solvents – they can deteriorate plastic or rubber parts. Do not spray cleaners or other solutions directly onto the display. UM 07.01.84/v1.1.0...
