- Page 1 1 DATECS EP-60 ESC/POS Printer PROGRAMMER'S MANUAL Detailed Description of the Commands...
-
Page 2: General Outline

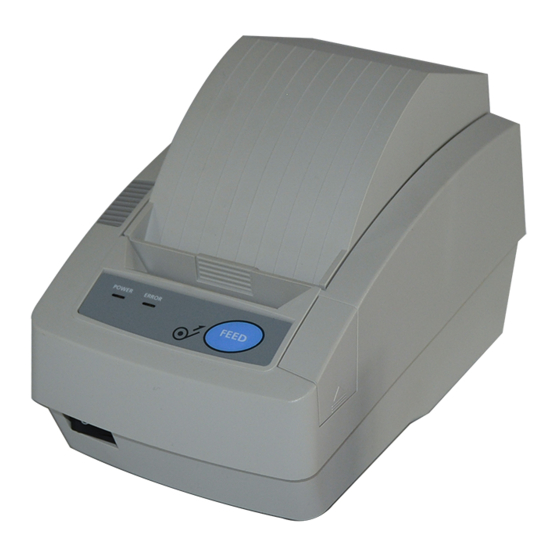

General Outline The EP-60H is a compact-sized, line thermal printer developed for variety of applications. It can be used as a data communication terminal, POS terminal, kitchen terminal, etc. It can be used in variety of applications because: it is compact and light; the thermal printing mechanism combines both high speed and low noise printing;... -
Page 3: Auto Cutter Jam
Auto Cutter Jam If the auto cutter is jammed, use the Line Feed button to try to release the cutter. When you press the button the printer will try to re-initialize the cutter and retard it in home position. However if the cutter jam cannot be resolved this way, release it manually until the printer is able to retard it in home position. -
Page 4: Serial Interface Cable Attachment
Note: If the code table is selected using the DIP switches, ESC t command is disabled and the code table cannot be changed by a command. In the Chinese version of the printer only Sw8 is defined for changing the code table: Code page USA CP437 Chinese GB2312... -
Page 5: Dataflow Control
Dataflow Control The printer supports only software (XON/XOFF) protocol. Data reception is disabled when the buffer is close to its upper limit. Reception is re-enabled when the number of bytes in the buffer is below some limit. The printer sends special control characters – XON (11h) to enable and XOFF (13h) to disable transmission. -
Page 6: Command List
Command List v 1.00 Sounds the beeper 07H Horizontal tab command 09H Printing and paper feed 0AH Print command 0DH ESC RS Sounds the beeper 1BH 1EH ESC SP Setting the right space amount of the character 1BH 20H n Setting the Euro symbol position 1BH 23H n ESC # ESC $... - Page 7 Selecting the character code table ESC t ESC v Transmitting the printer status 1BH 76H n ESC x Reversing the print direction 1BH 78H n Specifying/canceling the inverted characters 1BH 7BH n ESC { Printing a self-test GS ( A GS B Specifying/canceling the black/white inverted printing GS L...
-
Page 8: Detailed Description
Detailed Description 1. BEL Sounds the beeper [Code] [07h] [Outline] Sounds the beeper. 2. HT Horizontal Tab Command [Code] [09h] [Outline] Shifts the printing position to the next horizontal tab position. • Ignored when the next horizontal tab position has not been set. •... - Page 9 [Outline] This command is provided because most of the old OEM/DOS code pages do not have the euro symbol mapped. This command shows the direct position of the euro symbol in the code table. If n is given value less than 20h the Euro symbol will not be shown. [Caution] When the code page is changed the Euro symbol position is cleared! The Euro symbol position must be re-entered any time the code page is changed (see below).
- Page 10 „n“ indicates the start character code and „m“ indicates the end character code. To define only one character set n=m. „a“ is the number of dots in horizontal direction. „D “ is the data to be defined. The number of data for each symbol is s x a. Each symbol defines with three bytes of data in vertical direction followed by the next three bytes that define the next one-dot column, etc.
- Page 11 • An underline is attached to the full character width, which, however, is not attached to the part having been skipped by the horizontal tab. Neither is it attached to 9 - right-turned characters. • The underline width is as having been specified by <ESC - >. (The default setting is 1 dot width) •...
- Page 12 • When bit image data have been input in excess of dot position of one line (432 dots) , the excess data are discarded. • d is bit image data, the bits subject to printing are taken as "1" and those not as "0". [Caution] •...
- Page 13 18. ESC 8 Temporary store current print settings [Code] [1Bh] + [38h] [Outline] Use command ‘ESC 9’ to restore the parameters. The parameters stored are: º degrees symbols, font size, underline, double height/width symbols, rotated by 90 emphasize, italic style, downloaded font active, rotated by 180º degrees symbols, black and white inverse symbols, reverse print direction (from right to left), Chinese/Arabic code table selected (only in the Chinese/Arabic printer version), print density, printing speed, left margin, printing width, line height, intercharacter space,...
- Page 14 • The current code tables, print intensity and printing speed are not reset. • If switch 5 is OFF, the command clears the downloaded font and bit image too. [See also] ESC ^ and ESC _ 23. ESC D [ n ] k NUL Setting Horizontal Tab Position [1Bh] + [44h] + n + …...
- Page 15 26. ESC I n Specifying/cancelling italic printing (ESC I n) [Code] [1Bh] + [49h] + n [Range] {0 <= n <= F Fh} [Outline] Specifying/canceling the double printing. • "n" is valid only for the lowest bit (n0). •...
- Page 16 30. ESC V n Specifying/Canceling 90º -right- turned Characters [Code] [1Bh] + [56h] + n [Range] {0 <= n <= 1 }. [Outline] Specifying/canceling characters 90º -right- turned character. • "n" means the followings. 0 Canceling 90º -right- turned Characters 1 Specifying 90º...
- Page 17 Meaning 28.0 Supports IrDA mode 28.1 Supports magnetic card reader 28.2 Supports simultaneous reading of three tracks from a magnetic card 28.3 ASCII codes above 127 contain Katakana symbols 28.4 Supports JIS and Shift-JIS symbols 28.5 Prints when ESC . and ESC T, and transmits when ESC ` the temperature in º Fahrenheit 28.6 Not Used 28.7...
- Page 18 35. ESC _ Restore factory defaults and save them to nonvolatile RAM [Code] [1Bh] + [5Fh] [Outline] Select font A, no bold, no underline, etc. Restore tab defaults. The parameters are read from the flash memory. Downloaded font and downloaded bit image are cleared. Copy internal fonts A and B to user fonts.
- Page 19 • Specified line does not remain. • The beginning of the line is to be considered as the next printing start position. [Default] • The initial value is not defined. 40. ESC i Cutting the paper [Code] [1Bh] + [69h] [Outline] Performs a paper feed, so the last printed line remains after the auto cutter’s edge and then cuts the paper.
- Page 20 Windows Greek (CP1253) Windows Turkish (CP1254) Windows Hebrew (CP1255) Windows Baltic (CP1257) West Europe Latin I + Euro (CP858) Central Europe Latin II + Euro (CP852 + Euro) Russian + Euro (CP808) Turkish + Euro (CP857 + Euro) In the Chinese version of the printer one of the following supported code tables is selected according to the value of n: Code Table USA (CP437)
- Page 21 45. ESC x n Reversing the print direction [Code] [1Bh] + [78h] + n [Outline] This command changes the characters’ print direction from left to right to right to left. The character itself is not mirrored horizontally. The command is intended for languages that use right to left scripting, like Hebrew and Arabic. Only the lowest bit of “n”...
- Page 22 49. GS L n1 n2 Setting the left margin [Code] [1Dh] + [4Ch] + n1 + n2 [Range] {0 <= n 1 <= F Fh} {0 <= n2 <= FFh} {n1+256*n2 < 432} [Outline] Sets the position in dots (1/203 inches) from which each line starts. This command works only if entered at the beginning of the line.
- Page 23 m (1) Bar code type Length Range of ‘d’ UPC-A 48 <= D <= 57 UPC-E 48 <= D <= 57 EAN13 (JAN13) 48 <= D <= 57 EAN 8 (JAN8) 48 <= D <= 57 CODE 39 48 <= D <= 57, 65 <= D <= 90, 32, 36, 37, 43, 45, 46, 47 48 <= D...
- Page 24 FNC4 123, 52 7B, 34 CODEA 123, 65 7B, 41 CODEB 123, 66 7B, 42 CODEC 123, 67 7B, 43 SHIFT 123, 83 7B, 53 123, 123 7B, 7B 52. GS w n Selecting the horizontal size (Scale factor) of the bar code [Code] [1Dh] + [77h] + n [Range]...
- Page 25 56. GS p n1 n2 n3 Setting bar code PDF-417 parameters [Code] [1Dh] + [70h] + n1 + n2 + n3 [Range] {0 <= n 1 <= 2 55} {0 <= n 2 <= 3 0} {n3=0;...
- Page 26 Mode Dot density in Dot density in vertical direction horizontal direction Normal 203 DPI 203 DPI Double width 203 DPI 101 DPI Double hight 101 DPI 203 DPI Quadruple 101 DPI 101 DPI The bit image is defined line by line from left to right. The most significant bit of each byte is the leftmost dot and the least significant bit is rightmost dot.
- Page 27 Mode Name Dots in Vertical Dots in Horizontal Direction Direction Normal mode 203 DPI 203 DPI Double wide mode 203 DPI 101 DPI Double high mode 101 DPI 203 DPI DW / DH mode 101 DPI 101 DPI [Caution] • When data exist inside the print buffer, this command is ignored. •...
- Page 28 [Range] {0 <= n <= F Fh} {0 <= m <= 3 } {48 <= m <= 5 1} [Outline] Printing the downloaded NV bit image defined by FS q command. Mode Name Dots in Vertical Dots in Horizontal Direction Direction...
- Page 29 The maximum printable size of the NV bit image is 432 × 512 dots. This corresponds to (xL + xH [Details] × 256) < 54 and (yL + yH × 256) < 512. The exceeding data is read but discarded. The order of the data is from left to right and then from top to bottom, (xL + xH ×...
