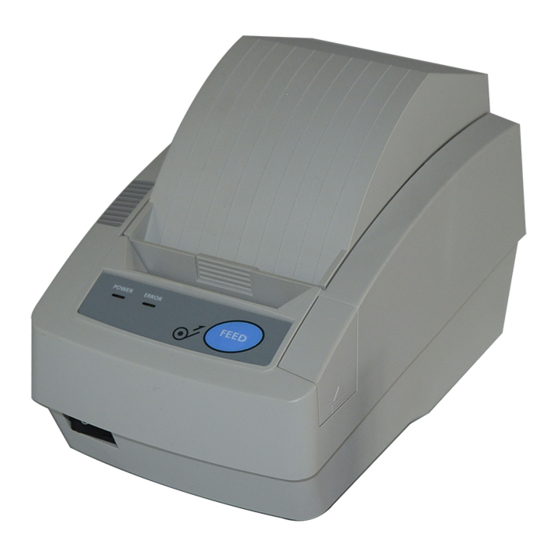

- Page 1 1 DATECS EP-60 ESC/POS Thermal Printer User’s Manual...
- Page 2 The information in this document cannot be reproduced in any mechanical, electrical or electronic way and under any circumstances without the written consent from Datecs Ltd. 1784 Sofia, Bulgaria, tel: +359 2 974 00 55, fax: +359 2 974 11 00 e-mail: sales@datecs.bg...
-
Page 3: Table Of Contents
Contents Introduction................5 Technical Specifications ............6 Safety and operation instructions..........8 Box Contents.................10 About the printer EP-60 ............11 Front/right view..............11 Front view / Control Panel / Indications......11 Back view / connectors.............11 Back view / connectors.............12 FEED Button Functions ............12 ..............13 LED’s DIP switches................14... - Page 4 Page 4 ....EP-60 User Manual...
-
Page 5: Introduction
DATECS EP-60 is developed for integration into communication terminals, POS systems, hospitality systems, etc. Datecs EP-60 allows fast printing of regular text as well as graphics, specified by the end user – bar code, company logo, etc. Datecs EP-60 is the newest in Datecs line of ESC/POS printers. -
Page 6: Technical Specifications
RS 232 – max 115200 bps Interface USB type - emulated COM port Emulation ESC/POS Work with continuous paper Page 6 ....EP-60 User Manual... - Page 7 Humidity from 20% RH to 90% RH RS232 interface cable Cables Option USB cable A to B cable Page 7 ....EP-60 User Manual...
-
Page 8: Safety And Operation Instructions
Warning ● Read the user manual for EP-60 carefully before installing the printer and using it. Always refer to the manual when necessary. ● Do not allow any objects into the printer. This may cause serious problems. - Page 9 Datecs Ltd. ● Datecs Ltd is not responsible for failures, occurred due to the use of accessories, other than the ones, originally specified for the printer. ● Don’t mount, dismount or try to repair parts of the printer, which are not specifically mentioned in the User’s manual.
-
Page 10: Box Contents
USB a to B cable Note: The up-to-date version of the included software, drivers and support are uploaded on the website of Datecs www.datecs.bg and can be downloaded for free. Page 10 .... -
Page 11: About The Printer Ep-60
About the printer EP-60 Front/right view ON/OFF switch FEED button Control panel POWER indication ERROR indication Paper cover Paper cover release button Manual auto cutter control Bottom view Slots for hanging – they are designed for hanging the printer (on a wall) for work in vertical state (hanging). -
Page 12: Back View / Connectors
Page 12 ....EP-60 User Manual... -
Page 13: Led's
(see. Feed button functions). Page 13 ....EP-60 User Manual... -
Page 14: Dip Switches
USA CP437 Bulgarian CP856 Russian CP866 Latvian Lithuanian Polish Uses the flash setting, ESC t disabled Page 14 ....EP-60 User Manual... - Page 15 In the Arabic version of the printer only Sw8 is defined for changing the code table: Code page USA CP437 Farsi Code Table Page 15 ....EP-60 User Manual...
-
Page 16: Serial Interface
If a software (XON/XOFF) protocol is selected the printer sends special characters – XON (11h) to enable and XOFF (13h) to disable transmission. Page 16 ....EP-60 User Manual... -
Page 17: Paper Loading
Paper Loading EP-60 uses thermal paper rolls for printing. The width and the diameter of the paper roll are listed in the printer’s technical specifications. EP-60 uses the so called “clamshell” system for changing paper rolls, which enables a fast and easy change. In order to place a new paper roll all you need to do is to press paper cover release button, open it and place the new roll as shown on the picture below. -
Page 18: Paper Feed Sensors
After release of the Cutter printing proceeds. Paper feed sensors EP-60 has two paper feed sensors. Either of the sensors is used depending on how the printer is situated – horizontally or vertically (hanging). Paper feed sensor for horizontal state. -
Page 19: Extended Self Test Print
Euro position 〉 state of ESC t (enabled/disabled) 〉 data transfer speed 〉 DIP switch settings Page 19 ....EP-60 User Manual... -
Page 20: Frequently Occurring Problems
Frequently occurring problems The most frequently occurring problems while operating EP-60 are described in the table below: Problem Probable cause When sending a print The paper roll has been placed incorrectly – command the paper the thermal layer is not on the side of the moves but no print printer head. -
Page 21: Command List
ESC _ Restore factory settings Transmits current battery voltage and the print head ESC ` temperature Page 21 ....EP-60 User Manual... - Page 22 FS p Printing the downloaded NV bit image FS q Defining the downloaded bit image Page 22 ....EP-60 User Manual...
-
Page 23: Appendix
Appendix Drawer cable for EP-60 RS232 Cable for PC Page 23 ....EP-60 User Manual...
