Grizzly T28367 Mounting Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T28367 stand is designed specifically
for the T28366 10" Slow Speed Cold Cut Saw.
The stand is 25 ⁄ " tall, with a top that is 15
1
2
by 12 ⁄ ".
1
2
A

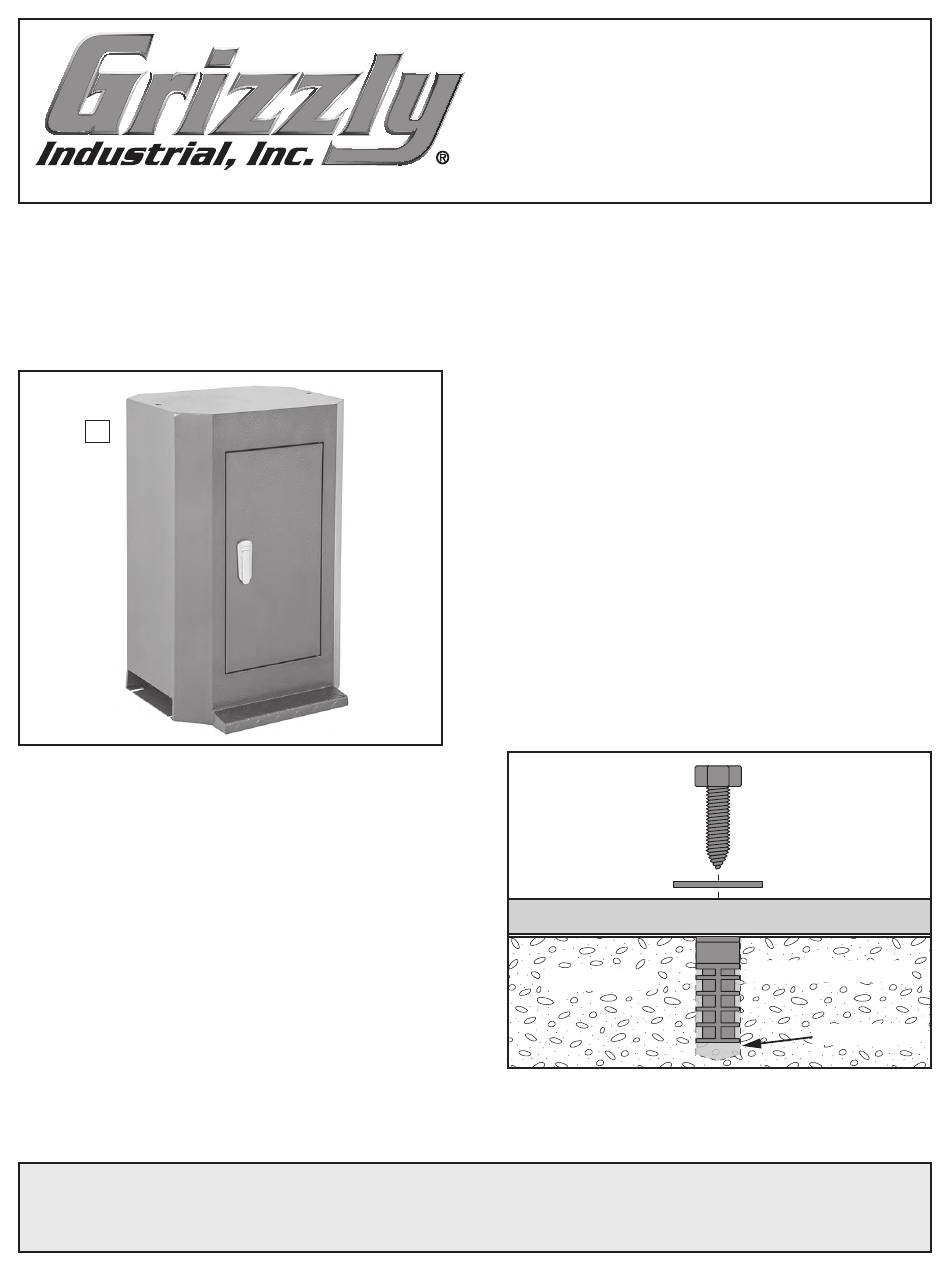

Figure 1. Model T28367 Stand.
Inventory
Description
A. Stand .......................................................... 1
B. Hardware Bag (Not Shown)
—Cap Screws M10-1.5 x 20 ....................... 2
—Hex Nuts M10-1.5 ................................... 2
—Flat Washers 10mm ................................ 2
Anchoring Stand to Floor
Number of Mounting Holes ............................... 4
Diameter of Mounting Hardware .....................
(Hardware not included)
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
3
COPYRIGHT © APRIL, 2018 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#ES19556 PRINTED IN CHINA
MODEL T28367 STAND
MOUNTING INSTRUCTIONS
(For Models Manufactured Since 03/18)
Anchoring the stand to the floor prevents the
machine from tipping or shifting and reduces
vibration that may occur during operation, result-
ing in a machine that runs slightly quieter and
⁄ " wide
4
feels more solid.
Local codes may require anchoring stand to the
floor. If not required by any local codes, fasten-
ing stand to the floor is an optional step. If you
choose not to fasten the stand to floor, we rec-
ommend placing it on machine mounts (shown
on next page in Accessories). These provide an
easy method for leveling and they have vibration-
absorbing pads.
Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con-
crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later. However, any time local codes
apply, you MUST follow the anchoring method-
ology specified by the code.
Qty
Stand Base
Concrete
⁄ "
1
2
Figure 2. Popular method for anchoring
MACHINE/STAND
Lag Screw
Lag Shield Anchor
machinery to a concrete floor.
Flat Washer
Drilled Hole
