For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
Your new 4x4 All-Terrain Mobile Base is designed
with rough floors in mind. Even on the driveway or
in the back yard, this base gives you a stable and
mobile platform upon which to mount machinery.
Inventory
Description
A. Right Front Corner Bracket ........................ 1
B. Left Front Corner Bracket ........................... 1
C. Right Rear Corner Bracket ......................... 1
D. Left Rear Corner Bracket ........................... 1
E. Side Rails 21" ............................................. 4
F.
All-Terrain Swivel Casters 4" ...................... 2
G. All-Terrain Wheels 4" .................................. 2
H. Foot Pedals ................................................ 2
I.
Foot Pedal Springs ..................................... 2
J.
Foot Pedal Plungers ................................... 2
K. Adjustable Rubber Feet .............................. 2
L. Bearing Sleeves ......................................... 8
M. Shoulder Bolts M12-1.75 x 80 (Wheels) ..... 2
N. Shoulder Bolts M8-1.25 x 52 (Pedals) ........ 2
O. Hardware (Not Shown)
—Hex Bolts M8-1.25 x 16 (Brackets) ....... 24
—Hex Nuts M10-1.5 (Rubber Feet) ............ 2
—Lock Nuts M8-1.25 (Casters/Pedals) .... 10
Specifications
•
Minimum Inside Dimensions .......... 19" x 21"
•
Maximum Inside Dimensions ......... 31" x 31"
•
Maximum Weight Capacity ............1200 lbs.
Tools Needed for Assembly
•
Open-End Wrench or Socket 13mm .......... 1
•
Open-End Wrench or Socket 14mm .......... 1
•
Open-End Wrench or Socket 17mm........... 1
•
Measuring Tape .......................................... 1
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Qty
COPYRIGHT © FEBRUARY, 2021 BY GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 02/21) #AI21700 PRINTED IN CHINA
MODEL T32468
4X4 ALL-TERRAIN
MOBILE BASE
INSTRUCTIONS
A
C
E
F
I
H

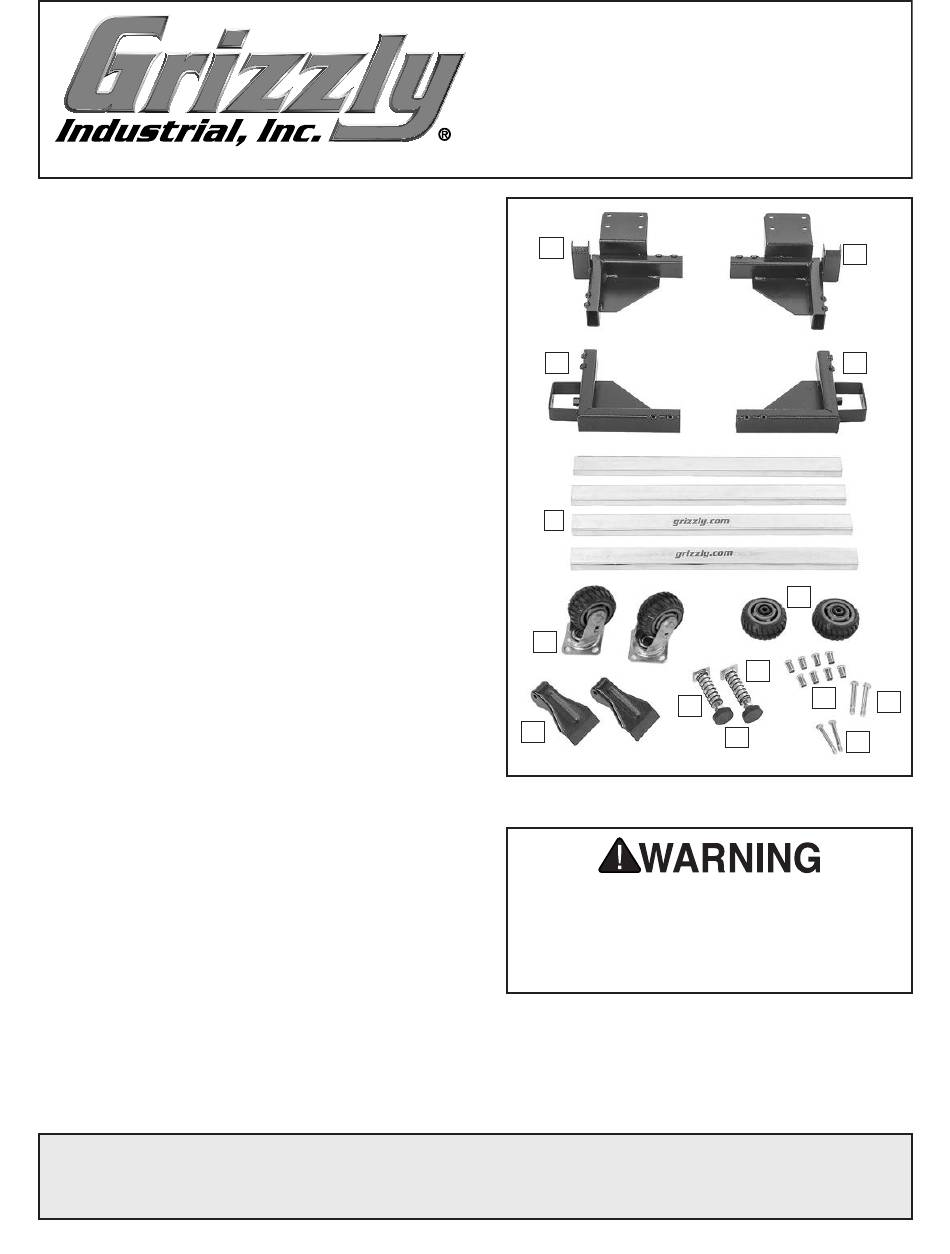

Figure 1. Inventory.
Operating machinery on an unsecured
mobile base may allow the machine to
shift unexpectedly, which could result in
accidental contact with a cutting device or
other moving parts.
B
D
G
J
L
M
K
N
V1.02.21
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Grizzly T32468
Summary of Contents for Grizzly T32468
- Page 1 MODEL T32468 4X4 ALL-TERRAIN MOBILE BASE INSTRUCTIONS For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Introduction Your new 4x4 All-Terrain Mobile Base is designed with rough floors in mind. Even on the driveway or in the back yard, this base gives you a stable and mobile platform upon which to mount machinery.
-
Page 2: Preparation For Assembly
Base Around Machine on Page 5 for instructions to fall over, resulting in serious personal on how to build the base around the machine. injury. Disconnect machine from power supply or dust collection before moving. T32468 (Mfd. Since 02/21) - Page 3 Figure 5. Installing foot pedal plunger and spring. (TOP VIEW OF BRACKET) Typical Direction of Movement CORRECT INCORRECT Figure 8. Orientation of fixed wheels for easy machine movement. T32468 (Mfd. Since 02/21)
- Page 4 Improper tightening or using one bolt can result in collapse or tipping when moving machine, which could result in crushing injury or property damage. DO NOT overtighten bolts. Overtightening can strip threads. T32468 (Mfd. Since 02/21)
- Page 5 Attach each foot pedal to front corner bracket Figure 15. Rail secured to corner brackets. using (1) M8-1.25 x 52 shoulder bolt and (1) M8-1.25 lock nut (see Figure 13). Foot Pedal Figure 13. Attaching foot pedal to corner. T32468 (Mfd. Since 02/21)
- Page 6 (refer to Making a Base Plate on Page 9). All-Terrain Wheels Rail-Bracket Figure 19. Example of remaining rail-bracket Assembly assembly secured. Figure 17. Rail-bracket assembly placed under 11. With the help of an assistant, shift machine to front of machine. remove 4x4 block. T32468 (Mfd. Since 02/21)
- Page 7 Note: When moving the mobile base, the rub- ber feet should not touch the floor. However, when operating the machine, ensure that the rubber feet are fixed firmly against the floor to stabilize the machine. T32468 (Mfd. Since 02/21)
- Page 8 Adjust feet so they each touch the ground, then push on machine at several locations, making sure it is not off balance. The hex nuts can be adjusted up to top of foot assembly to lock foot height setting. T32468 (Mfd. Since 02/21)
- Page 9 Figure 25. Example of drill press mounted to a washers, as shown in Figure 24. base plate. Base Mounting Plate Holes Metal Plate Mobile Base Figure 24. Example of mounting plywood base plate to mobile base. T32468 (Mfd. Since 02/21)
- Page 10 Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
-
Page 11: Warranty And Returns
WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
