Introduction
The Model T34244, T34245, and T34246 machine
stands provide a stable and customizable plat-
form for benchtop machinery and equipment. The
stands feature adjustable 12-gauge steel legs,
16-gauge steel shelves, and a built in power strip
with (2) 120V outlets and (2) USB charging ports.

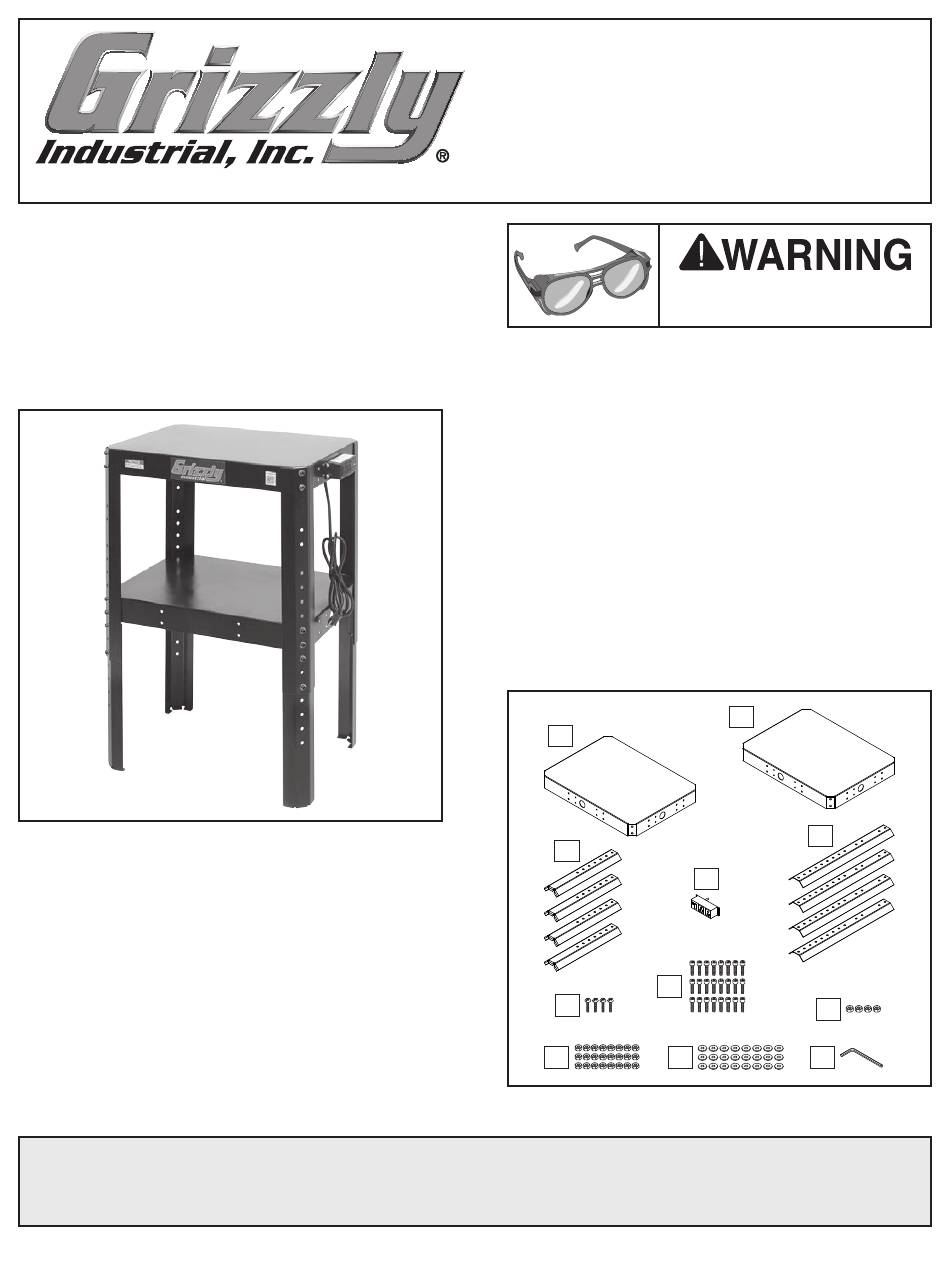

Figure 1. Model T34244.
Specifications
Dimensions (T34244) ..........24"W x 18"D x 36"H
Dimensions (T34245) ..........24"W x 24"D x 36"H
Dimensions (T34246) ..........36"W x 24"D x 36"H
Weight Capacity ......................................500 lbs.
Needed for Assembly
Safety Glasses (Per Person) ........................1 Pr.
Phillips Head Screwdriver #2 ............................ 1
Level 24" ............................................................ 1
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © JUNE, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 06/24) #JA23237 PRINTED IN CHINA
***Keep for Future Reference***
MODEL T34244/45/46
MACHINE STAND
W/POWER STRIP
INSTRUCTIONS
Wear safety glasses during
the entire setup process!
Inventory
Main (Figure 2)
A. Top Shelf .................................................... 1
B. Bottom Shelf ............................................... 1
C. Leg Extensions ........................................... 4
D. Power Strip ................................................. 1
E. Legs ............................................................ 4
Phillips Head Screws M4-.7 x 10 ................ 4
F.
G. Cap Screws M8-1.25 x 20 ........................ 24
H. Hex Nuts M4-.7 ........................................... 4
Hex Nuts M8-1.25 ..................................... 24
I.
Flat Washers 8mm ................................... 24
J.
K. Hex Wrench 6mm ....................................... 1
A
C
G
F
I J
Figure 2. Inventory.
B
E
D
H
K
V1.06.24
