Introduction
This workbench stand is designed to be used
with solid wood workbench tops, and is ideal for
close-in detail work, such as soldering, assembly,
gunsmithing, etc. Features all-steel frame con-
struction and re-inforced corners.
*Shown with optional T1254 Beech Workbench Top

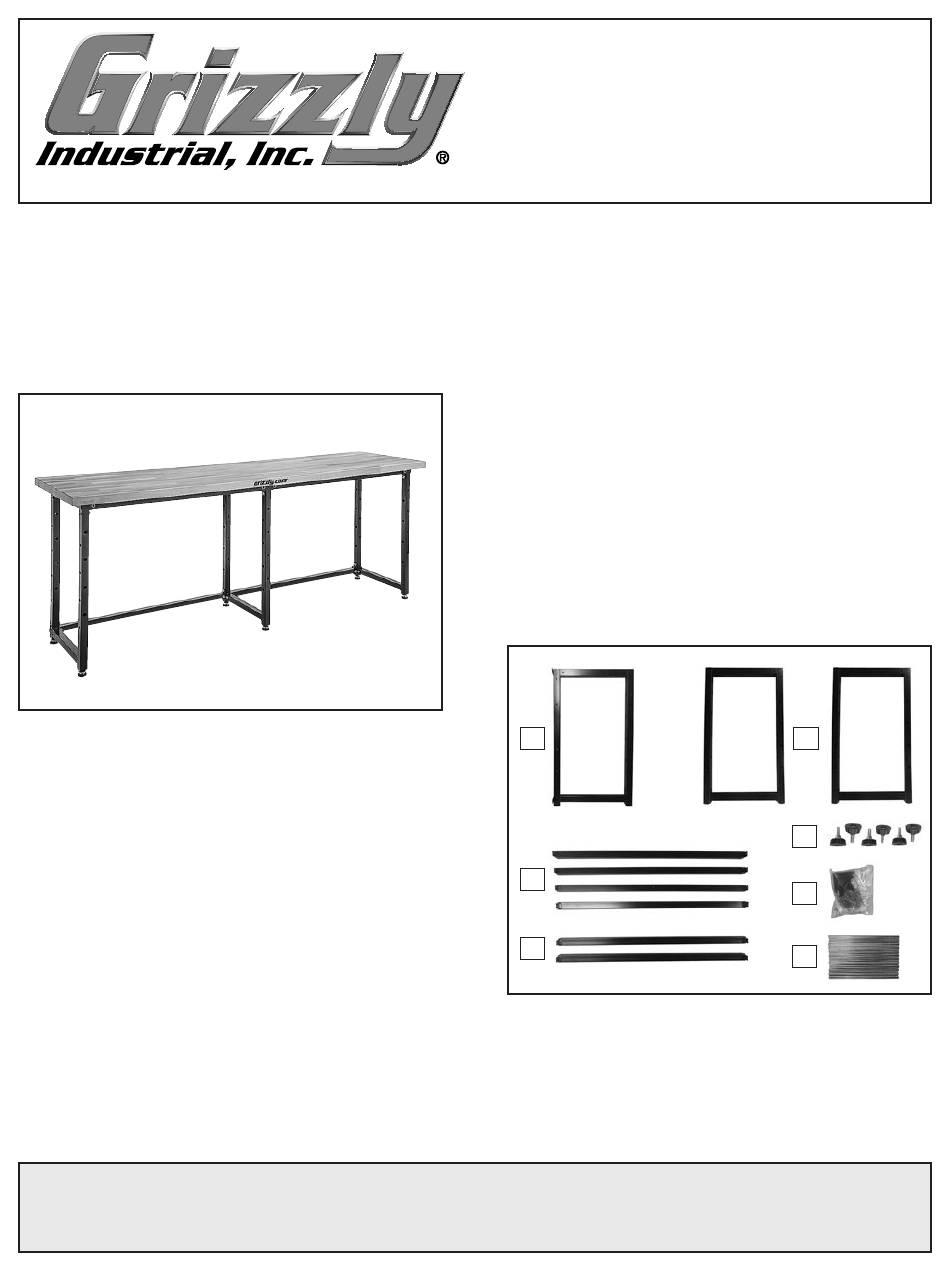

Figure 1. Model T31832 Workbench Stand.
Specifications
• Stand (Length x Width) .................... 91" x 20"
• Height .................................................... 35
• Maximum Weight Capacity .............2500 lbs.
• Approximate Assembly Time ........45 Minutes
Needed for Assembly
• Additional Person ........................................ 1
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © FEBRUARY, 2020 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 01/20) #KS20960 PRINTED IN TAIWAN
MODEL T31832
WORKBENCH STAND
Inventory (Figure 2)
Description
A. Center Frame .............................................. 1
B. End Frames ................................................. 2
C. Upper Supports ........................................... 4
D. Lower Supports ........................................... 2
E. Rubber Feet M10-1.5 x 35 ........................... 6
F.
Hardware Bag
— Support Brace .......................................... 1
— External Corner Braces ........................... 6
— Internal Corner Braces ............................12
—Button Hd Cap Screws M8-1.25 x 55 .... 38
— Flat Washers 8mm ................................. 68
— Lock Nuts M8-1.25 ................................. 30
—Wrench 13/14mm Open-Ends .................. 1
— Hex Wrench 5mm .................................... 1
G. Steel Bars
A
⁄ "
1
2
C
D
Figure 2. Model T31832 Inventory.
96" X 25"
INSTRUCTIONS
⁄ " x 11 ⁄ " .................................12
5 3
8 4
Qty
B
E
F
G
