HOMCOM 800-154V70 Manual page 12

EN

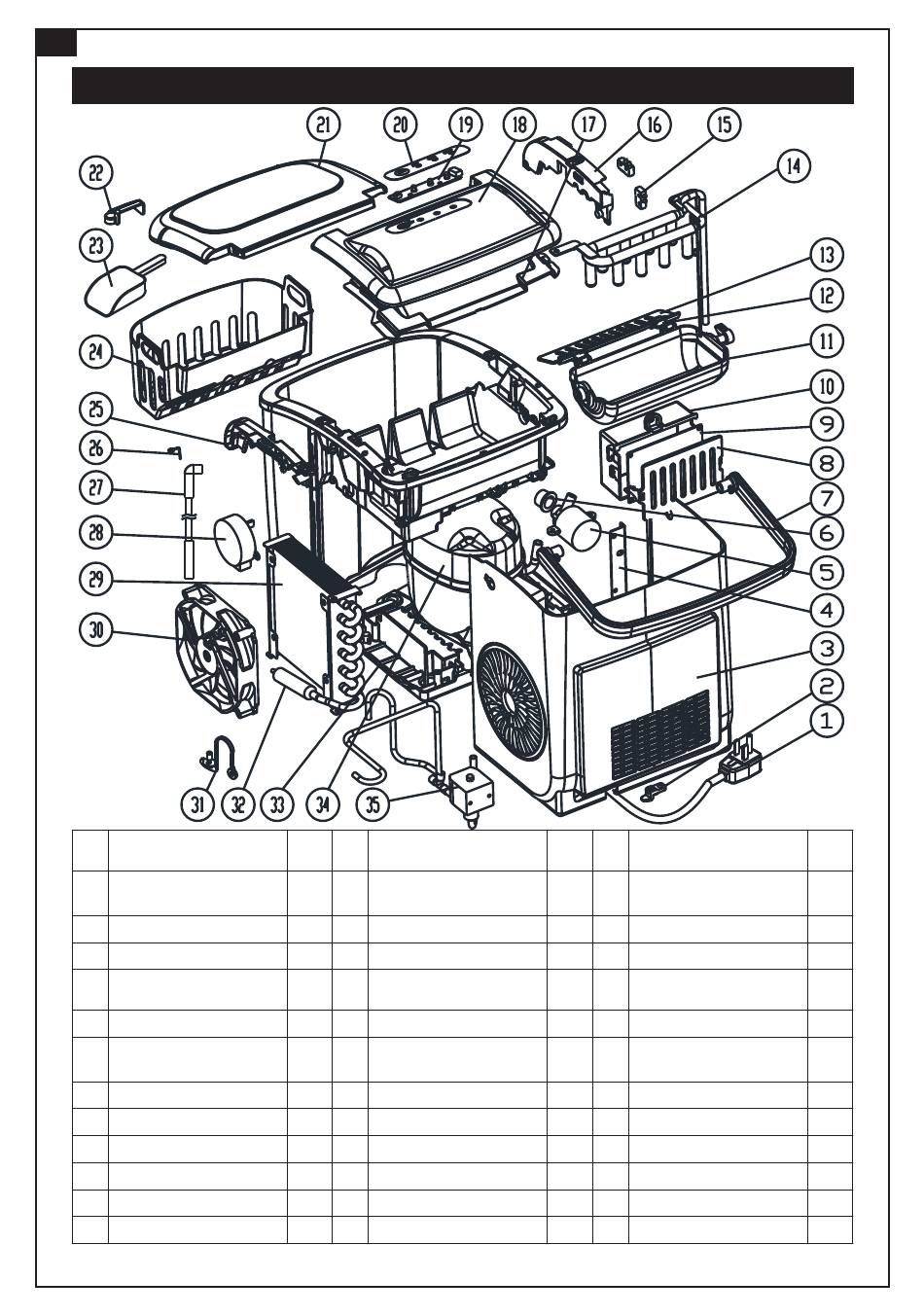

EXPLOSIVE DRAWINGS
S/N Part description
1 Power cord
2 Plastic clip
3 Back panel
4 Plate back support
5 DC water pump
Silicone pump
6
sealing
7 Handle
8 Control box cover
9 Main PCB
10 Control box
11 lce making box
12 lce scoop link
Qty/
S/N Part description
Per
1 13 lce shovel
1 14 Evaporator
1 15 Micro switch
Inner tank
1 16
bracket,LH
1 17 Back bottom panel
1 18 Back top panel
1 19 Displaying PCB
1 20 Touch pad
1 21 Front top panel
1 22 Water filter
1 23 lce scoop
2 24 Ice basket
12
Qty/
S/N Part description
Per
Inner tank
1 25
bracket,RH
1 26 Stainless wire
2 27 Water Supply pipe
1 28 Synchronous motor
1 29 Condenser
1 30 DC Fan motor
1 31 Nylon plug drain
1 32 Copper tube filter
1 33 Plastic bottom
1 34 Compressor
1 35 Magnetism valve
1 36 Internal Wire
Qty/
Per
1
1
1
1
1
1
1
1
1
1
1
1
