Scotchman DO70 Instructions Manual

How to replace a klockner moeller camswitch with a kraus & neimer cam switch

Advertisement

Quick Links

COLOR PRINTING IS RECOMMENDED
FOR DIGITAL COPY CONTACT 1-800-843-8844
FEBRUARY 2022
SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-800-843-8844

Advertisement

loading
Need help?

Need help?

Do you have a question about the DO70 and is the answer not in the manual?

Questions and answers

Summary of Contents for Scotchman DO70

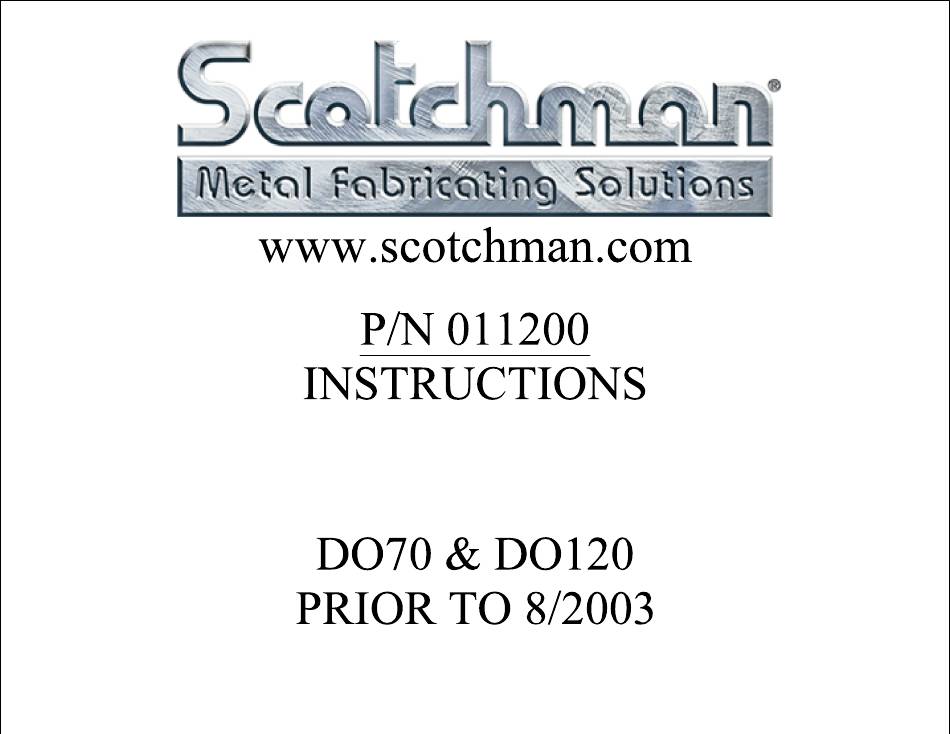

  • Page 1 COLOR PRINTING IS RECOMMENDED FOR DIGITAL COPY CONTACT 1-800-843-8844 FEBRUARY 2022 SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-800-843-8844...
  • Page 2 (left) with a Kraus & Neimer cam switch (right) on the machine(s) listed below. DISCONNECT POWER TO THE MACHINE BEFORE MODIFICATION. Klockner Moeller Kraus & Neimer Applies to Serial Numbers: DO70: 1183M0703 & Prior DO120: 1070M0803 & Prior Page 1...
  • Page 3 The key difference between the Klockner Moeller switches (013580/013585) and the Kraus & Neimer switches (011200) are the contact numbers and internal jumpers. The charts below show the difference in contact closures and jumpers. KLOCKNER MOELLER KRAUS & NEIMER CONTACT CLOSURE CLOSURE CONTACT CLOSURES...
  • Page 4 Remove power from the machine. Turn the main power disconnect in the lower panel to the OFF position. Open the remote control panel lid by loosening the (4) retaining screws (A). Carefully pull out on the panel lid to gain access to the internal controls Loosen the screw (B) retaining the knob of the cam switch to be replaced.
  • Page 5 PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 INCOMING SUPPLY (BY CUSTOMER) 120VAC E-STOP E-STOP 1 DISC (1) BLK (2) RED SEE TRANSFORMER NAMEPLATE FOR WIRING DETAIL START START START TOOL NOTCH PUNCH SHEAR (3) BLU (4) ORG (14) ORG WORK 1SOL...
  • Page 6 Press the red release handle (A) on the new switch to separate the knob/legend holder from the switch. Install the legend holder (B) into the panel and fasten with nut (C) from backside. Remove the screw (D) retaining the knob. Remove knob (E). Install the legend plate(s) (F) sold separately (P/N 011212 &...
  • Page 7 PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 INCOMING SUPPLY (BY CUSTOMER) 120VAC E-STOP E-STOP 1 DISC (1) BLK (2) RED SEE TRANSFORMER NAMEPLATE FOR WIRING DETAIL START START START TOOL NOTCH PUNCH SHEAR (3) BLU (4) ORG (14) ORG WORK 1SOL...
  • Page 8 PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 INCOMING SUPPLY (BY CUSTOMER) 120VAC E-STOP E-STOP 1 DISC (1) BLK (2) RED SEE TRANSFORMER NAMEPLATE FOR WIRING DETAIL START START START TOOL NOTCH PUNCH SHEAR (3) BLU (4) ORG (14) ORG WORK 1SOL...
  • Page 9 PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 INCOMING SUPPLY (BY CUSTOMER) 120VAC E-STOP E-STOP 1 DISC (1) BLK (2) RED SEE TRANSFORMER NAMEPLATE FOR WIRING DETAIL START START START TOOL NOTCH PUNCH SHEAR (3) BLU (4) ORG (14) ORG WORK 1SOL...
  • Page 10 If the machine features an electric backgauge (probe), the remote control panel will contain multiple other selector switches as shown below left. Follow the instructions on Page 3 for removal of the old switch to be replaced. See the schematic on the following page for original wire locations. If replacing the PUNCH/START/TOOL switch (A) or the SHEAR/START/NOTCH switch (B), follow the instructions on Page 5 for replacement and follow the schematic on Pages 11-12 specific to the switch being replaced for wiring locations.
  • Page 11 Original Diagram w/ Probe PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 INCOMING SUPPLY (BY CUSTOMER) 120VAC E-STOP E-STOP 1 DISC (1) BLK (2) RED SEE TRANSFORMER NAMEPLATE FOR WIRING DETAIL START START START PUNCH TOOL SHEAR NOTCH (3) BLU (4) ORG...
  • Page 12 Punch/Start/Tool Retrofit Diagram w/ Probe PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 INCOMING SUPPLY (BY CUSTOMER) 120VAC E-STOP E-STOP 1 DISC (1) BLK (2) RED SEE TRANSFORMER NAMEPLATE FOR WIRING DETAIL START START START PUNCH TOOL SHEAR NOTCH (3) BLU...
  • Page 13 Shear/Start/Notch Retrofit Diagram w/ Probe PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 INCOMING SUPPLY (BY CUSTOMER) 120VAC E-STOP E-STOP 1 DISC (1) BLK (2) RED SEE TRANSFORMER NAMEPLATE FOR WIRING DETAIL START START START PUNCH TOOL SHEAR NOTCH (3) BLU...
  • Page 14 Jog/Run/Probe Retrofit Diagram PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 INCOMING SUPPLY (BY CUSTOMER) 120VAC E-STOP E-STOP 1 DISC (1) BLK (2) RED SEE TRANSFORMER NAMEPLATE FOR WIRING DETAIL START START START PUNCH TOOL SHEAR NOTCH (3) BLU (4) ORG (14) ORG...

This manual is also suitable for:

Do120
