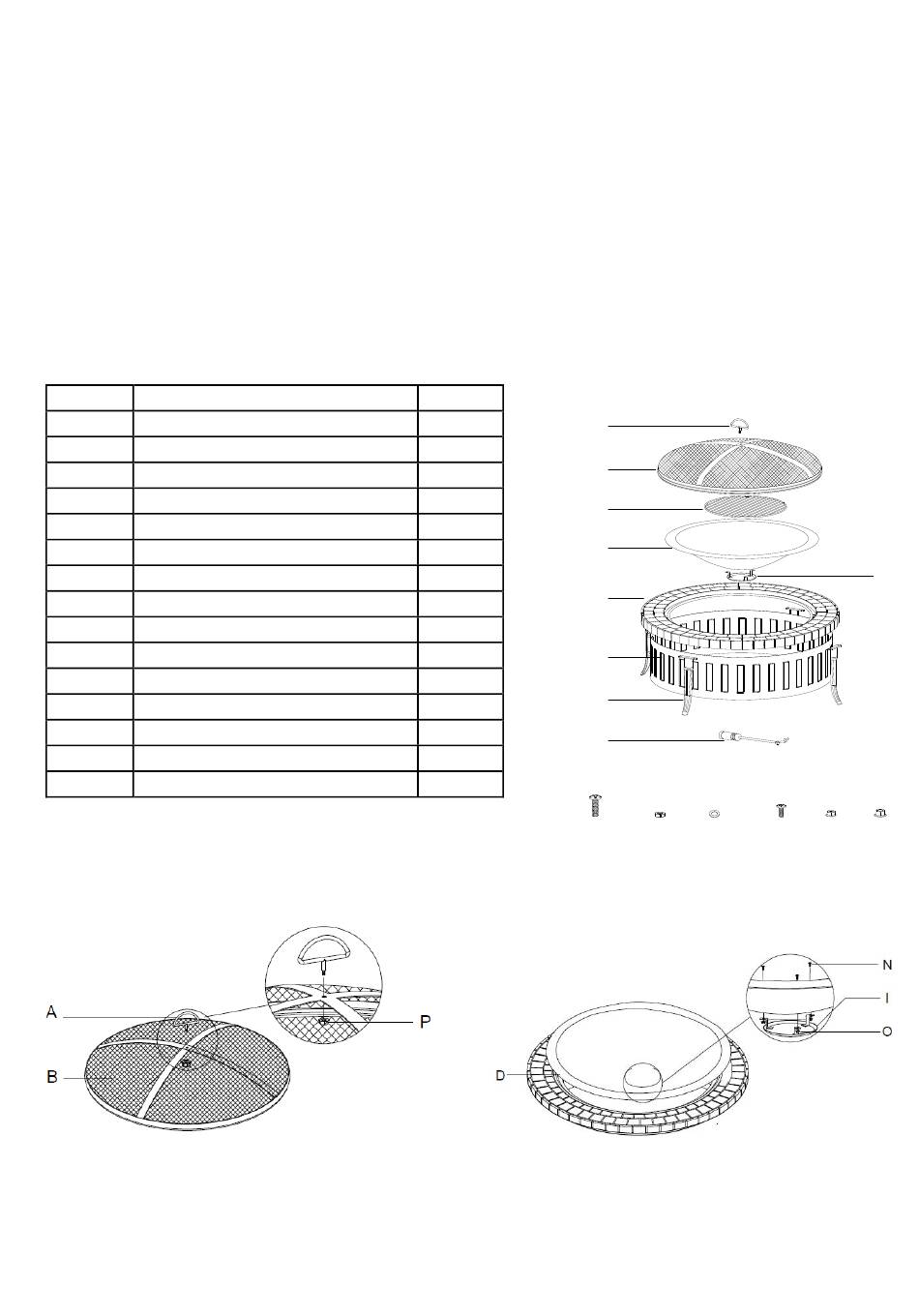

Sunjoy L-FT130PGR-1B Owner's Manual

1. Warning:
·The charcoal fire pit is HOT! DO NOT allow your children to play near it when fire pit is in use.
·To avoid destroying the finish, please handle the surface by using a soft cloth instead of your bare hands.
·Do not touch the surface of iron fire grate and the Fire Bowl while in use. It may cause burns.
2. Parts List:
No.
A
B
C
D
E
F Enclosed stand
G Leg with lever (Preassembly)
H
I
K Bolt M6 x 18 (TBZ0030618HQ)
L Nut M6 (TBZ20106HQ)
M Washer M6 (TBZ10406HQ)
N Bolt M5 x 10 (TBZ0030510HQ)
O Nut M5 (TBZ20205HQ)
P Nut M6 (TBZ20206HQ)
Tools you'll need: Wrench (included) and screwdriver (not included).
3. Assembly Instructions:
1. Insert Screen handle (A) into hole in
Mesh screen (B) and tighten it with Nut (P)
underside to secure.
OWNER'S MANUAL
36" Savannah Slate Top Fire Pit
Style # L-FT130PGR-1B
Parts.
Screen handle
Mesh Screen
Fire Grate
Bowl
Firepit top
Fire Poker
Ashtray
Qty.
A
1
1
B
1
1
C
1
D
1
4
E
1
1
F
4
8
G
8
3
H
3
1
K
2. Attach Ashtray (I) to Bowl (D) with 3pcs
bolt (N) and 3pcs Nut (O)
L M N O
I
P
