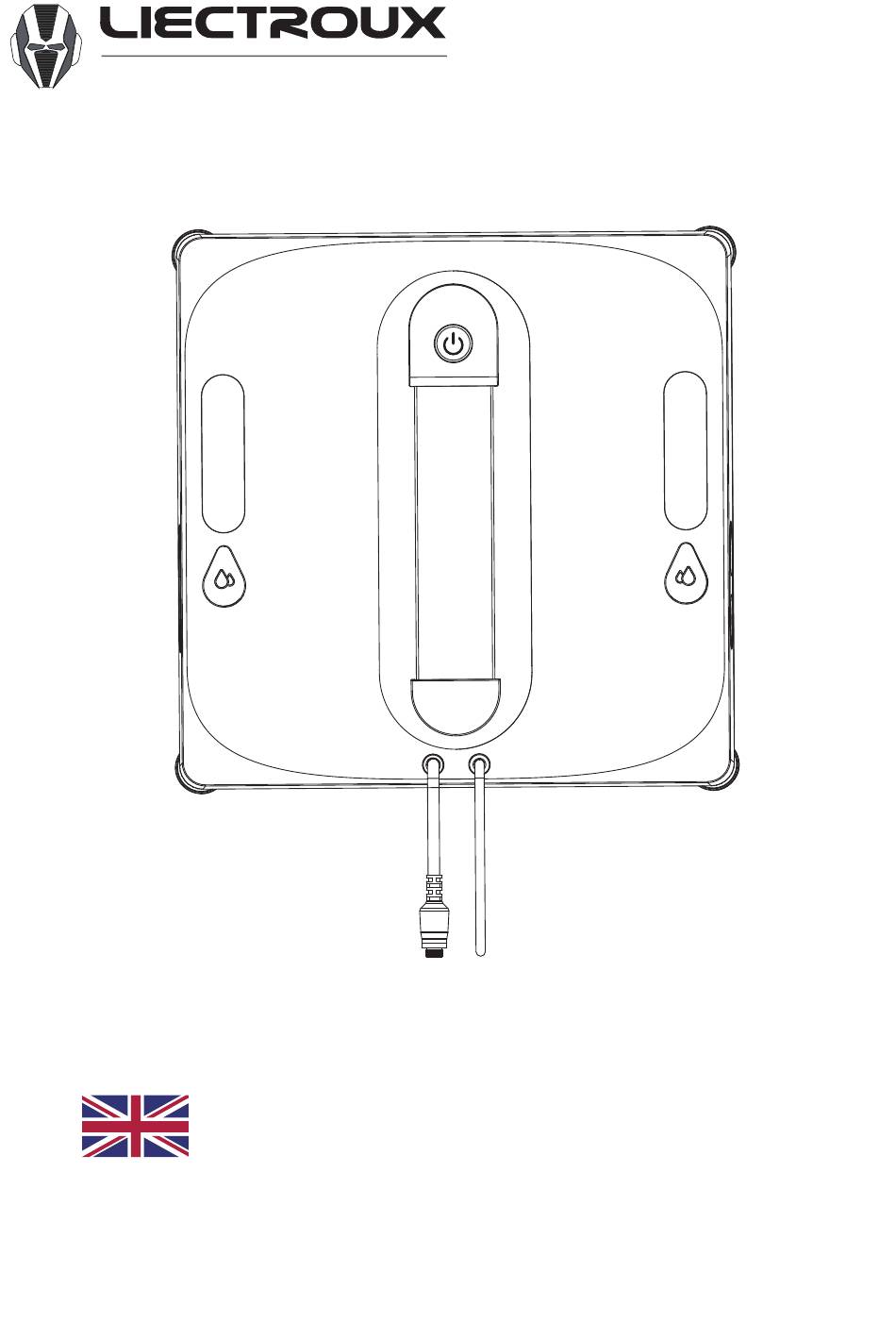

- Page 1 Window Cleaning Robot S11 English Window Cleaning Robot Instruction Manual Please read this manual carefully before using the product and keep it safe.
-
Page 2: Table Of Contents
Content Safety Instructions ----------------------------------------------------- 1 Cautions ------------------------------------------------------------------ 2 Packing List ------------------------------------------------------------- 3 Product Introduction -------------------------------------------------- 4-5 Product Usage --------------------------------------------------------- 6-9 Product Maintenance ------------------------------------------------ 9-10 Product Specifications ----------------------------------------------- 10 Troubleshootings ----------------------------------------------------- 11 Connect to SMART LIFE App ------------------------------------- 12-13... -
Page 3: Safety Instructions
Safety Instructions Read the following safety instructions carefully and follow all normal safety precautions before using this product. Please read the instructions carefully, any operation that does not conform to the instructions may cause damage to the product; Please keep the instruction manual. Notice: Read the following safety instructions carefully and follow all normal safety precautions before using this product. -
Page 4: Cautions
Cautions Frame thickness≥5mm 1. Please make sure to use it on 2. Please make sure to use it on the the glass with thickness≥5m glass with square≥50cm*50cm 3. Please use it under enough power 4. Please clean up an area with same size with robot size firstly if there is too much dust on the glass. -
Page 5: Packing List
Packing List Clenaing cloth*2 Nozzle*1 Robot Adapter+power cable Safety rope Remote control Window Cleaning Robot S11 Window Cleaning Robot Instruction Manual Please read this manual carefully before using the product and keep it safe. User manual Water bottle... -
Page 6: Product Introduction
Product Introduction Window cleaning robot Blue light is always on: standby/ Red light is always on: power off working/charging completed Red light flashes and intermittent Blue light breathing: charging voice: Wheel is overload The blue light flashes and the The red light flashes and intermittent beep sounds 1 time: Turning on. -
Page 7: Front Side
Front side On/Off button Handle Water tank Water tank Nozzle 1 Nozzle 3 Nozzle 2 Nozzle 4 Water inlet Water inlet Power cable Safety rope Back side Anti-drop sensor Wheel Indication light Burner hole Mopping cloth Fan assy... -
Page 8: Product Usage
Product Usage Install mopping cloth Align the notch position of the cleaning rag to the position indicated by the arrow on the bottom, and stick it flatly into the window cleaning panel. Be careful not to block the front and rear anti-fall sensors, wheels and the inner cavity. Water tank filling Open the rubber of the water tank, fill an appropriate amount of pure water or glass... - Page 9 Turn on 1. Fix the safety cord: Take out the other end of the safety rope, find a fixed position and insert the safety buckle, tighten the safety rope, and secure the safety buckle; 2. Connect with power supply: Connect the power cord according to the diagram below, making sure that the connectors are tightly connected;...
- Page 10 Start/Pause Method 1: Use the robot's "Start/Pause" button to control its work; Method 2: Use the "Start/Pause" button on the remote control to control the robot. Attention： 1. The robot starts up in default auto mode, detects the glass size, and automatically selects either Z or N mode to clean.
-
Page 11: Product Maintenance
Cleaning Mode Z Path N path Suitable transverse glass Suitable longitudinal glass Edge Cleaning Spot Cleaning Clean around the edges Clean the current position multiple times Product Maintenance Cleaning mop Take off the cleaning rag, soak it in clean water of 20°C for 2 minutes, then gently by hand, wring out and lay flat on the machine before use. -
Page 12: Product Specifications
Bottom Assy Anti-drop sensor: Wipe it with a dry Fan assy: Wipe it with a dry cloth cloth to maintain the sensitivity to avoid damage to the suction of the sensor of the robot Notice: 1. When cleaning the rag and bottom components, please turn off the power; 2. -
Page 13: Troubleshootings
Troubleshootings Content Solution Reason The cleaning cloth is Remove the cleaning cloth and reattach it flat. The machine is stuck not installed correctly to the glass, and the blue light keeps The glass surface is Wipe out a clean area to ensure the robot adheres flashing. -
Page 14: Connect To Smart Life App
Connecting to SMART LIFE App 1. Install App Download the App by scanning the QR code on the right with your cell phone or by searching for "Smart Life" in the mobile app market and install the app. [ Fig1 ] 2.Sign-in/Login &... - Page 15 3.Add Device By clicking the middle of the screen [Add Device] or the right hand side corner [+] to add new device. Click [Add] under Discovering divices. [ Fig4 ] [ Fig5 ] 4.Connection Success Tips: If the APP cannot find the robot, please quickly press the "...
